VEVOR S3020 Manuale utente
Technical Support and E-Warranty Certificate
www.vevor.com/support
CNC ENGRAVING MACHINE
MODEL:S3020/S4040
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:S3020/S4040
S3020
S4040
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
CNC ENGRAVING
MACHINE
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
INSTALLATION STEPS
MODEL:S3020
A. Mounting Control Box
Required
Parts
NO.
Name
QTY
1
Gantry frame
1
2
Control Box
1
3
M5*6 Screws
4
Step：
As shown in Figure 1, place the control box on the gantry frame and fix it
with M5*6mm screws.
Figure 1
- 3 -
B. Mounting base
Required
Parts
NO.
Name
QTY
4
Base
1
5
Gantry frame
1
6
M5*20 Screws
8
Step：
As shown in Figure 2, place the gantry on the base and secure it with
M5*20mm screws.
Figure 2
- 4 -
C. Interface diagram
- 5 -
MODEL:S4040

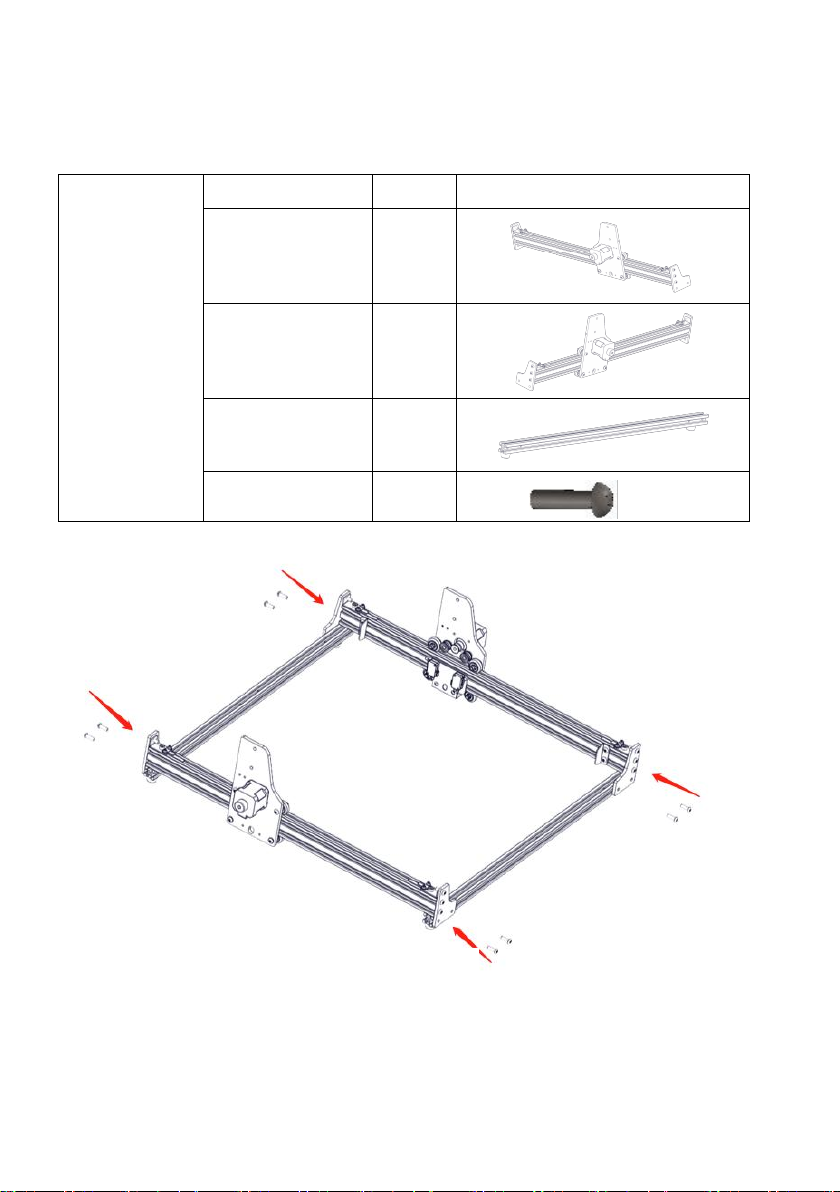

A. Mounting base
Required
Parts
Name
QTY
Right side of
the Y axis
1
Left side of Y
axis
1
Base structure
2
M5*16 Screws
8
Step：
1. The base structure and left and right Y axis are placed as shown in
Figure 1.
2. Fix it with M5*16 screws (as shown by arrow).
Figure 1
- 6 -
D. Install the panel
Required Parts
Name
QTY
Base
1
Panel
2
M5*20mm
Screws
8
Step：
1. Place the panel neatly on the base and align the screw holes.
2. Secure the panel to the base using M5*20mm screws.
Figure 2
- 7 -
E. Install the gantry
Required
Parts
Name
QTY
Gantry frame
1
M5*16 Screws
4
Step：
1. Place the gantry frame on the left and right Y axis as shown in Figure 3.
2. Secure the gantry frame to the Y axis with M5*16 screws.
Figure 3
- 8 -
F. Mounting spindle
Required Parts
Name
QTY
Motor fixture
1
Spindle motor
1
M5*55 Screws
4
Step：
1. Place the main shaft on the gantry frame as shown in Figure 4.
2. Fix the main shaft to the gantry frame with M5*55 screws.
Figure 4
- 9 -
G. Install the Y-axis fastener
Required Parts
Name
QTY
Tow chain
fastener [1]
1
Tow chain
fastener [2]
1
M4*6 Screws
4
Step：
Place the two tow chain fasteners as shown in Figure 5 and fix them with
M4*6 screws.
Figure 5
