For adjustable beds with a
VIBRADORM dual drive
V-MAT-Basic
Radio transmitter
VFF/CDL-BF-07
with Bluetooth-Technology
Operating Instructions
2
Foreword
Revision history
Version Date
1.0 0 1.04.2019
Change
First edition
In your own interest
Read these operation instructions and
keep them in a safe place. Observe the
safety instructions.
Disclaimer
We would like to point out that the
company VIBRADORM GmbH will not
assume any liability for injuries or damage
that occurs as a result of
■ non-observance of these operating
instructions,
■ changes to the product that were not
approved by VIBRADORM GmbH, or
■ the use of spare parts not
manufactured or released by
VIBRADORM GmbH, or
■ plug-in parts not manufactured or
released by VIBRADORM GmbH.
Manufacturer's address
VIBRADORM GmbH
Relystraße 38
64720 Michelstadt
GERMANY
Tel.: ++49 (0)6061 / 94 44 0
Fax: ++49 (0)6061 / 94 44 10
http://www.vibradorm.de
E-Mail: [email protected]
Foreword
3
Table of contents
Foreword 2
Revision history 2
In your own interest 2
Disclaimer 2
Manufacturer's address 2
Table of contents 3
1 General . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 How to use these instructions . . . . . . . . 4
1.2 Information about these operating
instructions. . . . . . . . . . . . . . . . . . . . . . . . 4
2 Safety instructions . . . . . . . . . . . . . . . . 4-6
2.1 Intended use. . . . . . . . . . . . . . . . . . . . . . 5
2.2 Improper use. . . . . . . . . . . . . . . . . . . . . . 5
2.3 Specific safety instructions . . . . . . . . . . 6
2.4 Information about radio operation . . . 7
2.5 Electronic medical equipment. . . . . . . 7
Remote control &
dual drive overview . . . . . . . . . . . . . . . . 8
3 Commissioning . . . . . . . . . . . . . . . . . . . . 9
3.1 Inserting the batteries . . . . . . . . . . . . . . 9
3.2 Teach-in process . . . . . . . . . . . . . . . . . . 9
3.3 Teach-in of a second
dual drive (optional) . . . . . . . . . . . . . . 10
4 Operation . . . . . . . . . . . . . . . . . . . . . . . 12
5 Reset to factory settings . . . . . . . . . . . 14
6 Malfunctions / troubleshooting . . . . . 15
7 Technical data . . . . . . . . . . . . . . . . . . . 15
8 Maintenance and cleaning . . . . . . . . 15
9 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . 16
10 Attachment . . . . . . . . . . . . . . . . . . . . . 17
10.1 Operation via a smartphone
or tablet PC . . . . . . . . . . . . . . . . . . . . . 17
Table of contents
4
1 General
1.1 How to use these instructions
Symbols used
Indicates about a dangerous situation;
potential consequences: death or
serious injury.
Potentially dangerous situation;
potential consequences: slight or
minor injuries.
General information;
Information that is important for the
function or operation, or that will
facilitate operation or assembly.
1.2 Information about these
operating instructions
These operating instructions serve the
successful and safe use of the radio
transmitter VFF/CDL-BF-07.
The operating instructions will help you
to avoid dangers, and minimise repairs
and failures.
These operating instructions were
compiled with great care. No liability
will be assumed for the accuracy and
completeness of the data, images or
drawings, unless prescribed by law.
Subject to technical amendments that
serve continuous product improve-
ment without prior announcement!
2 Safety instructions
The radio transmitter VFF/CDL-BF-07
can be used by children aged 8 and
upwards and by persons with limited
physical, sensory or mental aptitude or
lack of experience and/or knowledge if
they are supervised or have received
instruction from a person responsible for
their safety as to how the radio
General
Warning
Caution
5
Safety instructions
transmitter is used and the associated
risks.
Children may not play with the radio
transmitter.
Children may not clean or service the
device without supervision.
2.1 Intended usage
The radio transmitter VFF/CDL-BF-07 is
designed for:
• operating VIBRADORM dual drives.
• use within the home
The radio transmitter VFF/CDL-BF-07 is
only designed for the designated
purpose. Any other use is deemed
improper and can lead to accidents
or the destruction of the device.
This will lead to immediate invalidation
of the warranty and any warranty
claims by the end user with respect to
the manufacturer.
2.2 Improper usage
Please observe the following
information about improper usage.
The radio transmitter VFF/CDL-BF-07
may not be used
• with a medical product or installed
in a medical product,
• in an environment in which there
are inflammable or explosive gases
or vapours (e.g. anaesthetics),
• in damp environments,
• outdoors,
• in applications that are washed in
mechanical washing systems,
• for lifting and lowering of loads, in
craftsman or industrial areas or in
the household.
Caution
Warning
6
Safety instructions
2.3 Specific safety instructions
The following safety instructions serve
to protect you, third parties and the
equipment, and must therefore be
adhered to strictly.
Operating environment
• The radio transmitter may not come
into direct contact with damp or
water. The radio transmitter is only
suitable for dry indoor rooms.
• When switching from cold to warm
environments, allow the radio
transmitter time to adjust to the
ambient temperature for a few hours
before use, otherwise it may suffer
damage as a result of
condensation.
• Never use the radio transmitter close
to devices that emit strong
electromagnetic fields. This could
impact on its function.
• Also avoid environments exposed to
direct sunlight, high temperatures,
cold, damp or wet.
The device
• Check first whether the housing is
damaged. If this is the case, do not
use the radio transmitter but contact
the supplier for a replacement.
• For safety reasons, it is prohibited to
make any unauthorised changes to
the radio transmitter. Do not open
the housing of the radio transmitter,
except to change the batteries,
otherwise the warranty will become
void.
Operation
• The radio transmitter only functions
correctly if it is commissioned and
used properly.
• To avoid injury, never allow children
or other vulnerable persons to use
the radio transmitter unsupervised.
• Radio signals can pass through walls
and ceilings!. Only use the radio
transmitter in the room in which the
adjustable bed is located!
Caution
7
Safety instructions
2.4 Information about radio
operation
Please note that the transmitter range
depends on the local conditions. It
may impact on other devices
operated by radio, for instance
WLANs, cordless phones or microwave
ovens.
Transmission / receiving frequency:
2.4GHz ISM band.
Devices according to the standard of
the Bluetooth SIG transmit as Short
Range Devices (SRD) in a license-free
ISM band (Industrial, Scientific and
Medical band) between 2.402 GHz
and 2.480 GHz.
2.5 Electronic medical equipment
This product is designed and
manufactured according to the
Standard DIN EN 60335-1 (Safety of
Household and similar Electrical
Appliances) and carries the CE mark.
If you use a Medical Device such as
pacemaker you may wish to contact
your specialist to answer any questions.
8

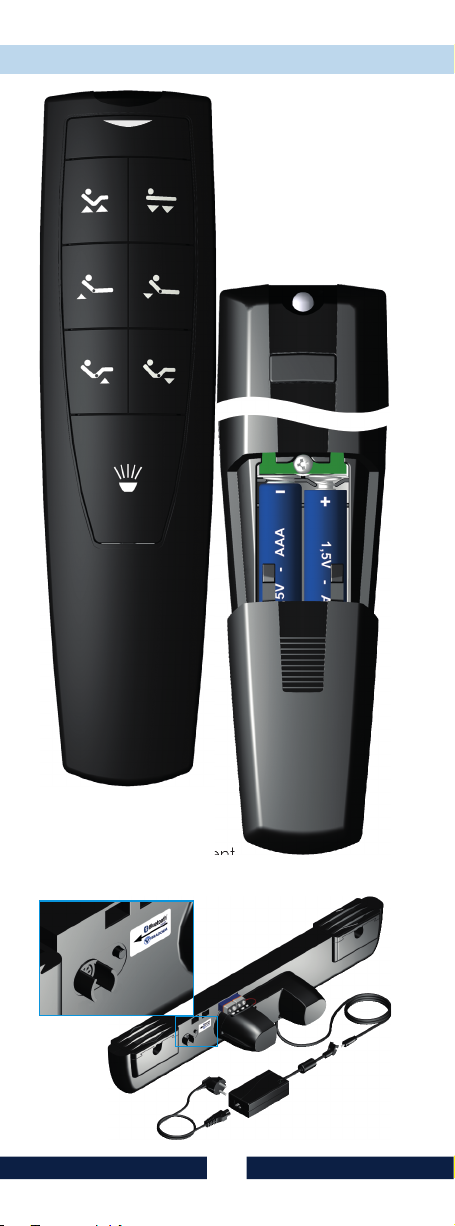

Remote control & dual drive overview
111222
333444
555666
777
sss
ttt
s Status LED
1 All drives up
2 All drives down
3 Back drive up
4 Back drive down
5 Leg drive up
6 Leg drive down
7 Torch LED on/off
t Torch LED
b Battery compartment
l Teach-in button
lll
bbb
9
Commissioning
3 Commissioning

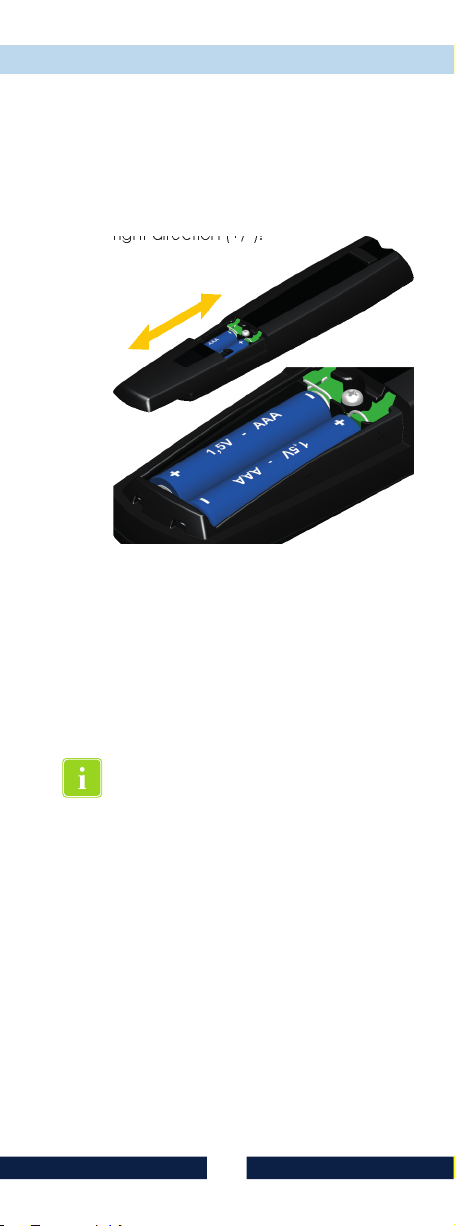

3.1 Inserting the batteries
Insert the supplied batteries (2x 1,5V
AAA LR03) into the battery compart-
ment as shown in the picture. Ensure
that the batteries are inserted in the
right direction (+/-)!
Once the batteries have been inser-
ted, close the battery compartment
lid again and the radio transmitter is
operational.
3.2 Teach-in process
A teach-in process must be carried
out to enable the radio transmitter
and the dual drive V-MAT-Basic to
communicate with each other.
This teach-in process is normally
carried out by the manufacturer and
you can skip this step.
After the batteries inserted, have been
the Status LED and the Keypad illu-s
mination are flashing.
• Briefly press any button.
• The status LED and the keypad s
illumination flash alternately.
• Press button on the dual drive for l
approx. 1 s.
• The back adjustment motor moves
briefly up/down.
• The status LED goes off, the s
keypad illumination lights up
constantly.
• The teach-in process has been
completed successfully.
10
3.3 Teach-in of a second dual
drive (optional)
The radio transmitter VFF/CDL-BF-07
can operate two dual drives
simultaneously (Parallel function).
For this purpose, a teach-in process for
the second dual drive must be carried
out.
After you carried out the teach-in
process for the first dual drive (see
page 9), you carry out the same
process for the second dual drive:
• Press the buttons and on the 1 2
radio transmitter at the same time
and keep them pressed for approx.
3 seconds until the status LED s starts
flashing.
• Release the buttons now.
• The status LED and the keypad s
illumination flash alternately.
• Press button on the second dual l
drive for approx. 1 s.
• The back adjustment motor moves
briefly up/down.
• The status LED goes off, the s
keypad illumination lights up
constantly.
• The teach-in process has been
completed successfully.
This function can only be switched off
by resetting the radio transmitter to its
factory settings (see page 9).
The parallel function will not
synchronize the drives, they will just
move simultaneously. Depending on
the load of each drive, over time there
might show differences of the tilt
angles of the back and leg motors.
In this case use button to move all 1
drives completely up. After that the
motors should move parallel again.
Commissioning
