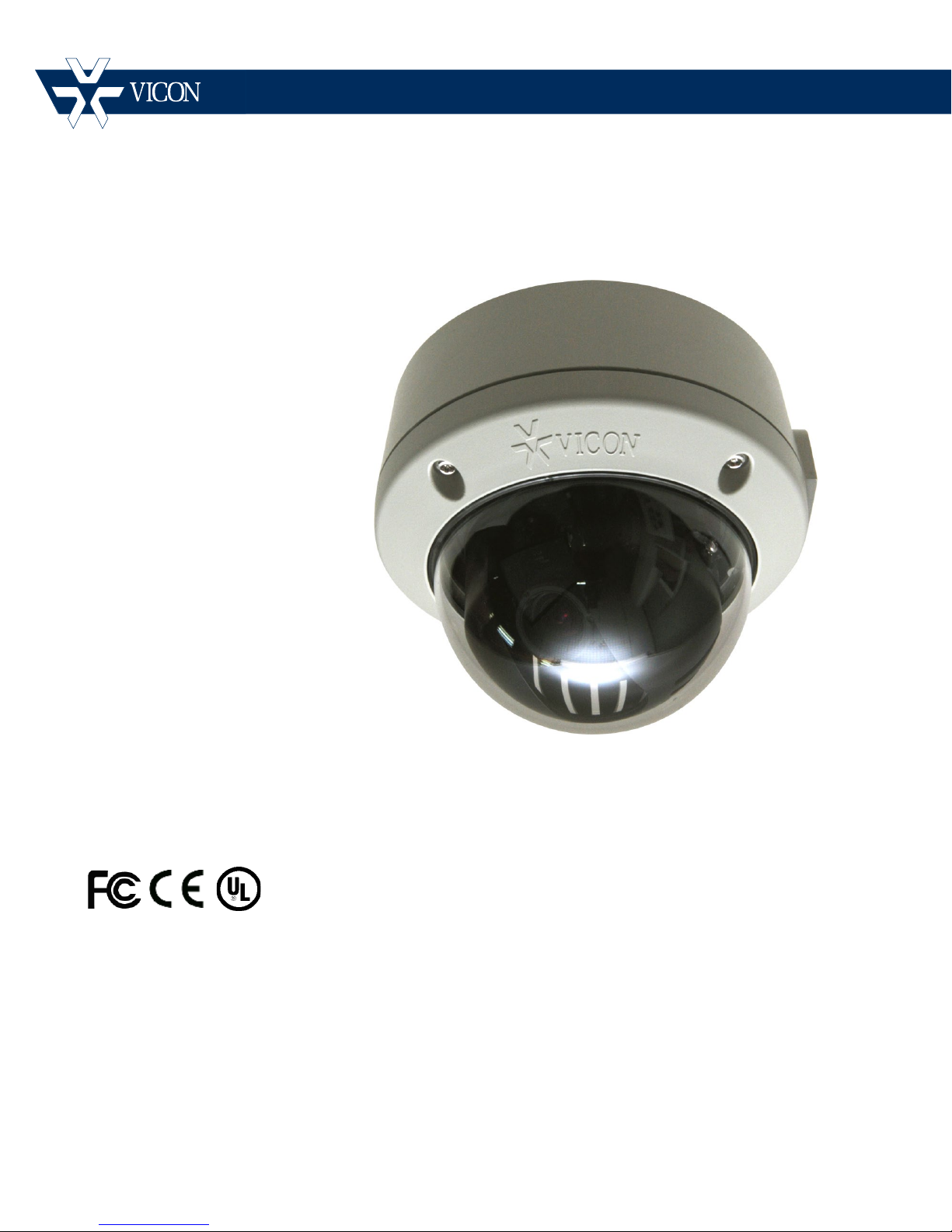

Roughneck® V920D Series

Camera Domes

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the

operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed

to be used in life-critical situations and must not be used for this purpose.

Vicon Industries Inc.

Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Document Number: 8009-8258-20-06

Product specications subject to change without notice.

Issued: 314

Quick Guide

V920D Series Quick Installation Guide

1. Description

The information in this manual provides quick installation and setup procedures for the Roughneck®

V920D Series of Camera Domes. These units should only be installed by a qualified technician using

approved materials in conformance with federal, state, and local codes. Read these instructions

thoroughly before beginning an installation. Always refer to Vicon’s website to assure you have the

most up-to-date manual, www.vicon-security.com.

The V920D Series of HD IP Camera Domes is designed for demanding security installations. It offers a

number of fixed network camera versions that deliver crisp clear images to fit any installation need;

models with IR illuminators are available. The V920D cameras are fully compatible with all ViconNet®

systems; its ONVIF certification provides an open-platform for integration into other video

management systems.

The housing is designed for easy installation. PoE eliminates the need for power cables, providing a

cost-effective method of installation. The V920D features an autoiris lens that adapts to changing

outdoor lighting; the true day/night camera includes a removable IR cut filter. The camera dome is

IP66 rated with a vandal-proof casing that withstands rain, dust and vandalism. It provides 3-axis

adjustment. The alarm input and alarm output can be used to connect various third party devices,

such as door sensors and alarm bells.

• Installation Steps

Follow these steps to install the network camera on your local network (LAN):

1. Check the package contents against the list below.

2. Connect the network camera.

3. Set an IP address.

4. Set the password.

V920D Series Quick Installation Guide

• Package Component

The system comes with the following components:

Camera unit Installation CD Installation Guide Template Sheet Accessory Kit

Optional OSD Controller

Check your package to make sure that you received the complete system, including all components

shown above.

Note: The optional V920D-OSD OSD Controller and V920D-AUDIO audio cable assembly can be

purchased separately.

• Contents in the installation CD

1. The V920D User’s Manual

2. The SmartManager User’s Manual

3. The SmartManager Installation software

Note: Check your package to make sure that you received the complete system, including all

components shown above.

V920D Series Quick Installation Guide

Quick Installation

For complete detailed instructions on how to install the V920D, read the Installation section.

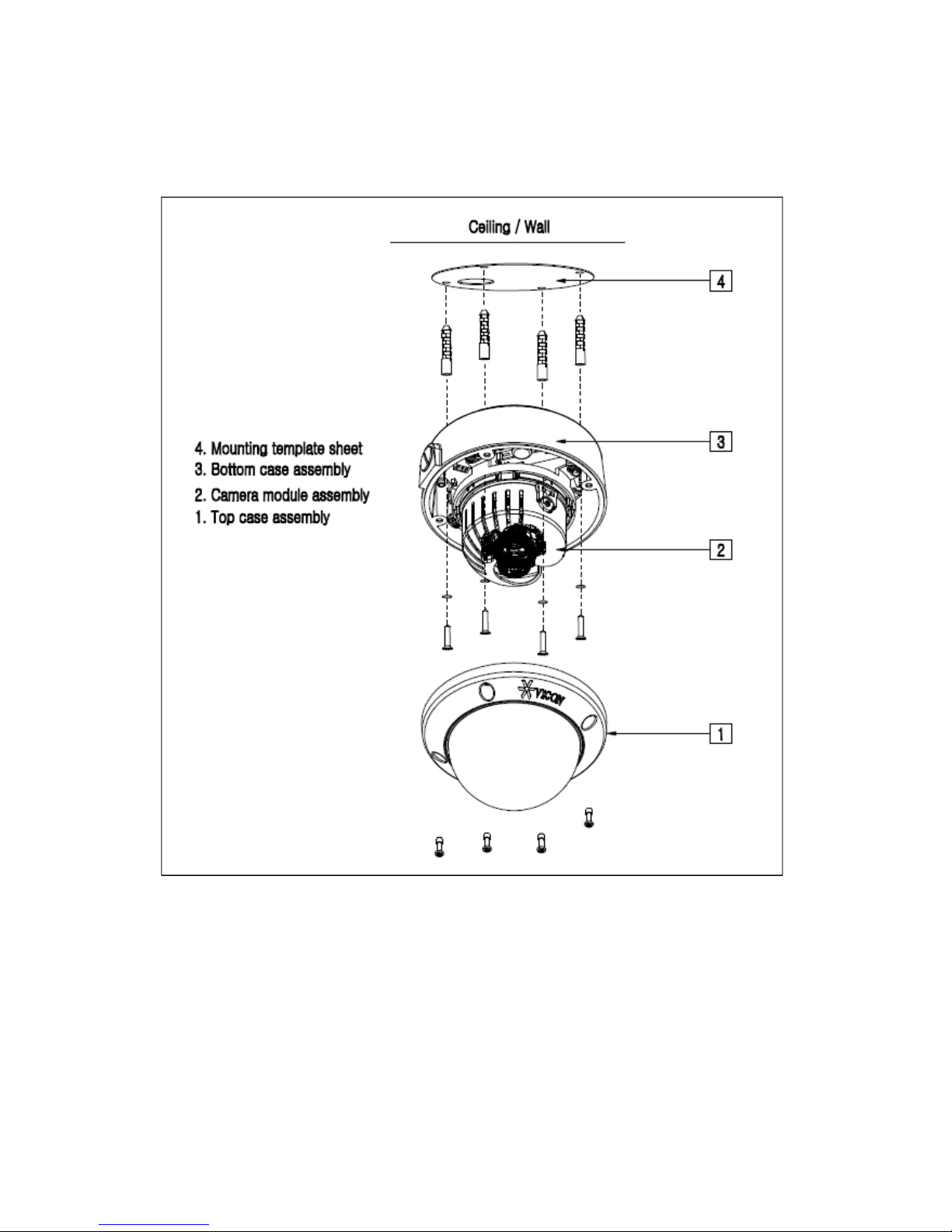

Installation Diagram

V920D Series Quick Installation Guide

2. Installation

The V920D mounts directly to a ceiling or wall using four mounting holes. As a mounting alternative,

the mounting holes align with a standard 4 x 4 electrical box (use V910/V600W-PLATE adapter plate

for a clean appearance).

There is an accessory kit included with the Roughneck V920D. The table below lists the contents.

Description Quantity

Torx wrench (to remove tamperproof screws)

Pipe sealant tape (to seal pipe fitting to housing)

Screws, anchors and rubber washers (for some

appropriate installations)

4 of each

Vent plug (for outdoor installations)

Terminal blocks, 3-pin (24 VAC power); 4-pin (alarm

output); 2-pin (RS-485; UTP option)

1, 1, 2

Cable access plug (black; for rear hole)

Cable access plug and tool (threaded; for side hole)

1 of each

Grommet (for routing cable; rear hole)

•Loosen the four (4) Torx screws securing the cover; allow the cover to hang.

•Mark the location of the four (4) mounting holes using the drilling guide.

•Two (2) cable access holes are provided, one on the side and one on the rear. Drill a hole and

route cables to the selected location and through one of the cable access holes.

•If using the rear cable access hole, insert the vent plug provided in the side cable access hole.

If the side cable access hole is used, insert a Street Tee into the cable access hole. Refer to

Notes below. Route the conduit through the top hole and insert the vent plug provided into

the bottom hole. Refer to Figure below for installation options. Sealant tape is provided for the

plug and Street Tee. Insert the black plug provided into the rear cable access hole if the side

access hole is being used; if the rear cable access hole is being used, insert the provided plug

into the side cable access hole and tighten with tool provided.

Note: Failure to thoroughly coat threads will result in moisture entering the housing and eventual

failure of the unit.

Note: For outdoor installations, Vicon recommends that the vent plug should only be used if

fogging conditions exist. Additionally, if the side cable access hole is used, the base must be

mounted so the hole is pointed directly downward.

V920D Series Quick Installation Guide

2.1 Connection

For the operation of the network camera, it is necessary to connect a network cable for data

transmission (IP version) and power connection from customer-supplied power adapter. Depending on

operation methods, it is possible to additionally connect an alarm cable. Refer to the full User's manual.

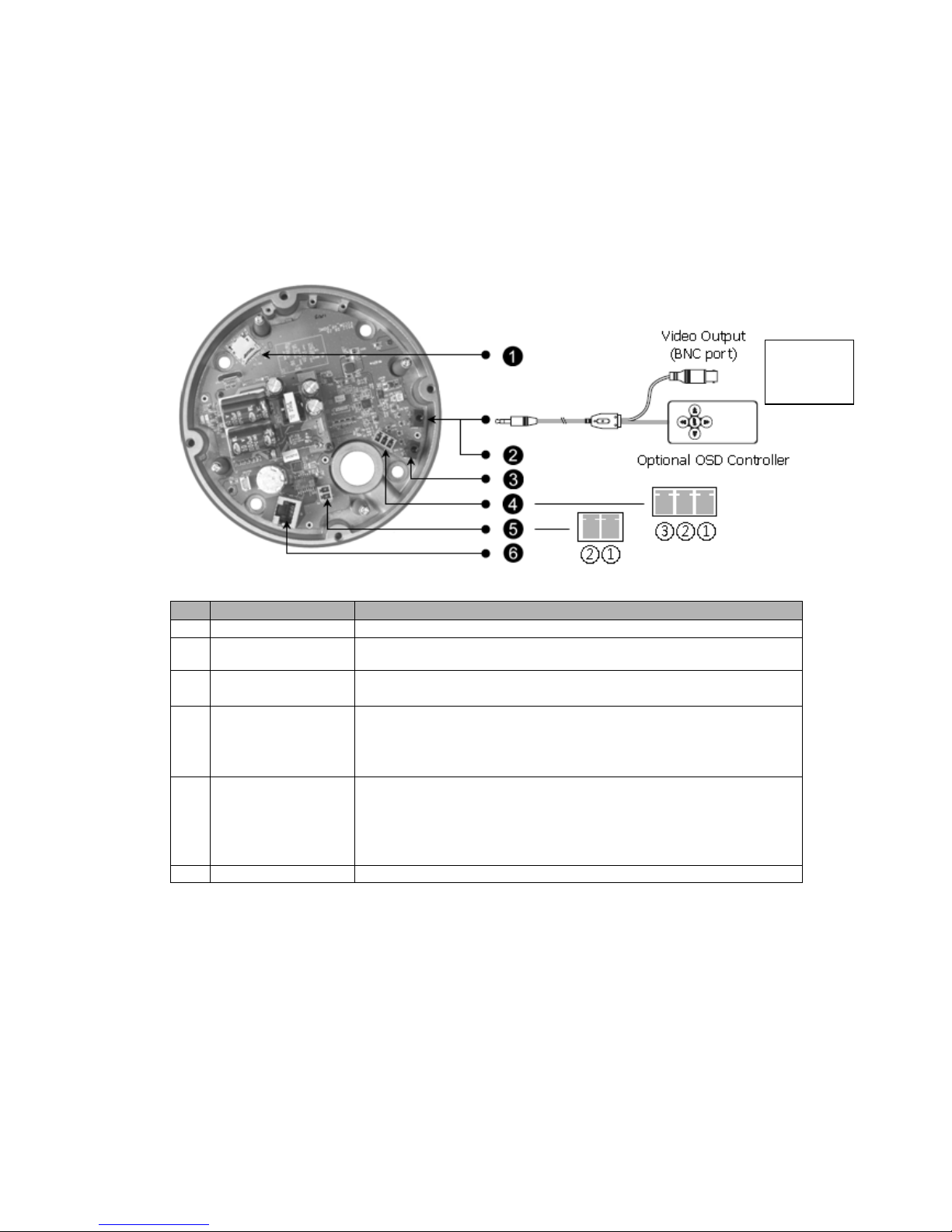

Connection Description

Connector Name

Description

Micro-SD Slot

Micro-SD memory slot

2 Service Monitor Port

Service Monitor (set to NTSC by default ; change video format from Source

menu) & OSD Controller Communication Port, Mono Jack

3 Audio In & Out Port Audio Input and Output, Mono Jack.

V920D-AUDIO cable assembly is available as an option.

4 Alarm In & Out Port

Alarm Input and Output, 3 pin terminal.

Pin 1: Alarm In

Pin 2: GND

Pin 3: Alarm Out

5 Main Power

Main Power, 2 pin terminal,

12 VDC: 470 mA (5.4 W), 24 VAC: 520 mA (6.5 W) IR on, without heater,

12 VDC: 900 mA (10 W), 24 VAC:900 mA (11.8 W) with IR and

heater

Pin 1: 12 VDC/24 VAC, Pin 2: GND/24 VAC

RJ-45 Port

Ethernet, RJ-45 port compatible with 10/100Mbps having PoE functionality.

Micro SD memory slot on the Board

Card Slot for Micro SD memory: Socket “J15”

• Connecting to the RJ-45

Connect a standard RJ-45 cable to the network port of the network camera. Generally a

cross-over cable is used for directly connection to PC, while a direct cable is used for connection

to a hub.

A router featuring PoE (Power over Ethernet) can also be used to supply power to the camera.

• Connecting Alarms

AI (Alarm In):

Set to

NTSC by

default)

V920D Series Quick Installation Guide

External devices can be used to signal the network camera to react on events. Mechanical or

electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors.

G (Ground):

Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector.

Alarm Out:

The network camera can activate external devices such as buzzers or lights. Connect the device

to the AO (Alarm Out) and G (Ground) connectors.

Connecting Audio

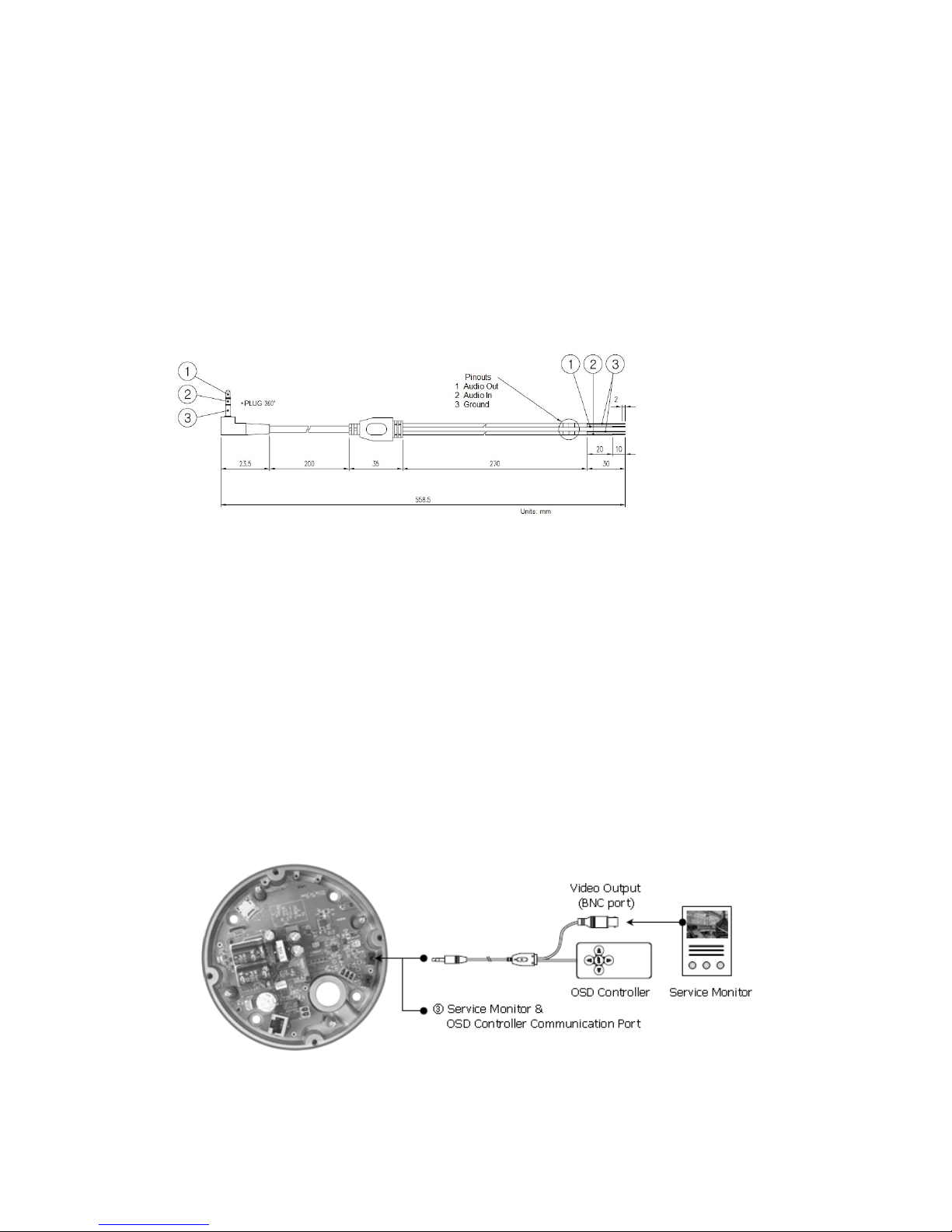

Use the optional V920D-AUDIO cable assembly for ease of audio connections. The cables are labeled for

Audio In and Audio Out. Refer to diagram below.

Audio Out: Connect wire 1 and ground to speakers.

Audio In: Connect wire 2 and ground to microphone.

• Connecting the Power

Connect the power of 12 VDC or 24 VAC for the network camera. Connect the positive (+) pole to

the ‘+’ position and the negative (-) pole to the ‘-’ position for the DC power.

Be careful not to reverse the polarity when connecting the power cable.

A router featuring PoE (Power over Ethernet) can also be used to supply power to the

camera.

The heater can be powered by a 24VAC, 12VDC, POE power source.

For the power specifications, refer to the Appendix, Product Specification.

If PoE and 12 VDC are both applied, the camera will be supplied with power from PoE.

• Connecting Service Monitor Port

Service monitor output port (J7) is located on the board of the dome camera, and is used for an

easy OSD setup.

V920D Series Quick Installation Guide

▶ID & IP assignment

To make changes in the OSD menu, use the OSD controller (provided optionally). You can set

Camera Title and IP Address.

1. Connect the OSD Controller to the Service Monitor port of the network camera.

2. Connect Service Monitor and the Video Output port of the OSD Controller.

3. Press the SET key to access Main menu.

4. Change Camera ID, and IP Address. You can change the Name or Title and IP address of the

camera. Using the ↑↓←→ buttons on the controller, change the parameters.

5. Select SAVE or CANCEL to exit the Main Menu.

Video Output is used for an easy zoom and focus control when installing lens. Video Output is

restricted to 704x480 (576) resolution.

▶Zoom & Focus Control (Models with motorized lens only)

The camera enters Zoom and Focus control mode as soon as connecting OSD Controller to the

Service Monitor port.

-. Zoom Control: ↑(Zoom In), ↓(Zoom Out)

-. Focus Control: ←(Focus Near), →(Focus Far)

-. Fine Focus: Press and hold the SET button for at least 2 seconds. The camera readjusts

focus automatically.

Note: The optional V920D-OSD OSD Controller can be purchased separately.

Heater

Power Supply

12 VDC

Power Consumption

3.5 Watt

Heater On

at 59°F (15°C)

Heater Off

at 77°F (25°C)

2.2 Network Connection and IP assignment

The network camera is designed for use on an Ethernet network and requires an IP address for

access. Most networks today have a DHCP server that automatically assigns IP addresses to

connected devices. By the factory default, your camera is set to obtain the IP address automatically

via DHCP server. If your network does not have a DHCP server the network camera will use

192.168.1.100 as the default IP address.

V920D Series Quick Installation Guide

If DHCP is enabled and the product cannot be accessed, run the “Smart Manager” utility on the CD to

search and allocate an IP address to your products, or reset the product to the factory default settings

and then perform the installation again.

1. Connect the network camera/device to the network and power up.

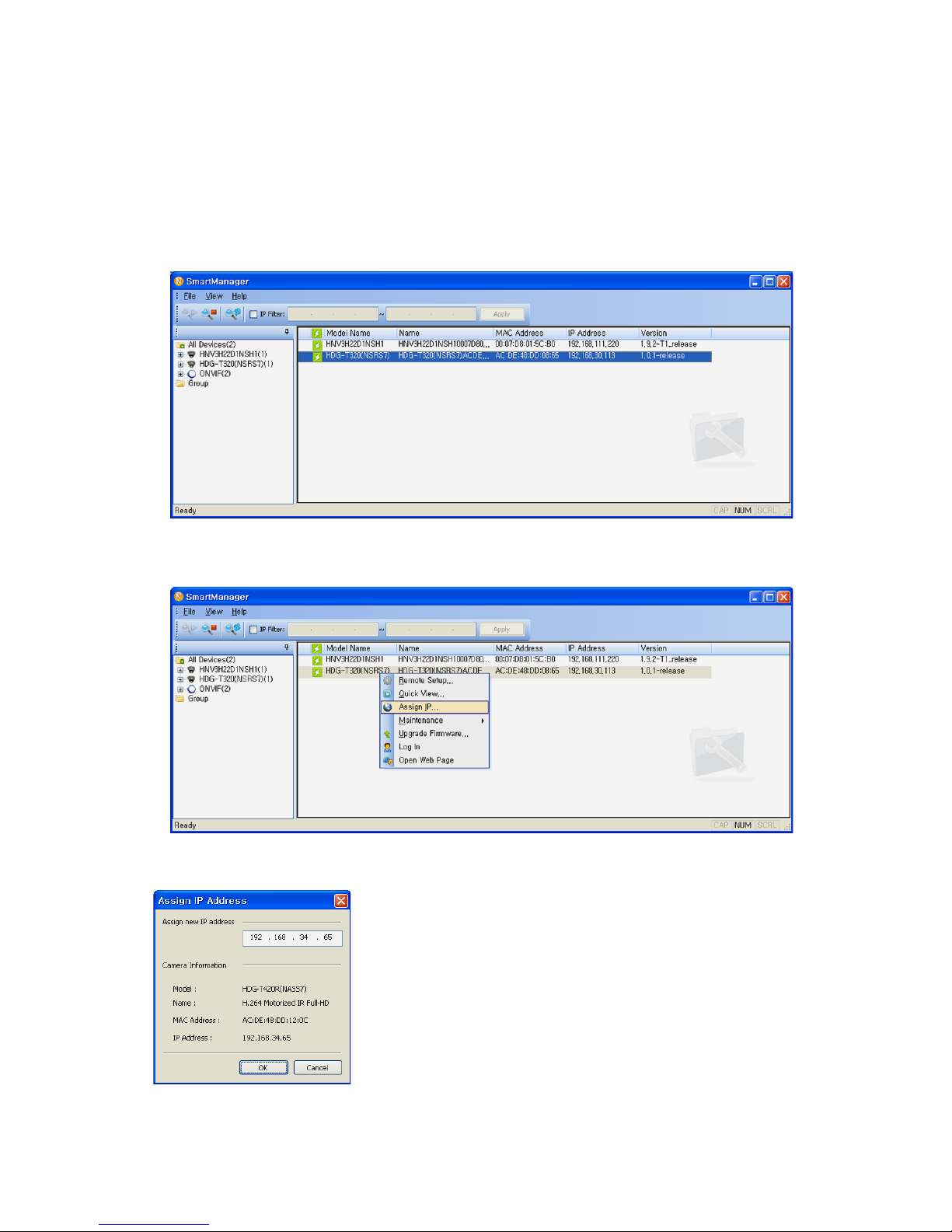

2. Start SmartManager utility (All Programs>SmartManager>SmartManager), the main window will

be displayed, after a short while any network devices connected to the network will be displayed

in the list.

3. Select the camera on the list and click right button of the mouse. The pop-up menu displays as

below.

4. Select Assign IP. The Assign IP window displays.

Note: For more information, refer to the Smart Manger User’s

Manual.

V920D Series Quick Installation Guide

3. Operation

The network camera can be used with Windows operating system and browsers. The recommended

browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google® Chrome® with Windows.

Note: Some screens may appear different (i.e., color scheme) depending on the firmware version, but

the functionality is the same or similar.

3.1 Access from a browser

1. Start a browser (i.e., Internet Explorer).

2. Enter the IP address or host name of the network camera (the camera name as it appears in the

ViconNet site list) in the Location/Address field of your browser.

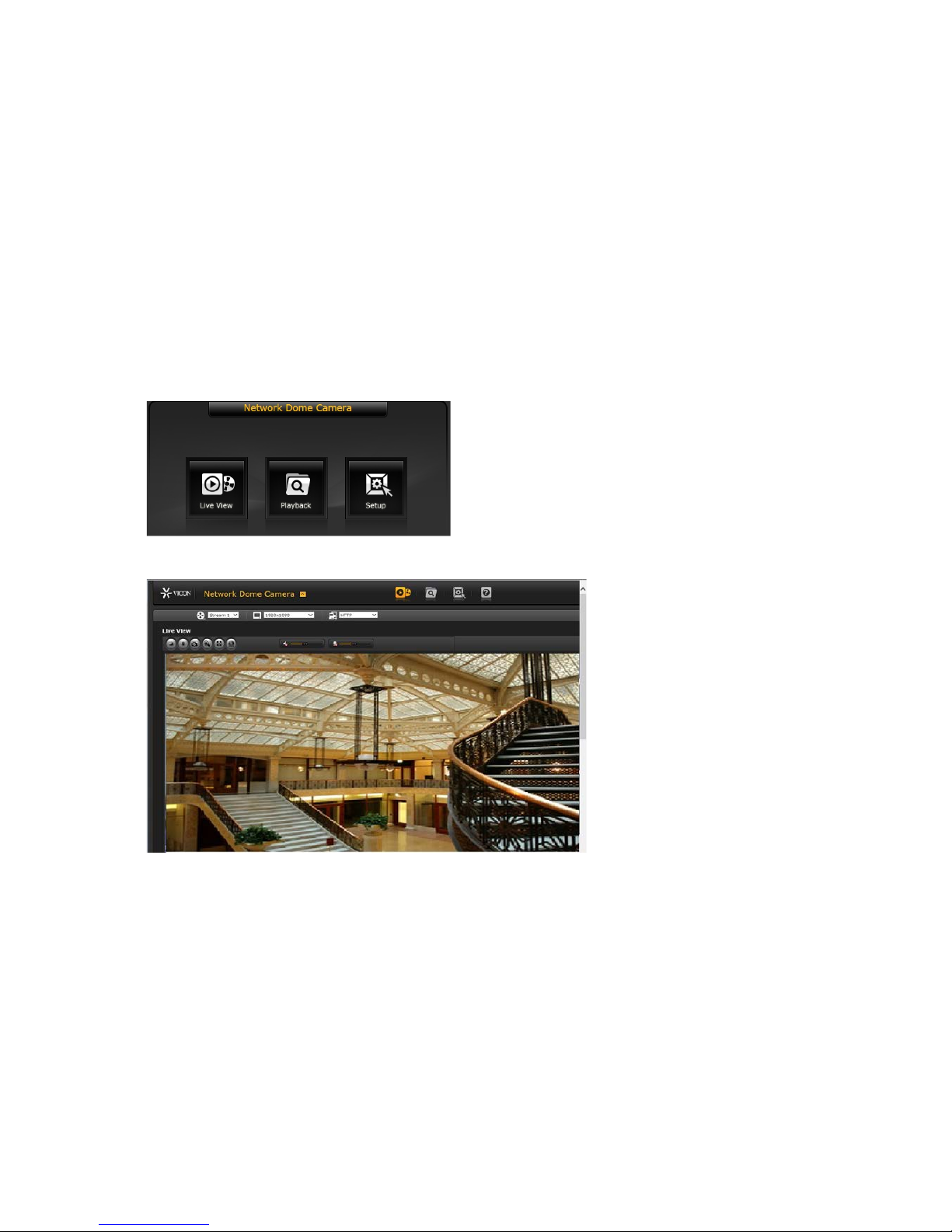

3. A starting page displays. Click Live View or Setup to enter web page.

4. Click Live View for the network camera’s Live View page to appear in the browser.

3.2. Access from the internet

Once connected, the network camera is accessible on your local network (LAN). To access the

network camera from the Internet you must configure your broadband router to allow incoming data

traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to

automatically configure the router to allow access to the network camera. This is enabled from Setup

> System > Network > NAT.

For more information, refer to “3.5.5 System>Network>NAT” of User’s Manual.

Altri manuali per Roughneck V920D Series

Indice

Altri manuali Vicon Telecamera di sicurezza

Vicon

Vicon V840D Series Manuale utente

Vicon

Vicon I-Onyx MPD-955 Manuale utente

Vicon

Vicon V960-N Series Manuale utente

Vicon

Vicon V960D-N312 Manuale di istruzioni

Vicon

Vicon V1008-WIR-180-1 Manuale utente

Vicon

Vicon ROUGHNECK V910 Manuale utente

Vicon

Vicon V672V-1 Istruzioni operative

Vicon

Vicon V1020-WIR-180-1 Manuale utente

Vicon

Vicon V661-N-1 Series Istruzioni operative

Vicon

Vicon XX264-20-00 Manuale utente

Vicon

Vicon SN240D Manuale utente

Vicon

Vicon VC-700WDR Manuale utente

Vicon

Vicon SurveyorVF SVFT-M Manuale utente

Vicon

Vicon Surveyor MKII Series XX282-00-01 Manuale utente

Vicon

Vicon SURVEYOR4A Manuale utente

Vicon

Vicon V9317H Series Manuale utente

Vicon

Vicon 240-60 Series Manuale utente

Vicon

Vicon Cruiser SN663V Istruzioni operative

Vicon

Vicon Roughneck Pro V2000B Series Manuale utente

Vicon

Vicon V898MSH Guida utente

Vicon

Vicon SurveyorVFT Manuale utente

Vicon

Vicon Roughneck V920D Series Manuale utente

Vicon

Vicon G-Cam/EFD-3266 Manuale utente

Vicon

Vicon V810B Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente

Lumens

Lumens VC-A50PNW Manuale utente
