Vicon V9360W Manuale utente

www.vicon-security.com

XX263-30-01

V9360W Outdoor

Network Hemispheric Camera

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the

operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed

to be used in life-critical situations and must not be used for this purpose.

Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788

Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Document Number: 8009-8263-30-01

Product specications subject to change without notice.

Issued: 613

Installation Guide

V9360W Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Table of Contents

Precautions 3

1. Introduction 6

Package Contents.............................................................................6

Features and Benefits .......................... Error! Bookmark not defined.

Safety Instructions ............................... Error! Bookmark not defined.

Physical description.........................................................................7

2. Installation Procedure 10

Connecting the IP Hemispheric Camera.......................................10

1) Remove the cover ..............................................................10

2) Insert the cable...................................................................10

3) Connect cables to connectors............................................10

How to Do the Waterproof Installation.......................................... 11

3. Accessing Camera 14

If you have DHCP server / router in your network:......................14

If you do NOT have DHCP server / router in your network: ........14

V9360W Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Precautions

Read these instructions

Read all the safety and operating instructions before using this product.

Heed all warnings

Adhere to all the warnings on the product and in the instruction manual. Failure to follow the

safety instruction given may directly endanger people, cause damage to the system or to other

equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Inform your local

office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

FCC/CE Regulation

NOTE: This equipment has been tested and found to comply with the limits for a Class Adigital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the users will be required to correct the

interference at their own expense.

V9360W Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Safety Instructions

Don’t use the power supply with other voltages

This device is likely to be damaged or damage other equipments/personnel, if you use a power

supply with different voltage than the one included with this device. All warranty of this product

will be voided if this occurs.

Don’t open the housing of the product

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may

cause hazards.

Water and Moisture

Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool and the like.

Don’t use accessories not recommended by the manufacturer

Only install this device and the power supply in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself, as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

V9360W Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to

qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in

this manual. Adjust only those controls that are covered by the instruction manual, as an

improper adjustment of other controls may result in damage, and will often require

extensive work by a qualified technician to restore the video product to its normal

operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

V9360W Hemispheric Camera with Advanced WDR

Hardware User’s Manual

1.Introduction

Package Contents

H.264 4-Megapixel IP D/N Outdoor

Hemispheric Camera with Advanced WDR QIG

Terminal Blocks for Power, DI/O, Audio Accessories

Drill Template

V9360W Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Physical Description

12 VDC Power Input Audio Input/Output

Ethernet Port Digital Input/Output

Reset Button Micro SDHC Card Slot

Power Button

1) 12 VDC Power Input

Connect DC power source to the terminal block. The wire with white dashed lines is the live

wire, which should connect to the 12 V pin.

PIN NAME DESCRIPTION

1 E-Ground Chassis Ground

2 GND DC Power Input

3 12 V

V9360W Hemispheric Camera with Advanced WDR

Hardware User’s Manual

2) Ethernet Port

The IP device connects to the Ethernet via a standard RJ-45 connector. Supporting NWAY, this

IP device can auto detect the speed of local network segment (10Base-T/100Base-TX

Ethernet).

3) Reset Button

Step 1: Switch off IP device by disconnecting the power cable

Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.)

Step 3: Reconnect the power cable while continuing to hold the reset button. The red

Power LED light will flash on for 3 second first, turn off for about 15 seconds, flash on for

another second and turn off again. By this time the reset to default operation is already

completed. This will take around 20 seconds from power up (this length of time fluctuates

slightly with the environment). You may then release the Reset Button. The Power LED light

will come back on and stay on after a few more seconds. The unit will start up with factory

default settings automatically.

On (3s) On

Power On

About 20 Seconds

Stay On

Off (about 15s) Off (10~15s)

Restore to Default

Complete

4) Power Button

Press the Power Button and the camera will reboot automatically.

5) Audio Input/Output

The IP device supports audio input and output via terminal block.

6) Digital Input/Output

Used in applications like motion detection, event triggering, time lapse recording, alarm

notifications, etc., the I/O terminal connector provides the interface to:

- Digital output (2) - For connecting external devices such as relays and LEDs. Connected

devices can be activated by Output buttons on the Live View page or through video

management software. Connect Pin 2 with Pin 4 or Pin 6 with Pin 8.

V9360W Hemispheric Camera with Advanced WDR

Hardware User’s Manual

-Digital Input (2) - An alarm input for connecting devices that can toggle between an open

and closed circuit, for example: PIRs, door/window contacts, glass break detectors, etc. The

device will detect the change in digital input and transmit the signal to video surveillance

servers.

Pin 1 GND Ground. Connect with Pin 3 for DI control loop.

Pin 2 12 V Provides power to external devices with a

maximum current of 100 mA.

Voltage: 12 VDC,

Max: 1.2 W

Pin 3 Digital Input 1 Connect to GND (Pin 1) to activate or leave

floating (unconnected) to deactivate.

Must not be exposed

to voltages greater

than 30 VDC.

Pin 4 Digital

Output 1

Connect to Pin 2 through external devices for

DO loop. If used with an external relay, a diode

must be connected in parallel with the load for

protection against transient voltages.

Max load = <100 mA

Max voltage = 24 VDC

(to the transistor)

Pin 5 GND Ground. Connect with Pin 7 for DI control loop.

Pin 6 12 V Provides power to external devices with a

maximum current of 100 mA.

Voltage: 12 VDC,

Max: 1.2 W

Pin 7 Digital Input 2 Connect to GND (Pin 5) to activate or leave

floating (unconnected) to deactivate.

Must not be exposed

to voltages greater

than 30 VDC.

Pin 8 Digital

Output 2

Connect to Pin 6 through external devices for

DO loop. If used with an external relay, a diode

must be connected in parallel with the load for

protection against transient voltages.

Max load = <100 mA

Max voltage = 24 VDC

(to the transistor)

Connect input/output devices to the camera as follows:

1. Attach the cables for the device securely to the supplied green connector block.

2. Once cables are connected, push connector block into the terminal connector on camera.

Digital Input/Output Connector

7) Micro SDHC Card Slot*

Insert a Micro SDHC card (*customer supplied) for local recording on camera.

V9360W Hemispheric Camera with Advanced WDR

Hardware User’s Manual

2.Installation Procedure

Connecting the IP Hemispheric Camera

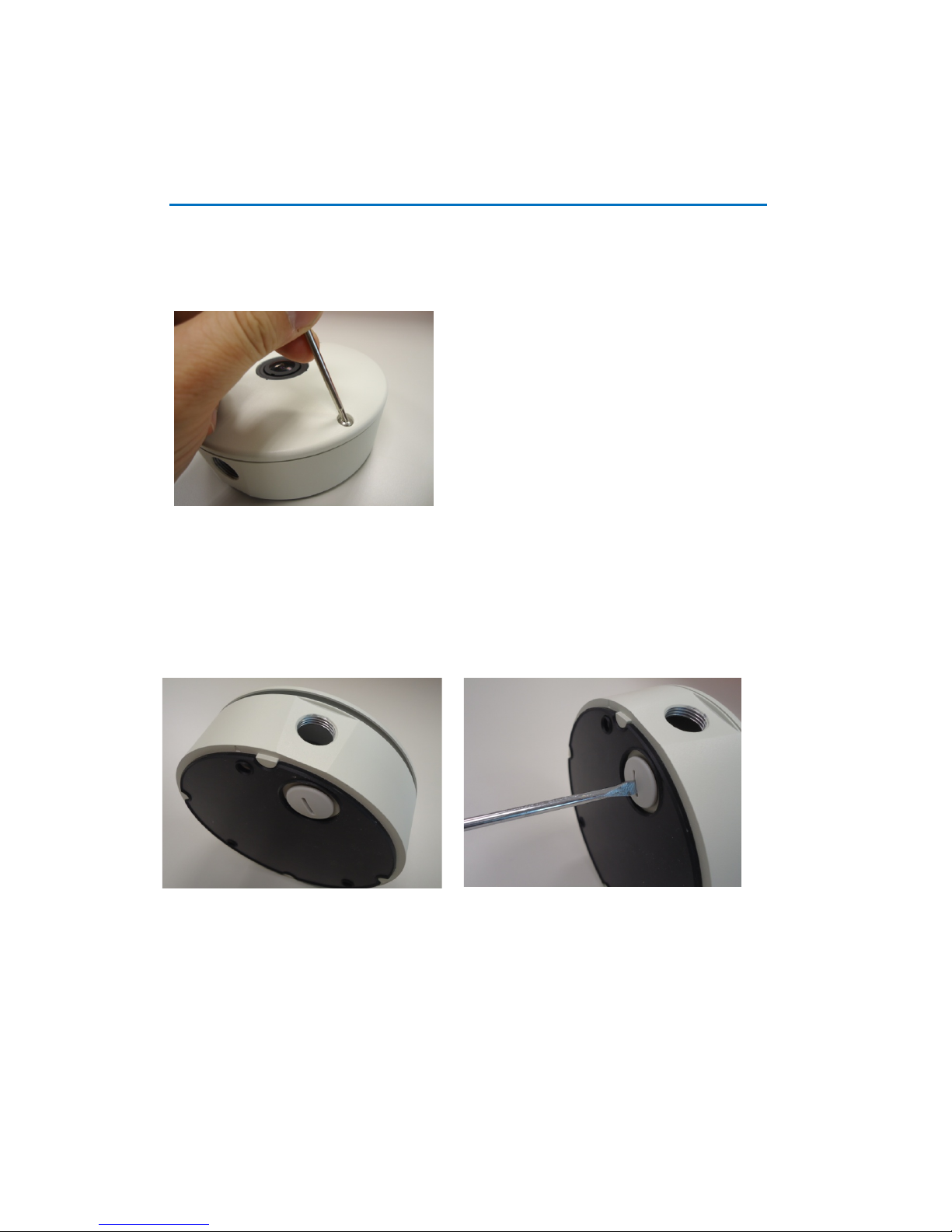

1) Remove the cover

Remove the dome cover with special hex wrench provided in the accessory kit.

2) Insert the cable

There are two conduit holes on the hemispheric camera, one on the bottom and the other on

the side. Remove the plug if the cable will be routed through the hole on the bottom of the

hemispheric camera. Route the necessary cables to the installation site.

3) Connect cables to connectors

Follow the instructions in the Physical Description section for how to connect each connector.
