Vicon SN680D-WNIR Manuale utente

www.vicon-security.com

XX270-20-00

SN680D-WNIR Network

PTZ Dome

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the

operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed

to be used in life-critical situations and must not be used for this purpose.

Vicon Industries Inc.

Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Document Number: 8009-8270-20-00

Product specications subject to change without notice.

Issued: 714

Quick Guide

SN680D-WNIR Quick Installation Guide

1. Description

The information in this manual provides quick installation and setup procedures for the SN680D-

WNIR of Camera Dome. This unit should only be installed by a qualified technician using

approved materials in conformance with federal, state, and local codes. Read these instructions

thoroughly before beginning an installation. Always refer to Vicon’s website to assure you have

the most up-to-date manual, www.vicon-security.com.

Vicon’s SN680D HD Network Dome Camera is designed for performance in the most demanding

security installations. The 1080P megapixel pan, tilt, zoom (PTZ) camera series has an integrated

30x optical zoom lens (4.3 mm to 129 mm); integrated IR LEDs provide illumination up to a

range of 394 ft (120 m).

The SN680D provides triple-streaming video and supports H.264 compression technology,

drastically reducing file sizes and conserving valuable network bandwidth. Users can receive

multiple streams simultaneously in different resolutions, frame rates and image qualities for

viewing on different platforms.

The 12 VDC camera dome is designed for easy installation. The SN680D can be mounted on a

wall or ceiling. Additional accessories allow the unit to be pendant mounted on a wall mount or

in-ceiling. The camera can be tilted to 10 degrees above the horizon.

1.1 Components

This system comes with the following components;

Dome Camera 1

Installation Guide/CD 1

RJ-45 Coupler 1

2P screw type Connector 1

3P screw type Connector 1

12VDC Adaptor 1

SN680D-WNIR Quick Installation Guide

1.2 Key Features

Brilliant video quality

The network camera offers the highly efficient H.264 video compression, which drastically

reduces bandwidth and storage requirements without compromising image quality. Motion

JPEG is also supported for increased flexibility.

Triple Streams

The network camera can deliver triple video streams simultaneously at full frame rate in all

resolutions up to 1920 x 1080 using Motion JPEG and H.264. This means that several video

streams can be configured with different compression formats, resolutions and frame rates

for different needs.

Image setting adjustment

The network camera also enables users to adjust image settings such as contrast,

brightness and saturation to improve images before encoding takes place.

Intelligent video capabilities

The network camera includes intelligent capabilities such as enhanced video motion

detection. The network camera’s external inputs and outputs can be connected to devices

such as sensors and relays, enabling the system to react to alarms and activate lights or

open/close doors.

Improved Security

The network camera logs all user access, and lists currently connected users. Also, its full

frame rate video can be provided over HTTPS.

Built-in Synchronized IR LED & Fixed IR LED

The camera is equipped with two built-in IR LEDs, a fixed one for wide view and a zoom

synchronized adjustable one for distant view.

ONVIF Certificate

This is a global interface standard that makes it easier for end users, integrators, consultants,

and manufacturers to take advantage of the possibilities offered by network video

technology. ONVIF enables interoperability between different vendor products, increased

flexibility, reduced cost, and future-proof systems.

SN680D-WNIR Quick Installation Guide

2. Installation

2.1 Installation Procedure

An optional mounting kit, either a wall mount (V660-HDB242) or ceiling mount (V660-HDB241),

is required to install the dome camera.

The wall or ceiling mount must be attached to a structural object such as hard wood or concrete

that will support the weight of the mount and dome camera.

The use of a solid backboard is recommended when attaching to gypsum walls.

1. Remove the protection pad and the tape that is attached to the dome camera.

2. Attach the mounting base to wall/ceiling using the supplied M8/M6 tapping screw and plastic

bushing.

3. To seal tightly, wrap the thread of the pipe end with Teflon tape about 20 times. Then use a

silicone rubber sealant to seal the area where the wall (ceiling) mount and the pipe meet.

4. Place a bead of silicone sealant around the wall and ceiling mount mounting flange; press it

to the surface and line up the flange hole with drilled holes.

Caution 1: A silicone rubber sealant must be applied to seal the housing to secure

waterproofing.

Caution 2: When installing, a mounting bracket must be used.

SN680D-WNIR Quick Installation Guide

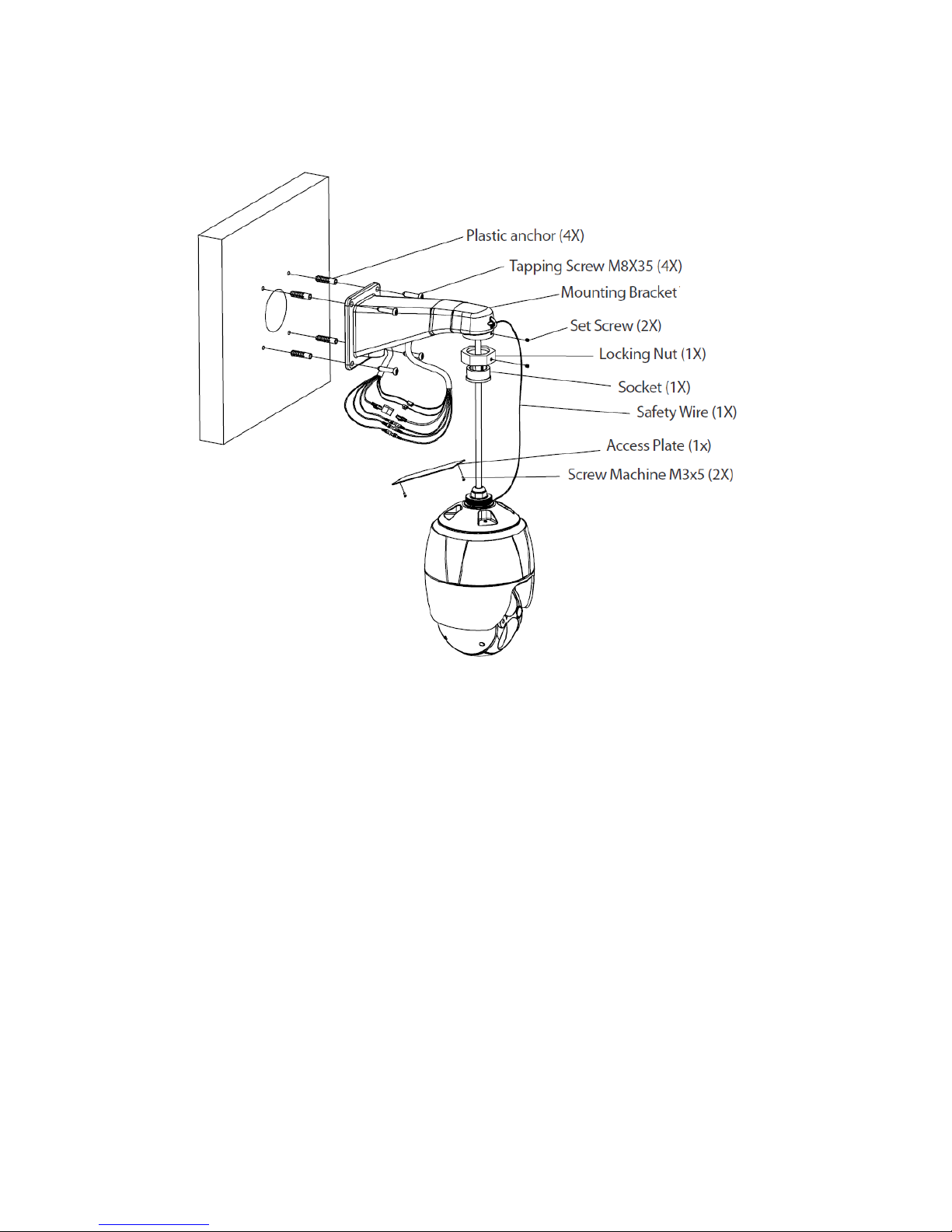

1) Installation - Wall Mount

A wall mounting plate is supplied with the wall mount; this must be attached to a structural object

such as concrete that will support the weight of the mount and dome camera.

1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of

the wall mount.

2. Mark and drill mounting holes in the mounting surface using the wall mount flange as a

template. Open a cable access hole, if needed.

3. Secure the mounting plate to the wall using the hardware provided or appropriate for the

mounting surface.

4. Pull out cables required to connect to the dome camera from the wall or route cables through a

section of 0.75 in. (19 mm) conduit pipe.

5. Remove the cable access plate from the underside of the wall mount bracket.

6. Attach the wall mount bracket using screws; route cables through the access plate hole.

7. Attach the housing’s safety wire to the wall mount’s latch.

8. Route cables on the dome through the wall mount bracket. Fix the housing to the wall mount

bracket using the locking nut and tighten the housing set screw with the supplied wrench.

9. After connecting cables, reattach the access plate.

SN680D-WNIR Quick Installation Guide

2) Installation - Ceiling Mount

The ceiling mounting plate must be attached to a structural object such as concrete that will

support the weight of the mount and Dome Camera.

1. Select a suitable mounting location

and verify there is sufficient cable

to connect with cables from the

housing.

2. Mark and drill mounting holes in

the surface using the ceiling

mount flange as a template.

3. Secure the mounting plate to the

wall using the hardware provided

or appropriate for the mounting

surface.

4. Pull out cables required to connect

to the dome camera from the

ceiling.

5. Attach the ceiling mount plate

using screws; route cables

through the locking nut.

6. Route cables through the pipe.

Tighten the housing with the pipe

using the socket.

7. Attach the housing's safety wire to

the ceiling mount's M6X35

tapping screw.

8. After connecting cables, fix the

pipe to the ceiling mount using the

locking nut.

9. Tighten set screws of the socket

and locking nut with the supplied

wrench.

SN680D-WNIR Quick Installation Guide

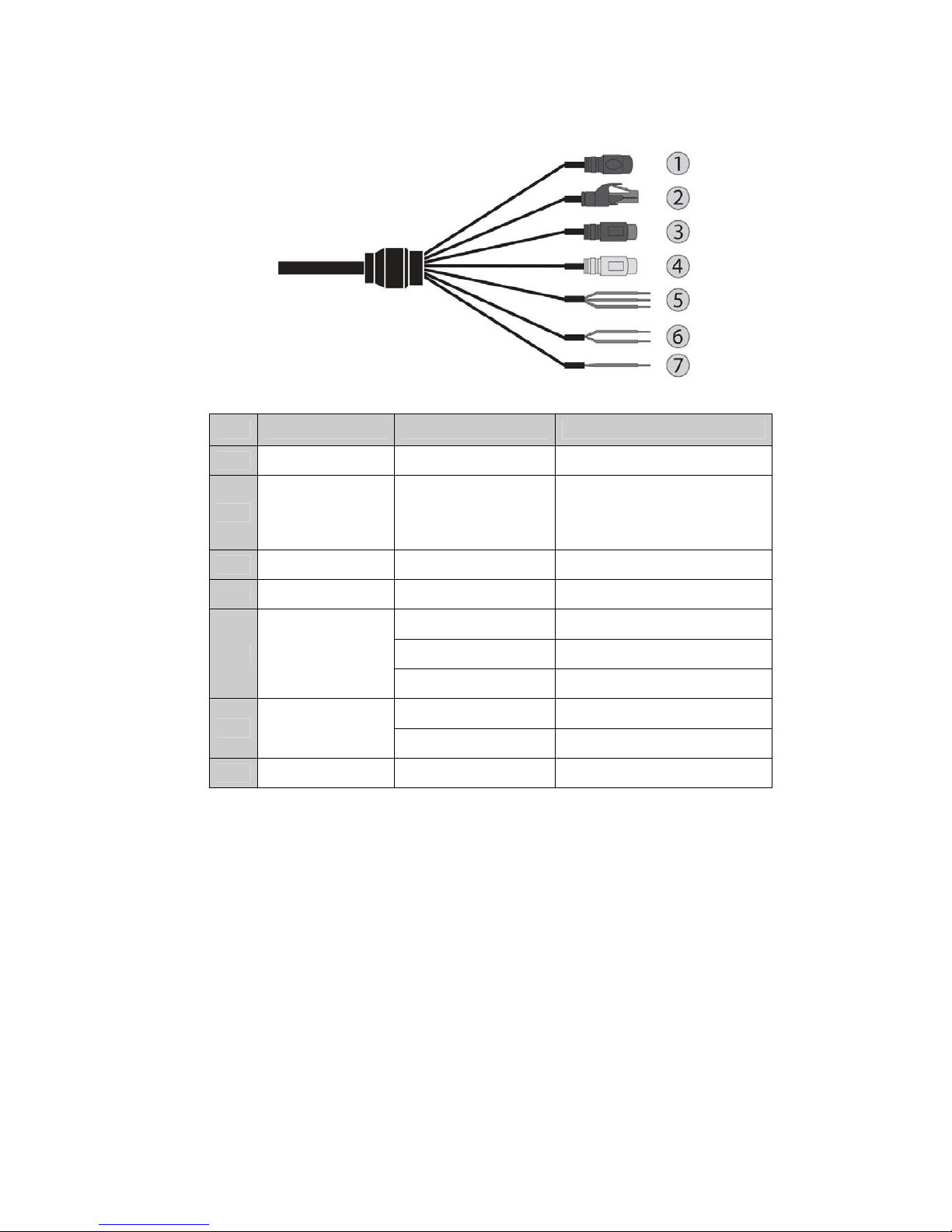

2.2 Basic Configuration of Camera System

No. CONNECTOR COLOR DESCRIPTION

1 DC JACK BLACK 12 VDC

2 RJ-45 BLACK Ethernet, RJ-45 port

compatible with

10/100Mbps

3 RCA BLACK AUDIO INPUT

4 RCA GRAY AUDIO OUTPUT

GRAY GND

RED ALARM INPUT

5 3P Cable

BLUE ALARM OUTPUT

BROWN RS485+(A)

6 2P Cable BROWN/WHITE RS485-(B)

7 1P Cable YELLOW/GREEN F_GND

The camera must be installed by qualified service personnel in accordance with all local and

federal electrical and building codes.

SN680D-WNIR Quick Installation Guide

2.3 Connections

Connecting the Network

Connect a standard RJ-45 cable to the network port of the camera. Generally a cross-over

cable is used for directly connection to PC, while a direct cable is used for connection to a

hub.

Connecting Alarms

- AI (Alarm Input)

You can use external devices to signal the camera to react on events. Mechanical or

electrical switches can be wired to the AI (Alarm Input) and G (Ground) connectors.

- G (Ground)

NOTE: All the connectors marked G or GND are common.

Connect the ground side of the alarm input and/or alarm output to the G (Ground)

connector.

- AO (Alarm Output)

The camera can activate external devices such as buzzers or lights. Connect the device to

the AO (Alarm Output) and G (Ground) connectors.

Connecting to the RS485

The camera can be controlled remotely by an external device or control system, such as a

control keyboard, using RS485 half-duplex serial communications signals.

Connecting the Power

Connect power of 12 VDC 5 A for the camera.

Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source

only.

SN680D-WNIR Quick Installation Guide

2.4 Network Connection & IP assignment

The network camera is designed for use on an Ethernet network and requires an IP address for

access. Most networks today have a DHCP server that automatically assigns IP addresses to

connected devices. By the factory default, your camera is set to obtain the IP address

automatically via DHCP server. If your network does not have a DHCP server the network

camera will use 192.168.1.100 as the default IP address.

If DHCP is enabled and the product cannot be accessed, run the “SmartManager” utility on the

CD to search and allocate an IP address, or reset the product to the factory default settings and

then perform the installation again

1) Connect the network camera/device to the network and power up.

2) Start SmartManager utility (Start > All programs > SmartManager > SmartManager). The

main window will display, and after a short while any network devices connected to the

network will be displayed in the list.

3) Select the camera on the list and click right button of the mouse. The pop-up menu displays

as below.

4) Select Assign IP Address. The Assign IP window will display. Enter the required IP address.

Note: For more information, refer to the SmartManager

User’s Manual.

SN680D-WNIR Quick Installation Guide

3. Operation

The network camera can be used with Windows® operating system and browsers. The

recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera™ and Google®

Chrome® with Windows.

Note: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX

controls.

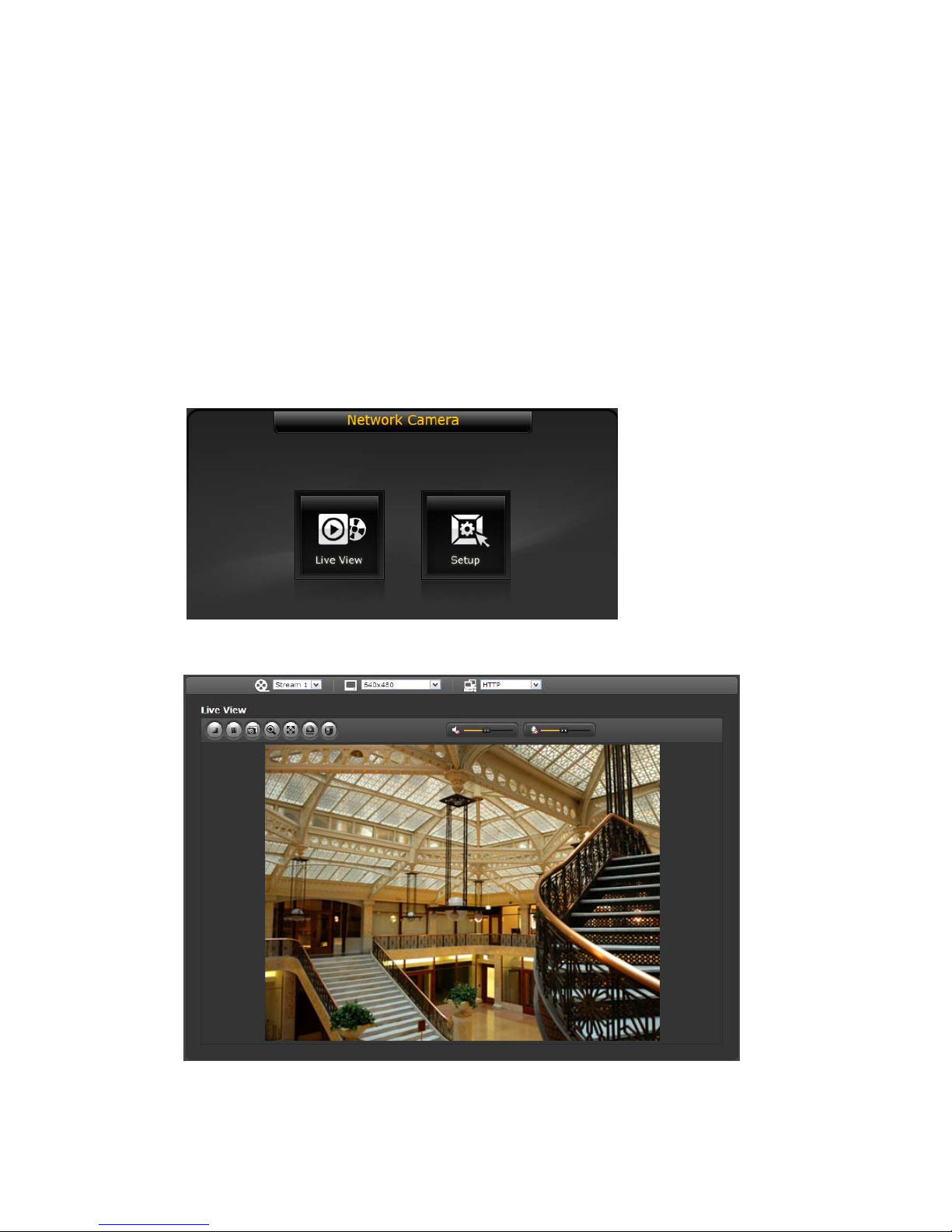

3.1 Access from a browser

1) Start a browser (i.e., Internet Explorer).

2) Enter the IP address or host name of the network camera in the Location/Address field of

your browser.

3) A starting page displays. Click Live View or Setup to enter web page.

4) The network camera’s Live Viewpage appears in your browser.
