ANDOVER
VWRP-3200
5-IN-1Turntable Music Center
Instruction Manual
Please read carefully before use and keep for future reference
2022.07.26
09:19:37
+08'00'
2022.07.
26
09:19:40
+08'00'
3
WARNING: Invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to laser beam.
This equipment is a Class II or double insulated electrical appliance. It has been
designed in such a way that it does not require a safety connection to electrical
earth.
WARNING
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol
within an equilateral triangle is intended to alert the user to the presence of
uninsulated dangerous voltage within the product`s enclosure that may be of
suffcient magnitude to constitute a risk of electric shock to persons.
ATTENTION: The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Important Safety Instructions
1. Read these instructions – All the safety and operating instructions should be read before
this product is operated.
2. Keep these instructions – The safety and operating instructions should be retained for
future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions should
be adhered to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water or
moisture – for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at the plugs, power
outlets, and at the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
2022.07.
26
09:19:43
+08'00'
4
12. Unplug the apparatus during lighting storms or when unused for long periods of time.
13. Refer all servicing to qualified personnel. Servicing is required when the apparatus has
been damaged in any way, such as power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
14. The mains plug is used as disconnect device, the disconnect device shall remain readily
operable.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no
objects filled with liquids, such as vases, shall not be placed on apparatus.
16. The use of the equipment in moderate climate.
17. The ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, tablecloths, curtains, etc.
18. Do not place open flame sources, such as lighted candles, on the apparatus.
19. The symbol with indicates AC voltage.
20. CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
11. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart or rack is used,
use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
2022.07.
26
09:19:46
+08'00'
TABLE OF CONTENTS
FEATURES .............................................................................................. ...............................
SPECIFICATIONS ................................................................................................................
PRODUCT OVERVIEW .........................................................................................................
SETUP & BASIC OPERATION ..............................................................................................
LISTENING TO A RECORD ...................................................................................................
CONNECTING TO BLUETOOTH..........................................................................................
CONNECTING TO AUX DEVICE ...........................................................................................
USING THE FM RADIO ........................................................................................................
CARE & MAINTENANCE......................................................................................................
TROUBLESHOOTING GUIDE ..............................................................................................
FCC NOTICE ........................................................................................................................
SUPPORT .............................................................................................................................
6
6
7
8
9
10
11
11
12
13
14
15
2022.07.2
6
09:19:49
+08'00'
6
FEATURES

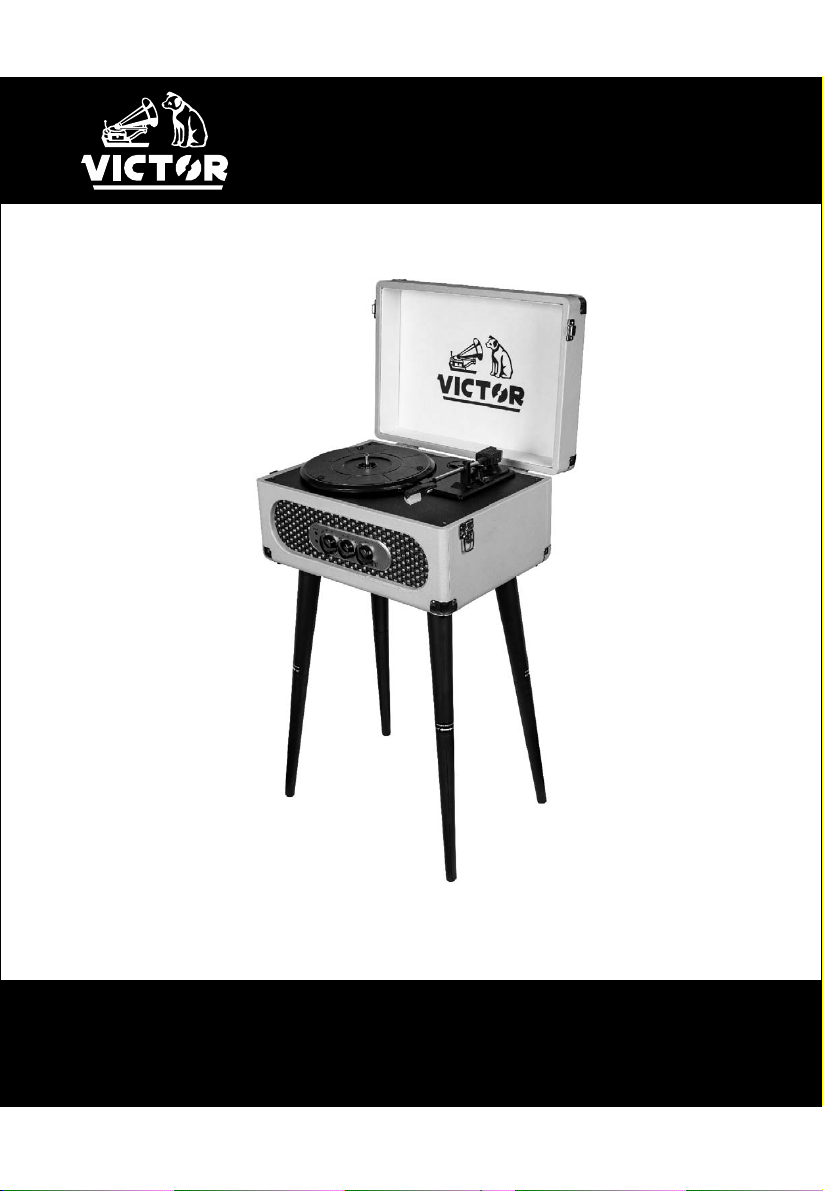

VICTOR 5-in-1 Record Player features Chair Height legs in a fun Retro Style. The built in 3-Speed
Turntable & FM Radio are ready to play all your favorite songs! The Dual Bluetooth feature allows
streaming of your vinyl records to an external Bluetooth Speaker or plays music from your Smart
Device through the Andover's built in Speakers. The 3.5mm Aux Input & RCA Audio Outputs allow for
even more additional Playback options. Can also be used on a Tabletop as base height feet are also
included.
•3-speed record player will play 33 1/3, 45, 78 rpm records
•Bluetooth In connectivity allows you to stream music from another source up to 33 feet away.
•Bluetooth Out Connectivity allows you to stream vinyl playback through any external Bluetooth
Speaker
•FM Radio
•Includes a 3.5mm Aux Input, Headphone Jack, & RCA Output for additional connectivity option
•Includes Chair Height & Counter Top Legs
•Built in Stereo Speakers for playback convenience
SPECIFICATIONS
Product Name Andover (5-in-1 Turntable Music Center)
Turntable Speeds (RPM) 33 1/3, 45, 78
FM Frequency Range 87.5 – 108MHz
Bluetooth Version V5.1
Bluetooth Transmission Distance Up to 33 feet (10 Meters)*
Rated Frequency 2.4GHz
Input Aux In
Output Line Out, Headphone x1
Built-in Speakers 3” x 2
Speaker Power Output 3W x 2
Power Source AC/DC 100-240V 5.8V/1.5A
Accessories Included 45 RPM Adaptor, Aux In Cable, ETL Approved
Power Adaptor, User Manual, Quick Set Up Guide
*Distance may vary depending on any objects or interference between devices.
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO
CHANGE WITHOUT NOTICE
2022.07.
26
09:19:53
+08'00'
7
PRODUCT OVERVIEW
Turntable Features
1. Turntable Platter
2. Turntable Spindle
3. 45 RPM Adapter
4. Cue Lever
5. Hold Down Clip
6. Speed Selector
7. Tonearm
8. Cartridge
1 2 3
4
5
6
7
1 2 4 5 63 7
1 2 3
8
Front Control Panel
1. Headphone Jack
2. AUX IN Jack
3. Power Indicator
4. Function Knob
5. Bluetooth Indicator
6. FM Dial
7. Volume +/- Tuner
Back Control Panel
1. DC IN Jack
2. LINE OUT Jacks
3. FM Antenna
Bluetooth® Out
2022.07.
26
09:19:56
+08'00'
8
SETUP & BASIC OPERATION
In the Box:
•1 x Turntable
•1 x Power adapter
•1 x 45 RPM adapter
•1 x Aux In cable
•1 x User manual
•4 x Legs (upper long leg + lower long leg)
•16 x Screws (for machine feet installation)
Please contact Customer Service
immediately the if there are any missing
parts or accessories from the package or
the product is damaged. Retain the
original packaging materials for exchange
or return purposes.
Read this user manual before any operation
All the warnings and safety instructions should be followed for your safety. Any improper operation not
included in this manual may cause injuries or damage the product.
Note: All the images and pictures in this manual are for illustration purposes only and may be slightly
different from the actual appearance of the product.
Install the Legs (If Applicable)
1. Assemble each leg by twisting the top part of the leg onto the
bottom part of the leg.
2. Place the unit on a flat, smooth surface, with its bottom upwards.
Be careful the cover stays closed.
3. Align the holes on the leg joints to the holes on bottom of the unit.
4. Use a Phillips screwdriver and screws to secure the legs to the
bottom of the unit.
5. Turn over the unit when finished. Make sure it stands firmly on an
even surface.
Power Connection
1. Use the power adapter in the box to connect the unit to a nearby power outlet.
2. Plug the small end of the adapter into the DC IN Jack on the back of the unit.
3. Insert the metal prongs on the big end of the adapter into a wall outlet.
Note: Only use the power adaptor provided with the unit.
2022.07.26
09:20:00
+08'00'
9
LISTENING TO A RECORD

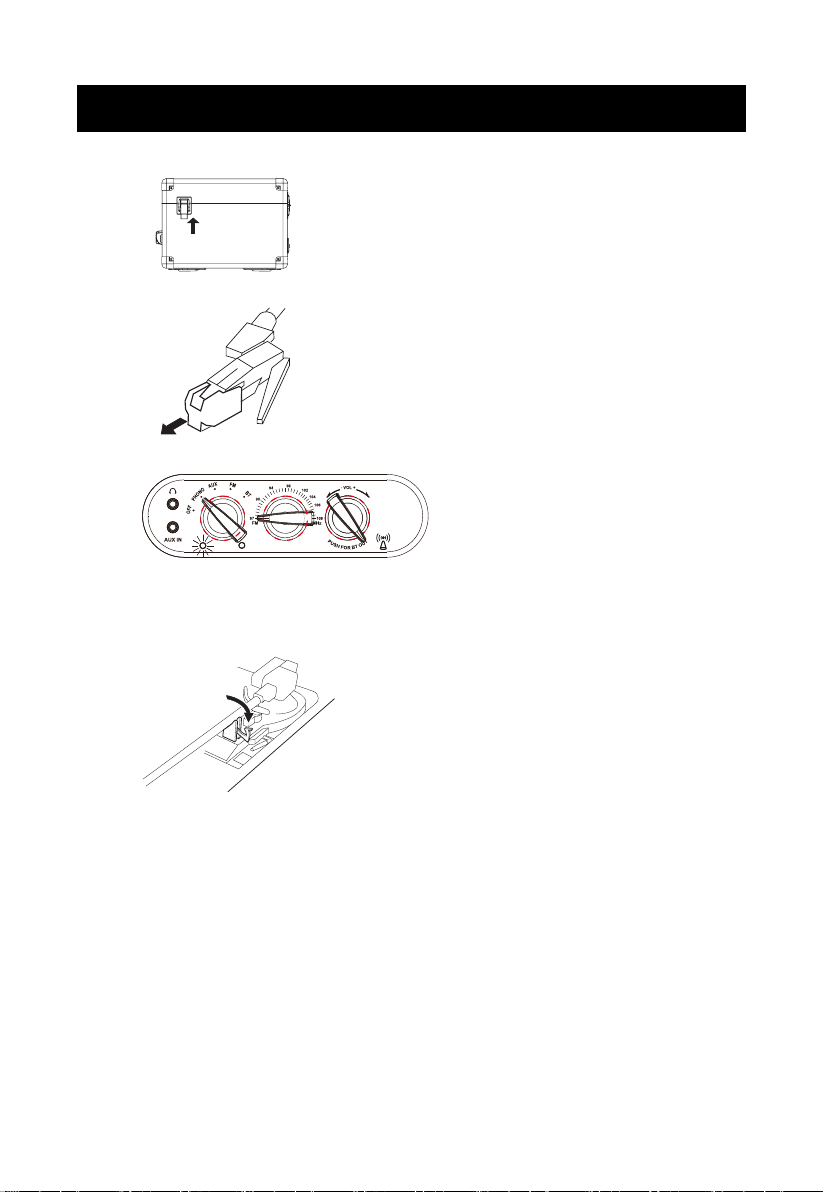

1. Unfasten the clasps on both sides of the main unit to open the cover.
2. Detach the white stylus protector by pressing both sides and pulling straight off the stylus.
3. Set the Function Tuner to “PHONO” position. The Power Indicator will turn on in red.
4. Place a vinyl record on the turntable. Align the turntable spindle to the hole on the record.
Note: Place the 45 RPM adapter on the turntable spindle first if playing a 45 RPM record.
5. Slide the Speed Selector to 33, 45 or 78 to match the play speed of the record.
6. Unlock the Hold Down Clip.
7. Raise the Cue Lever to lift the Tone arm off the Tone arm support.
8. Gently move the Tone arm to the edge of the record (or the starting point of a track).
9. Release the Cue Lever to put the Tonearm onto the record; and the turntable will begin
playback.
10. Turn the VOLUME +/- Tuner to adjust the volume.
11. To pause/stop during playback, raise the Cue Lever to lift the Tonearm off the record.
12. When finished listening:
a. Lift the Tonearm off the record by raising the Cue Lever.
b. Put the Tonearm to its support by hand,
c. Release the Tonearm by putting down the Cue Lever.
d. Lock the Hold Down Clip.
Note:
After you play 78 RPM vinyl record, it will stop in about 60 seconds.
2022.07.
26
09:20:03
+08'00'
