Victory 4x4 5TH GEN 4RUNNER Guida alla configurazione

5TH GEN 4RUNNER & GX460

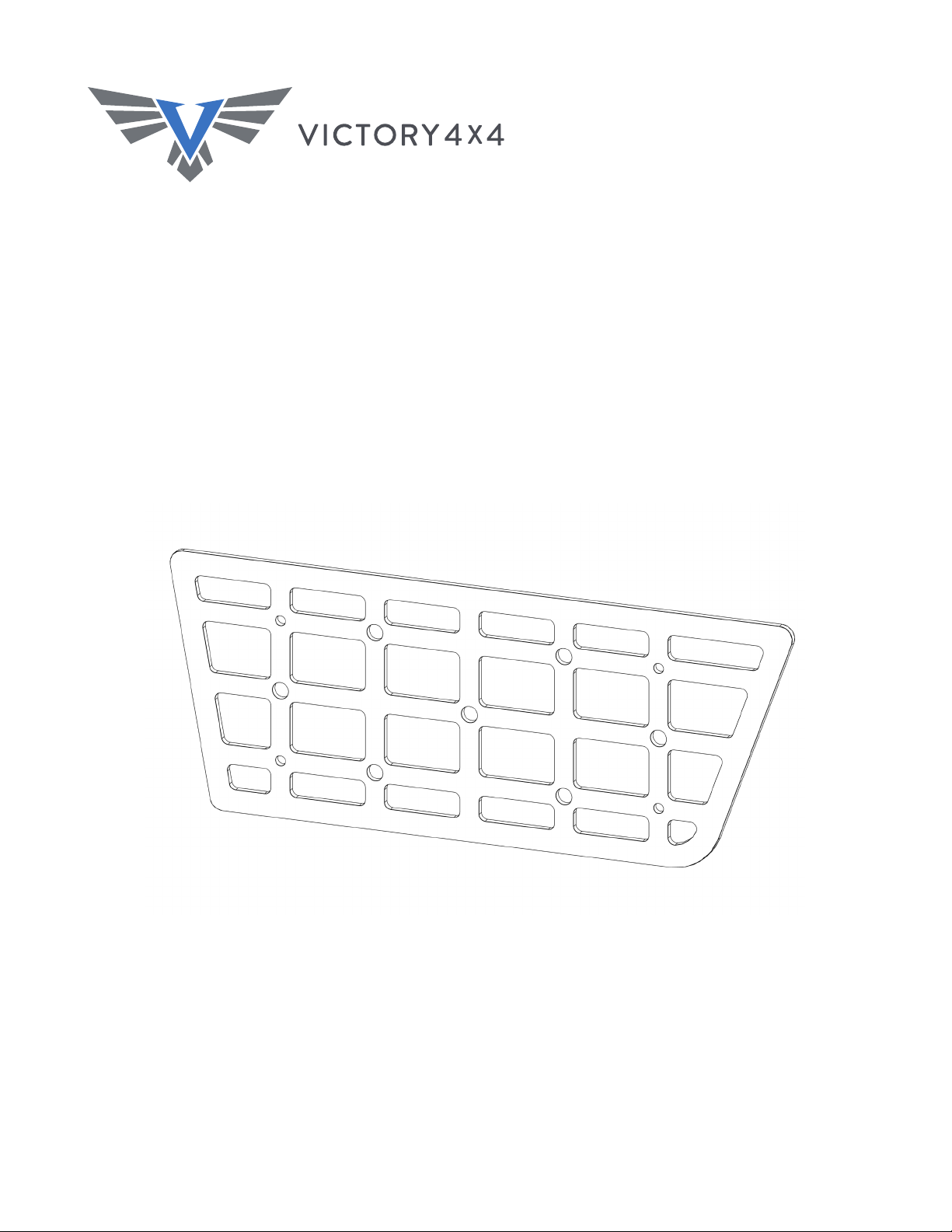

DOOR MOLLE PANEL

Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great o-road

products. Be sure to rate and review our product online. If you have any questions or are missing parts, please

don’t hesitate to call us at 269-459-8447!

INSTALL INSTRUCTIONS

Please read the mounting instructions below carefully before attempting to install.

Be sure to check out the install video on the product page, if available.

INCLUDED HARDWARE

Black Nylon 1/2” OD

3/8” Long Spacer

8x

Black Philips Head

18-8 Stainless Steel

3/4” Long Screw

8x

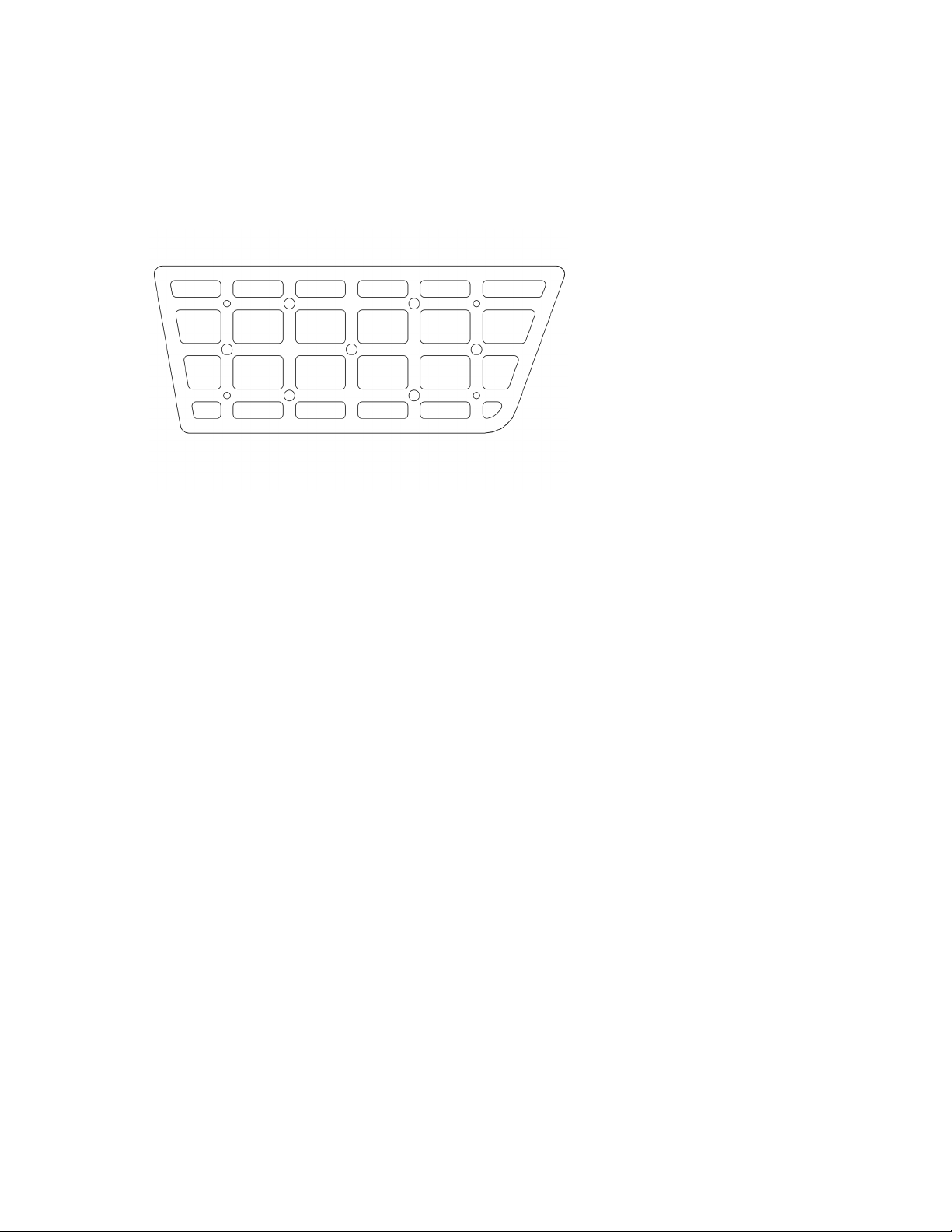

INCLUDED PARTS

2x

1. Start by lining up the panel up on you door in the area between the cubby

and the arm rest, as shown below (driver side). When the panel is lined up

to your liking, then take a punch or a philips head screw driver and apply

pressure to mark the four smaller mounting holes in the plastic.

INSTALLATION

2. Once the pilot holes are marked, you can remove the panel. Take the

provided screws and start to thread them in to the locations just marked.

Make sure not to punch too far through the plastic. You can also use a drill

with a 1/16” drill bit to start your holes, making sure not to punch through

the plastic.

INSTALLATION

3. Aer the holes are started, place the panel back in line with the holes and

using the provided spacers, as shown below (driver side), start to thread

the screws into the plastic with a screw driver until all four are snug and

the panel is secure. Be sure not to over tighten. Repeat this process for the

other side.
