Victory 4x4 VRKACM Guida alla configurazione

ROOF RACK

ACCESSORY MOUNT

Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great o-road

products. Be sure to rate and review our product online. If you have any questions or are missing parts, please

don’t hesitate to call us at 269-459-8447!

INSTALL INSTRUCTIONS

Please read the mounting instructions below carefully before attempting to install.

Be sure to check out the install video on the product page, if available.

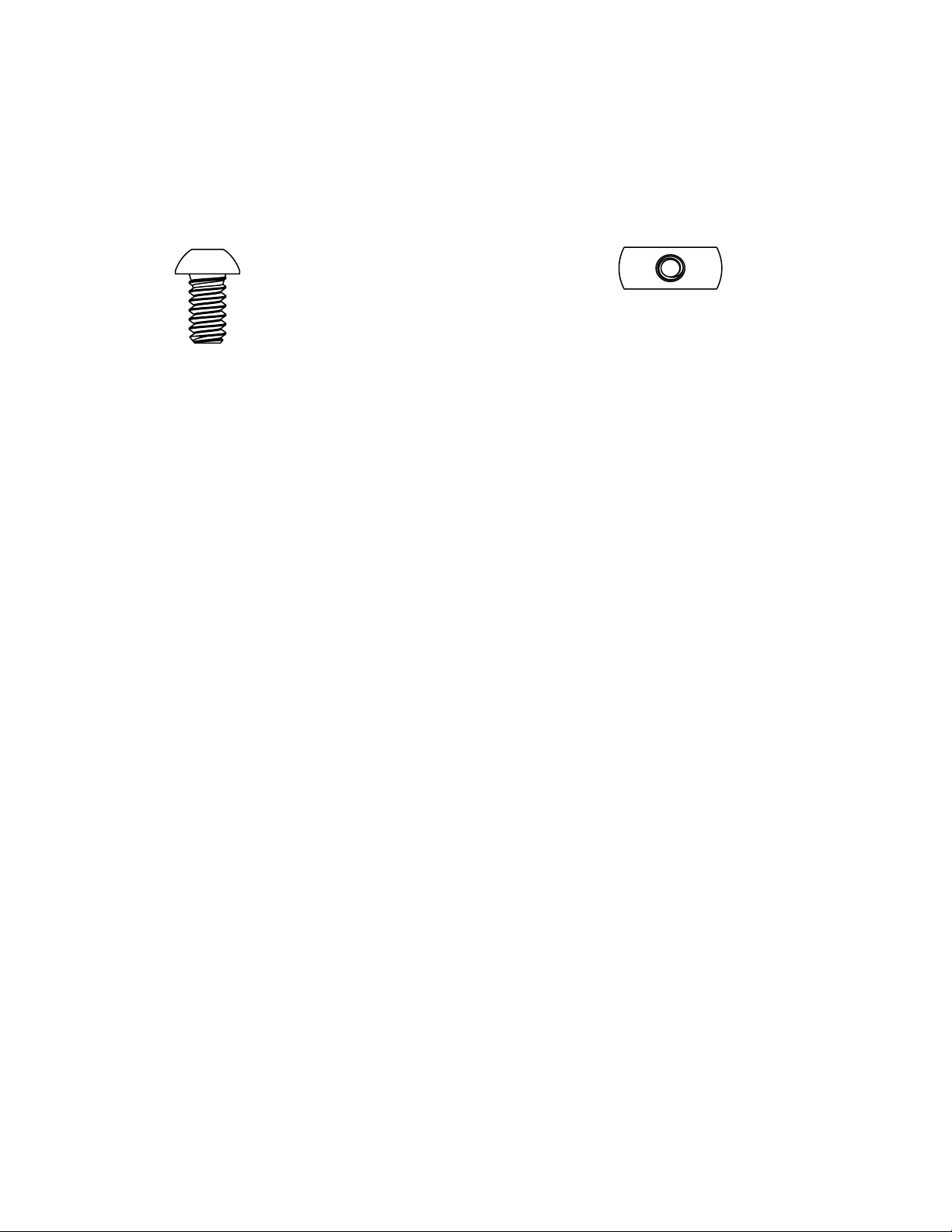

INCLUDED HARDWARE

4x

1/4"-20 X 3/8"

Button Head

4x 1/4"-20

T-Nut

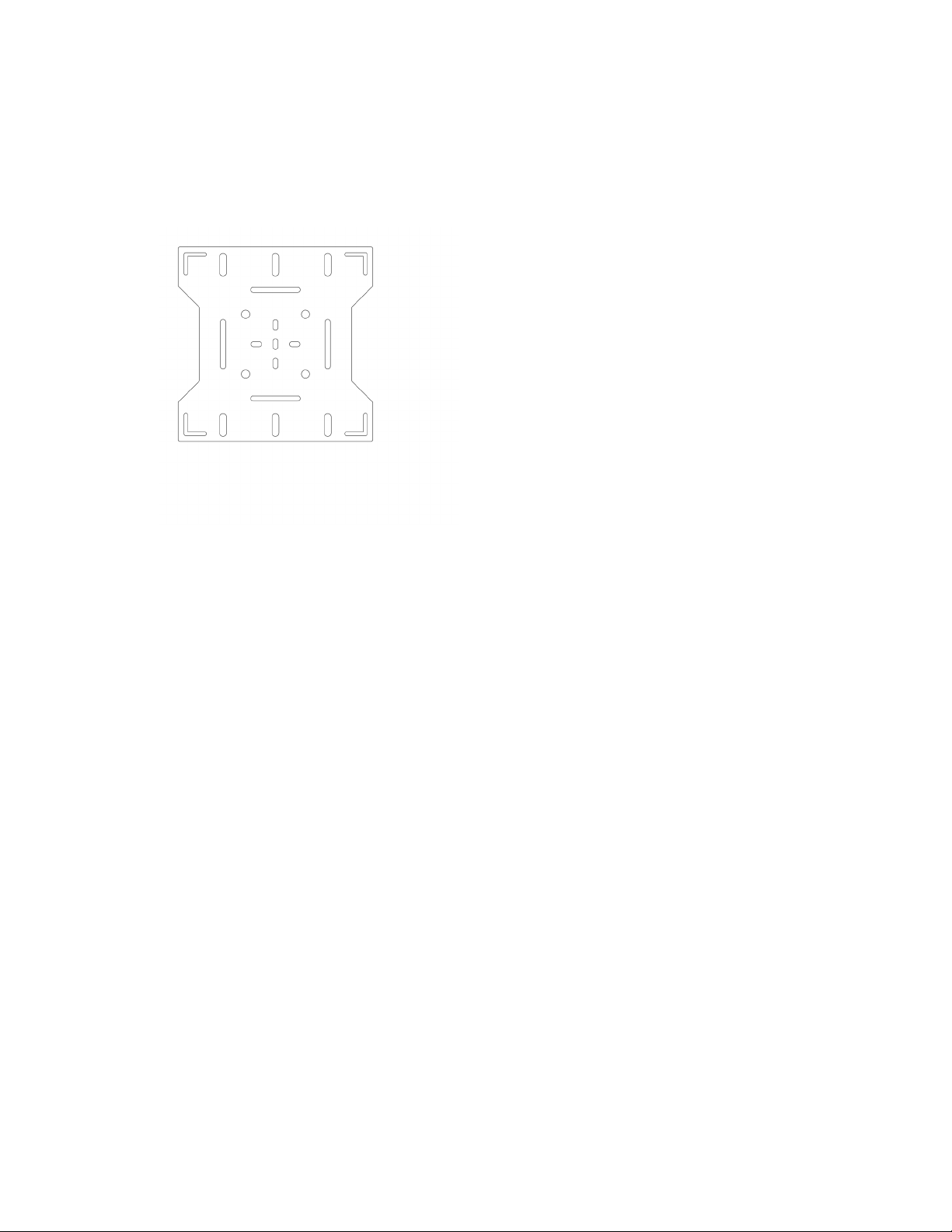

INCLUDED PARTS

1x

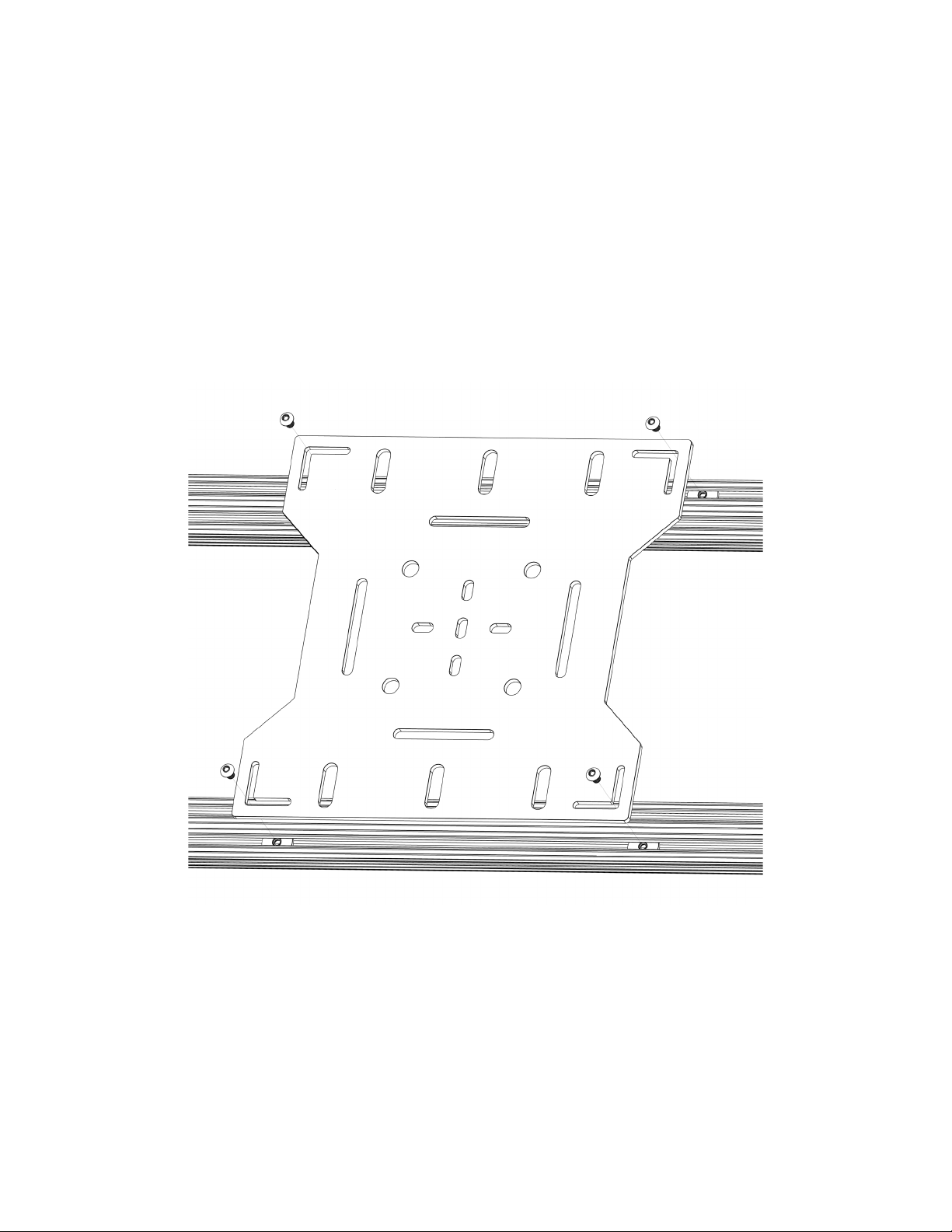

1Start by sliding 2 t-nuts into each channel in the top of the cross bars that

will be used for the installation. Then, place the accessory mount where

you would like it and move the t-nuts so that they are under the slots in

the panel. Finally, bolt it into place.

INSTALLATION

The accessory mount is made to be able to bolt on in many dierent

positions. Depending on what gear you plan to mount on it, you may need

to rotate the panel or even slide the crossbars forward or backward in their

slots.

TRACTION BOARD

MOUNTING

To mount a traction board, you need a TRACBO-BP and 2 accessory

mounts. Bolt the traction board to the accessory mount through any

of the 3 large slots on each side. Do this using the carriage bolts on the

bottom of the accessory mounts, and the spacers and wing nuts on top of

the traction board. It may be easiest to loosely bolt the traction boards to

the accessory mounts and then line them up with the rack to space them

correctly.

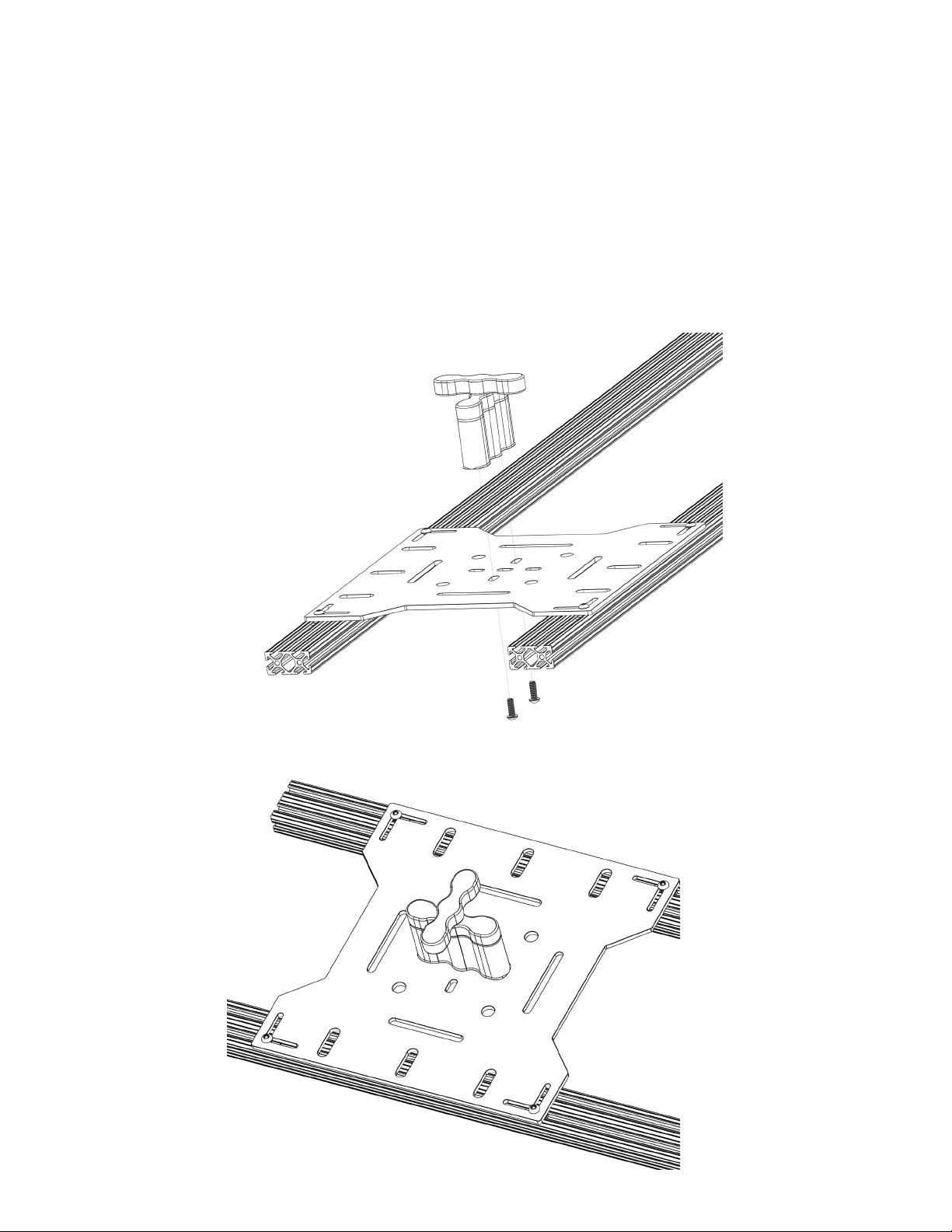

ROTOPAX MOUNTING

To mount a Rotopax, you will need a Rotopax mount that has a detachable

mounting plate, or no mounting plate at all. Then, you simply use the

hardware that comes with the mount to bolt it into 2 of the slots that

make the cross in the middle of the accessory mount.
