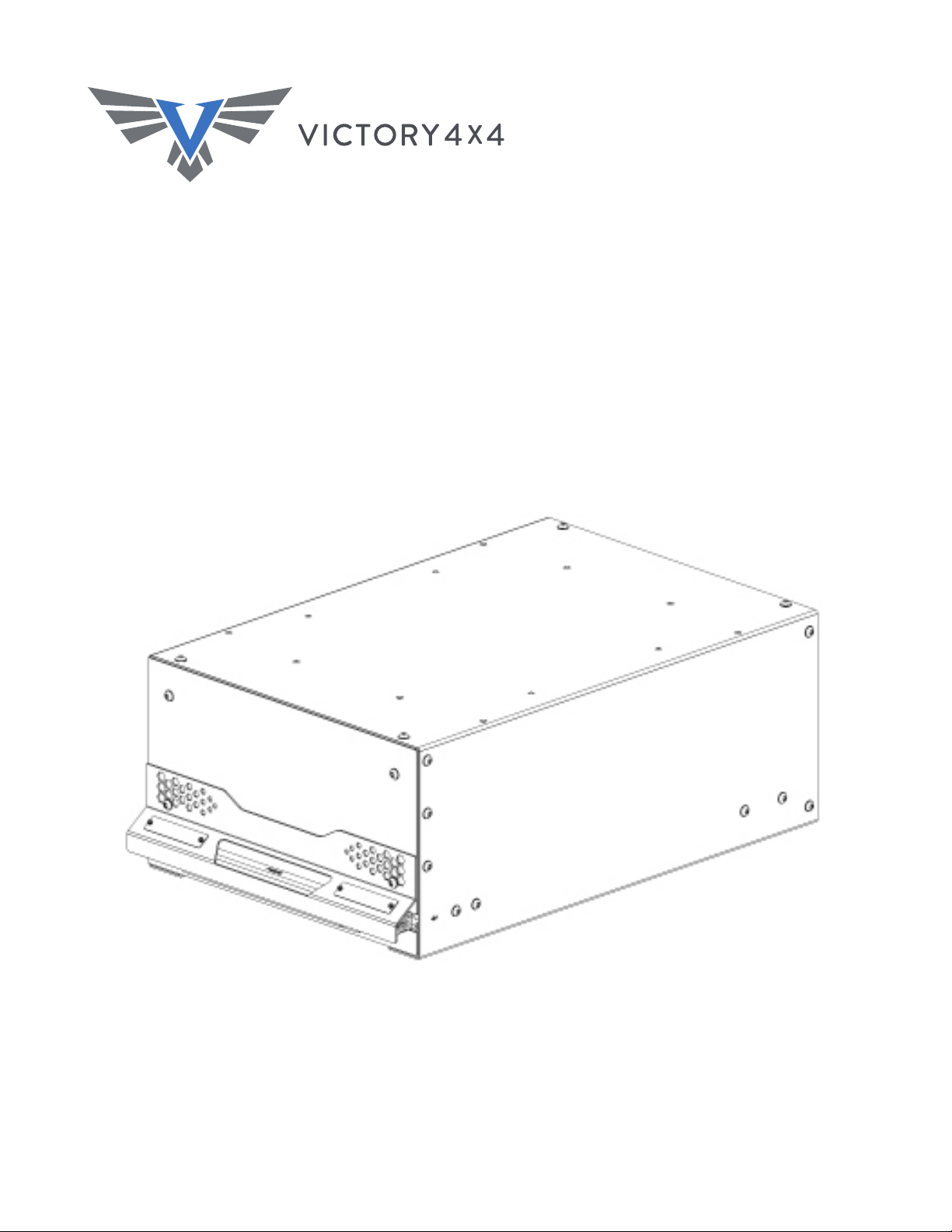

Victory 4x4 OFF-GRID DRAWER SYSTEM Manuale utente

OFF-GRID DRAWER

SYSTEM

Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great o-road

products. Be sure to rate and review our product online. If you have any questions or are missing parts, please

don’t hesitate to call us at 269-459-8447!

INSTALLATION INSTRUCTIONS

Please read the mounting instructions below carefully before attempting to install.

Check out the install video on the product page for more detailed information.

INCLUDED HARDWARE

16x

46x

16x

1/4” ID Black

Washer

1/4"-20

Serr. Flange Nut

1/4"-20 X 1/2"

Button Head

30x 1/4"-20 X 3/8"

Button Head

34x

1/4" Flat

Nuts

1x Loctite Packet

INCLUDED PARTS

1x

1x

1x

1x

1x

1x

1x 1x

2x

1L/1R

1L/1R

Start by taking the (2) provided slides and bolt one to each side of the

inside of the slide assembly with the red handles pointing out, as shown in

the orientation below. Making sure to use (4) each per side of the provided

shorter 1/4” button heads, washers and ﬂat nuts and apply the provided

blue loctitie to the bolts before tightening. You will need to extend the

slide to access some of the mounting holes on the inside.

ASSEMBLY

1.

ASSEMBLY

2. Next, take the back piece of the cabinet assembly with the “X” cutout

and bolt that piece to the main U shaped slide piece using (6) each of the

provided longer 1/4” button heads, washers and ﬂange nuts as shown in

the orientation below.

ASSEMBLY

4. Once you have all of that assembled, you can now bolt the cabinet

assembly to your ﬂoor through the (4) bottom mounting holes on

each side using the provided 1/4” button heads, washers to secure into

nutstrips. For more details on our vehicle speciﬁc ﬂoor systems, be sure to

check out our product page on our website and watch our install video.

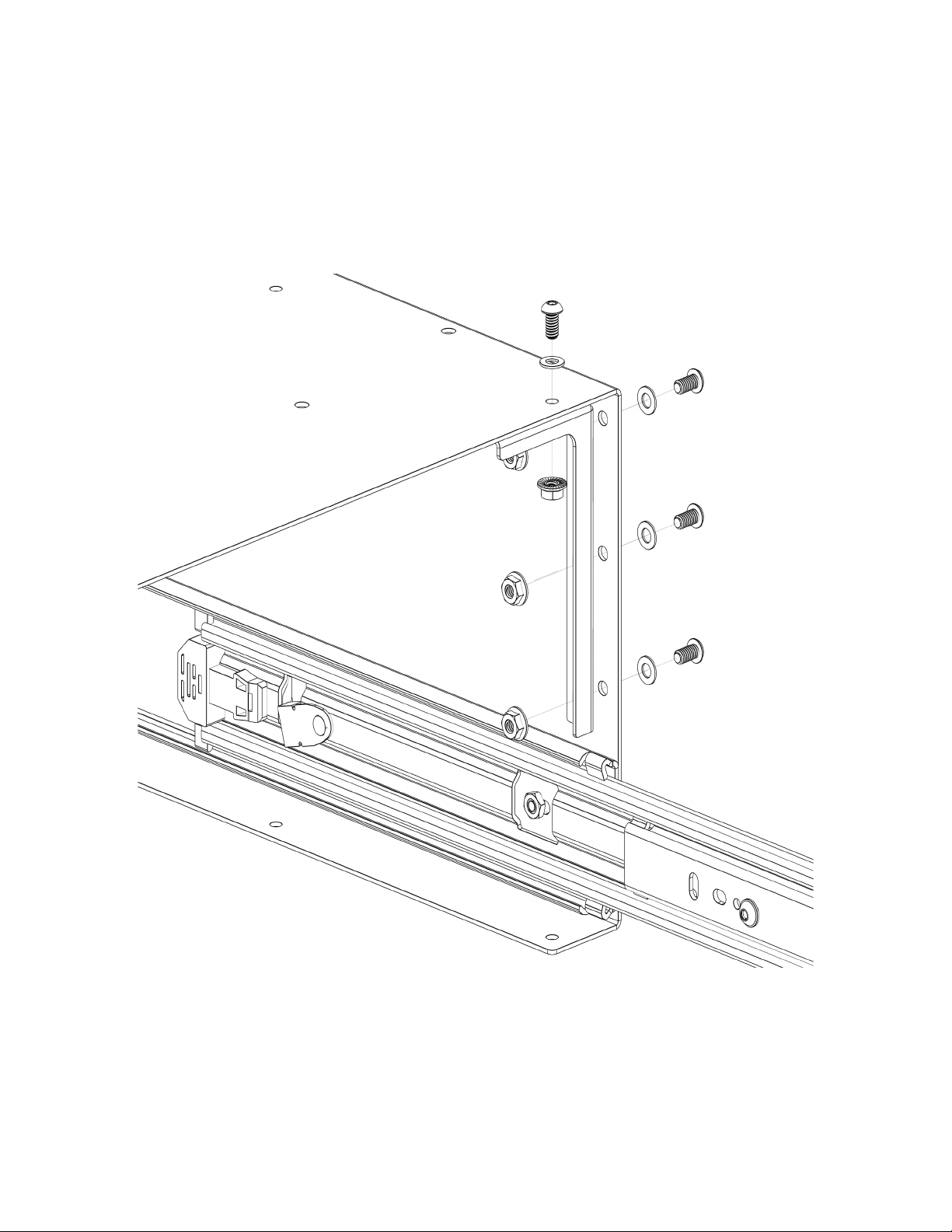

3. Next, mount the (2) provided L shaped brackets in the upper inside corners

of the slide assembly with the provided 1/4” button heads, washers and

ﬂange nuts as shown in the orientation below. Make sure to do this on

each side.

ASSEMBLY

5. You are now ready to assemble the drawer, start with the ﬂat rectangle

piece and mount it to the back side of “U” shaped drawer. Look for the

arrow pointing forward to identify which direction the drawer should be

facing. Then tighten the piece into place with the provided 1/4” button

heads, washers and ﬂange nuts, as shown in the orientation below.

ASSEMBLY

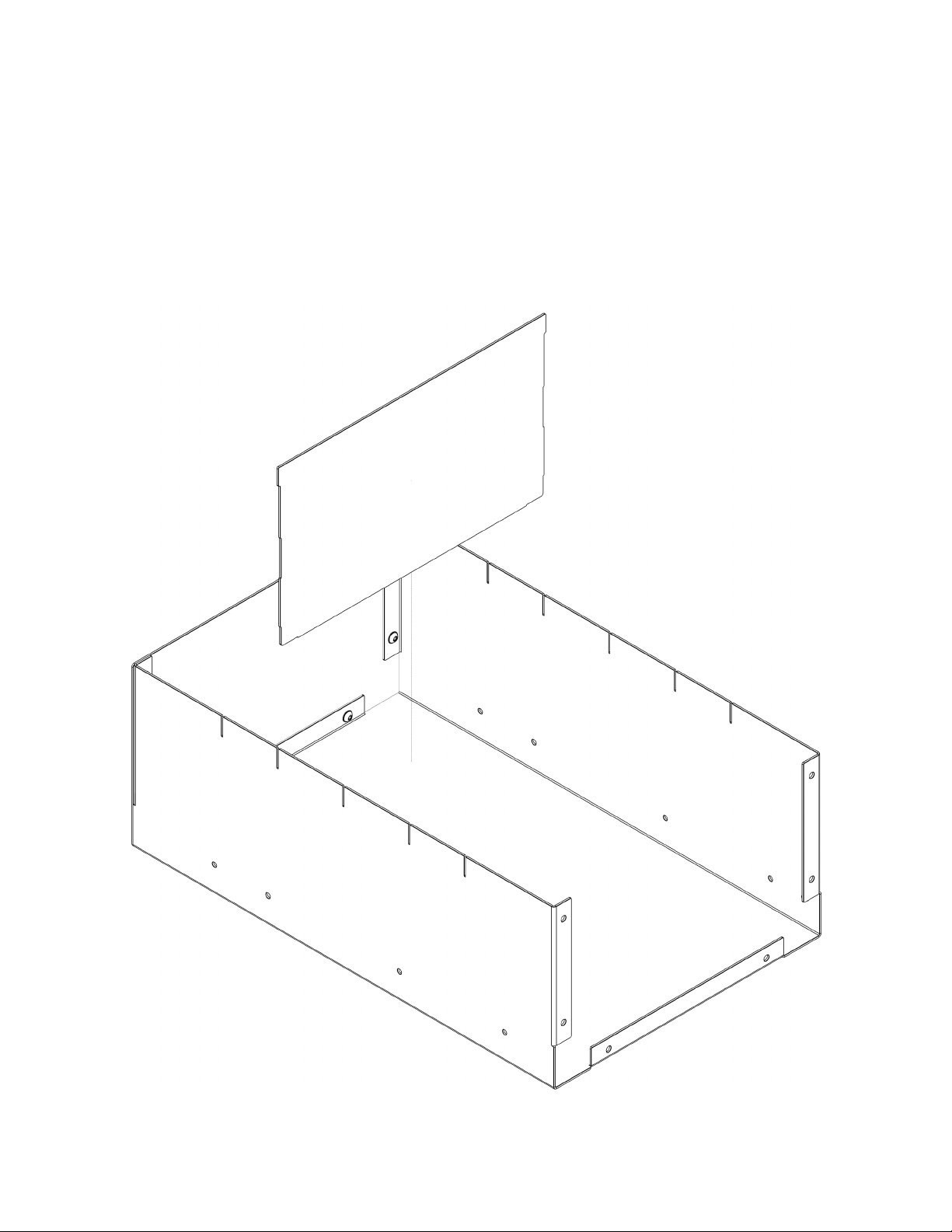

6. Once the back piece to the drawer is attatched, you can now slide in the

provided divider piece from the top into whichever slot in the drawer to

your liking, as shown below.

ASSEMBLY

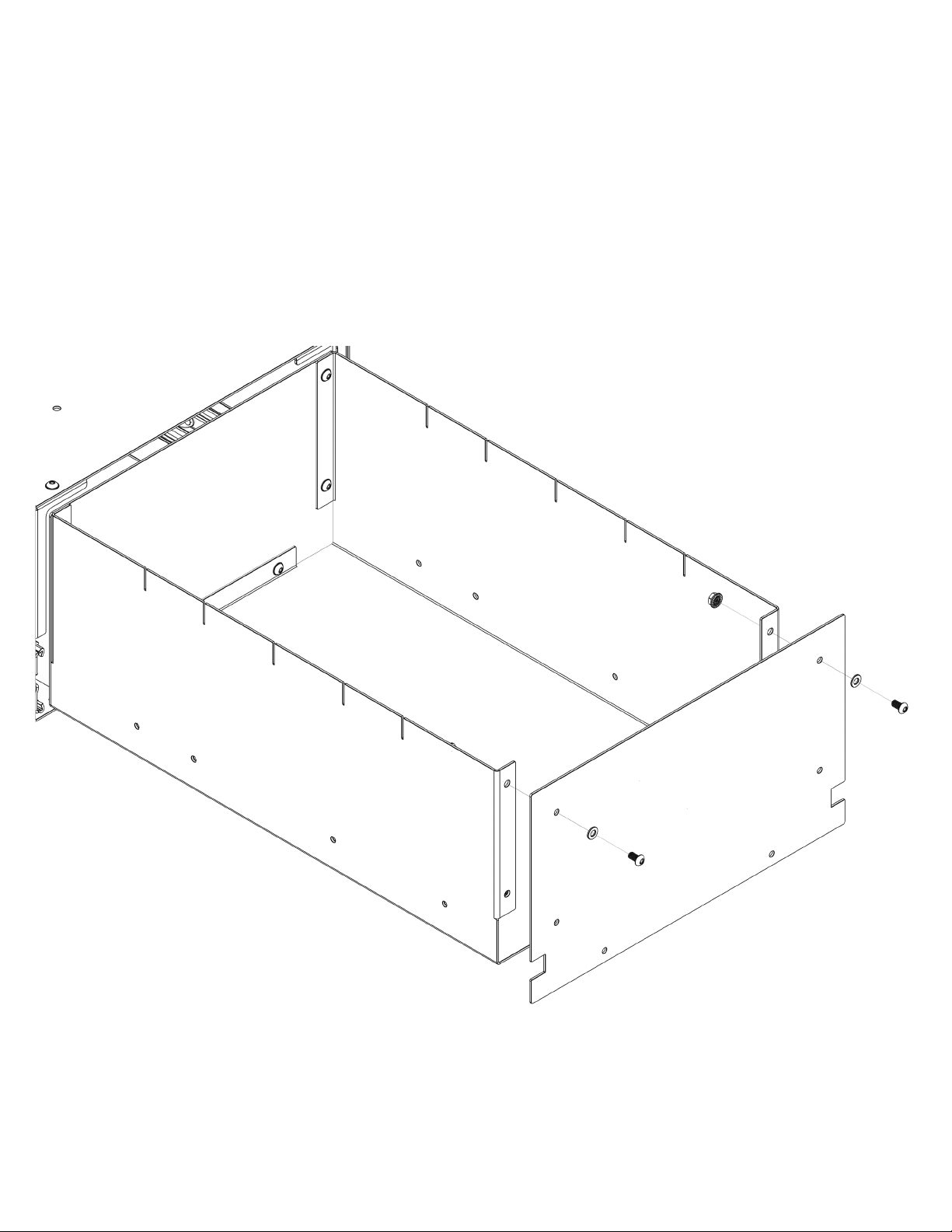

7. You can now start to fasten the front drawer piece onto the drawer

assembly. To do so use (2) of the provided 1/4” button heads, washers

and ﬂange nuts, as shown below. Edge trim will be provided to be cut and

trimmed to nest inside the cutouts of this panel.

ASSEMBLY

8. With the front piece in place, you now need to attatch the drawer

assembly to your slide system using (4) of the provided shorter 1/4” button

heads, washers and ﬂat nuts per side, as shown in the orientation below.

Be sure that the button heads are installed from the inside of the drawer

facing out. You will need to adjust the length of the slide to access some of

the bolt holes.
