Victrola HI-RES Manuale utente

HI-RES

QUICK START

GUIDE

V P T-15 0 0

V P T-2 50 0

CAREFULLY REMOVE THE

TAPED GUIDE STRING

AND USE THE STRING TO

STRETCH THE BELT OVER

THE MOTOR SPINDLE.

ONCE THE BELT IS

INSTALLED AROUND THE

MOTOR SPINDLE, DISCARD

THE GUIDE STRING AND

PLACE THE SLIPMAT ON

THE PLATTER.

TURNTABLE SETUP

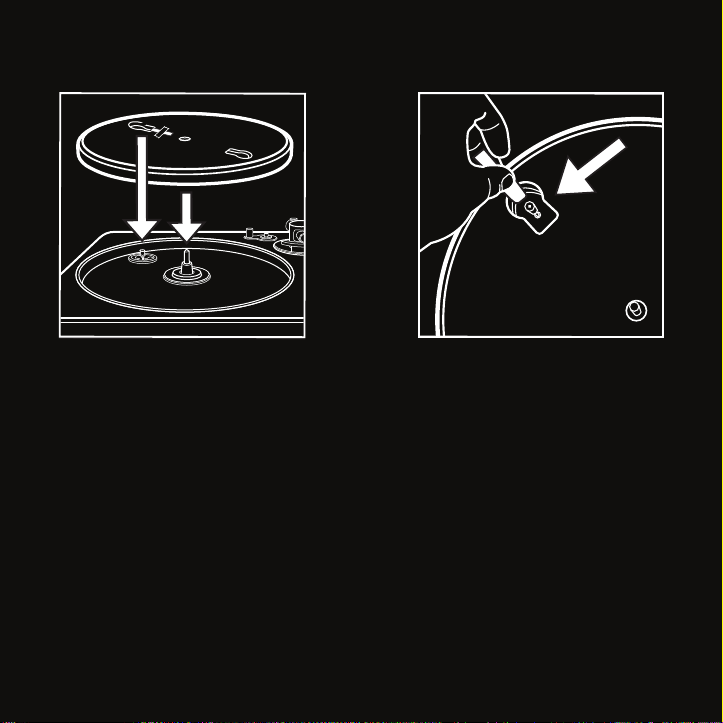

SET THE SLIPMAT ASIDE

AND PLACE THE PLATTER

ONTO THE TURNTABLE.

ROTATE THE PL ATTER

UNTIL THE HOLE WITH THE

GUIDE STRING IS DIRECTLY

OVER THE MOTOR SPINDLE

AS SHOWN.

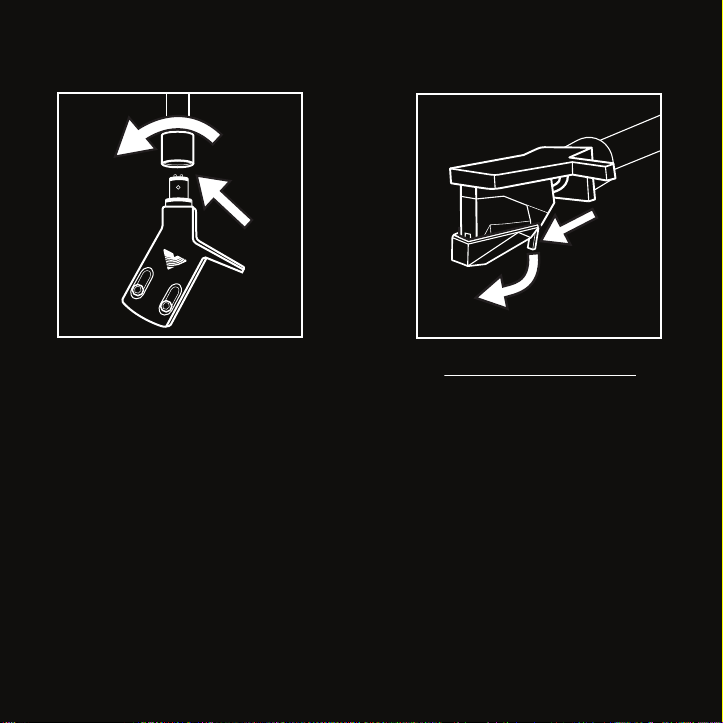

INSERT THE HEADSHELL

INTO THE TONEARM

AND TIGHTEN THE

TONEARM COLLAR

COUNTER-CLOCKWISE

UNTIL THE HEADSHELL

IS SECURE.

TURNTABLE SETUP

ORTOFON 2M SERIES:

(VPT-2500)

PUSH THE STYLUS

COVER TAB DOWN /

FORWARD AND GENTLY

SLIDE THE COVER OFF.

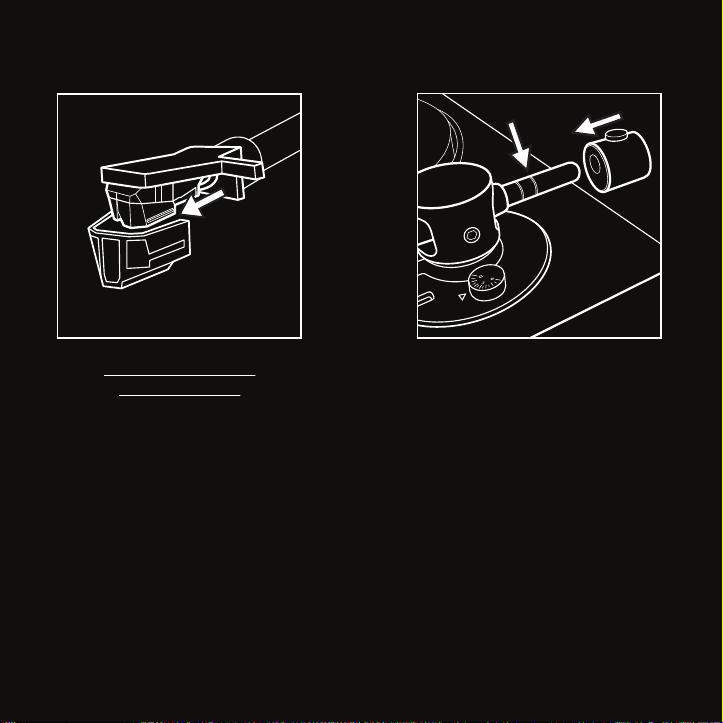

AUDIO TECHNICA

VM95 SERIES:

(VPT-1500)

GENTLY PULL THE COVER

OFF OF THE CARTRIDGE.

SLIDE THE COUNTERWEIGHT

ONTO THE TONEARM

UNTIL THE FRONT OF THE

COUNTERWEIGHT IS

ALIGNED WITH THE BACK

GROOVE ON THE TONEARM.

Note: Remove the two

foam blocks from the

tonearm before installing

the counterweight.

33

45

USE THE SPEED SELECTOR

KNOB TO SELECT YOUR

RECORD SPEED.

PLACE THE 45 RPM

ADAPTER ON THE SPINDLE

NEXT TO THE SPEED

CONTROL TO STORE

WHEN NOT IN USE.

ONCE ALIGNED WITH THE

CORRECT GROOVE, TURN

THE TOP SCREW

CLOCKWISE TO TIGHTEN

THE COUNTERWEIGHT.

Note: You may need to

adjust the anti-skate if you

notice distortion, skipping,

or looping during playback.

TURNTABLE

QUICK START

LED COLOR GUIDE

BLUETOOTH MODE

Ready To Pair

ﬂashing blue

Connected

solid blue (2 sec)

then solid white

RCA MODE

ﬂashes white (3x)

then solid white

OPERATION GUIDE

POWER ON

single press button

POWER OFF

press and hold button

(1 sec)

SWITCH OUTPUT

single press button

switch between RCA output

and Bluetooth output
