MegaMitter Video TX & RX Pair - Wireless 2MP AHD Transmission
VideoMitter is a registered trademark of System Q Ltd
Document ref: MIT500
All specificationsare approximate. System Q Ltd reservesthe right to change product specificationsor features without notice. Whilst every effort is
made to ensure that these instructionsare complete and accurate, System Q Ltd cannot be held responsible for any losses,no matter how they arise,
from errorsor omissionsin these instructions,or the performance or non-performance of the equipment refered to.

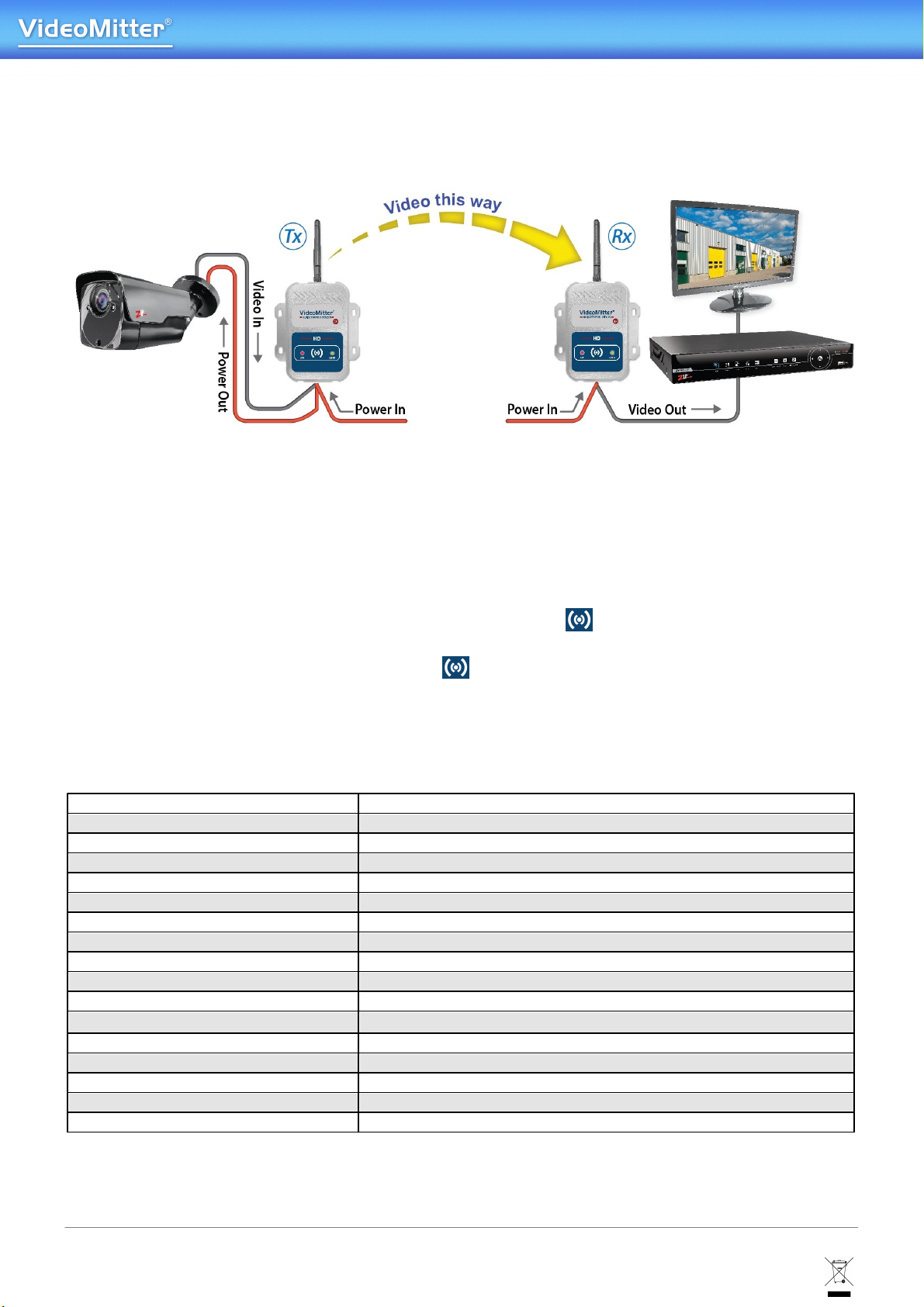

Connecting Video and Camera
Connect the video input feed to the video BNC socket on the Transmitter and video output feed to
the BNC socket marked on the Receiver.
To power the camera via power pass-through connect the power out cable (1) on the transmitter to
your camera’s power in female lead.
Note - If you press and hold the reset button by mistake you will need to re-pair the units.
Pairing
The MegaMitters are supplied tested and paired up. Only one receiver can receive video from one
transmitter. When both the TX & RX are powered up within transmission range the green light will
illuminate to indicate they are connected.
Pairing Process - As supplied the MIT500s are already paired, but if they do need pairing
followthe process below;
1. Connect 12V DC Power to both Tx and Rx. Press the PAIR button down on the RECEIVER
for 3 seconds. The Link LED will start to flash.
2. Within 30 seconds press and hold the PAIR button on the TRANSMITTER until the link LED
starts flashing.
3. Once pairing is complete both Link LEDs will display solid Green. If a monitor is connected to
the RECEIVER it will display a signal strength bar at the top left hand corner of the display.
Specifications
Up to 1Km (with additional aerials)
IP65 (providing connections are made IP65)
19 (FHSS – maximum 4 pairs per site
110mm x 95mm x 25mm (Not including aerials or wires)
