Vidyo VidyoDesktop Manuale utente

VidyoDesktop Audio Setup Guide : For version3

•Use recommended speaker and microphone devices to prevent echo

and other audio issues. (Please see recommended peripherals list)

•Use USB speakerphone or USB headset than built-in microphone for a

better audio experience.

•Plug each audio device directly into one of your computer’s USB ports

whenever possible rather than a USB hub.

•Make sure you have the latest audio drivers for the audio devices you

use during your VidyoConference.

Audio Best Practice – Before Meeting

•Close all applications except those necessary for your

VidyoConference to free-up your CPU.

•If your computer has a Power Plan (all Windows and Mac laptops do)

choose “high performance”. If you’re using a laptop, avoid running on

battery – it can reduce performance and quality if the power settings

are set to conserve power.

•Use the best connection possible – wired is better than wireless.

•Remove background noise from your location.

•Remove any obstacle around the audio device.

OS : Windows 8/7/XP, Mac OSX 10.6 or later

CPU : Core2Duo 2GHz or higher

RAM : 2GB

VidyoDesktop Recommended Configurations

※VidyoDesktp 3.0.3

•The first time you join a meeting, the Device window

will automatically appear to enable you to select your

audio device.

•You can also select on the VidyoDesktop to

access the Device settings. This tab shows the

speaker and microphone devices available on your

computer.

•Disable echo cancellation when you are using devices

which have built-in echo cancellation (headset or

speakerphone). It appears grayed out when you use

a Vidyo recommended device.

•After making a change to a setting, click Save.

•Use the drop down arrow ▲to change the volume level.

•If you find that your voice volume is not changing, clear the Auto

Adjust Microphone checkbox to disable automatic gain control of

microphone.

•Click the Microphone button to mute or unmute the microphone.

The button turns red when you mite yourself.

Local Mute

You can unmute by yourself

Room owner Mute

You can not unmute by yourself

Selecting Your Audio Device for Use

VidyoDesktop Audio Setup Guide : For version3

Adjust Microphone Level

Please mute your microphone

when you’re not actively speaking

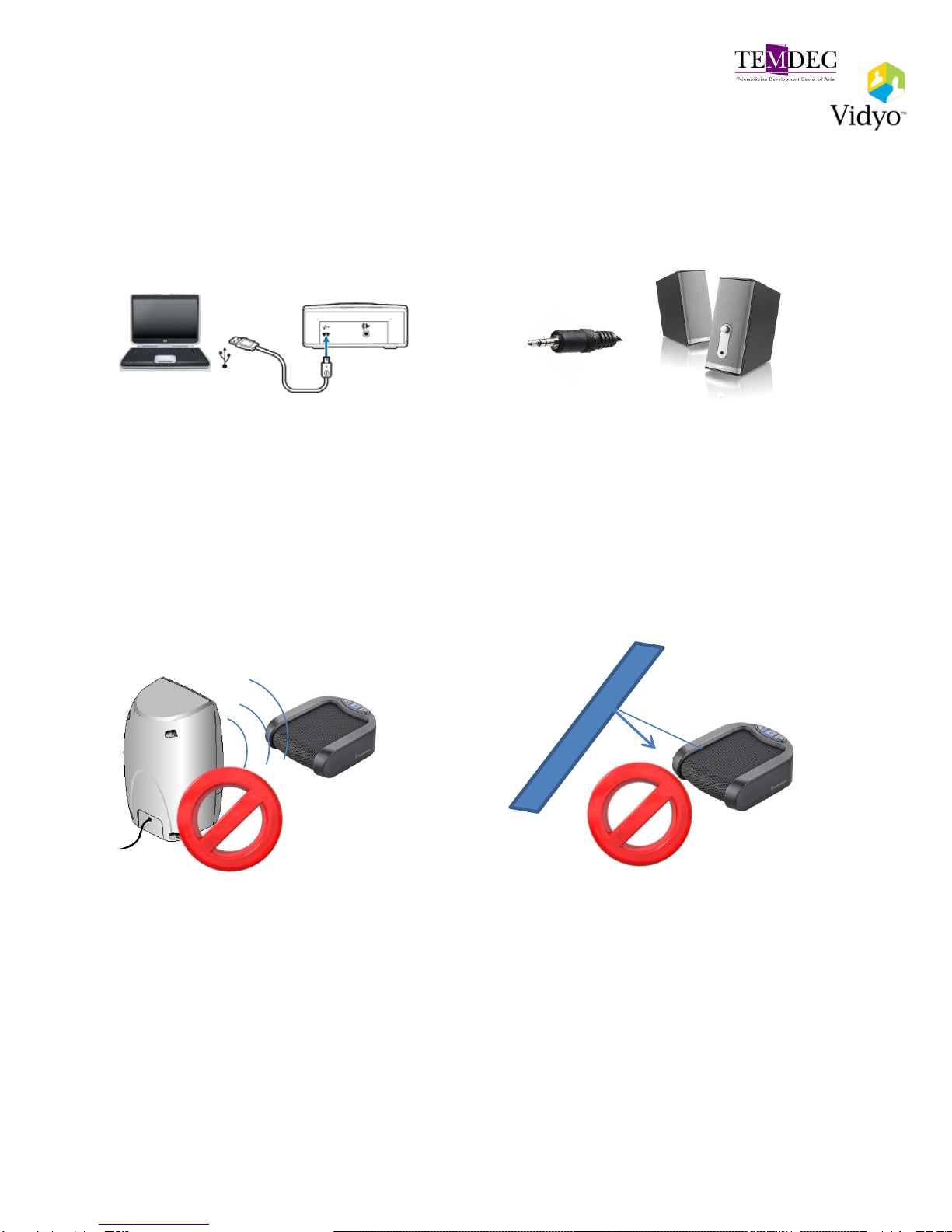

Plantronics Calisto420 (For multiple participants)

•Plantronics Calisto420 is available for multiple participants as it is

equipped with a 3.5mm external speaker connector.

1. Connect the USB cable to the USB

port on your computer.

２．Connect the 3.5 mm cable of the

external speaker to the connector on

Calisto420.

•Don’t put external speaker in front of the speakerphone.

•Remove any obstacle around the audio device.

MANUFACTURE

MODEL PLATFORM

TESTED

DRIVER OR

FIRMWARE

VERSION

TESTED

DEVICE DESCRIPTION

RECOMMENDED

ClearOne Chat 60 Windows,

Mac,

Linux

6.1.7601.17514 Personal speakerphone that provides full-

duplex audio.

Konftel Konftel 300 Windows Firmware

version: 1.25

Conference phone with microphone, two

additional microphones, and PA system

interface box.

Logitech BCC950 Con-

ferenceCam

Windows 13.40.840.0 All-in-one webcam and speakerphone.

Phoenix Duet PCS

MT202

Windows,

Mac OS,

Linux

6.1.7601.17514 USB desktop speakerphone.Notes:

•

In order for the audio and volume controls to

operate properly when using this

speakerphone with a Mac, go to System

Preferences > Audio and select Phnx

MT202pcs as the device for Audio Output

and Audio Input.

•If you need an extender with this

speakerphone, Vidyo recom-mends the APC

USB extender, which supports up to 55 feet.

Phoenix Quattro3

MT304

Windows 6.1.7601.17514 USB and power daisy-chain

speakerphone.Notes:

•If you choose to daisy chain, each

speakerphone can be powered individually

using the supplied power adapters, or if you

want to power all the speakerphones using

PoE, you can purchase the Daisy Chain Power

Kit from Phoenix Audio Technologies.

•If you need an extender with this

speakerphone, Vidyo recommends the APC

USB extender, which supports up to 55 feet.

Plantronics Calisto 420 Windows 6.1.7601.17514 USB, echo-canceling speakerphone.

Plantronics Calisto P820 Windows Firmware

version:

V01.27.00.00

Multi-device speakerphone system.

Plantronics MCD100 Windows,

Mac OS,

Linux

6.1.7601.17514 USB speakerphone for small to medium-sized

work areas.

VidyoDesktop Peripheral Devices：Speakerphone (1)

MANUFACTURER

MODEL

PLATFORM

TESTED

DRIVER OR

FIRMWARE

VERSION TESTED

DEVICE DESCRIPTION

SUPPORTED

Apple iMac, Macbook

Pro, Macbook Air,

and Thunderbolt

Display Built-in

Speaker

Mac OS Apple devices.

ClearOne Chat 50 Windows,

Mac OS,

Linux

6.1.7601.17514 Personal echo-canceling

speakerphone.

ClearOne Chat 150 Windows,

Linux

6.1.7601.17514 USB-based, echo-canceling

speakerphone.

Jabra Jabra SPEAK 410 Windows,

Mac OS,

Linux

Firmware

version: 1.5.0

Personal echo-canceling

speakerphone.

Yamaha PJP-20UR Windows,

Mac OS,

Linux

Firmware

version: 1.07

Web conference microphone speaker

with built-in echo

canceller.Recommended cables:

•10 feet: Fontel USB 2.0 Type A-to-

Mini B cable (part number GCUSBM10)

•15 feet: Fontel USB 2.0 Type A-to-

Mini B cable (part number GCUSBM1)

Yamaha PJP-25UR Windows,

Mac OS,

Linux

Firmware

version: 1.1.0.9

Conference speakerphone with

movable microphone arms.

VidyoDesktop Peripheral Devices：Speakerphone (2)

MANUFACTU

RER MODEL PLATFORM

TESTED DEVICE DESCRIPTION

RECOMMENDED

Microsoft Lifechat LX-3000 Windows,

Linux

Headset with noise-canceling microphone and in-line

volume controls.

Plantronics Blackwire C520-M Windows, Mac

Headset with USB audio and noise-control cancelling

microphone

Plantronics SAVI-740

(wireless)

Windows,

Mac OS

Multi-device wireless headset system.

Plantronics Voyager Pro UC v2

(wireless)

Windows,

Mac OS

Bluetooth headset system with dual-mic AudioIQ2 DSP for

noise cancellation.

SUPPORTED

Apple Thunderbolt Display

Built-In Microphone

Mac OS Built-in display microphone

Cyber

Acoustics

AC-840 Windows,

Linux

USB mono headset with boom microphone.

Cyber

Acoustics

AC-850 Windows,

Linux

USB stereo headset with boom microphone.

Jabra UC 750 Mono Windows Headset with USB audio and noise-cancelling microphone

Logitech B530 USB Headset Windows,

Mac OS

Headset with laser-tuned drivers and a built-in equalizer.

Logitech ClearChat Comfort

USB

Windows,

Linux

Headset with USB audio and noise-canceling microphone.

Logitech USB Headset H330 Windows,

Linux

Headset with USB audio and noise-canceling microphone.

Logitech USB Headset H390 Windows Headset with USB audio, noise-canceling microphone, and

padded headband.

Plantronics Blackwire C435-M Windows,

Mac OS

Headset with noise-canceling microphone and in-line

volume controls.

Plantronics C420 Windows,

Mac OS

Digitally enhanced foldable headset.

Plantronics DSP-400 Windows,

Mac OS

Digitally enhanced foldable headsets.

Plantronics Plantronics Headset

with Plantronics USB

Adapter 01

Windows,

Linux

Analog headset to be used with USB adapter.

Plantronics Savi W740 Wireless

Headset

Windows,

Mac OS

Wireless headset

VidyoDesktop Peripheral Devices：Headsets
