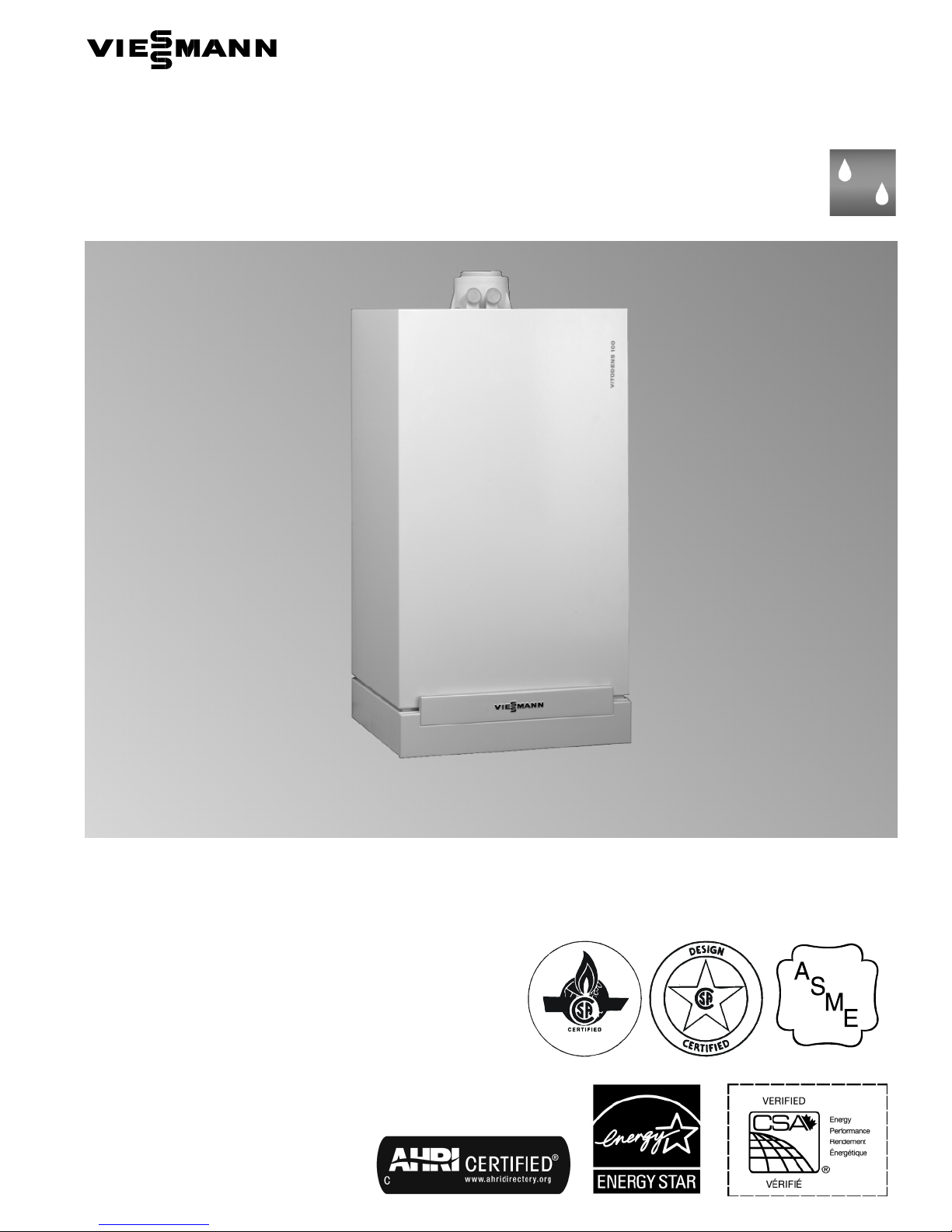

VITODENS 100-W



Gas-fired wall-mounted condensing boiler

37 to 118 MBH / 10.8 to 34.6 W

Vitodens 100-W

WB1B Series

Gas-Fired Wall-Mounted Condensing Boiler

with modulating stainless steel MatriX cylinder

burner and stainless steel Inox-Radial heat exchanger

for room air independent operation

(using a direct vent system) or room

air dependent operation

Technical Data Manual

Model Nos. and pricing: see Price List

Vitodens 100-W, WB1B

with preinstalled coaxial vent pipe adaptor)



This trademar is registered with the U.S. Patent and Trademar Office.

5369 277 v1.5 01/2010

Product Information

VITODENS 100-W

Equipped with a Viessmann stainless steel

heat exchanger for lasting performance and

reliability and a modulating MatriX cylinder

gas burner, the Vitodens 100-W

wall-mounted condensing boiler is the perfect

combination of value, quality and Viessmann

technology.

The benefits at a glance:

HOutstanding efficiency of 95.2 % A.F.U.E.

on all models.

HLasting performance

with Viessmann-made SA240 316Ti

stainless steel Inox-Radial heat exchanger

constructed to ASME Section IV and CSA

B51.

HLow-emission

with fully-modulating stainless steel

MatriX cylinder burner. Factory calibration

eliminates adjustments in the field.

< 29 ppm NOx(at 3% O2)

< 40 ppm CO (at 3% O2)

HControl variety

Integrated boiler control interfaces with

any level of external control - from room

thermostat to outdoor reset and more.

HCompact, lightweight design

and zero clearance to combustibles ma e

it a great choice for limited-space

installations.

HExtremely quiet operation;

quieter than most refrigerators.

< 50 dBA (at 1 meter / 3.3 ft.)

HEasy installation, service and maintenance

with all pipe connections located at the

bottom and serviceable components easily

accessible from the front.

HMultiple venting options

- Horizontal or vertical sealed combustion

coaxial vent system (factory supplied).

- Horizontal, vertical or hybrid sealed

combustion double-pipe vent system

(field supplied).

- Horizontal or vertical single-wall vent

system (field supplied).

HSuitable for high altitude levels

of up to 10,000 ft. / 3,000 m without

deration.

HBuilt-in automatic frost protection

allows boiler to be shut off for an

extended period of time while protecting it

against freeze-up.

HLimited lifetime warranty

in residential applications.

Product Information

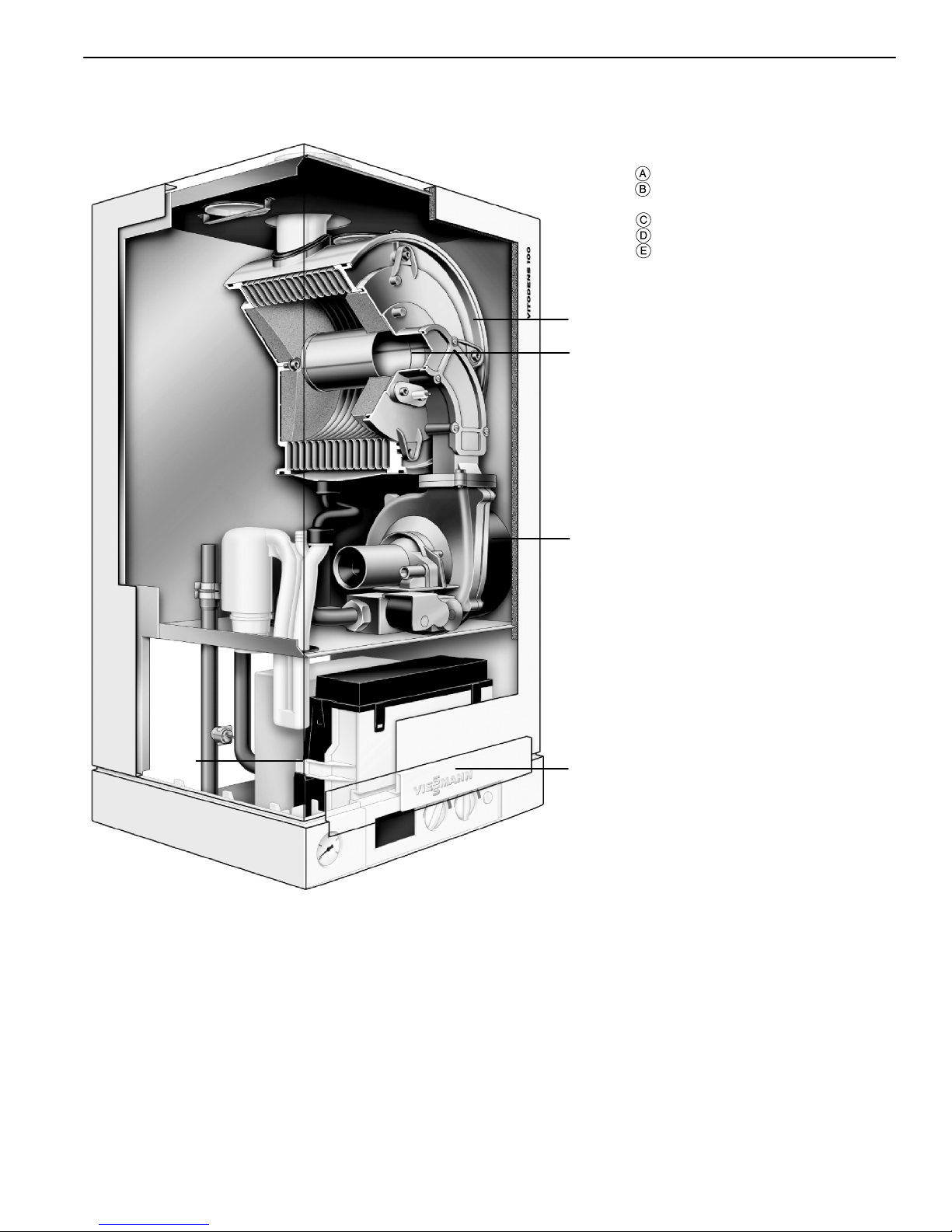

Cross-Section

Legend

Stainless steel MatriX cylinder burner

Inox-Radial stainless steel heat

exchanger

Burner blower

Gas and hydronic connections

Boiler control

Standard Equipment:

Wall-mount boiler and installation fittings

c/w 30 psi pressure relief valve, pressure

gage, gas shut-off valve, two fill/drain

valves, all mounting hardware, outdoor

temperature sensor, and LP conversion it.

Product may not loo exactly as illustrated.

Technical Data

Standard heating boiler

Boiler Model Model No. WB1B 26 WB1B 35

Natural gas and LPG

CSA input

CSA output/DOE*1

heating capacity

MBH

37-91

10.8-26.7

34-83

9.9-24.3

37-118

10.8-34.6

34-108

9.9-31.6

Net I=B=R rating*2 MBH 72 94

Heat exchanger surface area ft.2

10.23

0.86

10.23

0.86

Min. gas supply pressure

Natural gas

LPG

“w.c.

Max. gas supply pressure*3

Natural gas and LPG “w.c. 14 14

A.F.U.E. %94.0 94.0

Weight lbs

34.1

Shipping weight lbs

Boiler water content USG

ltr

0.87

3.3

0.87

3.3

Boiler max. flow rate*4 GPM

ltr/h

6.2

1400

6.2

1400

Max. operating pressure

at 210ºF / 99ºC

psig

bar

Boiler water temperature

– Adjustable high limit (AHL) range

– space heating (steady state)

– DHW production (set-point)

– Fixed high limit (FHL)

ºF / ºC

86 to 176 / 30 to 80

172 / 78

210 / 99

Boiler connections

Boiler heating supply and return NPTM (male) “

Pressure relief valve NPTF (female) “

Drain valve (male thread)

Dimensions

Overall depth

Overall width

Overall height

inches

141/8

360

15¾

400

28½

725

141/8

360

15¾

400

28½

725

*1 Output based on 140ºF / 60ºC, 120 ºF / 49ºC system supply/return temperature.

*2 Net I B R rating based on piping and pick-up allowance of 1.15.

*3 If the gas supply pressure exceeds the maximum gas supply pressure value, a separate gas pressure regulator must be installed upstream of the

heating system.

*4 See “Maximum Flow Rates” on pages 15 to 17 in this manual.

Vitodens 100-W

Standard heating boiler

Boiler Model Model No. WB1B 10-26 WB1B 10-35

Gas supply connection NPTF “ ¾ ¾

Flue gas*5

Temperature (at boiler return

temperature of 86ºF / 30ºC)

– at rated full load

– at rated partial load

Temperature (at boiler return

temperature of 140ºF / 60ºC)

ºF / ºC

127 / 53

90 / 32

167 / 75

131 / 55

90 / 32

172 / 78

Flue gas value

Mass flow rate (of flue gas)

– at rated full load

– at rated partial load

Available draught

lbs/h

g/h

lbs/h

g/h

mbar

79.2

36.0

33.0

15.0

100

1.0

100.1

45.5

33.0

15.0

100

1.0

Flue gas temperature sensor

limit ºF / ºC 230 / 110 230 / 110

Average condensate

flow rate*6

with natural gas

– TS/TR=122/86ºF / 50/30 ºC USG/day

ltr/day

1.95-2.3

8-9

2.5-2.8

9.4-10.5

Condensate connection*7 hose

nozzle

∅in 1 1

Boiler flue gas connection*8 ∅

in/mm 23/8/60 23/8/60

Combustion air supply

connection*8

outer

∅in/mm 4/100 4/100

Noise level at 1 meter)

– at full load

– at partial load

(dB)

High altitude factory set)*9

ft. / m 0-5,000 / 0-1,500 0-5,000 / 0-1,500

*5 Measured flue gas temperature with a combustion air temperature of 68°F / 20°C.

*6 Based on typical boiler cycles, including partial load conditions.

*7 Requires 1” / 25 mm tubing. See Vitodens 100-W Installation Instructions for details.

*8 For an overview of venting options refer to the appendix starting on page 19. For detailed information refer to the Vitodens Venting

System Installation Instructions.

*9 For 5,000 to 10,000 ft / 1,500 to 3,048 m operation, a coding address change is required. Refer to the Installation and Service

Instructions for details.

"For information regarding other Viessmann System Technology componentry, please reference documentation of respective product.

Vitodens 100-W

Vitodens 100-W, WB1B 26/35

without piping connections

Connections Vitodens 100-W,

WB1B 10-26, 10-35

Legend

Connections

Condensate drain, plastic hose

Ø 1” / 25mm

Boiler water supply, NPT ¾” (male

thread)

Gas connection, NPT ¾” (male thread)

Boiler water return, NPT ¾” (male

thread)

ECombustion air opening for double pipe

system

FCombustion air opening for co-axial

system

Dimensions

a See fig. 2 for dimensions

b 15¾” / 400 mm

c 25/8” / 68 mm

d 28½” / 725 mm

e 47/8” / 123 mm

f 61/8” / 156 mm

g 141/8” / 360 mm

h 5” / 125 mm

j 97/8” / 250 mm

11/4” / 31 mm

m 77/8” / 200 mm

n 31/8” / 80 m

E F E

Fig. 1 Front view Top view

Side view

Vitodens 100-W

Vitodens 100-W, WB1B 26/35

with piping connections

Piping connections for Vitodens

100-W, WB1B 10-26 and 10-35

factory supplied)

Legend

BWR Boiler water return, ¾”

BWS Boiler water supply, ¾”

BD Boiler drain

BF Boiler fill

GC Gas connection, ¾” NPTM

(male thread)

PRV Pressure relief valve

PG Pressure gage

VC Venting connection

CAI Combustion air inlet connection

(optional)

14” /

355mm

15¾” /

400mm

” / 73mm

12” / 300mm

”/

68 mm

6” /

152mm 4

” /

123mm

” /

123mm

CAI CAI

Fig. 2

28½” / 725 mm

32½” / 826 mm

PRV

GC BF

BWS

BWR

Fig. 3

Vitodens 100-W/Technical Data

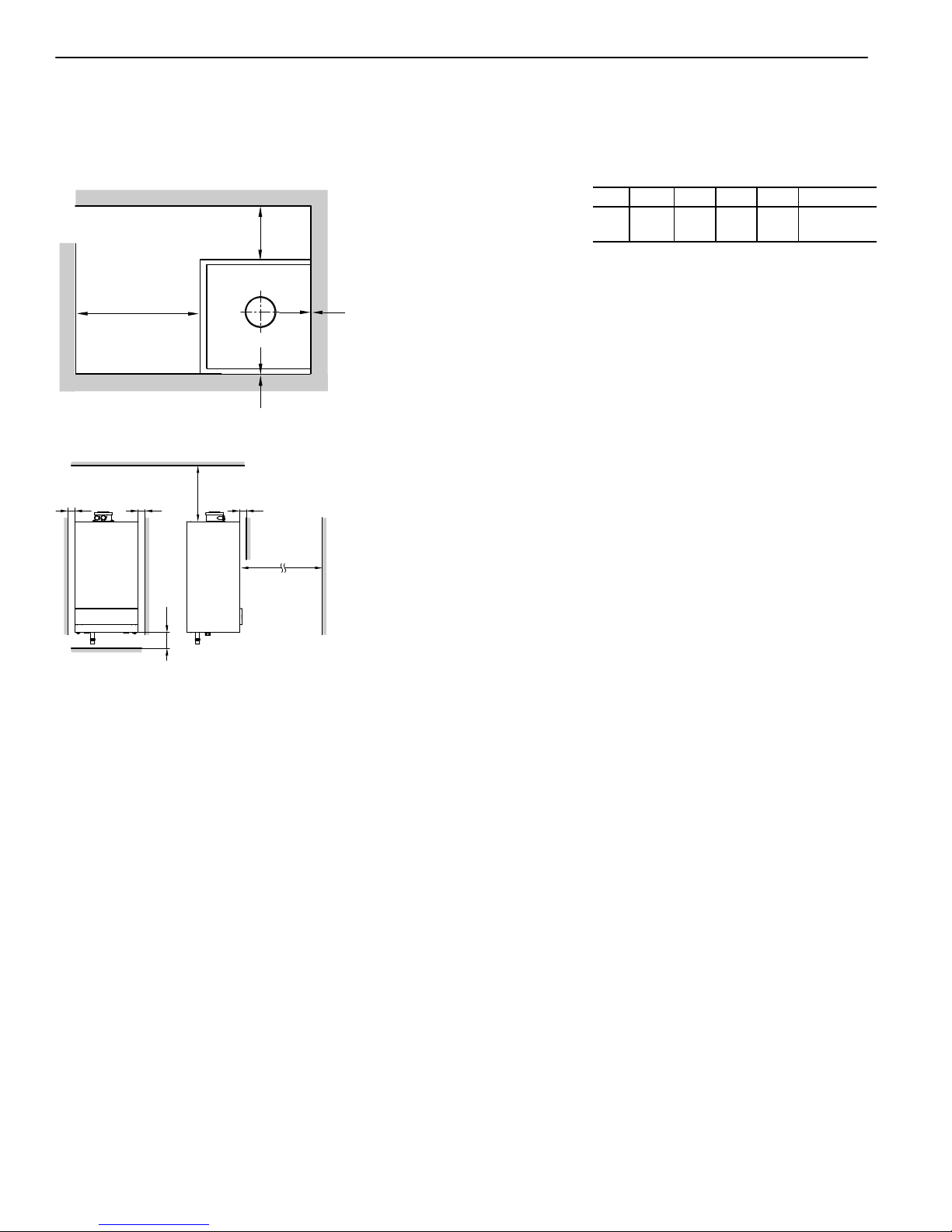

Recommended Minimum Service Clearances Minimum Clearances to Combustibles

Top Front Rear Left Right Vent pipe*1

0 0 AL,

0 0 0 0

AL Alcove

CL Closet

*1Refer to the Installation Instructions of the

Vitodens Venting System for details.

Note:

The Vitodens 100-W boiler has passed the

zero inches vent clearance to combustibles

testing requirements provided by the boiler

Harmonized Standard ANSI Z21.13. CSA

4.9.2005 and therefore is listed for zero

clearance to combustibles when vented

with a single wall special venting system

(AL-29-4C material) or UL/ULC-listed CPVC

gas vent material. The zero inches vent

clearance to combustibles for the Vitodens

100-W boiler supercedes the clearance to

combustibles listing that appears on the

special venting system label.

Front

12”/305 mm

Top

12”/305 mm

0”/mm

28”/700 mm

Side

0”/mm

Bac

Side

Fig. 4

12”/300 mm*1

4”/100 mm

28”/

700 mm

¼”/5 mm ¼”/5 mm¼”/5 mm

Fig. 5

Technical Data/Heating Circuit Pumps

Waterside Flow boiler circuit)

The Vitodens 100-W is designed only for closed loop, forced

circulation hot water heating systems.

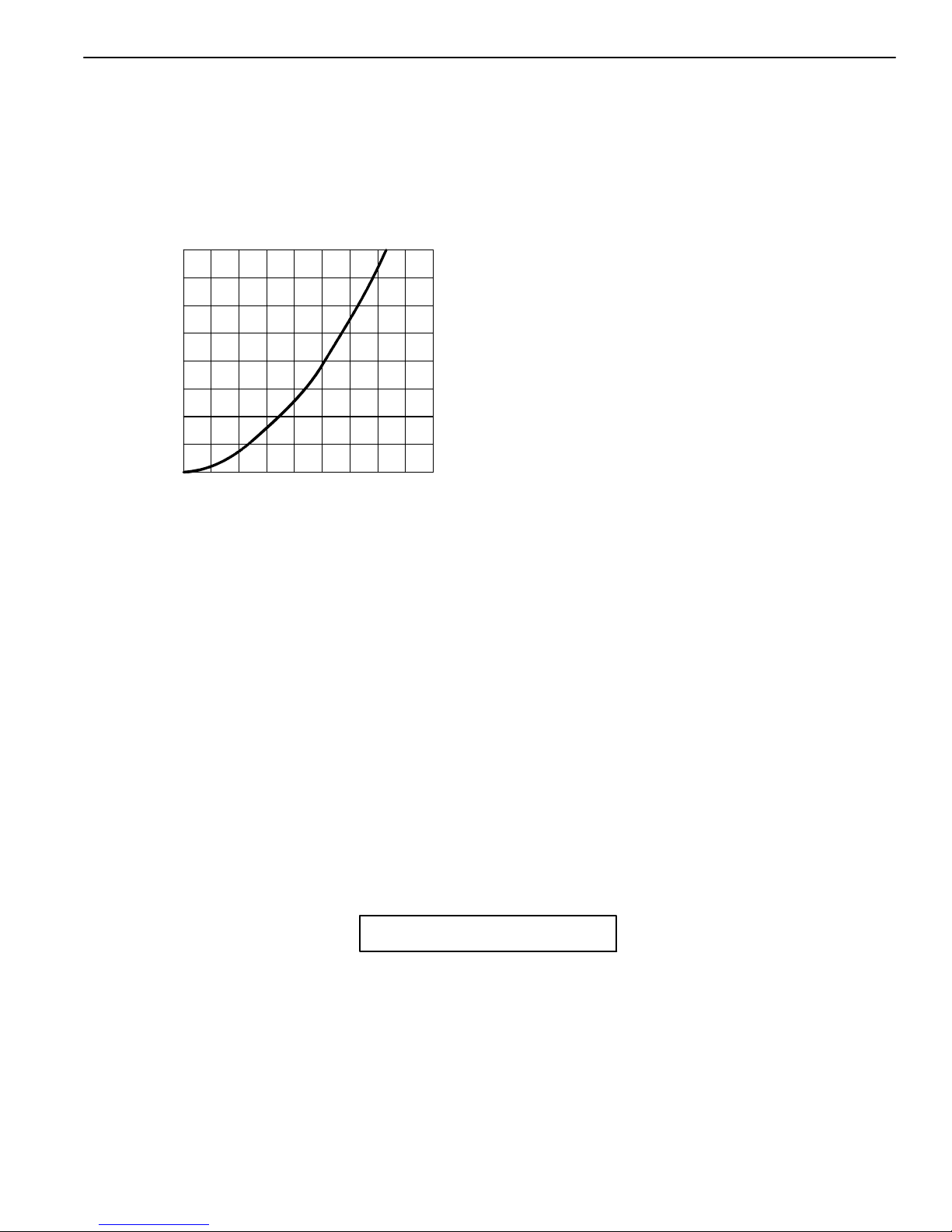

Pressure drop primary circuit) of Vitodens 100-W

Use standard friction loss method for pipe sizing.

Observe boiler maximum and minimum flow rate limitations. If system flow rate exceeds

boiler maximum flow rate (as stated on page 13) or if system flow rate is unknown, Viessmann strongly

recommends the installation of a low-loss header. See page 13 for low-loss header information.

Heating Circuit Pumps

Recommended heating pumps with Vitodens 100-W, WB1B 10-26, 10-35:

HGrundfos 15-58 (3-speed)

HTaco 00R

or equivalent

Refer to the graph above for the proper

waterside boiler friction loss calculations.

Pump selection must be based on accurate

system flow and pressure drop calculations

incl. DHW sizing).

0 500 1000 1500

3.3

6.6

9.8

13.1

16.4

19.7

ft.

2000 ltr. / hr.

Flow rate (USGPM)

Supply head pressure (ft. water)

0 2.2 4.4 6.6 8.8 GPM

A low-loss header must be used when the system flow

rate exceeds the maximum or falls below the minimum

flow rate of the Vitodens 100-W boiler. An alternative

method may be used, such as primary secondary piping

using closely spaced tees. A low-loss header offers

additional benefits not provided by a pair of closely

spaced tees. Viessmann strongly recommends and

prefers the use of a low-loss header over closely spaced

tees.

Please see page 13 for details.

IMPORTANT

DHW Production/Wall Mounting

Domestic Hot Water Production via DHW Storage Tank

Vitodens 100-W boilers can be used in

conjunction with the stand-alone DHW

storage tan s offered by Viessmann (a

separate DHW controller should be field

supplied). All Viessmann DHW storage

tan s sold in North America are available in

“Vitosilver” finish only.

Size and select the DHW storage tan based

on the forecast DHW consumption of the

building in question.

For further technical information on DHW

storage tan s, see the Vitocell-V Technical

Data Manuals.

Wall Mounting Information

The Vitodens 100-W (model WB1B 10-26

and 10-35) comes with a template, which

allows you to easily mar the location of the

screws for the mounting brac et and the

location of the flue gas pipe on the wall

(Viessmann coaxial PPS vent system only).

The connection to the heating circuits must

be made on site (installation fittings are

supplied in the Installation Fittings pac age

supplied with the boiler).

Legend

Mounting template

Fig. 6

Altri manuali per Vitodens 100-W

Questo manuale è adatto per i seguenti modelli

Altri manuali Viessmann Caldaia

Viessmann

Viessmann Vitodens 222-F Manuale utente

Viessmann

Viessmann Vitodens 100-W Manuale utente

Viessmann

Viessmann Vitorond 200 VD2 320 Istruzioni operative

Viessmann

Viessmann KOB Pyrotec KPT Series Manuale di istruzioni

Viessmann

Viessmann VITOCROSSAL 300 Istruzioni operative

Viessmann

Viessmann VITODENS 200 Manuale utente

Viessmann

Viessmann VR1 22 Guida rapida

Viessmann

Viessmann VITOFLEX 300-UF Manuale di installazione e d'uso

Viessmann

Viessmann Vitocrossal 300 CT3 SERIES Guida

Viessmann

Viessmann Vitodens 100-W B1HA Manuale di istruzioni

Viessmann

Viessmann Vitodens 222-F Guida rapida

Viessmann

Viessmann VITODENS 200-W WB2B 80 Manuale utente

Viessmann

Viessmann Vitodens 200-W B2HA series Guida utente

Viessmann

Viessmann Vitodens 100-W Manuale utente

Viessmann

Viessmann Vitotron 100 Istruzioni operative

Viessmann

Viessmann Vitodens 222-F Guida rapida

Viessmann

Viessmann Vitocell-B 100 CVB Series Manuale utente

Viessmann

Viessmann Vitogas 100 GS1 Series Manuale utente

Viessmann

Viessmann VITODENS Manuale utente

Viessmann

Viessmann Vitoflex 300-RF Series Manuale di installazione e d'uso

Viessmann

Viessmann VITOCELL 300B Manuale utente

Viessmann

Viessmann VITOPLEX 300 Istruzioni operative

Viessmann

Viessmann VITORONDENS 200-T Manuale utente

Viessmann

Viessmann Vitocell 340-M Istruzioni operative

Manuali Caldaia popolari di altre marche

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuale utente

Radijator

Radijator BIO max 23.1 Manuale utente

Brunner

Brunner BSV 20 Manuale utente

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuale utente

Potterton

Potterton 50e Scheda tecnica

UTICA BOILERS

UTICA BOILERS TriFire Manuale utente

Joannes

Joannes LADY Series Manuale

ECR International

ECR International UB90-125 Manuale di istruzioni

Froling

Froling FHG Turbo 3000 Manuale utente

Froling

Froling P4 Pellet 8 - 105 Manuale utente

U.S. Boiler Company

U.S. Boiler Company K2 Manuale utente

Henrad

Henrad C95 FF Manuale utente

NeOvo

NeOvo EcoNox EF 36 Manuale utente

Potterton

Potterton PROMAX SL 12 Manuale utente

Eco Hometec

Eco Hometec EC 25 COMPACT Manuale utente

Baxi

Baxi Prime 1.24 Manuale utente

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuale utente

Radiant

Radiant R2K 55 Manuale
