Viessmann Vitocell 100-E Guida rapida
Installation and service instructions
for contractors
VIESMANN
Vitocell 100-E
Type SVPB
Heating water buffer cylinder
600 to 950 l
VITOCELL 100-E
6154019 GB 4/2020 Please keep safe.
2
Please follow these safety instruc-
tions closely to prevent accidents
and material losses.
Safety instructions explained
Danger
This symbol warns against the risk
of injury.
!Please note
This symbol warns against the risk
of material losses and environmen-
tal pollution.
Note
Details identified by the word "Note"
contain additional information.
Target group
These instructions are exclusively inten-
ded for qualified contractors.
■Work on electrical equipment may only
be carried out by a qualified electrician.
■The system must be commissioned by
the system installer or a qualified per-
son authorised by the installer.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention
of accidents
■Statutory regulations for environmental
protection
■Codes of practice of the relevant trade
associations
■Relevant country-specific safety regu-
lations
Working on the system
■Isolate the system from the power sup-
ply (e.g. by removing the separate fuse
or by means of a mains isolator) and
check that it is no longer live.
■Safeguard the system against recon-
nection.
!Please note
Electronic assemblies can be dam-
aged by electrostatic discharge.
Prior to commencing any work,
touch earthed objects such as heat-
ing or water pipes to discharge
static loads.
Danger
Hot surfaces can cause burns.
■Before maintenance and service
work, switch OFF the appliance
and let it cool down.
■Never touch the hot surfaces of
uninsulated pipes and fittings.
Safety instructions
Safety instructions
6154019
3
Danger
Floors that are wet or damp with
water or glycol based liquids can
cause injury due to slipping and fall-
ing.
■Keep the floor clean and dry dur-
ing installation and maintenance
work.
■Wear non-slip shoes.
Danger
Broken-off fragments of insulation
material can cause death by suffo-
cation if inhaled or swallowed.
■Do not let children play in the
installation room.
■Keep the installation room clean
after installation and maintenance
work.
Repair work
!Please note
Repairing components that fulfil a
safety function can compromise the
safe operation of the system.
Replace faulty components only
with genuine Viessmann spare
parts.
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have
not been tested together with the
system can compromise its func-
tion. Installing non-authorised com-
ponents and making non-approved
modifications or conversions can
compromise safety and may invalid-
ate our warranty.
For replacements, use only original
spare parts supplied or approved by
Viessmann.
Safety instructions
Safety instructions (cont.)
6154019
4
1. Information Disposal of packaging ............................................................................ 5
Symbols ................................................................................................. 5
Intended use .......................................................................................... 5
Product information ................................................................................ 6
System examples .................................................................................. 6
Spare parts lists ..................................................................................... 6
2. Preparing for installation Connections ........................................................................................... 7
3. Installation sequence Siting the cylinder .................................................................................. 8
Fitting the lower thermal insulation mat and aligning the cylinder body 8
Fitting the thermometer sensor (if supplied) and cylinder temperature
sensor .................................................................................................... 9
Mounting the Vitotrans ........................................................................... 10
Fitting the thermal insulation jacket ....................................................... 12
Fitting the cover strips ............................................................................ 13
Fitting the cover ..................................................................................... 15
Making the connections on the heating water side ................................ 15
Connecting the equipotential bonding ................................................... 16
4. Commissioning/service
reports
................................................................................................................ 17
5. Specification ................................................................................................................ 18
6. Disposal Final decommissioning and disposal ..................................................... 19
7. Certificates Declaration of conformity ....................................................................... 20
8. Keyword index ................................................................................................................ 21
Index
Index
6154019
5
Please dispose of packaging waste in line with statu-
tory regulations.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Intended use
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Information
Disposal of packaging
6154019
Information
6
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Product information
Vitocell 100-E, type SVPB (600, 750 and 950 l
capacity)
■Steel heating water buffer cylinder for storing heating
water in combination with heat pumps, solar thermal
systems, solid fuel boilers and heat recovery.
■With the option to fit a Vitotrans 353
■Suitable for systems to EN 12 828 and DIN 4753.
■For dimensions and weight, see page 18.
System examples
Available system examples: See www.viessmann-
schemes.com.
Spare parts lists
Information about spare parts can be found at
www.viessmann.com/etapp or in the Viessmann
spare part app.
Information
Intended use (cont.)
6154019
Information
7
A
B
C
D
E
Front
B
A
H
N
F
D
L
O
C
G
K
M
E
Back
AThermometer sensor fixing (underneath the thermal
insulation)
BThermometer, up to 4 pce (accessories)
CHeating water flow G 1
DReturn stratification G 1
EHeating water return G 1
AHeating water flow 1 (to the heating circuits)/air
vent valve
BHeating water flow 2 (from the heat generator)
CClamping system for cylinder temperature sensor
(behind the thermal insulation)
DThermometer sensor fixing (behind the thermal in-
sulation)
EHeating water flow 3
FHeating water return 1
GClamping system for cylinder temperature sensor 2
and thermometer sensor (behind the thermal insu-
lation)
HHeating water return 2 (from the heating circuits)
KClamping system for cylinder temperature sensor 3
and thermometer sensor (behind the thermal insu-
lation)
LHeating water return 3 (from the heating circuits)
MClamping system for cylinder temperature sensor 4
(behind the thermal insulation)
NHeating water return 4 (to the heat generator)/drain
OThermometer sensor fixing (behind the thermal in-
sulation)
Preparing for installation
Connections
6154019
Installation
8
!Please note
Exposure to frost can damage the appliance.
Install the buffer cylinder in a room that is free
from the risk of frost and draughts. Otherwise,
the buffer cylinder must be drained if there is a
risk of frost while it is not in use.
■Provide adequate clearance from the wall to allow for
operation of the temperature controller (if installed).
■Placing the heating water buffer cylinder on a plinth
will make the room easier to clean.
■Use adjustable feet to level the buffer cylinder.
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
Fitting the lower thermal insulation mat and aligning the cylinder body
A
B
3.
3x
1.
4.
2.
Fig. 1
ABag containing type plate
BBag containing 3 adjustable feet
3. Insert the adjustable feet into the legs as far as
they will go, then adjust them to level the cylinder
body.
Installation sequence
Siting the cylinder
6154019
Installation
9
Note
Only use one or two of the adjustable feet to level the
cylinder body. At least one of the adjustable feet must
remain fully screwed in.
≤35
Fig. 2
Do not extend the adjustable feet beyond a total
length of 35 mm.
Fitting the thermometer sensor (if supplied) and cylinder temperature sensor
2.
3.
1.
A
4.
6.
5.
7.
Fig. 3
1. Guide the thermometer sensor through the cover
strip and insert the thermometer.
Installation sequence
Fitting the lower thermal insulation mat and… (cont.)
6154019
Installation
10
2. Guide the upper thermometer sensor through the
lifting eye, insert it into the clamping bracket as far
as it will go and tighten the wing nut.
Note
The cover strip is held in its vertical position by the
coiled capillaries. This is necessary for the remain-
der of the installation.
3. Route the thermometer sensor capillaries to the
back of the cylinder.
4. Undo the nuts.
5. Place the clamping system onto the threaded studs
and align.
6. Tighten the nuts.
7. Depending on where the sensor is being fitted,
secure the thermometer sensor in the clamping
bracket or push as far as it will go into clamping
systems A.
Push cylinder temperature sensor into the
clamping system as far as it will go.
Note
■Never wrap insulating tape around the sensors.
■When the thermal insulation is being fitted, the
cylinder temperature sensor leads are routed
outwards through the apertures (slots) in the rear
cover strip.

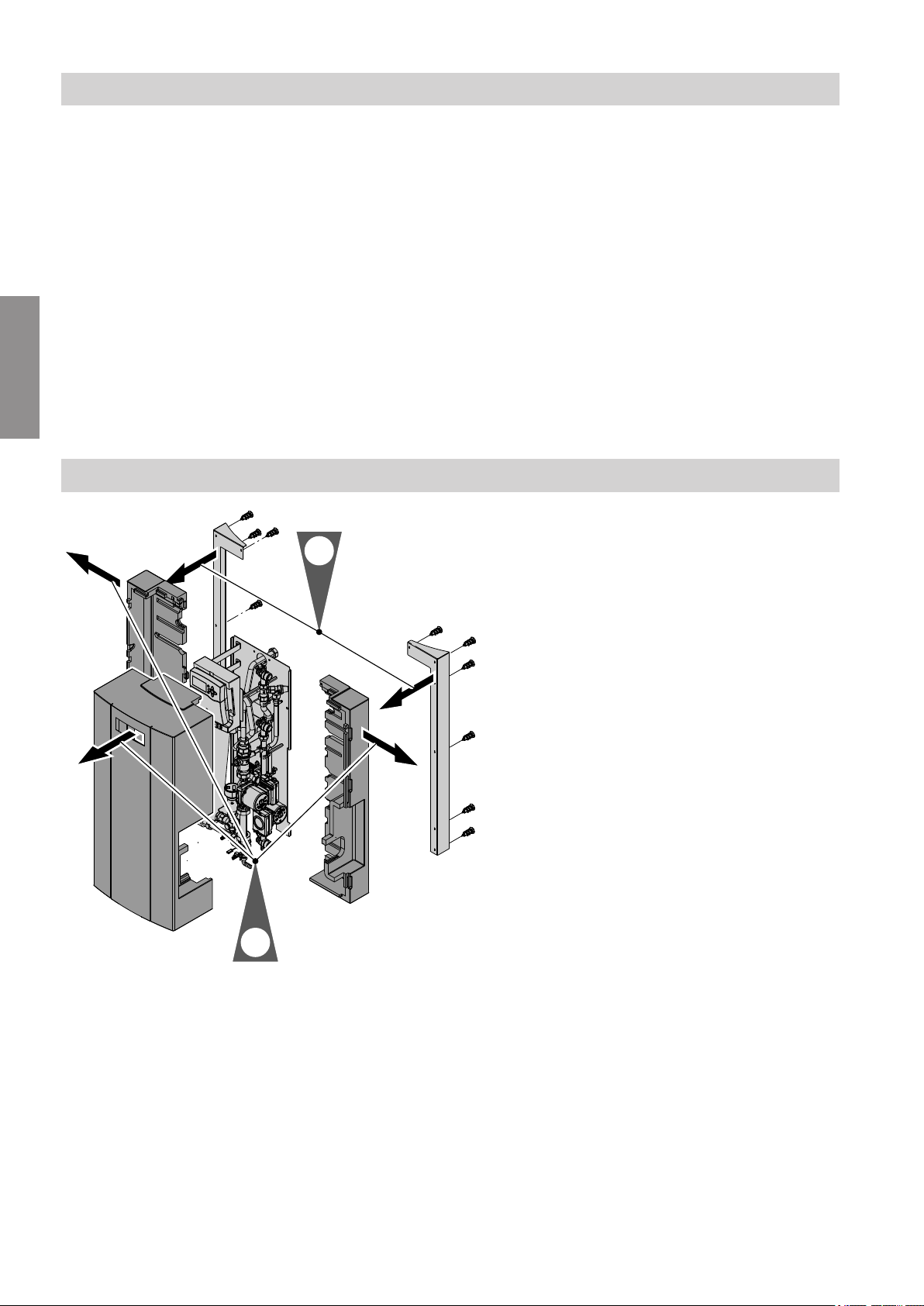

Mounting the Vitotrans
1.
2.
Fig. 4
Installation sequence
Fitting the thermometer sensor (if supplied) … (cont.)
6154019
Installation
Altri manuali per Vitocell 100-E
8
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Viessmann Scaldabagno
Viessmann
Viessmann VITOCELL 300V Guida rapida
Viessmann
Viessmann Vitodens 200-W System Istruzioni operative
Viessmann
Viessmann VITOCELL 100-B Istruzioni operative
Viessmann
Viessmann Vitotherm ES4 Guida rapida
Viessmann
Viessmann Vitodens 111-W Guida rapida
Viessmann
Viessmann Vitocell 100-E Guida rapida
Viessmann
Viessmann VITOCELL 100-V Manuale utente
Viessmann
Viessmann Vitocell 100-E SVW 200 l Guida rapida
Viessmann
Viessmann VITOCELL 300B Istruzioni operative
Viessmann
Viessmann VITOTHERM EI5 Series Manuale utente
Viessmann
Viessmann VITOCELL 100-B Manuale utente
Viessmann
Viessmann Vitosol 100 Manuale utente
Viessmann
Viessmann Solar-Divicon-HX Dimensioni e guida di installazione
Viessmann
Viessmann VITOWELL comfort Manuale utente
Viessmann
Viessmann OpenTherm Istruzioni operative
Viessmann
Viessmann EVBB-A Guida rapida
Viessmann
Viessmann VITOCELL 100-B Istruzioni operative
Viessmann
Viessmann EHA Series Manuale di istruzioni
Viessmann
Viessmann VITOWELL EASY C1 Manuale utente
Viessmann
Viessmann VITOCELL 300V Manuale utente
