ViewSonic VFD820-70 Manuale utente

VFD820

Digital Photo Frame

User Guide

Model No. VS14894

IMPORTANT: Please read this User Guide to obtain important information on installing

and using your product in a safe manner, as well as registering your product for future

service. Warranty information contained in this User Guide will describe your limited

coverage from ViewSonic Corporation, which is also found on our web site at http://

www.viewsonic.com in English, or in specic languages using the Regional selection

box in the upper right corner of our website. “Antes de operar su equipo lea cu

idadosamente las instrucciones en este manual”

Product Specications

LCD Screen Panel size 8 inch

Photo File Image formats supported JPG, JPEG (baseline coding)

Max. image resolution 4000 x 4000 pixels

Calendar Clock, Calendar

Memory

Medium

Memory Card supported MMC, SD, SDHC (max. 32GB)

File system FAT, FAT32

Electrical

Specications

Power input DC 5V, 600mA

Power consumption ≤3W

Power adapter Input: AC 100-240V, 50/60Hz

Output: DC 5V, 600mA

Compliance Information

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC and Low Voltage

Directive 2006/95/EC.

Following information is only for EU-member states:

The mark is in compliance with the Waste Electrical and Electronic

Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment including

any spent or discarded batteries or accumulators as unsorted municipal

waste, but use the return and collection systems available.

If the batteries, accumulators and button cells included with this equipment,

display the chemical symbol Hg, Cd, or Pb, then it means that the battery has

a heavy metal content of more than 0.0005% Mercury or more than, 0.002%

Cadmium, or more than 0.004% Lead.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive 2002/95/EC of

the European Parliament and the Council on restriction of the use of certain hazardous substances

in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the

maximum concentration values issued by the European Technical Adaptation Committee (TAC)

as shown below:

Substance Proposed Maximum

Concentration Actual Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex of the RoHS

Directives as noted below:

Examples of exempted components are:

1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not

specically mentioned in the Annex of RoHS Directive.

2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic

ceramic parts (e.g. piezoelectronic devices).

3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more

lead).

4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium

containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.

iii

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered

trademarks of ViewSonic Corporation.

Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or

omissions contained herein; nor for incidental or consequential damages resulting from

furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right

to change product specications without notice. Information in this document may change

without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any

purpose without prior written permission from ViewSonic Corporation.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

VFD820

ViewSonic Digital Photo Frame

VS14894

VFD820_UG_ENG Rev. 1a 06-07-12

______________________________

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living green. Thank you

for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.

USA & Canada: http://www.viewsonic.com/company/green/recycle-program/

Europe: http://www.viewsoniceurope.com/uk/kbase/article.php?id=639

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

Important Safety Instructions

Always follow the basic safety precautions below when using your Digital Photo Frame. This will

reduce the risk of re, electric shock, and injury.

Warning: To reduce the risk of re or shock hazard, do not expose this product to rain or moisture.

Warning: To prevent the risk, do not remove the cover, there are no spare parts inside, refer all product

services to professional personnel.

• Digital Photo frame is for indoor use only.

• Unplug Digital Photo frame before performing care and maintenance.

• Do not block the ventilation holes on the back of Digital Photo Frame at any time.

• Keep your Multimedia Digital Photo Frame out of direct sunlight and heat source.

• Protect the power cord. Route power cords appropriately to avoid trip over by someone else

or pinched by items placed on or against them. Pay particular attention to the point where

the cord attaches to Digital Photo Frame.

• Only use the AC adapter included with the Digital Photo Frame. Using any other power

adapter will void your warranty.

• Unplug the power cord from the outlet when the unit is not in use.

Cleaning LCD Screen

Treat the screen gently. The screen is made of glass which can be scratched or damaged

To clean ngerprints or dust from the LCD screen, we recommend using a soft / nonabrasive

cloth such as a camera lens cloth to clean the LCD screen.

If you use a commercial LCD cleaning kit, do not apply the cleaning liquid directly to the LCD

screen

Clean the LCD screen with cleaning cloth moistened with the liquid.

Package Content

• Power adapter

• Digital Photo Frame

• User’s manual

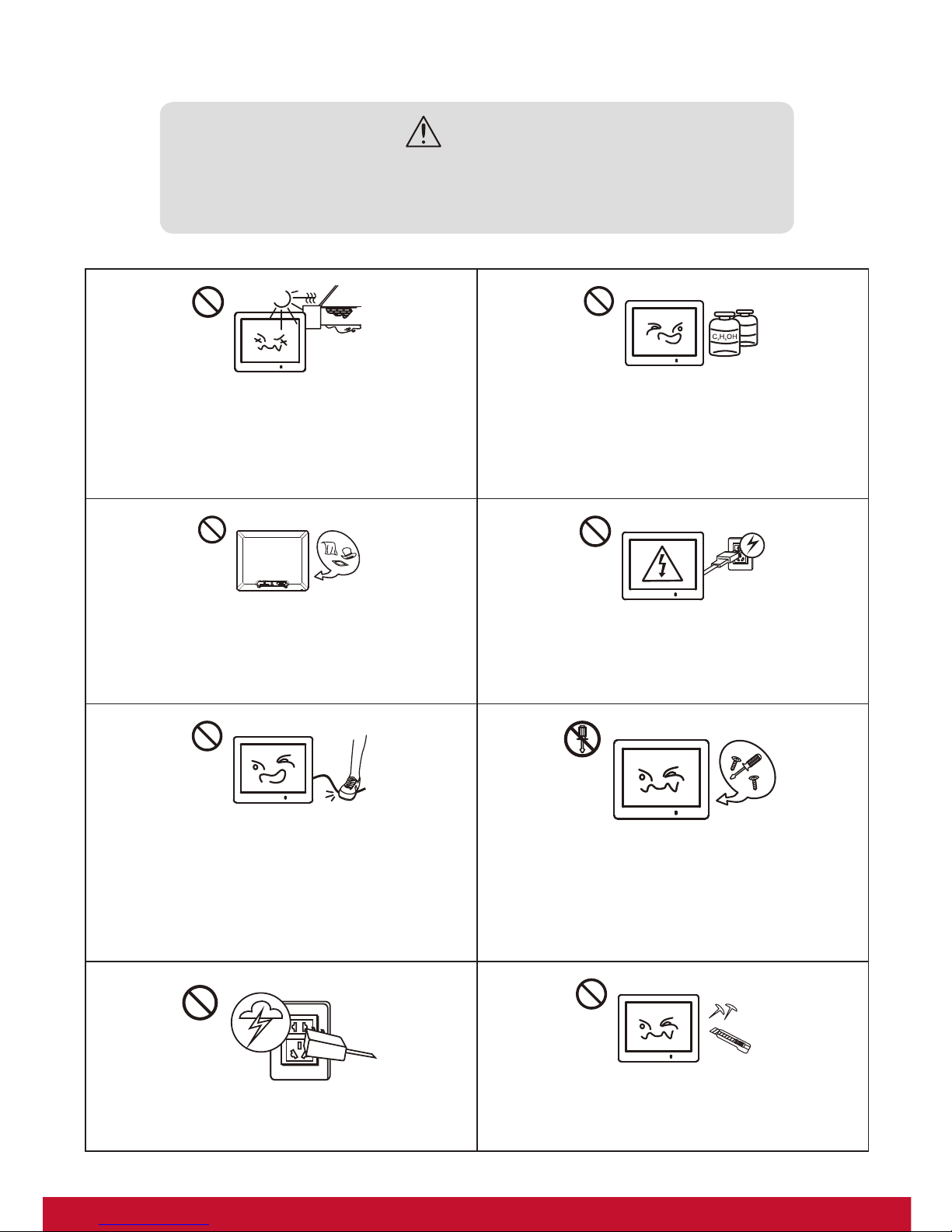

Precautions

Avoid exposing this device to water, moisture or

high temperature. Do not place it near swimming

pool, bathtub or sink where it may come in contact

with water.

Clean only with a dry soft cloth. Do not use any

chemical liquid for cleaning.

To ensure reliable operation of the device and

to protect it from overheating, do not block any

ventilation openings.

Only use accessories specied by the

manufacturer.

Do not step on the power cable, plug or adapter to

avoid electrical shock.

Do not attempt to service this device yourself.

There are no user serviceable parts inside.

Opening or removing covers may expose you

to electrical shock or other hazards. Refer all

services to a qualied service personnel.

Please unplug this device during the thunderstorm

or not in use for a long period.

Do not apply force on the LCD screen during

transport or usage. Avoid sharp objects.

Please read this manual carefully before using this product and

save it for future reference.

Warnings

Turn on/off and Menu Navigation

1) Turn on / off

a. Connect the supplied power adapter to the photo frame and to an electrical outlet.

The photo frame will power on automatically.

b. Press and hold the button about 2 seconds to turn on.

c. Press and hold the button about 2 seconds to turn off.

d. Press the button to return to the previous screen.

2) Menu Navigation

a. Press the button to toggle between the Main Menu and Clock Menu.

b. Press the button to return to the Main Menu.

c. Use the Arrow buttons for up, down, left, and right navigation.

d. Use the [ ] button for pause, play, and enter.


Slideshow

Insert a memory card with the photo on it into a memory slot. On the Main Menu,

select the Photo icon then press [ ] to start a slideshow, press [▲/▼] to adjust

brightness, press [◄/►] to select a photo and press and hold [ ] to pop up a

photo setup option:

1) Calendar: off / on.

2) Mode: Random, Order.

3) Slideshow: random, cross, mid spread, left to right, up to down, and none.

4) Interval: 5 sec, 20 sec, 1 min, 30 mins, 1 hour, 1 day.

5) Scale: the photo can be in its original aspect ratio or auto scale to t the screen

“Original” and “Auto”.

6) Rotate: photo can be rotated 0o/ 90o/ 180o/ 270o by pressing on the [ ] button.

7) Zoom: photo can be zoomed 1 to 5 times by pressing on the [ ] button, press

navigation button to change image’ s viewing position.

Copy and Delete File

Insert a memory card with the photo on it into a memory slot. On the Main Menu,

select the Photo icon then press [ ] button, press the button for a thumbnail

view, select the photo to be copied, press [ ] button to display the Copy Menu,

a “Play, Copy or Delete” submenu appears. Select “Copy” and press [ ] button.

A “File Copying” message appears during copying and disappears after it is done

indicating that photo had been copied into the photo frame internal memory. (The

photo to be copied must be less than 300K, internal memory size is about 2MB)

Delete operation is similar to the Copy procedures. Only supported image les can be

deleted from the internal memory.

Calendar

Press the button to toggle to the Clock Menu. Press [▲/▼] to adjust brightness,

and press [◄/►] to change theme color, press [ ] to go into Calendar setting:

1) Mode : 24 Hour or 12 Hour.

2) Time : press [ ] rst, and then press[▲/▼]to adjust time, use the [◄/►] button

to move between elds, press [ ] button to enter.

3) Calibration : the number of second can be added or subtracted from a day (0, 0.5,

1, 1.5, 2, 2.5, 3, 3.5, 4, -4, -3.5, -3, -2.5, -2, -1.5, -1, -0.5).

4) Date : press [ ] rst, and then press [▲/▼] to adjust date.

5) Date Format : Three formats are available.

6) Week Beginning : Mon., Tue., Wed., Thu., Fri., Sat., Sun..

7) Background : Photo / Black

Setup

On the Main Menu, select the Setting icon then press the [ ] button to enter the

Setting Menu. For Calendar Settings, please see Calendar sections above.

Timer : Press the [▼] button to select Timer Setting, and then press [ ] to enter.

1) Timer : off / on.

2) Turn on : set the time for the unit to power on automatically.

3) Turn off : set the time for the unit to power off automatically.

4) Frequency : how often you want the unit to use the timer after the timer is enable.

Available options are: Everyday, Mon.-Fri., Mon.-Sat., and Once.

Common : Press the [▼] button to select Common Setting, and then press

[ ] to view “Common” Settings.

1) Language : Select the on-screen language, press [ ] or press [◄/►] to select.

2) Theme color : There are 7 active selection colors, press [ ] or press [◄/►] to

select.

3) Auto brightness : On / off, press [ ] or [◄/►] to select.

4) Night mode : On / off, press [ ] or [◄/►] to select.

5) Default Settings : press [ ] to restore factory settings.

6) Product info : check product information. Press [ ] to verify software and

hardware versions.

Troubleshooting

Problems Solutions

Cannot power on, even when the device

is connected to an electrical outlet.

Check whether the AC power adapter rating

is correct, and it is securely plugged to the

device and to an electrical outlet.

Screen is off or too dark. Check whether the screen brightness is set to

a low level in the Setup menu.

Screen freeze and does not respond to

control anymore.

Unplug the device and plug it again.

Cannot playback pictures. Only support pictures in JPEG, JPG format in

baseline.

Failed to read memory card. Check whether memory card is inserted

properly. The notch should be on the left hand

side. Do not force the memory card in. The

maximum capacity of memory card is 32GB.

Return to the Main Menu automatically

when playing content.

Restart playing. Note: This device has a self

protection function against sudden system

abnormality.

Customer Support

For technical support or product service, see the table below or contact your reseller.

Note : You will need the product serial number.

Country/Region Web Site T=Telephone

F=Fax E-mail

Australia/New

Zealand www.viewsonic.com.au AUS=1800 880 818

NZ=0800 008 822 [email protected]

Canada www.viewsonic.com

T (Toll-Free)= 1-866-463-4775

T (Toll)= 1-424-233-2533

F= 1-909-468-3757

[email protected]

Europe www.viewsoniceurope.com www.viewsoniceurope.com/uk/support/call-desk/

Hong Kong www.hk.viewsonic.com T= 852 3102 2900 [email protected]

India www.in.viewsonic.com T= 1800-266-0101 [email protected]

Ireland (Eire) www.viewsoniceurope.com/uk/ www.viewsoniceurope.com/uk/

support/call-desk/

service_ie@

viewsoniceurope.com

Korea www.kr.viewsonic.com T= 080 333 2131 [email protected]

Latin America

(Argentina) www.viewsonic.com/la/ T= 0800-4441185 [email protected]

Latin America

(Chile) www.viewsonic.com/la/ T=1230-020-7975 [email protected]

Latin America

(Columbia) www.viewsonic.com/la/ T= 01800-9-157235 [email protected]

Latin America

(Mexico) www.viewsonic.com/la/ T= 001-8887328722 [email protected]

Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS

Electroser, Av Reforma No. 403Gx39 y 41, 97000 Merida, Yucatan. Tel: 01.999.925.19.16

Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico

Latin America

(Peru) www.viewsonic.com/la/ T= 0800-54565 [email protected]

Macau www.hk.viewsonic.com T= 853 2870 0303 [email protected]

Middle East ap.viewsonic.com/me/ Contact your reseller [email protected]

Puerto Rico &

Virgin Islands www.viewsonic.com

T= 1-800-688-6688 (English)

T= 1-866-379-1304 (Spanish)

F= 1-909-468-3757

[email protected]

Singapore/Malaysia/

Thailand www.viewsonic.com.sg T= 65 6461 6044 [email protected]

South Africa ap.viewsonic.com/za/ Contact your reseller [email protected]

United Kingdom www.viewsoniceurope.com/uk/ www.viewsoniceurope.com/uk/

support/call-desk/

service_gb@

viewsoniceurope.com

United States www.viewsonic.com

T (Toll-Free)= 1-800-688-6688

T (Toll)= 1-424-233-2530

F= 1-909-468-3757

[email protected]

Altri manuali per VFD820-70

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ViewSonic Cornice digitale

ViewSonic

ViewSonic DF87G-533 Manuale utente

ViewSonic

ViewSonic VFM1530-11 Manuale utente

ViewSonic

ViewSonic DP701W4WH Manuale utente

ViewSonic

ViewSonic VFD810-50 Manuale utente

ViewSonic

ViewSonic VFM1034W Manuale utente

ViewSonic

ViewSonic VFM735W-52G Manuale utente

ViewSonic

ViewSonic DPG801BK Manuale utente

ViewSonic

ViewSonic DPG807 Manuale utente

ViewSonic

ViewSonic DPG807BK - Digital Photo Frame Manuale utente

ViewSonic

ViewSonic VFM836-54 Manuale utente

ViewSonic

ViewSonic PortraitView VFM620w-50 Manuale utente

ViewSonic

ViewSonic VFM886-50E Manuale utente

ViewSonic

ViewSonic VFA721w-50 Manuale utente

ViewSonic

ViewSonic VFA721w-50 Manuale utente

ViewSonic

ViewSonic DPG807 Manuale utente

ViewSonic

ViewSonic VFM1586-11E Manuale utente

ViewSonic

ViewSonic DF87G Manuale utente

ViewSonic

ViewSonic VFD1027w-11 Manuale utente

ViewSonic

ViewSonic DPX1004WH Manuale utente

ViewSonic

ViewSonic DPX704WH Manuale utente

ViewSonic

ViewSonic VS12982 Manuale utente

ViewSonic

ViewSonic VFM823-50 Manuale utente

ViewSonic

ViewSonic VFM820-70 Manuale utente

ViewSonic

ViewSonic VS13442 Manuale utente

Manuali Cornice digitale popolari di altre marche

LENCO

LENCO DF-830 Manuale utente

NIX

NIX Advance X10G Manuale utente

Nextar

Nextar N7S-100 Manuale utente

Sungale

Sungale TD350A Manuale utente

texet

texet DPF-830 Istruzioni per il montaggio

Philips

Philips SPF2017 Manuale utente

Philips

Philips SPF1327 Manuale utente

Philips

Philips SPF7010/10 Manuale utente

Digital Spectrum

Digital Spectrum MemoryVue MV-1500 Manuale utente

YURAKU

YURAKU YUR.PHOTO 7B4C Manuale utente

Denver

Denver PFF-710WHITE MK2 Manuale utente

Pandigital

Pandigital PAN8000DWPCF1 Manuale utente

Rekam

Rekam Deja View HD-850 Manuale utente

Majestic

Majestic DF 918HD MP3 Manuale utente

Philips

Philips SPF2527 Manuale utente

Digital Foci

Digital Foci Image Moments IMT-063 Manuale utente

Nokia

Nokia SU-4 Manuale utente

Hama

Hama 118564 Manuale utente
