ViewSonic VS17679 Manuale utente
X1000-4K
Smart LED Soundbar Projector
User Guide
Model No. VS17679
P/N: X1000-4K
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right
corner of our website.
2
Thank you for choosing ViewSonic®
As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding
the world’s expectations for technological evolution, innovation, and simplicity.
At ViewSonic®, we believe that our products have the potential to make a positive
impact in the world, and we are confident that the ViewSonic® product you have
chosen will serve you well.
Once again, thank you for choosing ViewSonic®!
3
Safety Precautions
Please read the following Safety Precauons before you start using the projector.
• Keep this user guide in a safe place for later reference.
• Read all warnings and follow all instrucons.
• Allow at least 20“ (50 cm) clearance around the projector to ensure proper
venlaon.
• Place the projector in a well-venlated area. Do not place anything on the
projector that prevents heat dissipaon.
• Do not place the projector on an uneven or unstable surface. The projector may
fall over, causing personal injury or projector malfuncon.
• Do not use if the projector is lted at an angle of more than 10° degrees le or
right, nor at an angle of more than 15° degrees forwards or backwards.
• Do not look straight at the projector lens during operaon. The intense light
beam may damage your eyes.
• Always open the lens shuer or remove the lens cap when the projector lamp is
on.
• Do not block the projecon lens with any objects when the projector is under
operaon as this could cause objects to become heated and deformed or even
cause a re.
• The lamp becomes extremely hot during operaon. Allow the projector to
cool for approximately 45 minutes prior to removing the lamp assembly for
replacement.
• Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the
rated life could cause them to break on rare occasions.
• Never replace the lamp assembly or any electronic component unless the
projector is unplugged.
• Do not aempt to disassemble the projector. There are dangerous high voltages
inside which may cause death if you should come into contact with live parts.
• When moving the projector, be careful not to drop or bump the projector on
anything.
• Do not place any heavy objects on the projector or connecon cables.
• Do not stand the projector on end vercally. Doing so may cause the projector to
fall over, causing personal injury or projector malfuncon.
• Avoid exposing the projector to direct sunlight or other sources of sustained
heat. Do not install near any heat sources such as radiators, heat registers,
stoves, or other devices (including ampliers) that may increase the temperature
of the projector to dangerous levels.
4
• Do not place liquids near or on the projector. Liquids spilled into the projector
may cause it to fail. If the projector does become wet, disconnect it from the
power supply and call your local service center to have the projector serviced.
• When the projector is under operaon, you may sense some heated air and odor
from its venlaon grill. It is a normal operaon and not a defect.
• Do not aempt to circumvent the safety provisions of the polarized or
grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding-type plug has two blades and a third grounding prong. The
wide and third blade are provided for your safety. If the plug does not t into
your outlet, obtain an adapter and do not aempt to force the plug into the
outlet.
• When connecng to a power outlet, DO NOT remove the grounding prong.
Please ensure grounding prongs are NEVER REMOVED.
• Protect the power cord from being treaded upon or pinched, parcularly at the
plug, and at the point where it emerges from the projector.
• In some countries, the voltage is NOT stable. This projector is designed to
operate safely within a voltage between 100 to 240 volts AC, but could fail if
power cuts or surges of ±10 volts occur. In areas where voltage may uctuate
or cut out, it is recommended that you connect your projector through a power
stabilizer, surge protector, or uninterruptable power supply (UPS).
• If smoke, an abnormal noise, or a strange odor is present, immediately switch
the projector o and call your dealer or ViewSonic®. It is dangerous to connue
using the projector.
• Use only aachments/accessories specied by the manufacturer.
• Disconnect the power cord from the AC outlet if the projector is not being used
for a long period of me.
• Refer all servicing to qualied service personnel.
CAUTION: Possibly hazardous opcal radiaon is emied from this product. As
with any bright light source, do not stare into the beam, RG2 IEC 62471-
5:2015
5
Safety Precautions - Ceiling Mounting
Please read the following Safety Precautions before you start using the projector.
If you intend to mount the projector on the ceiling, it is strongly recommended
that you use a proper fitting projector ceiling mount kit and that you ensure it is
securely and safely installed.
If you use an inappropriate projector ceiling mount kit, there is a safety risk that the
projector may fall from the ceiling due to an improper attachment through the use
of the wrong gauge or length screws.
You can purchase a projector ceiling mount kit from the place you purchased your
projector.
6
Contents
Safety Precautions....................................................... 3
Introduction ................................................................ 9
Features..................................................................................................................9
Package Contents .................................................................................................10
Product Overview.................................................................................................11
Projector................................................................................................................ 11
Connection Ports................................................................................................... 12
Remote Control..................................................................................................... 14
Initial Setup............................................................... 16
Choosing a Location - Projection Orientation.......................................................16
Projection Dimensions..........................................................................................17
Mounting the Projector........................................................................................18
Making Connections.................................................. 19
Connecting to Power ............................................................................................19
Connecting to External Devices............................................................................20
HDMI Connection.................................................................................................. 20
Audio Connection.................................................................................................. 21
USB and Network Connection............................................................................... 22
Wireless Screen Mirroring..................................................................................... 23
Connecting to Networks.......................................................................................24
Wi-Fi Connection................................................................................................... 24
Custom SSID .......................................................................................................... 26
Wired LAN Connection.......................................................................................... 28
Bluetooth Connection ..........................................................................................29
Bluetooth Speaker................................................................................................. 29
Bluetooth Out........................................................................................................ 31
7
Using the Projector.................................................... 32
Starting Up the Projector......................................................................................32
First Time Activation.............................................................................................32
Image Focus .......................................................................................................... 32
Preferred Language............................................................................................... 33
Projection Orientation .......................................................................................... 33
Network Settings................................................................................................... 34
Source Input .......................................................................................................... 34
Selecting an Input Source .....................................................................................35
Adjusting the Projected Image .............................................................................36
Adjusting the Projector's Height and Projection Angle......................................... 36
Setting Up the Desired Image Size ........................................................................ 36
Fine-Tuning the Image Clarity ............................................................................... 37
Shutting Down the Projector................................................................................38
Input Source Selected - On-Screen Display (OSD) Tree......................................... 39
Operating the Projector............................................. 52
Home Screen ........................................................................................................52
Home Screen - On-Screen Display (OSD) Menu Tree ...........................................53
Menu Operations .................................................................................................58
File Management .................................................................................................. 58
Apps Center........................................................................................................... 63
Bluetooth .............................................................................................................. 65
Setting ................................................................................................................... 66
Screen Mirroring ................................................................................................... 81
8
Appendix................................................................... 84
Specifications........................................................................................................84
Timing Chart .........................................................................................................86
HDMI/USB C PC Timing ......................................................................................... 87
3D Support Timing................................................................................................. 89
IR Control Table ....................................................................................................90
Glossary ................................................................................................................91
Troubleshooting ...................................................................................................94
Maintenance.........................................................................................................95
General Precautions.............................................................................................. 95
Cleaning the Lens .................................................................................................. 95
Cleaning the Case.................................................................................................. 95
Storing the Projector............................................................................................. 95
LED Indicators........................................................................................................ 96
Regulatory and Service Information .......................... 97
Compliance Information.......................................................................................97
FCC Compliance Statement................................................................................... 97
Industry Canada Statement................................................................................... 97
CE Conformity for European Countries ................................................................. 97
Declaration of RoHS2 Compliance......................................................................... 99
Indian Restriction of Hazardous Substances ....................................................... 100
Product Disposal at End of Product Life.............................................................. 100
Copyright Information ........................................................................................101
Customer Service ................................................................................................ 102
Limited Warranty ................................................................................................ 103
Mexico Limited Warranty.................................................................................... 106
9
Introduction
Combining stunning 4K resoluon with smart streaming funconality, the
ViewSonic® X1000-4K is a dark room projector. With an ultra short throw lens it is
easy to install in the home. Addionally, it features mulple HDMI ports and rich
connecvity allowing users to stream content from their favorite providers.
Features
• Ultra short throw lens is excellent for home projecon. Project a 100” screen
from 0.379 meters (Back I/O side to wall).
• 16 GB internal storage (Max. 12 GB available for user storage).
• Various Color modes for dierent projecon purposes.
• Mul-language On-Screen Display (OSD) menus.
10

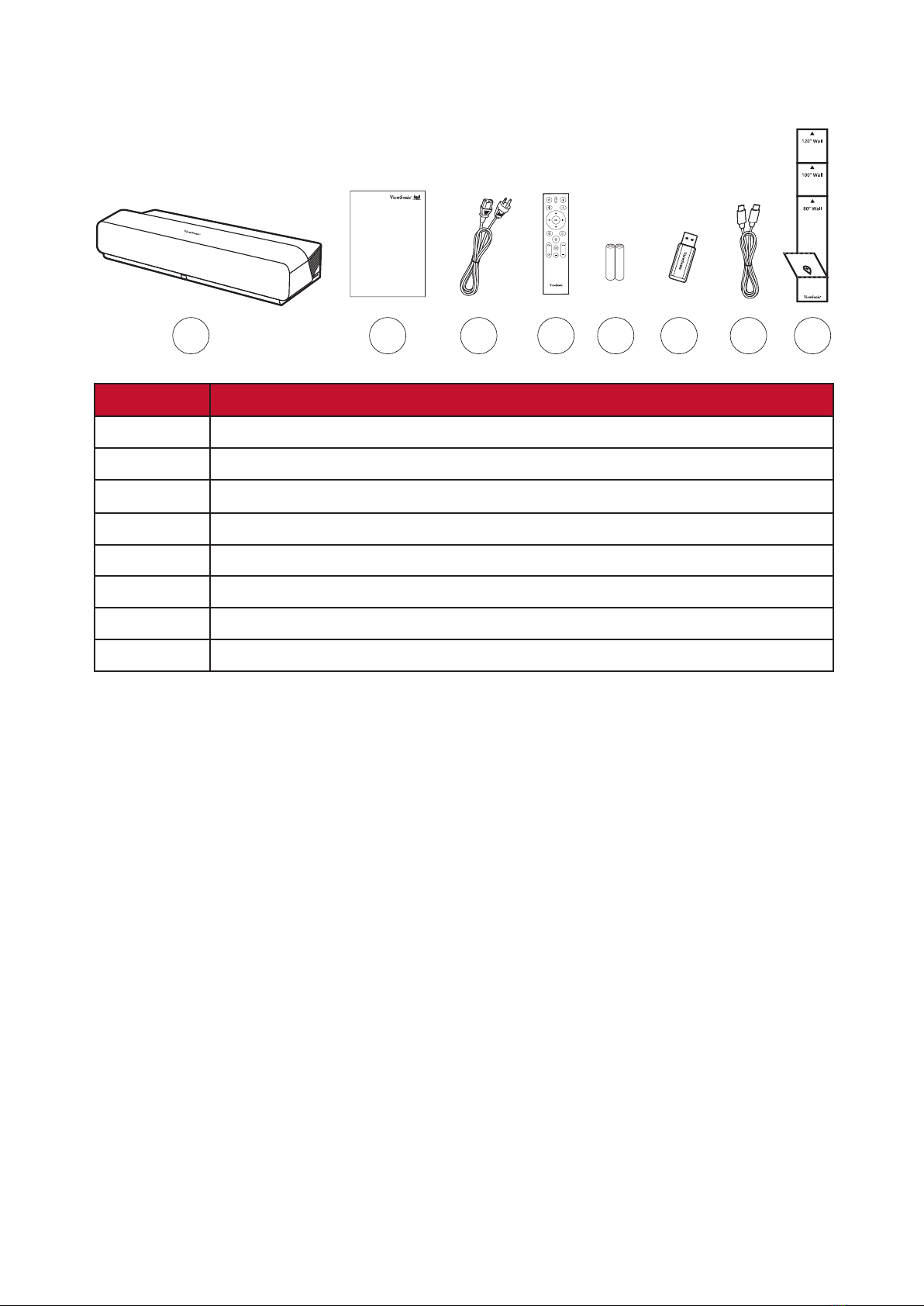

Package Contents
12345678
X series
Smart LED Soundbar Projector
Quick Start Guide
⺩廝⩇垃媲㓌
⺩廝‣搾㇅∕
ڀխݡɹࢄғ
クイックスタートガイド
Guide de démarrage rapide
Schnellstarthandbuch
Guía de inicio rápido
Guida introduttiva
Guia de Início Rápido
Príručka so stručným návodom
Vodnik za hitri začetek
Przewodnik Szybki start
короткий посібник користувача
Hızlı Başlangıç Kılavuzu
Snabbstartsguide
Vodič za brzo pokretanje
краткое руководство
по началу работы
Ghid de pornire rapidă
Első lépések
Οδηγόσ γρήγορησ εκκίνησησ
Pika-aloitusopas
Úvodní příručka
Vodič za brzi početak
Ръководство за бърз старт
Aan de slag
Panduan Mulai Cepat
Hướng dẫn Khởi động Nhanh
คู่มือเริ่มต้นฉบับย่อ
ﻊرﺳﻟا ءدﺑﻟا لﻟد
Item Descripon
[1] X1000-4K Projector
[2] Quick Start Guide
[3] Power Cord
[4] Remote Control
[5] Batteries
[6] Wi-Fi Dongle
[7] USB-C Cable
[8] Distance Card
NOTE: The power cord and remote control included in your package may vary
depending on your country. Please contact your local reseller for more
informaon.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali ViewSonic Proiettore
ViewSonic
ViewSonic PJD6210-WH Manuale utente
ViewSonic
ViewSonic VS12890 Guida
ViewSonic
ViewSonic PJD5111 - SVGA DLP Projector Manuale utente
ViewSonic
ViewSonic PJL7211 Manuale utente
ViewSonic
ViewSonic PJD6210 Manuale utente
ViewSonic
ViewSonic PJ402D Manuale utente
ViewSonic
ViewSonic PG703X Manuale utente
ViewSonic
ViewSonic PJ755D - 2600 Lumens DLP Projector Manuale utente
ViewSonic
ViewSonic PJD6381 - 2500 Lumens XGA DLP Ultra Short-Throw... Manuale utente
ViewSonic
ViewSonic PJD6345 Manuale utente
ViewSonic
ViewSonic Pro8300 Manuale utente
ViewSonic
ViewSonic PA700S Manuale utente
ViewSonic
ViewSonic PX749-4K Manuale utente
ViewSonic
ViewSonic Office Theater PJ1060 Manuale utente
ViewSonic
ViewSonic VS11664 Manuale utente
ViewSonic
ViewSonic PJ1173 - XGA LCD Projector Manuale utente
ViewSonic
ViewSonic PJD5232L Manuale utente
ViewSonic
ViewSonic PJD6251 - XGA DLP Network Projector Manuale utente
ViewSonic
ViewSonic PJ1000 - LCD Projector Manuale utente
ViewSonic
ViewSonic PJ506D - SVGA DLP Projector Manuale utente
