Viking Installation Guide

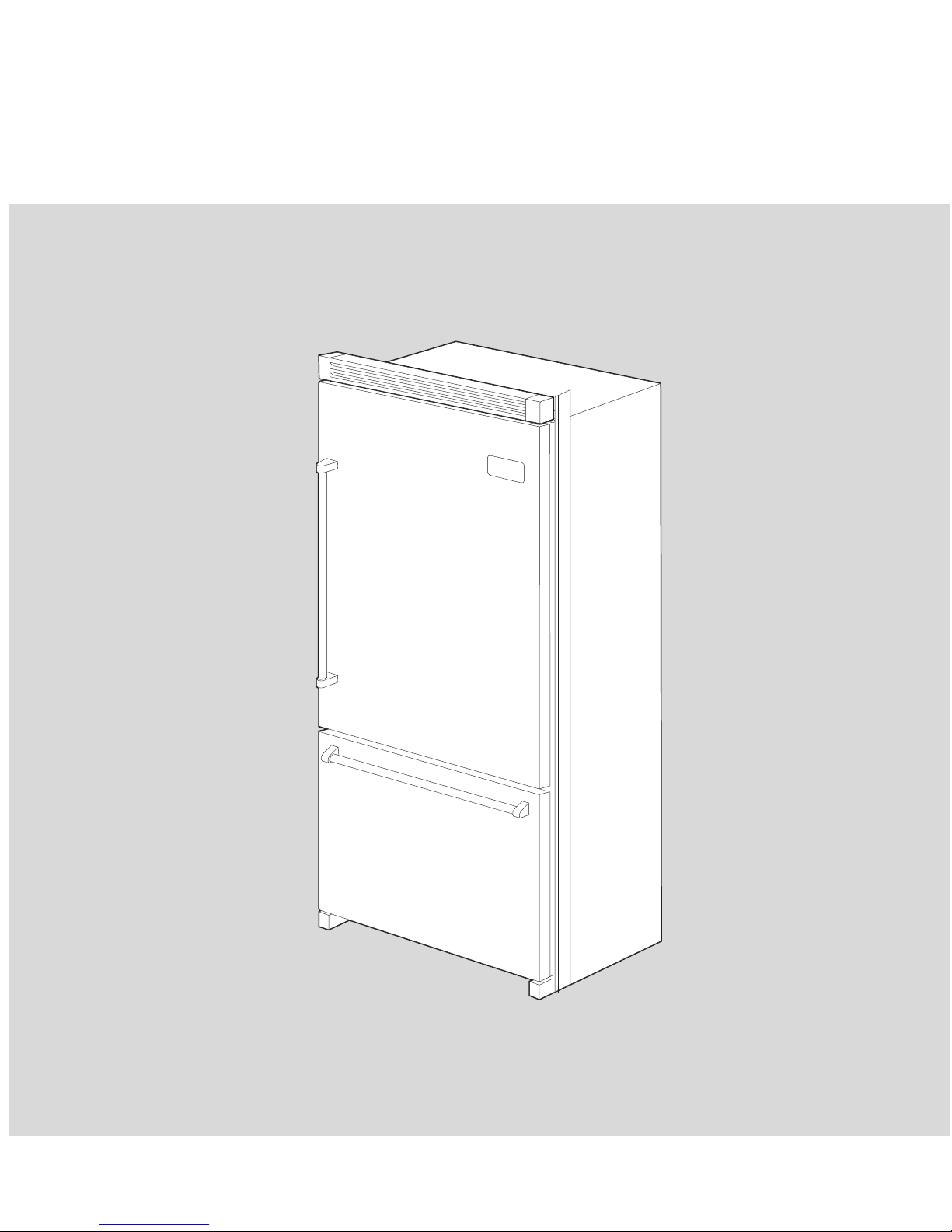

Free-Standing Refrigeration

Side Trim & Grille Installation

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

2

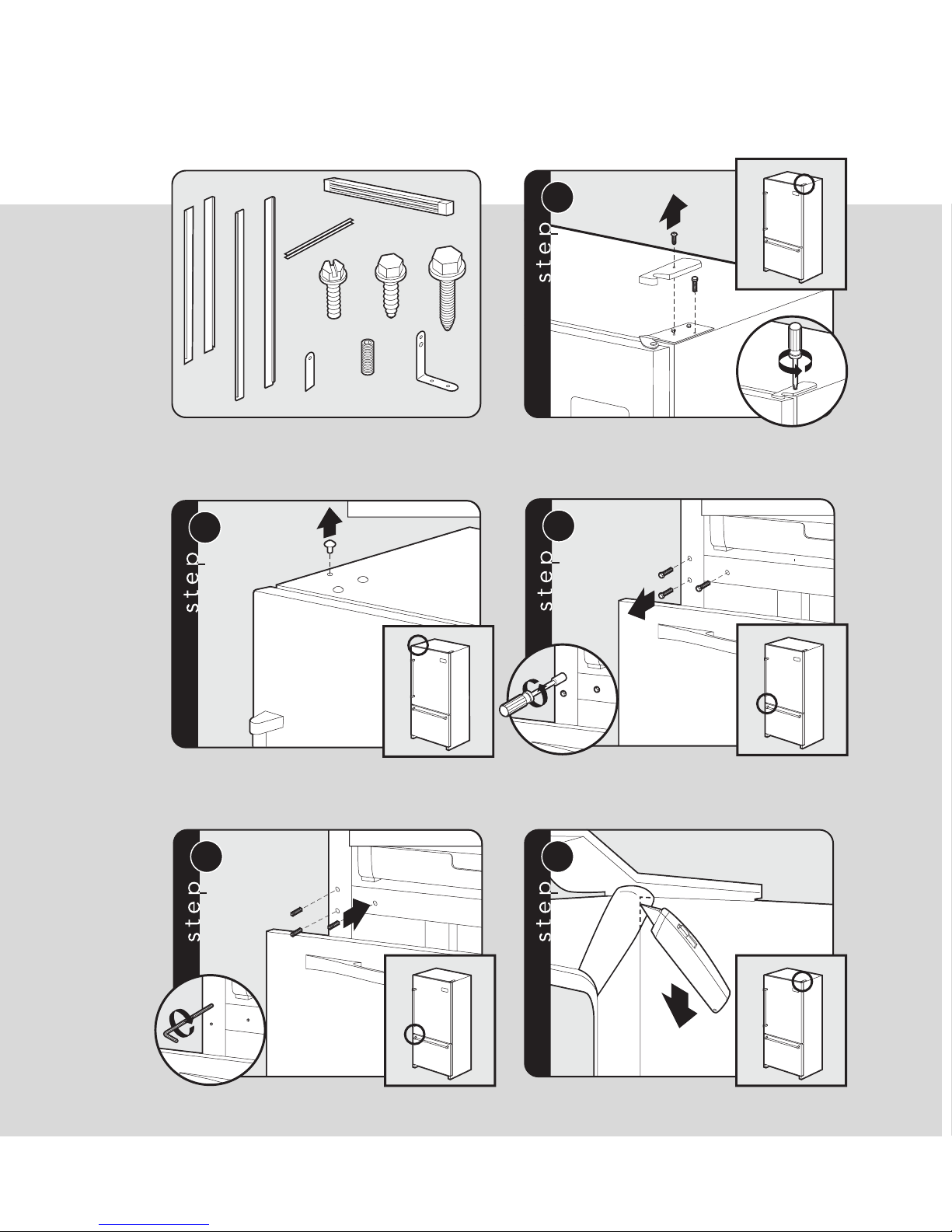

Required Components Remove and discard screw and hinge cover. Remove

screw on hinge plate.

(Repeat if two hinges are used.)

Remove and discard plug button from hole on

non-hinge side.

Remove three screws from mullion area opposite the

center hinge.

Install set screws from bag into holes from

previous step.

Remove edge of corner cover.

Left Panel

Left Trim

Right Panel Right Trim Front Grille

Adhesive

Tape

Set

Screws

Screws

Spacer L Bracket

AC

B

1

Bottom Mount Model Only

2

Bottom Mount Model Only

3

Bottom Mount Model Only

4

5

Installation

3

6

French Door and Side-by-Side Dispenser Models only

7

French Door and Side-by-Side Dispenser Models only

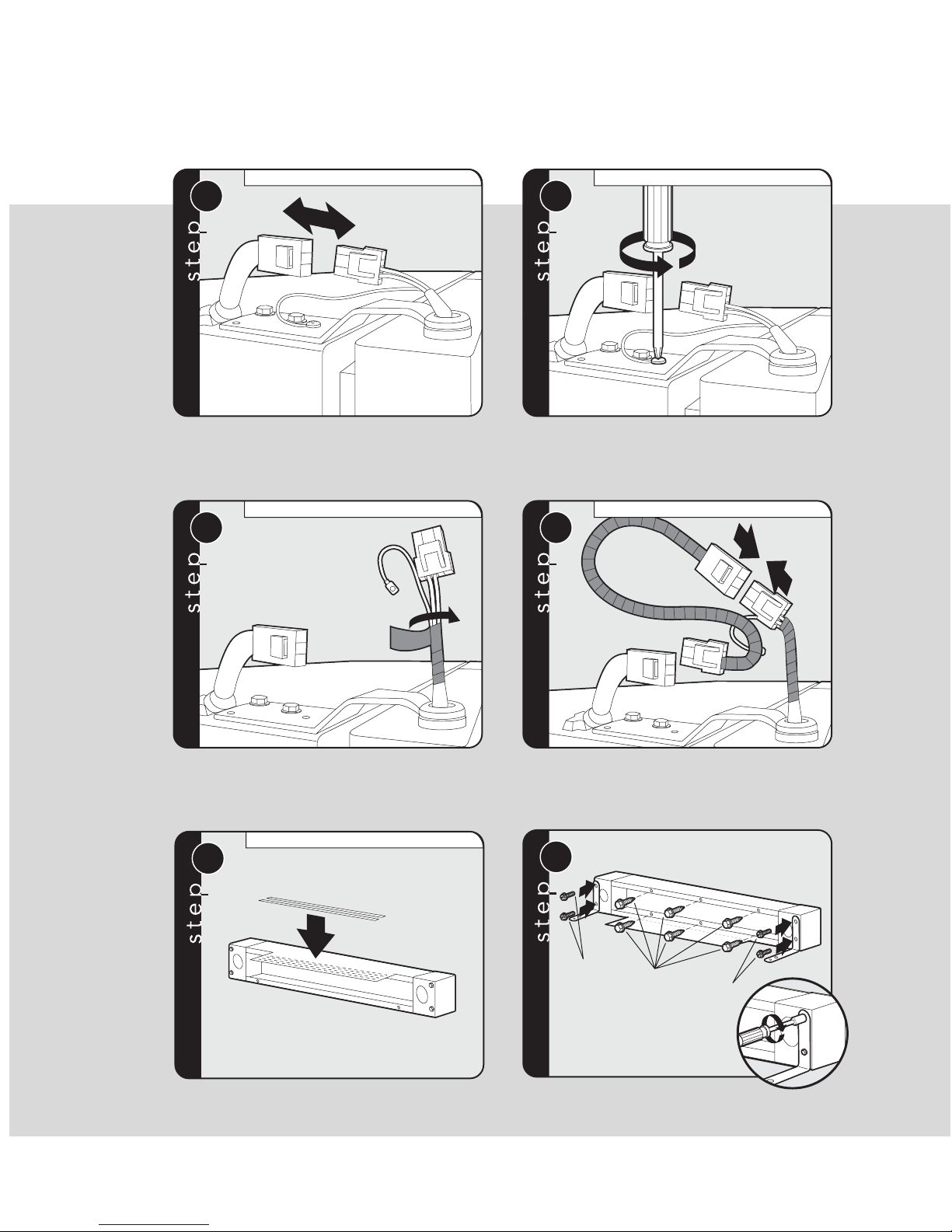

Unplug harnesses on door. Remove ground screw from hinge on door. Hold for

replacement.

8

French Door and Side-by-Side Dispenser Models only

9

French Door and Side-by-Side Dispenser Models only

Apply electrical tape to harnesses and ground wire

coming from door.

Plug in proper harness kit to the harness

coming from the door.

10

French Door and Side-by-Side Dispenser Models only

B

A

A

11

Apply adhesive tape to grille assembly. Attach brackets included in the kit to the grille

assembly.

4

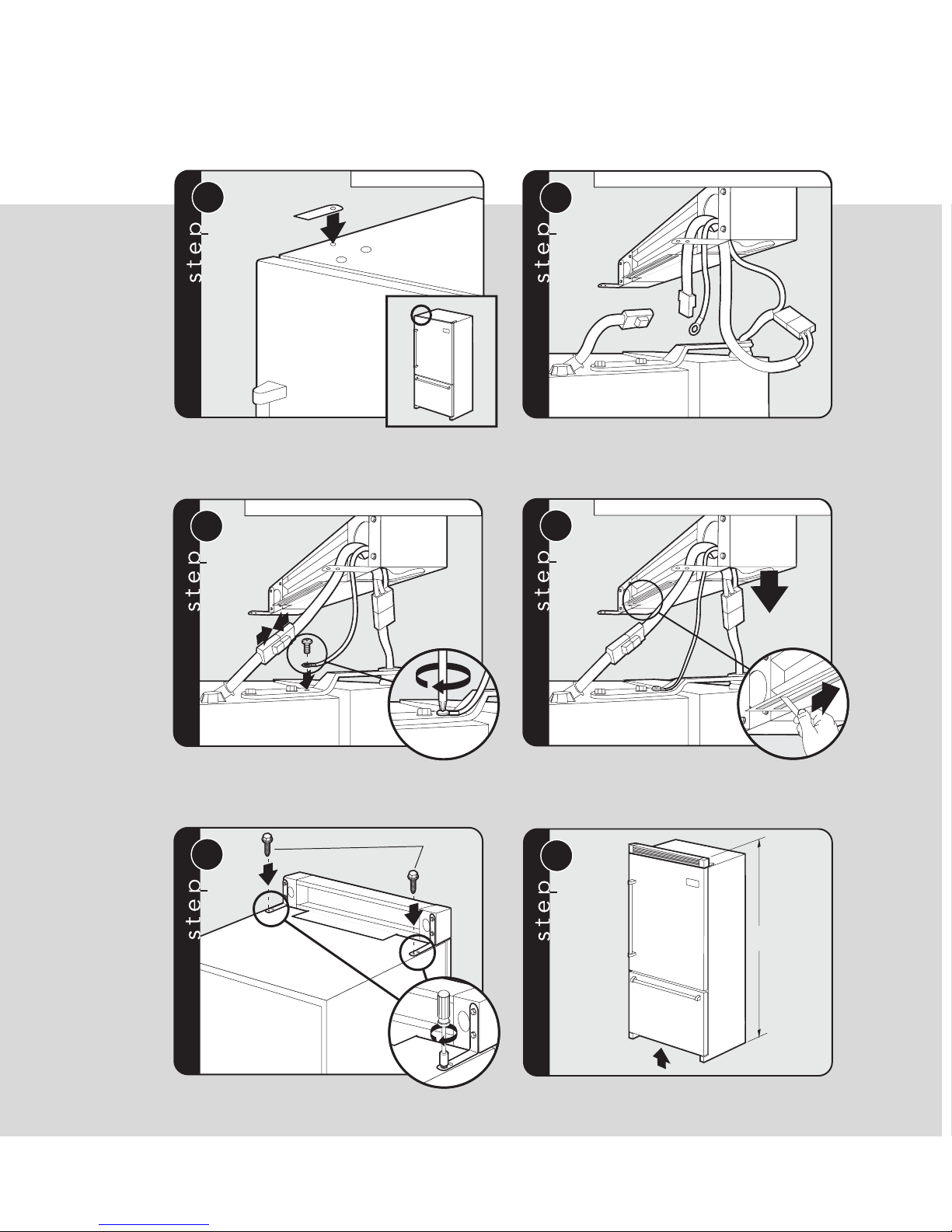

Position spacers included in the kit on the non-hinge

side over the exposed hole from step one.

Feed wire harness and ground wire through the bottom

of the endcap and out through the hole in the rear of

the grille.

Bottom Mount Model only

12

13

French Door and Side-by-Side Dispenser Models only

Connect wire harness to wire harness

in cabinet. Connect ground screw. Secure wire harness

to top of the cabinet with a piece of tape.

14

French Door and Side-by-Side Dispenser Models only

15

1

2

French Door and Side-by-Side Dispenser Models only

Remove adhesive backing. Firmly press the grille

assembly down so the adhesive adheres to the cabinet.

Align grille assembly to front door and position grille

on top of unit.

C

16

Secure the grille brackets to the holes in the hinge plate.

17

72”

Raise the unit up until the measurement from the floor

to the top of the grille assembly is 72 inches or 6 feet.

5

18

2

1

2

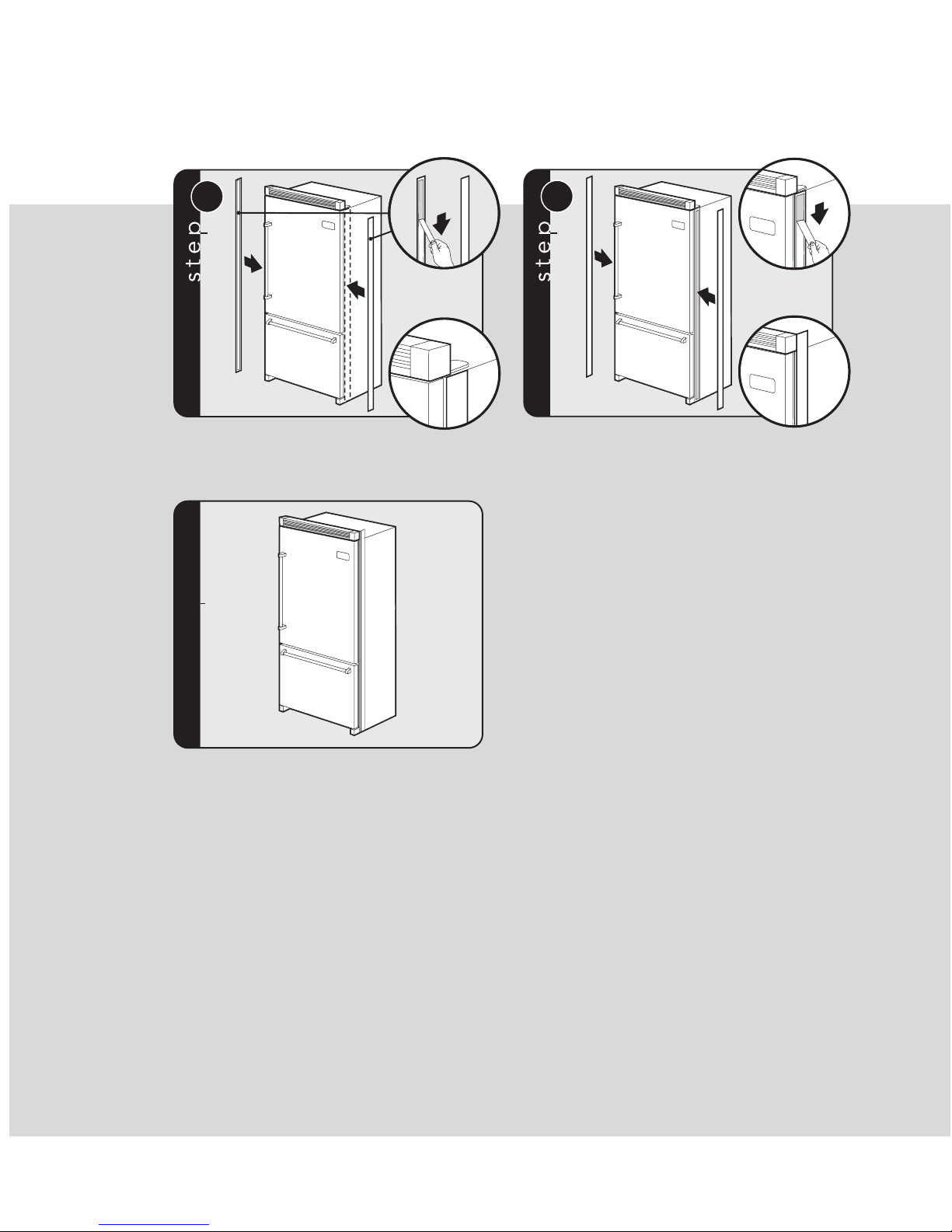

Remove adhesive backing for the side trim. Locate the

top of the side trim with the top of the grille assembly.

Press the side trim into the refrigerator cabinet at the

center location.

19

22

1

complete

Shim trim has adhesive backing on both sides. Remove adhesive

backing on refrigerator side only. Fit the shim trim to the front of the

unit first. With center hinge, the shim trim will have a cutout. Use the

cutout to locate the height of the shim trim. Without a center hinge,

locate the top of the shim trim with the top of the refrigerator cabinet.

6

7

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For product information,

call 1-888-VIKING1 (845-4641)

or visit the Viking Web site at

vikingrange.com

F20426 (PS0605VR)
