PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 7 / 1 5 / 1

CUSTOM PANEL–REFRIGERATION

Quiet Cool™ Built-In 30”/36”W. All Refri erator/All Freezer

—DFRB530/536, DFFB530/536

29-1/4”

(74.3cm)

75-1/2”

(191.8 cm)

3/4”

(1.9 cm)

DFRB530 DFRB536 DFFB530 DFFB536

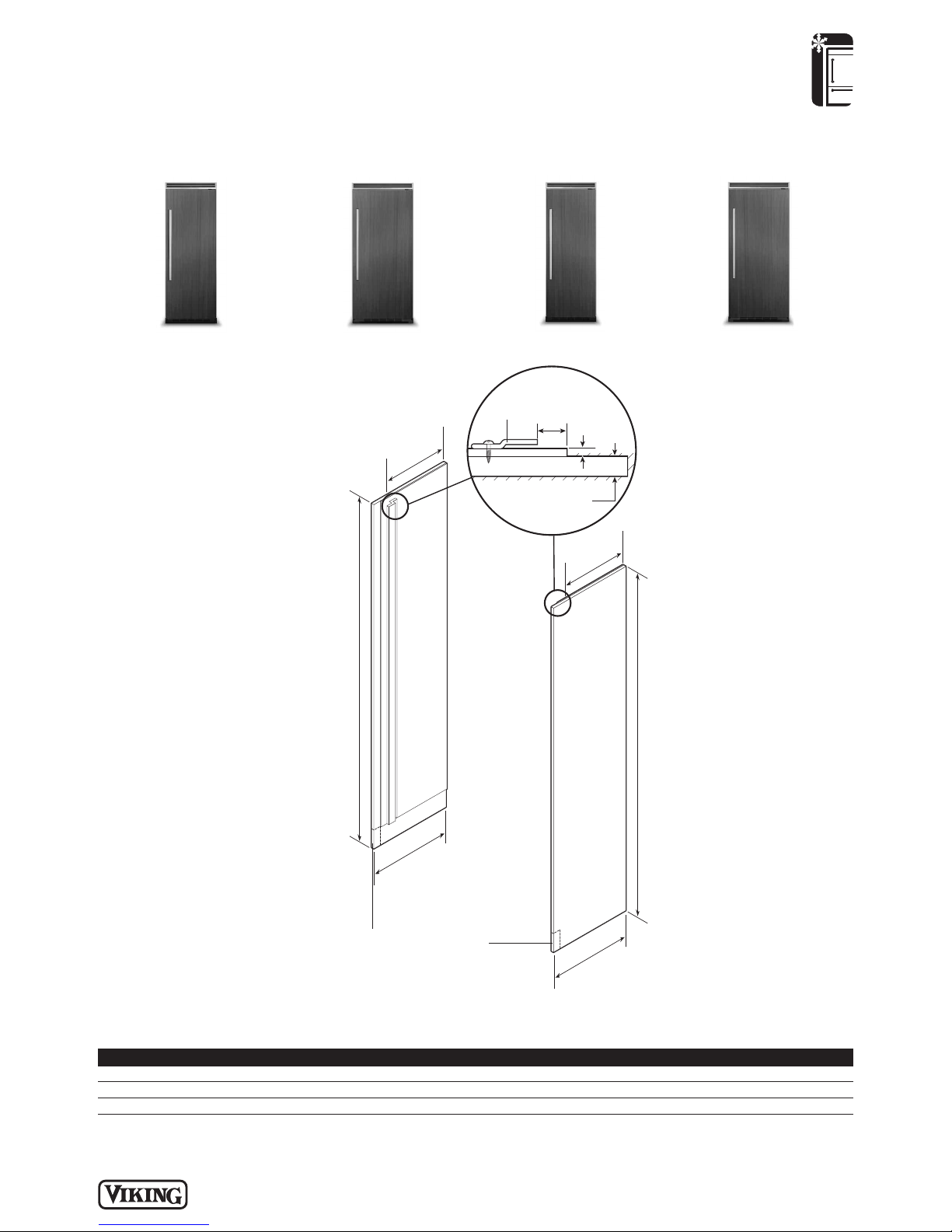

Dimensions & Specifications

DFRB530 DFRB536 DFFB530 DFFB536

Ove all panel width 29-1/4” (74.3 cm) 35-1/4” (89.5 cm) 29-1/4” (74.3 cm) 35-1/4” (89.5 cm)

Ove all panel height 75-1/2” (191.8 cm)

Ove all panel depth 3/4” (1.9 cm)*

Maximum panel weight 50 lbs. (22.7 kg) 60 lbs. (27.2 kg) 50 lbs. (22.7 kg) 60 lbs. (27.2 kg)

*Panel thickness must not exceed 1” (2.5 cm) on hinge side. Thicke panels will inte fe e with doo swing and clea ance.

DFRB/DFFB530

CUSTOM PANEL DIMENSIONS

35-1/4”

(89.5cm)

75-1/2”

(191.8 cm)

3/4”

(1.9 cm)

DFRB/DFFB536

Note: Panel overlays must be dry, solid, straight one piece panels. The use of multiple panel pieces to achieve the dimensions is not

recommended.

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 7 / 1 5 / 1

CUSTOM PANEL–REFRIGERATION

Quiet Cool™ Built-In 30”/36”W. All Refri erator/All Freezer

—DFRB530/536, DFFB530/536

DFRB530 DFFB530 DFFB536

Dimensions & Specifications

CUSTOM SIDE PANEL DIMENSIONS

Note: Adding a 3/4” 1.9 cm) side panel adds an additional 3/4” 1.9 cm) to the overall width of the product for each side panel.

Requires side panel hardware kit Kit model number – SPHKDS)

DFRB530/DFRB536/DFFB530/DFRB536

Ove all panel width 3/4” (1.9 cm)

Ove all panel height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.*

Ove all panel depth 24” (61.0 cm)

*Depending on how high leveling feet a e aised and cabinet enclosu e height.

3/4”

(1.9 cm)

End panel

1”

(2.5 cm) 1/4”

(0.6 cm)

Z-Bracket

21-3/4”

(55.2 cm)

21-3/4”

(55.2 cm)

24”

(61.0 cm)

Optional kickplate notch

Dimensions determined by cabinets

24”

(61.0cm)

82-7/8”

(210.5cm)min.

84-1/16”

(213.5cm)max.*

82-7/8”

(210.5cm)min.

84-1/16”

(213.5cm)max.*

DFRB536

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 7 / 1 5 / 1

CUSTOM PANEL–REFRIGERATION

Quiet Cool™ Built-In 30”W. All Refri erator/All Freezer—DFRB530, DFFB530

DFRB530 DFFB530

Dimensions & Specifications

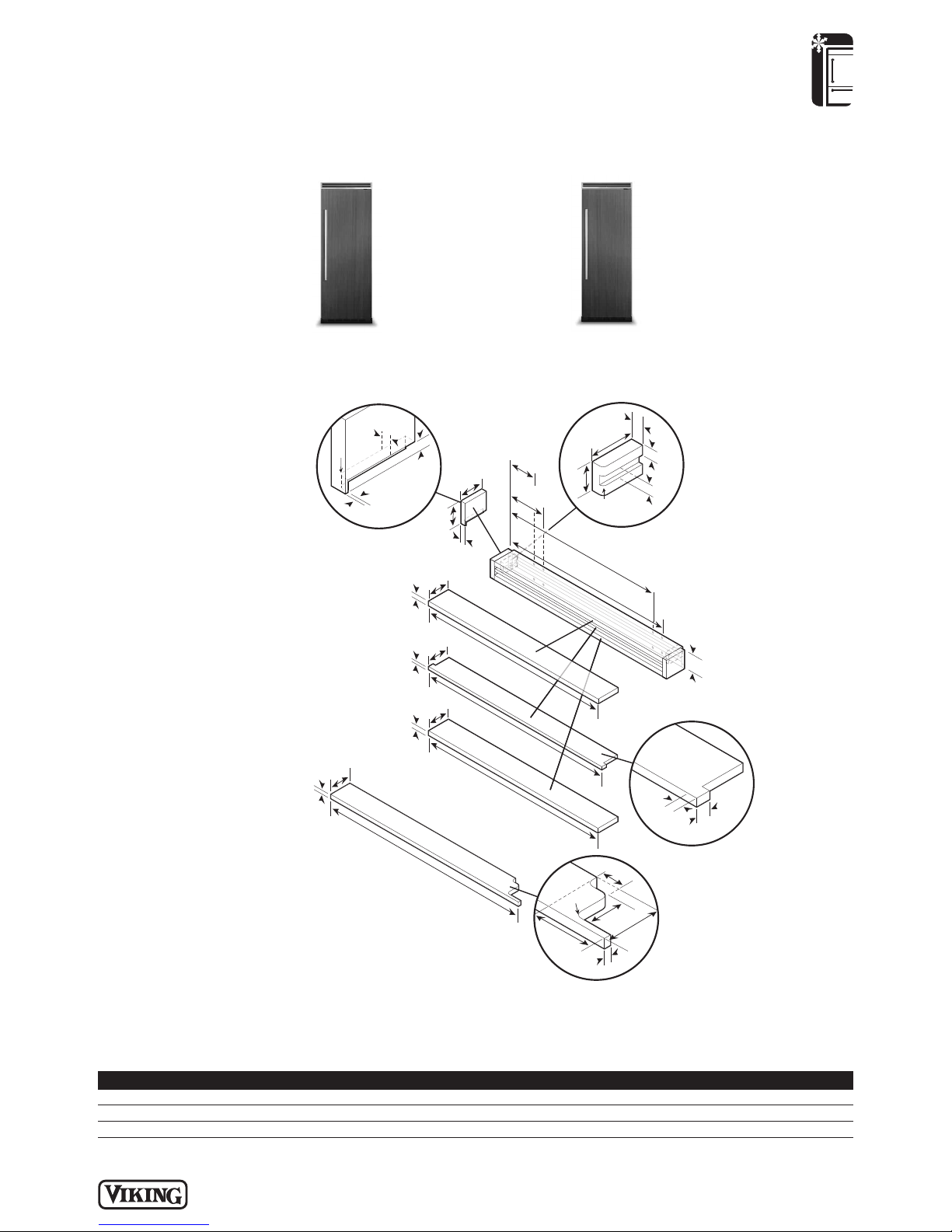

CUSTOM GRILLE DIMENSIONS

DFRB/DFFB530

Ove all g ille width 29-1/2” (74.9 cm)

Ove all g ille height 3” (7.6 cm)

Ove all g ille depth 3-3/4” (9.5 cm)

1/2”

(1.27cm)

1-1/2”

(3.81cm)

1/4”Radius

(.64cm)

2-3/4”

(6.98cm)

1/2”

(1.27cm)

3/4”

(1.90cm)

1/2”

(1.27 cm)

1/8”

(.31 cm)

1/2”

(1.27cm)

1/4” Radius

(1.2 cm)

1/4” Radius

(.64cm)

Reverse dimensions

for other end.

7/8”

(2.22cm)

1/2”

(1.27cm)

2-1/8”

(5.39cm)

3-1/8”

(7.94cm)

3-5/8”

(9.20 cm)

1-3/8”

(3.49 cm)

3/8”

(.95cm)

3/8”Radius

3/8” Radius

(.95cm)

(.95 cm)

3/8”Radius

(.95cm)

29-1/2”

(74.93 cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optionalhinge cover

1/2”

(1.27 cm)

3-5/8”

(9.20 cm)

27-15/16”

(70.96cm)

28”

(71.12cm)

28”

(71.12cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3-3/4”

(9.52 cm)

3-3/4”

(9.52cm)

3”

(7.62 cm)

3”

(7.62 cm)

3/4”

(1.90 cm)

26-3/16”

(66.51 cm)

5-17/32”

(14.10 cm)

4-11/64”

(10.59cm)

24-27/32”

(63.10 cm)

2-1/8”

(5.4cm)

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 7 / 1 5 / 1

CUSTOM PANEL–REFRIGERATION

Quiet Cool™ Built-In 30”W. All Refri erator/All Freezer—DFRB530, DFFB530

DFRB530 DFFB530

Dimensions & Specifications

CUSTOM GRILLE DIMENSIONS – DUAL 30”W. ALL REFRIGERATOR/ALL FREEZER INSTALLATION

Note: Dual units can only be made in a left and right hand configuration. To use a custom 60”W. grille, you must purchase the center

trim kit FCTKSS.

Note: This part should be

located at the center of the

grille. If desired, twoper grille

can be used by dividing the

length of the grille into thirds.

1/2”

(1.27cm)

1-1/2”

(3.81cm)

1/4”Radius

(.64cm)

2-3/4”

(6.98cm)

1/2”

(1.27cm)

3/4”

(1.90cm)

3/8”

(0.38 cm)

1/2”

(1.27 cm)

R 3/32”

(0.09 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

13/32”

(1.03 cm)

9/16”

(1.43 cm)

1/8”

(.32 cm)

Grille support

2-7/8”

(7.30cm)

1”

(2.54cm)

1/2”

(1.27 cm)

1/8”

(.31 cm)

1/2”

(1.27cm)

1/4”Radius

1/4” Radius

(1.2 cm)

1/4”Radius

(.64cm)

Reverse dimensions

for other end.

7/8”

(2.22cm)

1/2”

(1.27cm)

2-1/8”

(5.39cm)

3-1/8”

(7.94cm)

3-5/8”

(9.20 cm)

1-3/8”

(3.49 cm)

3/8”

(.95cm)

3/8”Radius

3/8” Radius

(.95cm)

(.95 cm)

3/8”Radius

(.95cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optional hinge cover

1/2”

(1.27 cm)

3-5/8”

(9.20 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3-3/4”

(9.52cm)

3-3/4”

(9.52 cm)

3”

(7.62 cm)

3”

(7.62cm)

3/4”

(1.90cm)

59-1/2”

(151.13cm)

58”

(147.32cm)

57-15/16”

(147.16cm)

58”

(147.32cm)

56-3/64”

(142.36cm)

54-27/32”

(139.30cm)

4-11/64”

(11.27cm)

5-17/32”

(14.04cm)

24-27/32”

(63.01cm)

26-3/16”

(66.80cm)

34-11/64”

(86.80cm)

35-25/64”

(89.90cm)

2-1/8”

(5.4cm)

Dual 30”W. G ille

DFRB530/DFFB530

Ove all g ille width 59-1/2” (151.1 cm)

Ove all g ille height 3” (7.6 cm)

Ove all g ille depth 3-3/4” (9.5 cm)

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 7 / 1 5 / 1

CUSTOM PANEL–REFRIGERATION

Quiet Cool™ Built-In 36”W. All Refri erator/All Freezer—DFRB536, DFFB536

DFFB536

Dimensions & Specifications

CUSTOM GRILLE DIMENSIONS

DFRB/DFFB536

Ove all g ille width 35-1/2” (90.1 cm)

Ove all g ille height 3” (7.6 cm)

Ove all g ille depth 3-3/4” (9.5 cm)

2-1/8”

(5.39cm)

3-1/8”

(7.94cm)

3-5/8”

(9.20cm)

1-3/8”

(3.49 cm)

3/8”

(.95cm)

3/8”Radius

3/8” Radius

(.95cm)

(.95 cm)

3/8”Radius

(.95cm)

Reverse dimensions

for other end.

1/2”

(1.27cm)

1-1/2”

(3.81cm)

1/4” Radius

(.64cm)

2-3/4”

(6.98cm)

1/2”

(1.27 cm)

3/4”

(1.90cm)

1/2”

(1.27 cm)

1/8”

(.31 cm)

1/2”

(1.27cm)

1/4” Radius

(1.2 cm)

1/4” Radius

(.64cm)

7/8”

(2.22 cm)

1/2”

(1.27cm)

34”

(86.36 cm)

34”

(86.36cm)

3/4”

(1.90 cm)

1/2”

(1.27 cm)

3/4”

(1.90 cm)

3-3/4”

(9.52 cm)

3-3/4”

(9.52 cm)

3-5/8”

(9.20 cm)

33-15/16”

(86.20cm)

3”

(7.62 cm)

3”

(7.62 cm)

3/4”

(1.90 cm)

35-1/2”

(90.17cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optional hingecover

32-3/16”

(81.75cm)

5-17/32”

(14.10cm)

4-11/64”

(10.59cm)

30-27/32”

(78.34cm)

2-1/8”

(5.4cm)

DFRB536

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 7 / 1 5 / 1

CUSTOM PANEL–REFRIGERATION

Quiet Cool™ Built-In 30”/36”W. All Refri erator/All Freezer

—DFRB530/536, DFFB530/536—(1) 30” Unit & (1) 36” Unit

DFRB530 DFFB536DFFB530

Dimensions & Specifications

CUSTOM GRILLE DIMENSIONS – DUAL ALL REFRIGERATOR/ALL FREEZER INSTALLATION

Note: Dual units can only be made in a left and right hand configuration. To use a custom 66”W. grille, you must purchase the center

trim kit FCTKSS.

Note: This part should be

located at the center of the

grille. If desired, twoper grille

can be used by dividing the

length of the grille into thirds.

1/2”

(1.27cm)

1-1/2”

(3.81cm)

1/4”Radius

(.64cm)

2-3/4”

(6.98cm)

1/2”

(1.27cm)

3/4”

(1.90cm)

3/8”

(0.38 cm)

1/2”

(1.27 cm)

R 3/32”

(0.09 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

13/32”

(1.03 cm)

9/16”

(1.43 cm)

1/8”

(.32 cm)

Grille support

2-7/8”

(7.30cm)

1”

(2.54cm)

1/2”

(1.27 cm)

1/8”

(.31 cm)

1/2”

(1.27cm)

1/4”Radius

1/4” Radius

(1.2cm)(1.2 cm)

1/4”Radius

(.64cm)

Reverse dimensions

for other end.

7/8”

(2.22cm)

1/2”

(1.27cm)

2-1/8”

(5.39cm)

3-1/8”

(7.94cm)

3-5/8”

(9.20 cm)

1-3/8”

(3.49 cm)

3/8”

(.95cm)

3/8”Radius

3/8” Radius

(.95cm)

(.95 cm)

3/8”Radius

(.95cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optional hinge cover

1/2”

(1.27 cm)

3-5/8”

(9.20 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3-3/4”

(9.52 cm)

3-3/4”

(9.52 cm)

3”

(7.62 cm)

3”

(7.62cm)

3/4”

(1.90cm)

65-1/2”

(166.37cm)

64”

(162.56cm)

63-15/16”

(167.48cm)

64”

(162.56cm)

62-3/64”

(157.60cm)

60-27/32”

(154.54cm)

4-11/64”

(11.27cm)

5-17/32”

(14.04cm)

24-27/32”

(63.10cm)

26-3/16”

(66.51cm)

34-11/64”

(86.80cm)

35-25/64”

(89.90cm)

2-1/8”

(5.4cm)

Dual 30”/36”W. Combination G ille

DFRB530 DFRB536 DFFB530 DFFB536

Ove all g ille width 65-1/2” (166.4 cm)

Ove all g ille height 3” (7.6 cm)

Ove all g ille depth 3-3/4” (9.5 cm)

DFRB536

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 7 / 1 5 / 1

CUSTOM PANEL–REFRIGERATION

Quiet Cool™ Built-In 36”W. All Refri erator/All Freezer—DFRB536, DFFB536

Dimensions & Specifications

CUSTOM GRILLE DIMENSIONS – DUAL 36”W. ALL REFRIGERATOR/ALL FREEZER INSTALLATION

DFRB536/DFFB536

Ove all g ille width 71-1/2” (181.6 cm)

Ove all g ille height 3” (7.6 cm)

Ove all g ille depth 3-3/4” (9.5 cm)

Note: This part should be

located at the center of the

grille. If desired, twoper grille

can be used by dividing the

length of the grille into thirds.

1/2”

(1.27cm)

1-1/2”

(3.81cm)

1/4”Radius

(.64cm)

2-3/4”

(6.98cm)

1/2”

(1.27cm)

3/4”

(1.90cm)

3/8”

(0.38 cm)

1/2”

(1.27 cm)

R 3/32”

(0.09 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

13/32”

(1.03 cm)

9/16”

(1.43 cm)

1/8”

(.32 cm)

Grille support

2-7/8”

(7.30cm)

1”

(2.54cm)

1/2”

(1.27 cm)

1/8”

(.31 cm)

1/2”

(1.27cm)

1/4” Radius

(1.2 cm)

1/4” Radius

(.64cm)

Reverse dimensions

for other end.

7/8”

(2.22cm)

1/2”

(1.27 cm)

2-1/8”

(5.39cm)

3-1/8”

(7.94cm)

3-5/8”

(9.20 cm)

1-3/8”

(3.49 cm)

3/8”

(.95cm)

3/8”Radius

3/8” Radius

(.95cm)

(.95 cm)

3/8”Radius

(.95cm)

1/2”

(1.27 cm)

3-1/8”

(7.93 cm)

Optional hinge cover

1/2”

(1.27 cm)

3-5/8”

(9.20 cm)

3/4”

(1.90 cm)

3/4”

(1.90 cm)

3-3/4”

(9.52cm)

3-3/4”

(9.52 cm)

3”

(7.62 cm)

3”

(7.62cm)

3/4”

(1.90cm)

71-1/2”

(181.61cm)

70”

(177.80 cm

69-15/16”

(177.64cm)

70”

(177.80cm)

68-3/64”

(172.84cm)

66-27/32”

169.78cm)

4-11/64”

(11.27cm)

5-17/32”

(14.04cm)

30-27/32”

(78.34cm)

32-3/16”

(81.75cm)

40-11/64”

(102.04cm)

41-25/64”

(105.13cm)

2-1/8”

(5.4cm)

Note: Dual units can only be made in a left and right hand configuration. To use a custom 72”W. grille, you must purchase the center

trim kit FCTKSS.

Dual 36”W. G ille

DFFB536

DFRB536

Altri manuali per DFRB530 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Viking Frigorifero

Viking

Viking Designer DUAR140R Manuale utente

Viking

Viking Professional VCBB536 Manuale utente

Viking

Viking CFBI7360 Manuale utente

Viking

Viking Designer DDSF136DSS Istruzioni per il montaggio

Viking

Viking 5 Series Manuale utente

Viking

Viking VCSB5481 Series Manuale

Viking

Viking VRCO1240DRSS Manuale utente

Viking

Viking Designer DDFF136DSS Manuale utente

Viking

Viking VURE524G Manuale utente

Viking

Viking DDBB536RSS Manuale utente

Viking

Viking DDBF036* Manuale utente

Viking

Viking Designer DDFF136SS Manuale utente

Viking

Viking Counter-Depth Manuale utente

Viking

Viking Built-in French Door Bottom-Freezer... Manuale utente

Viking

Viking Designer DDBB536LSS Manuale utente

Viking

Viking Professional VCFF136DSS Manuale utente

Viking

Viking Professional VIRB364 Manuale utente

Viking

Viking FDSB5481D Series Istruzioni per il montaggio

Viking

Viking DUAR143 Manuale utente

Viking

Viking DFUR154 Manuale tecnico

Viking

Viking VRUO5241 Manuale utente

Viking

Viking VRI7240 Manuale utente

Viking

Viking Designer DDRB536R Manuale utente

Viking

Viking DFRB364L Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
