PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 8 / 1 1 / 0 9

CUSTOM PANEL–REFRIGERATION

Built-In 48”W. Side-By-Side Refrigerator/Freezer &

Refrigerator/Freezer with Dispenser—DFSB483/483D

28-5/16”

(71.9cm)

75-1/2”

(191.8 cm)

3/4”

(1.9cm)

18-11/16”

(47.5cm)

3/4”

(1.9 cm)

28-5/16”

(71.9cm)

75-1/2”

(191.8cm)

3/4”

(1.9cm)

18-11/16”

(47.5cm)

31-5/8”

(80.3cm)

10-11/16”

(27.1cm)

12-3/8”

(31.4cm)

3/4”

(1.9cm)

3-5/32”

(8.0cm)

DFSB483

Note: Panel overlays must be dry, solid, straight one piece panels. The use of multiple panel pieces to achieve the dimensions is not

recommended.

Note: A 1/4” wood filler or insulation filler must be used between the door and 3/4” wood panel to prevent condensation from form-

ing. The dimensions of the wood filler are 1/4” smaller than the dimensions shown.

Dimensions & Specifications

DFSB483/483D

Overall panel width

Refrigerator front 28-5/16” (71.9 cm)

Freezer front 18-11/16” (47.5 cm)

Overall panel height 75-1/2” (191.8 cm)

Overall panel depth 3/4” (1.9 cm)*

Maximum panel weight

Refrigerator front 50 lbs. (22.7 kg)

Freezer front 35 lbs. (15.9 kg)

*Panel thickness must not exceed 1” (2.5 cm) on hinge side. Thicker panels will interfere with door swing and clearance.

CUSTOM PANEL DIMENSIONS

DFSB483D

DFSB483 DFSB483D

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 8 / 1 1 / 0 9

CUSTOM PANEL–REFRIGERATION

Built-In 48”W. Side-By-Side Refrigerator/Freezer &

Refrigerator/Freezer with Dispenser—DFSB483/483D

DFSB483

Dimensions & Specifications

CUSTOM SIDE PANEL DIMENSIONS

DFSB483D

Note: Adding a 3/4” (1.9 cm) side panel adds an additional 3/4” (1.9 cm) to the overall width of the product for each side panel.

Requires side panel hardware kit (Kit model number – SPHKDS)

DFSB483/483D

Overall panel width 3/4” (1.9 cm)

Overall panel height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.*

Overall panel depth 24” (61.0 cm)

*Depending on how high leveling feet are raised and cabinet enclosure height.

3/4”

(1.9 cm)

End panel

1”

(2.5 cm) 1/4”

(0.6 cm)

Z-Bracket

21-3/4”

(55.2 cm)

21-3/4”

(55.2cm)

24”

(61.0cm)

Optional kickplate notch

Dimensions determined by cabinets

24”

(61.0 cm)

82-7/8”

(210.5cm)min.

84-1/16”

(213.5cm)max.*

82-7/8”

(210.5cm)min.

84-1/16”

(213.5cm)max.*

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E V I S E D 8 / 1 1 / 0 9

CUSTOM PANEL–REFRIGERATION

Built-In 48”W. Side-By-Side Refrigerator/Freezer &

Refrigerator/Freezer with Dispenser—DFSB483/483D

Dimensions & Specifications

DFSB483/483D

Overall grille width 47-1/2” (120.7 cm)

Overall grille height 3” (7.6 cm)

Overall grille depth 3-3/4” (9.5 cm)

1/2”

(1.27cm)

1/8”

(.31cm)

1/2”

(1.27cm)

1/4”Radius1/4” Radius

(1.2cm)

(1.2 cm)

1/4”Radius

(.64cm)

Reverse dimensions

for other end.

7/8”

(2.22cm)

1/2”

(1.27cm)

2-1/8”

(5.39cm)

3-1/8”

(7.94cm)

3-5/8”

(9.20cm)

1-3/8”

(3.49cm)

3/8”

(.95cm)

3/8”Radius

3/8” Radius

(.95cm)

(.95 cm)

3/8”Radius

(.95cm)

47-1/2”

(120.65cm)

1/2”

(1.27cm)

3-1/8”

(7.93cm)

Optionalhingecover

46”

(116.84cm)

1/2”

(1.27cm)

3-5/8”

(9.20cm)

45-15/16”

(116.68cm)

46”

(116.84cm)

3/4”

(1.90cm)

3/4”

(1.90cm)

3-3/4”

(9.52cm)

3-3/4”

(9.52cm)

3”

(7.62cm)

3”

(7.62cm)

3/4”

(1.90cm)

30-27/32”

(78.34cm)

32-3/16”

(81.75cm)

11-17/32”

(29.28 cm)

10-11/64”

(15.84cm)

1/2”

(1.27cm)

1-1/2”

(3.81cm)

1/4”Radius

(.64cm)

2-3/4”

(6.98 cm)

1/2”

(1.27cm)

3/4”

(1.90cm)

2-1/8”

(5.4cm)

DFSB483 DFSB483D

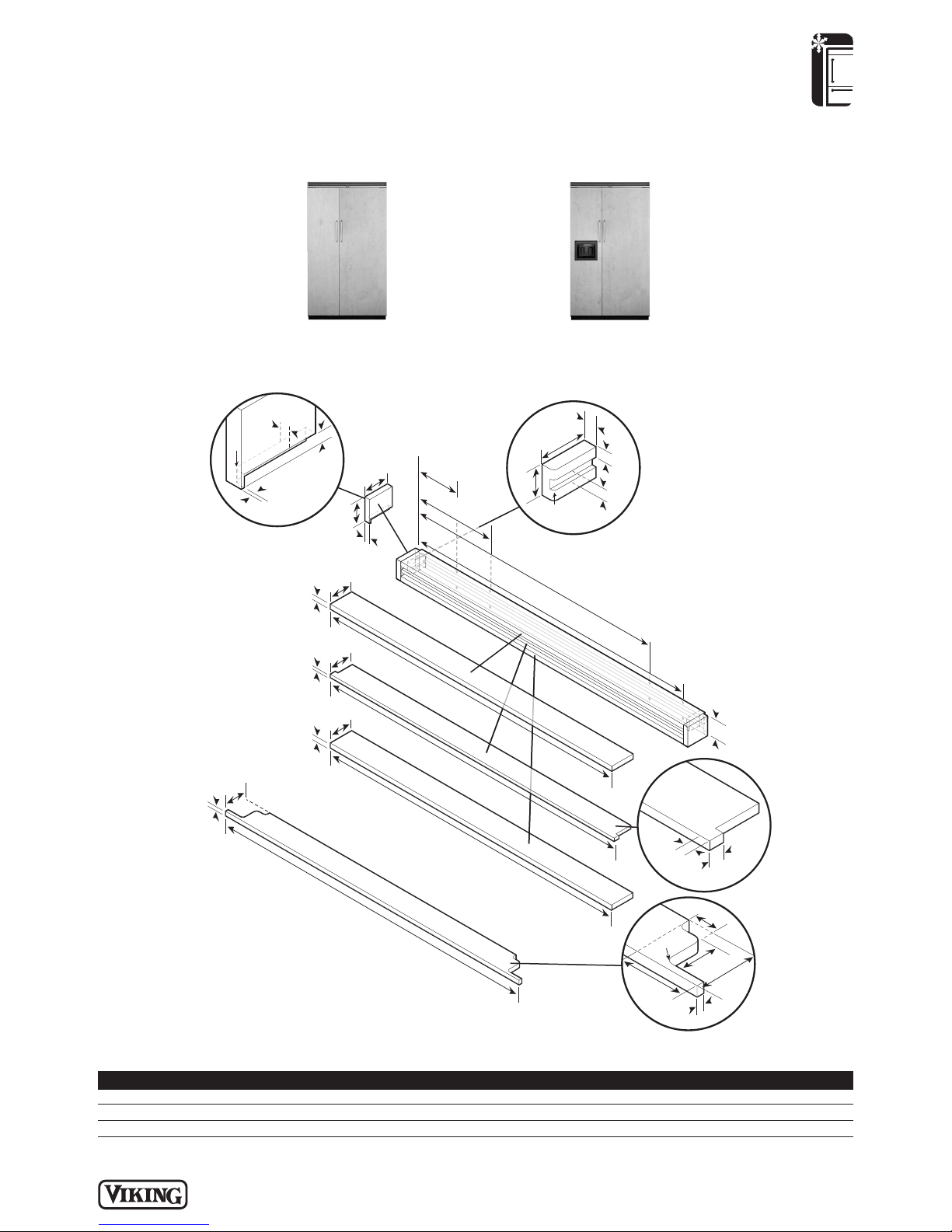

CUSTOM GRILLE DIMENSIONS
