Viking RDDFF236SS Manuale utente

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 55-1200

For product information,

call 1-888-VIKING1 (8 5- 6 1)

or visit the Viking Web site at

vikingrange.com

F21022 EN (051712)

Viking In tallation Guide

Free tanding Refrigeration Side Trim,

Side Panel, Top Panel & Grille In tallation-

French Door Bottom-Mount (236 Serie )

Apply adhesive tape to grille assembly.

Remove screws and hold for replacement. Discard

hinge covers. Use hinge covers provided in kit.

Remove edge and top of corner cover.

Installation - Side Trim and Grille

(Built-In Installation)

Attach brackets and spacers, included in the kit, to the

grille assembly with four B screws.

Remove adhesive backing. Firmly press the grille

assembly down so the adhesive adheres to the cabinet.

Align grille assembly to front door and position grille

on top of unit.

Freestanding Refrigerators

Description VCFF/RDDFF236 with side panels/tops/grilles

Overall width with side panels 35-7/8” (91.1 cm)

Overall height with tops/grilles 73-5/8” (187.0 cm)

Cutout width with side panels 36” (91. cm)

Cutout height with tops/grilles 73-3/ ” (187.3 cm)

Specifications

Required Components - Built-In Installation

Left Shim

Trim

Right Shim

Trim

Left Side

Trim

Right Side

Trim

Adhesive

Tape

Screws

Brackets

Right

Spacer

Left

Spacer

Left Hinge

Cover

Right Hinge

Cover

Grille

Secure the grille brackets to the holes in the hinge

plate with two A screws. Once grille assembly is secure,

install hinge cover screws back into new hinge covers.

Some movement of hinge covers might be needed for

mounting brackets to fit.

Installation - Side Trim and Grille

(Built-In Installation) (cont.)

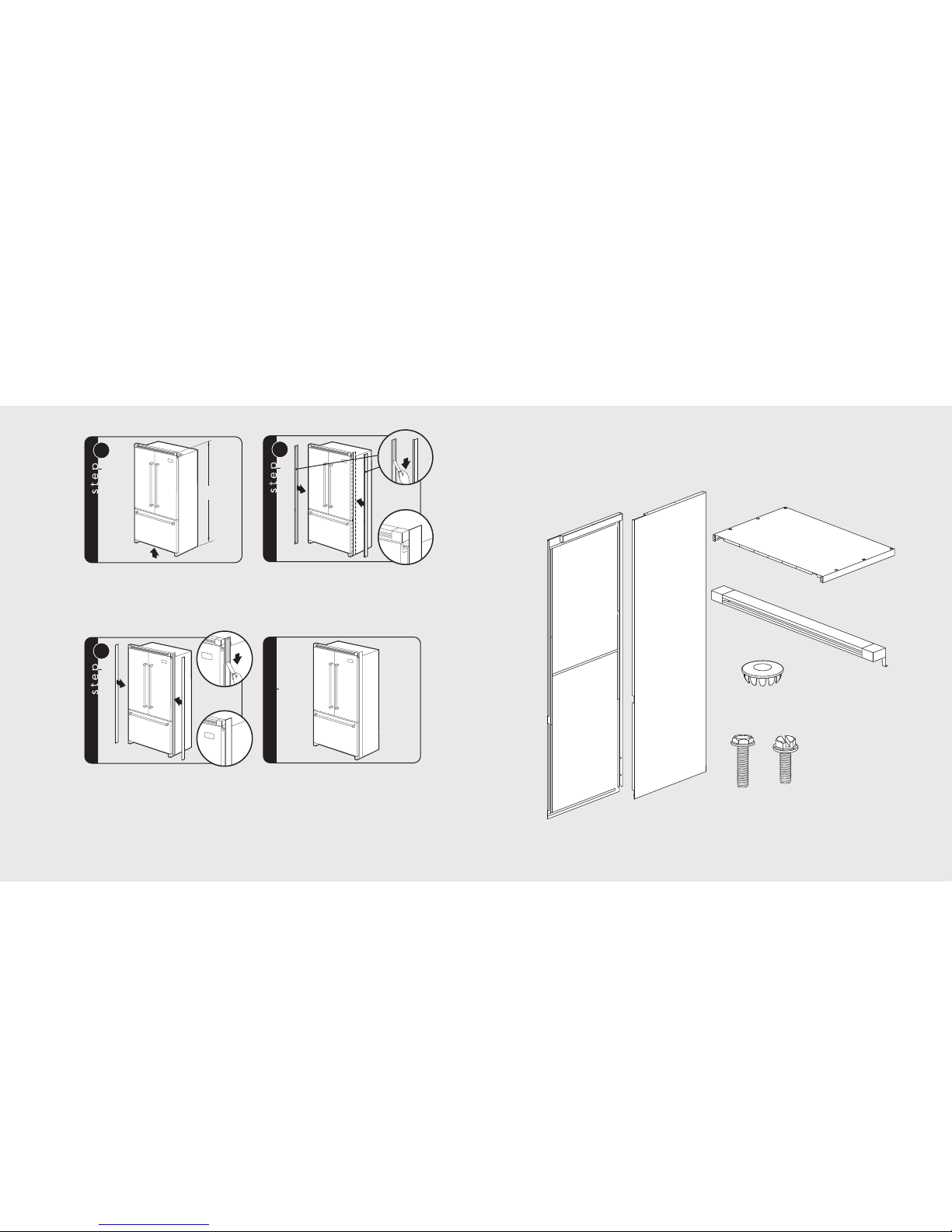

Raise the unit up until the measurement from the floor

to the top of the grille assembly is 73-3/ inches.

73-3/4”

(187.3cm)

Shim trim has adhesive backing on both sides. Remove

adhesive backing on refrigerator side only. Fit the shim

trim to the front of the unit first. With center hinge, the

shim trim will have a cutout. Use the cutout to locate

the height of the shim trim.

Remove adhesive backing for the side trim. Locate the

top of the side trim with the top of the grille assembly.

Press the side trim into the refrigerator cabinet at the

center location.

complete

Installation - Side Panel, Top Panel and Grille

(Wrapped Installation)

Required Components - Wrapped Installation

Front Grille

Cap Cover

Left Side

Panel

Right Side

Panel Top

Panel

Screws

Installation - Side Panel, Top Panel and Grille

(Wrapped Installation) (cont.)

Remove adhesive backing from other side panel. Fit the

side panel to the front of the unit first. Spacer on top of

side panel needs to sit on top of refrigerator cabinet.

Pull the machine cover and slip back of side panel

between refrigerator cabinet and machine cover. Install

machine cover screws back into refrigerator cabinet.

NOTE: The holes on the side panel are clearance holes.

Install machine cover screws back into

refrigerator cabinet.

NOTE: The holes on the side panel are clearance holes.

Insert six A screws through holes of top panel into side

panel.

Insert cap covers into holes.

complete

Align top panel and grille assembly to front door and

position top panel and grille on top of unit. Flanges

must fit into gap.

Pull the machine cover off and slip back of side panel

between refrigerator cabinet and machine cover. Install

machine cover screws back into refrigerator cabinet.

NOTE: The holes on the side panel are clearance holes.

Remove adhesive backing from the side panel. Fit the

side panel to the front of the unit first. With a center

hinge, the side panel will have a cutout.

Remove screws on lower back machine cover.

Hold for replacement.

With top panel and grille upside down, position grille

assembly in front of top panel. Secure top panel to

grille assembly via four outer holes (B screws) and use

existing for inner holes.

Remove edge and top of corner cover.
