Vip-Vision SLR-B Series Manuale utente
Version: VIPSLRB-Q219.1
Solar IP CCTV Surveillance
SLR-B Series Quick Install Guide
VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q219.1
2

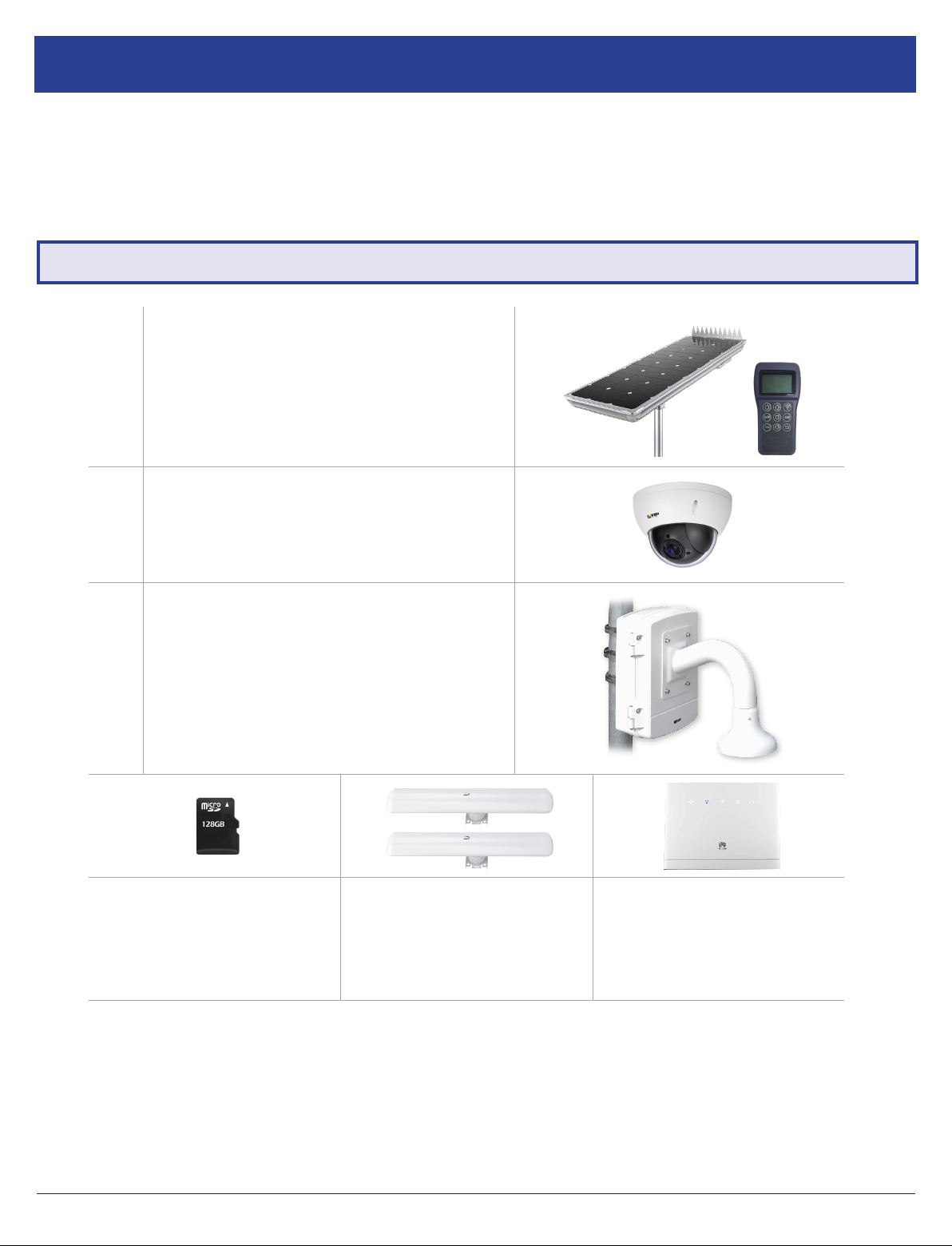

1x 120W or 180W Solar Panel Assembly
(w/ remote control device)
1x 4.0MP Mini PTZ Dome Camera
(default, camera may vary)
1x Surveillance Camera
Mount Assembly
Pre-installed 128GB MicroSD
Card in Surveillance Camera
(default, card size may vary)
Ubiquiti 5.8GHz 120° Wireless
Bridge (1x Access Point, 1x
Station)
(WiFi system only)
Huawei 4G Modem Router with
WiFi
(4G system only)
Pole, base plate & SIM card not included.
Required Install Tools: T40 torx key for junction box (included), 4mm & 10mm Allen keys for solar
panel (not included), 8mm drill bit & battery drill, at head screwdriver. Laptop with RJ45 network
interface strongly recommended for camera setup.
1. Pre-Install Information
1.1 Included Components
Thank you for purchasing a SLR-B Series Solar Surveillance System.
This install guide covers basic setup, installation and use of your surveillance system.
For more information and warranty details, please visit:
www.vip-vision.com
Visit www.vip-vision.com for support 3

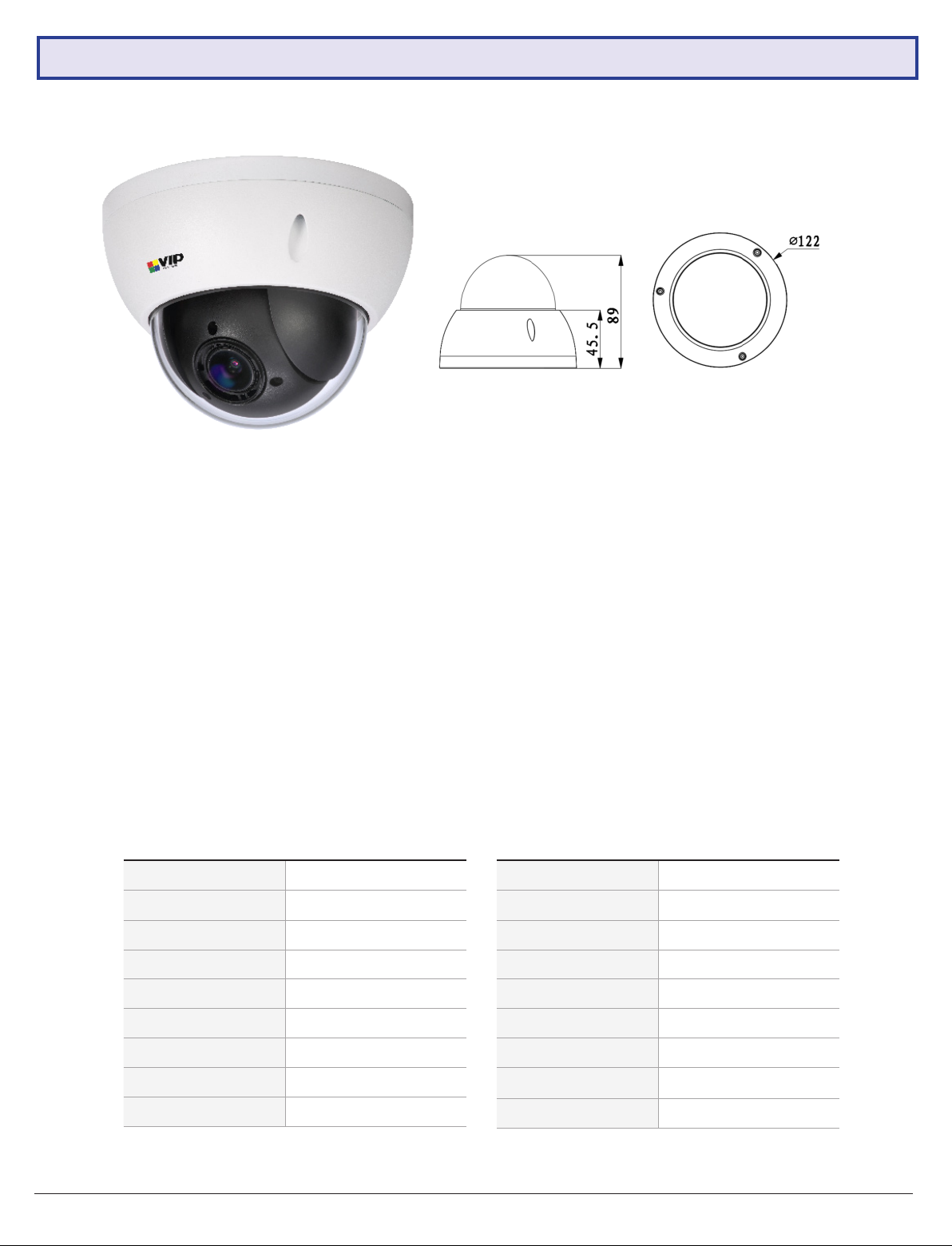

Professional Series 4.0MP 4x Zoom Mini PTZ Dome
Note: Camera has been preinstalled with the supplied 128GB microSD card and has been precongured
to record 4.0MP (2592 x 1520) at 25fps.
The username and password details for the camera can be found on the conguration sheet inside
the junction box. The default username is admin.
To prevent unauthorised access, we reccomend you change the admin password before completing
installation.
Default Camera Conguration
Main Stream
Stream Type General
Encode Type H.265
Resolution 4.0MP (2592 x 1520)
FPS 25
Encoding Method Variable Bit Rate
Quality 6 (Best)
Ref Stream 1536-8192Kbps
I Frame Interval 50
Watermark Yes
Sub Stream
Stream Type General
Encode Type H.265
Resolution D1 (704 x 576)
FPS 10
Encoding Method Constant Bit Rate
Bit Stream 512Kbps
Ref Stream 139-768Kbps
I Interval 20
SVC 1 (off)
1.2 Camera Information
VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q219.1
4

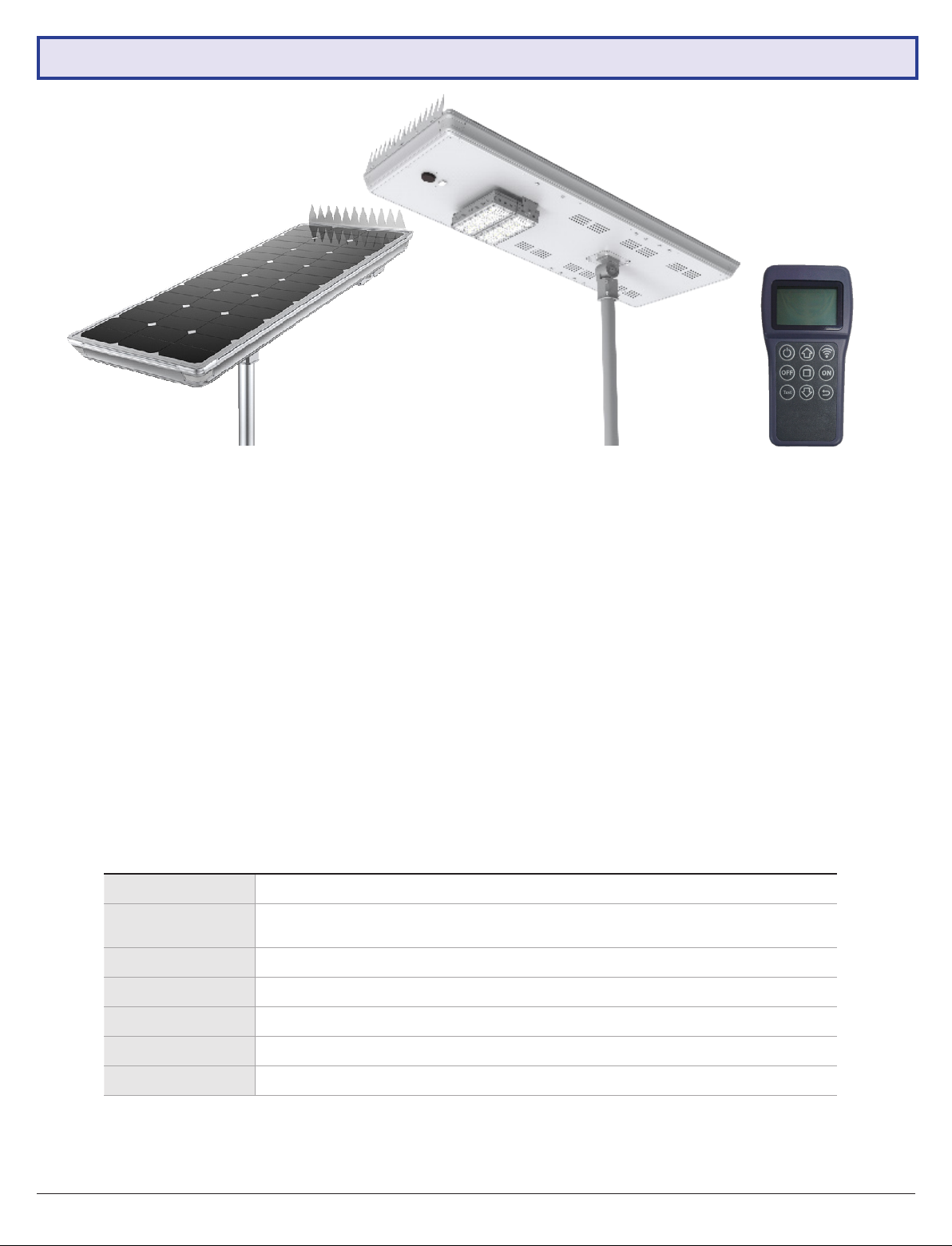

120W/180W Solar Panel with Motion-Sensing Street Light
Solar Panel Specications
SLR-B120 SLR-B180
Panel Type 120W monocrystalline silicon panel 180W monocrystalline silicon panel
Battery 12.8V/500Wh Lithium Iron Phosphate
(LiFePO4) w/ Low Voltage Cutoff
25.6V/500Wh Lithium Iron Phosphate
(LiFePO4) w/ Low Voltage Cutoff
Panel Tilt Adjust -60° ~ 60° with angle compass
Ingress Protection IP65
Wind Tolerance Up to 65m/s
Dimensions (Panel) 1321 x 525 x 161mm 1496 x 685 x 161mm
Diameter (Spigot) Ø50 ~ 60mm
This solar panel system is tted with undervoltage protection, which disconnects the load at
approximately 10V (SLR-B120) or 20V (SLR-B180). If you are not receiving any voltage on the output
wires, place the panel in direct sunlight for a minimum of one hour and re-test.
The output will be reconnected automatically when battery voltage reaches approximately 11.5V
(SLR-B120) or 23.0V (SLR-B180). For more information on panel conguration, refer to Section 4.
This product must be installed in direct sunlight. Shade will negatively impact performance.
This solar panel includes a motion-activated LED light. For more information, refer to Section 4.
1.3 Solar Panel Information
Visit www.vip-vision.com for support 5

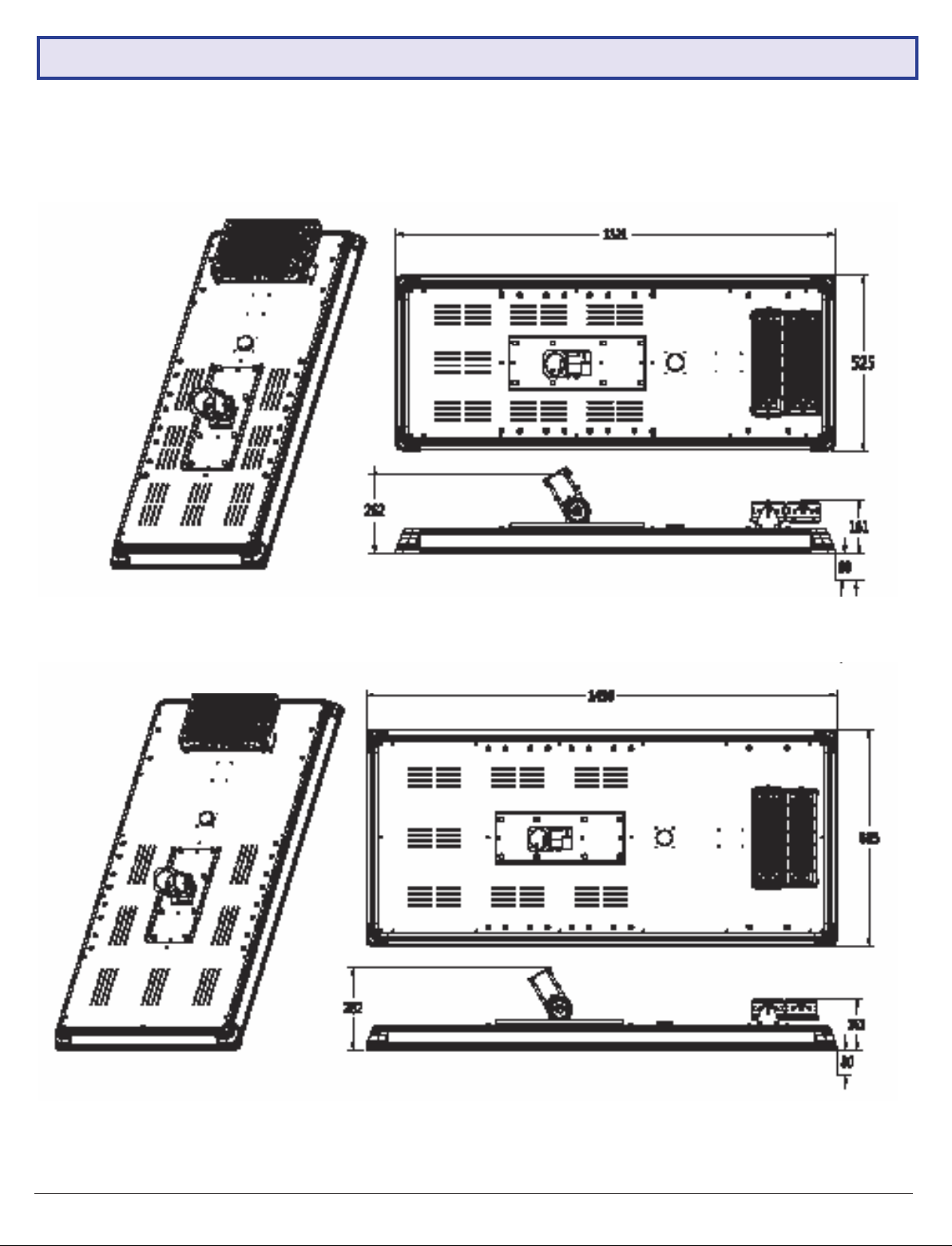

Solar Panel Dimensions
1.3 Solar Panel Information (continued)
SLR-B120
SLR-B180
VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q219.1
6
Solar Panel Assembly Diagram
Lamp Arm
Optional Bird Spikes
1.3 Solar Panel Information (continued)
Accessories
# Component
1Solar panel
2LED light
3Microwave sensor
4Lamp arm
5Bird spikes
6Screws
7Safety rope
8T40 Torx
Visit www.vip-vision.com for support 7

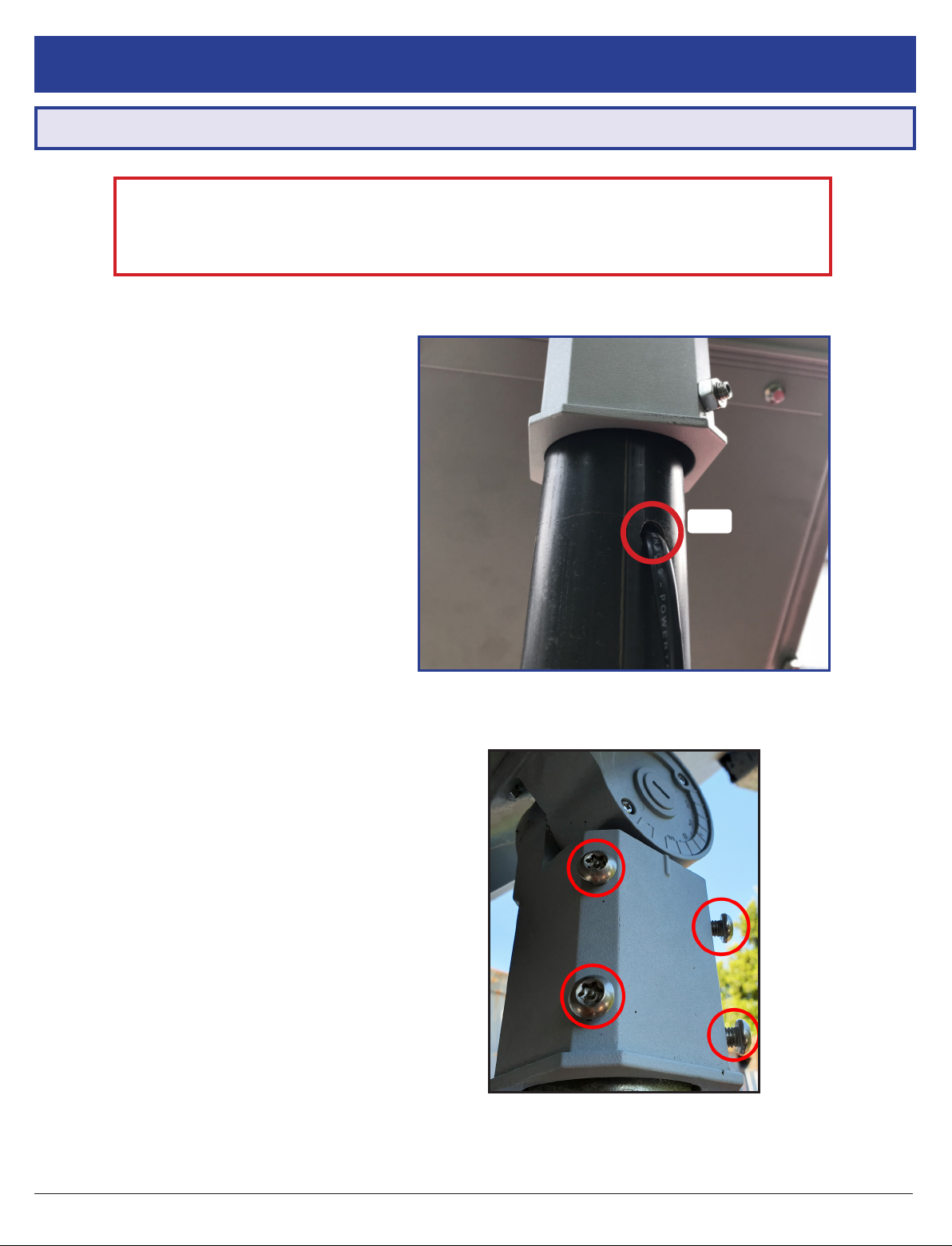

1. Drill an 8mm hole in the pole
(minimum 15cm down from the
top of the pole) on the same side
that the camera will be mounted.
This is for the solar panel power
cable to run through. The position
of the hole will vary depending
on what position on the pole the
camera is to be mounted.
2. Feed the gure-eight power cable
connected to your solar panel
through the hole created above
3. Lift the solar panel to the top of the
pole, feeding the any loose cable
down the pole. Slide the solar panel
mounting bracket over the spigot.
4. Align the panel in a north-south
orientation, with the LED light end
of the panel pointing south.
5. Tightly fasten the included security
screws to the bracket (Fig. 2.1b)
8mm
Fig. 2.1a
Solar panel power cable drill location
Fig. 2.1b
Installed grub screws
Caution: Solar panel must be placed so it is in direct sunlight all day - Any shading will
greatly reduce the solar panel’s performance.
For poles greater than 4m in height, tapered poles are preferable for camera stability and pole
strength - Contact VIP Vision if you require further information.
2. Installation
2.1 Mounting the Solar Panel to the Pole
VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q219.1
8
To ensure your solar panel absorbs as much light as possible, it’s important to adjust the solar panel
angle to match your region. (refer to table below).
For Australia and all locations in the southern hemisphere, the lower edge of the solar panel must
point north. Locations in the northern hemisphere must have the power edge of the panel pointing
south.
The angle of tilt is determined by the installation location and is calculated as installation latitude + 15°
IMPORTANT: Failure to direct the panel correctly will cause system failure through insufcient power
Ideal panel angles (H°) by Australian city
Sydney Melbourne Canberra Perth Brisbane Hobart Adelaide Darwin
49° 53° 50° 47° 42.5° 58° 50° 27.5°

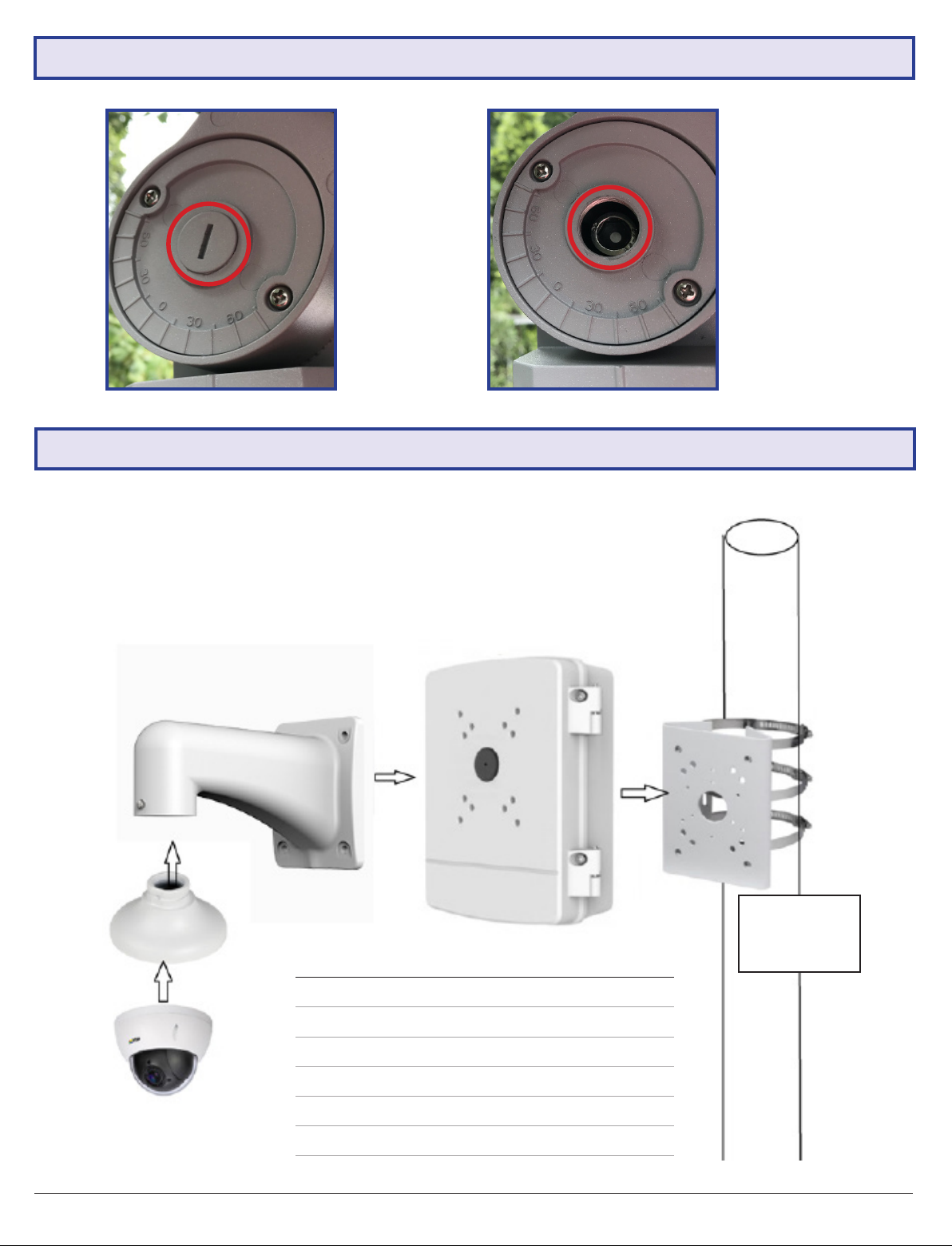

1. Use a at head screwdriver to remove the bracket cover (Fig. 2.2a).
2. Once the cover is removed, use the supplied T40 torx loosen the panel adjustment screw and tilt the
panel to the required angle with the LED light at the high side. (Fig. 2.2b).
3. Tighten the bolt after adjusting the angle to secure the solar panel in place.
4. Replace the cover.
How to adjust tilt angle:
2.2 Adjusting the Solar Panel Angle
For example, Sydney has a latitude of 34°, therefore the solar panel should be tilted directly north with
an angle of 34 + 15 = 49°.
If you are uncertain the of your area, Google makes it easy to nd the latitude for any location: For
example, searching for “latitude Newcastle NSW Australia” will return 32.9283° S, 151.7817° E. The
latitude is the rst number shown (32.9283) which rounds up to 33°.
Tilt Angle
North
Visit www.vip-vision.com for support 9
2.2 Adjusting the Solar Panel Angle (continued)
A
B
CDE
Included
Band Clamps
F
# Part
A Camera
B Camera Adapter
C Right Angle Bracket
DJunction Box
E Pole Mount Bracket
F Pole
The camera, camera adapter, right angle bracket and junction box are supplied
preassembled (A, B, C & D).
• Mount the pole mount bracket to the pole rst.
• After the pole mount is installed, mount the junction box to the pole mount.
• Open the junction box and tighten the screws inside to securely fasten it
to the pole mount.
2.3 Mounting the Camera to the Pole
Fig. 2.2a
Solar panel angle
screw cover
Fig. 2.2b
Solar panel angle
adjustment screw
VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q219.1
10

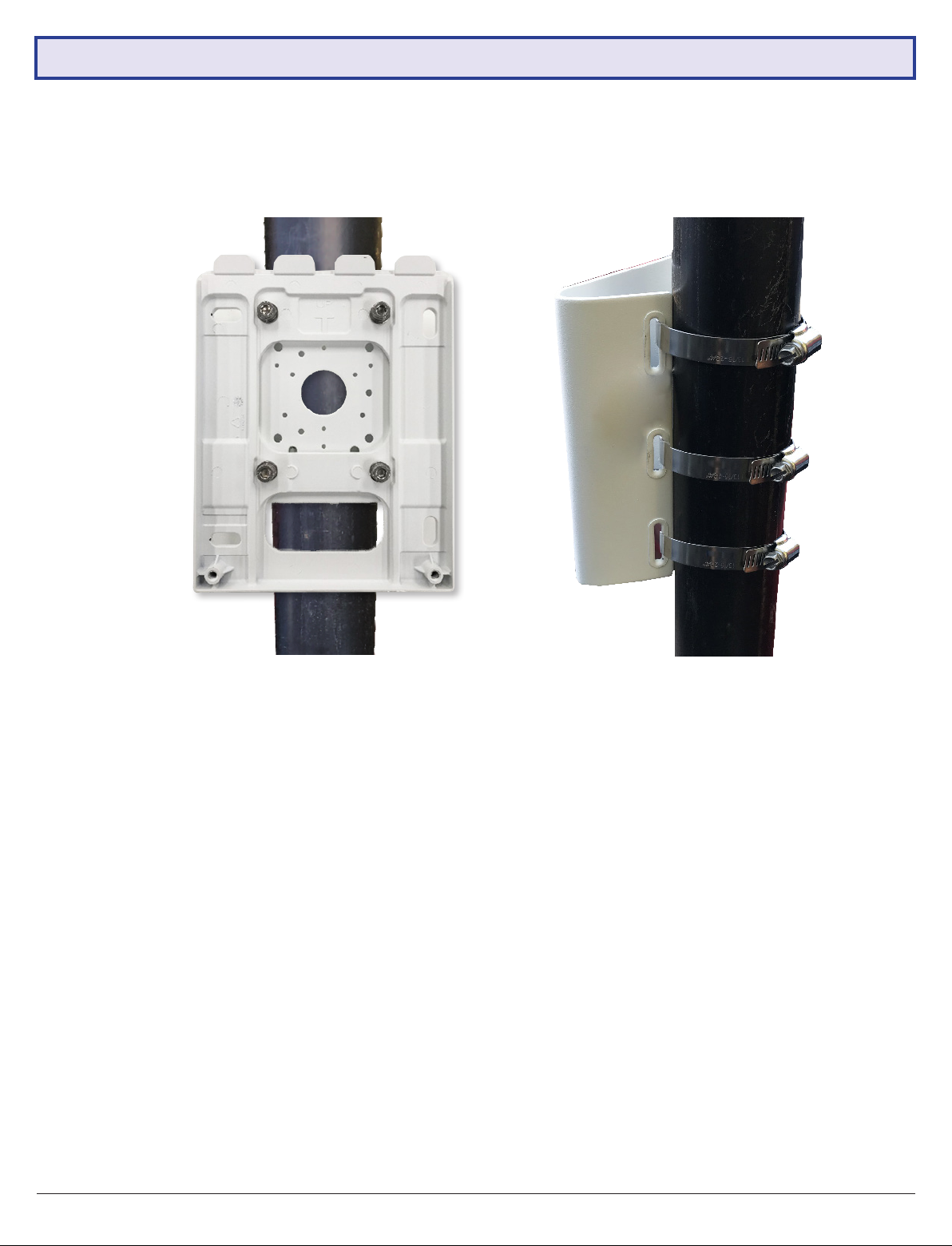

1. Mount the pole mount bracket onto the pole using 3 included band clamps (Fig. 2.3b).
Note: There are two sets of included band clamps, 65-89mm and 80-150mm covering poles sizes from approximately
55-135mm in diameter - please choose the most appropriate clamps for your pole.
Fig. 2.3a
Mounted pole bracket (front)
Fig. 2.3b
Mounted pole bracket (back)
2.3 Mounting the Camera to the Pole (continued)
