Viper 5606V Manuale utente

OWNER’S GUIDE MODEL

NO ONE DARES

COME CLOSE ®

5606V

Congratulations

Congratulations on the purchase of your state-of-the-art remote start

and security system. Reading this Owner’s Guide prior to using your

system will help maximize the use of your system and its many fea-

tures. For any additional questions please contact your authorized

Directed dealer or contact Directed at 1-800-753-0600.

Additional Guide Information

Only basic commands, features and essential information are covered

in this compact guide. Your product has many advanced features

which are not discussed here, please consult the expanded online ver-

sion for these on the website listed on the back cover. Most sections in

this guide also contain additional information which can be found in

the expanded online version.

Important information

Government Regulations and Safety information

Read the Government Regulations and Warning! Safety

First sections of this manual prior to operating this system.

Warning! Failure to heed this information can result in

death, personal injury or property damage and may also

result in the illegal use of the system beyond its intended

purpose.

Optional Remote Controls

A choice of two optional remote controls with additional features is

also available for use with your system. These remote control choices

are: LED 2-way (P/N 7856) and LCD 2-way (P/N 7756). See your

authorized dealer for purchasing details. Once purchased, please

go online to our website (listed on the back cover) and use system

model number 5806 or 5706 respectively to search for the appropri-

ate owner’s guide, which provides instructions on how to use these

remote controls.

Replacement Remote Controls

Please see your authorized dealer or visit us at www.directedstore.

com to order additional remote controls , or the optional LED and LCD

remote controls. Remote control part numbers are found on the back

of the device.

Your Warranty

Your system comes with a warranty. The warranty terms are detailed at

the end of this guide. Make sure that you receive the proof of purchase

from your dealer, indicating the product was installed by an autho-

rized Directed dealer.

Contents

Remote Control ................................................................................................... 3

Control Center .................................................................................................... 3

Using your System............................................................................................... 4

Commanding the system....................................................................... 4

Performing Commands ......................................................................... 4

Remote Control Command table ............................................................ 5

Basic Commands (Direct Access) .......................................................................... 6

Arm ................................................................................................... 6

Disarm ............................................................................................... 6

Remote Start........................................................................................ 7

AUX/Trunk.......................................................................................... 7

Battery Information.............................................................................................. 8

Battery Disposal .................................................................................. 8

Patent Information ............................................................................................... 8

Government Regulations ...................................................................................... 9

Warning! Safety First......................................................................................... 10

Installation ........................................................................................ 10

Remote Start Capable ........................................................................ 10

Manual Transmission Vehicles ............................................................. 11

Interference....................................................................................... 13

Upgrades ......................................................................................... 13

Water/Heat Resistance ...................................................................... 13

Limited lifetime consumer warranty ..................................................................... 14

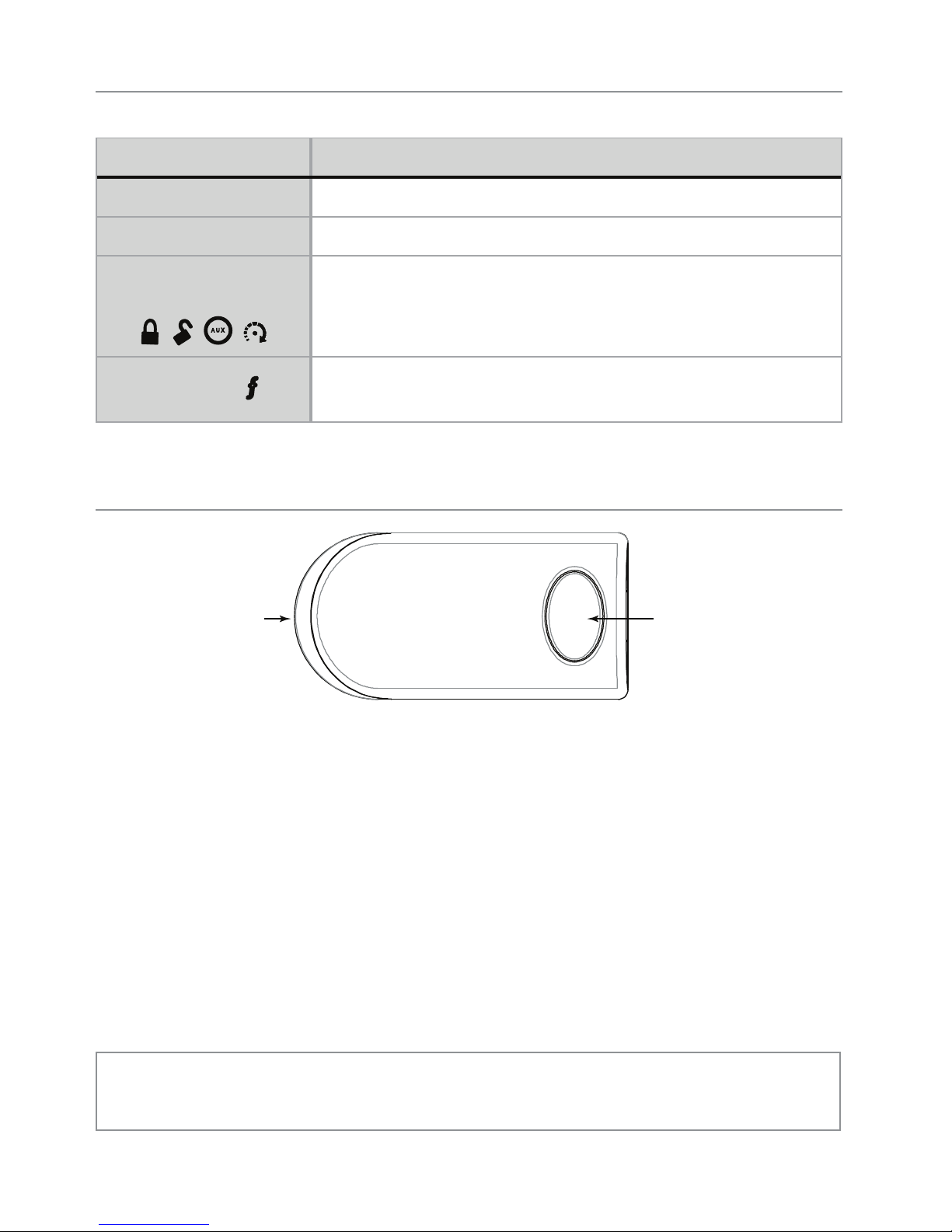

Remote Control

Feature Description

Internal Antenna Used for transmitting information

Transmit LED Active when transmitting information

Command buttons (4)

A U X

Used to perform arming, disarming, auxiliary channel and

remote start commands

Function button Used to access function levels for commands, configuration

menus for programming and Car Selection

Control Center

Control CenterLED Button

The Control Center, typically located on the upper part of the front

windshield. It consists of:

• The In-vehicle system antenna.

• The Status LED, as a visual indicator of the system’s status.

• The Control button, for placing the system into Valet Mode* and

to perform the Emergency Override** operation.

* See Remote and System Operations section for details.

** See Alarm Features for details.

Using your System

Commanding the system

Commands, Basic or Advanced, are used to activate system features

and are performed by pressing one of the Command buttons. Basic

commands control the most often used security and remote start fea-

tures while Advanced commands control more specialized features.

Conﬁrmations for Basic or Advanced commands are indicated

by siren chirps and parking light ﬂashes. A description of each feature

conﬁrmation is found in the following Basic command and Advanced

command sections.

Performing Commands

Perform Basic commands by pressing a Command button.

Perform Advanced Commands by ﬁrst accessing Levels 1-4 using the

button and then by pressing a Command button while within a

level.

Advanced command example: Silent Arm

1. Press the button once to access Function Level 1, The trans-

mit LED single ﬂashes for 3 seconds.

2. Press the button while the transmit LED is still ﬂashing to

perform the Silent Arm command.

3. The system will arm, lock the doors and ﬂash the parking lights

without siren chirps.

Remote Control Command table

Button

Level Direct Access x 1

LEVEL 1

x 2

LEVEL 2

x 3

LEVEL 3

x 4

LEVEL 4

Arm/Lock

(Panic)

Silent Arm Sensor

Bypass

Sensor Silent

Arm

Full Silent

Arm

Disarm/Unlock Silent Disarm Remote Valet Car Finder

Remote Start Runtime

Reset

Timer Start Smart Start Defogger

AUX Aux/Trunk AUX 1 AUX 2 AUX 3 AUX 4

Advance Level,

Enter program-

ming (8 sec)

Basic Commands (Direct Access)

Arm

Press and release

The alarm arms, doors lock (if connected), and the siren chirps and

parking lights ﬂash once. If Valet mode* is On, the doors lock without

siren chirps, the alarm is disabled. Exit Valet mode to arm the alarm

normally.

If a trigger zone fault is detected the siren chirps once again and the

control center LED generates a Trigger Zone Fault report**.

To Arm and Panic

Press and hold

The alarm Arms (or Locks in Valet) and, after two seconds, sounds

the siren and ﬂashes the parking lights. Press the or button

to stop the output.

Disarm

Press and release

The alarm disarms, doors unlock (if connected), and the siren chirps

and parking lights ﬂash twice.

An Alarm Report** alert of four or ﬁve siren chirps will replace the

normal disarm chirps if the alarm was triggered.

Remote Start

Press and release

Activates (or if On, deactivates) the remote starter. The engine and

parking lights turn On, or the engine and parking lights turn Off ac-

cordingly. If a Remote start conﬁguration issue prevents the engine

from starting, the parking lights ﬂash a Remote Start fault report***

to identify the fault.

AUX/Trunk

Press and hold

AUX

The Trunk opens (if connected) when this button is pressed for 2 sec-

onds.

* See Remote and System Operations in online guide.

** See Alarm Features in online guide.

*** See Remote Start Faults in online guide.

For Manual transmission vehicles see Manual Transmission Start in online

guide.

Battery Information

The remote controls are powered by one coin cell battery (CR-2032)

that can be purchased at most retailers. When the battery begins to

weaken, the operating range is reduced.

Battery Disposal

Directed cares about the environment. If you need to dis-

pose of the battery, please do so in accordance with your

municipal requirements for battery disposal.

Patent Information

This product is covered by one or more of the following United States

patents:

Remote Start Patents:

5,349,931; 5,872,519; 5,914,667; 5,952,933; 5,945,936;

5,990,786; 6,028,372; 6,467,448; 6,561,151; 7,191,053;

7,483,783

Vehicle Security Patents:

5,467,070; 5,532,670; 5,534,845; 5,563,576; 5,646,591;

5,650,774; 5,673,017; 5,712,638; 5,872,519; 5,914,667;

5,952,933; 5,945,936; 5,990,786; 6,028,505; 6,452,484

Other patents pending.
