Primary Harness (H1) Wire Connection Guide

Primary Harness Wiring Diagram

___

Primary Harness Wiring Instructions

This guide describes in detail the connection of each wire. Also included are possible applications

of each wire. This system was designed with the ultimate in flexibility and security in mind. Many

of the wires have more than one possible function. Please read carefully to ensure a thorough under-

standing of this unit.

H1/1 RED/WHITE 200 mA output channel 2 (trunk release)

This output is often used for trunk release. Whenever the button(s) controlling channel two is

pressed for 1.5 seconds, this output is activated and will stay activated as long as the transmission

continues. Use an external relay to drive circuits requiring more current.

ORANGE (-) 500 mA Ground-When-Armed Output

WHITE (+)/(-) Selectable Light Flash Output

WHITE/BLUE (-) 200 mA Channel 3 Programmable Output

BLACK/WHITE Domelight Supervision Relay Output #30

GREEN (-) Door Trigger Input, Zone 3

BLUE (-) Instant Trigger Input (trunk input/shunt), Zone 1

VIOLET (+) Door Trigger Input, Zone 3

BLACK (-) Chassis Ground Input

YELLOW (+) Switched Ignition Input, Zone 5

BROWN (+) Siren Output

RED (+) Constant 12V Power Input (15A fused)

RED/WHITE (-) 200 mA Channel 2 Output

H1/1

H1/2

H1/3

H1/4

H1/5

H1/6

H1/7

H1/8

H1/9

H1/10

H1/11

H1/12

Directed Electronics, Inc.

H1/2 RED (+)12V constant power input

Before connecting this wire, remove the supplied fuse. Connect to the battery positive terminal or

the constant 12V supply to the ignition switch.

NNOOTTEE: Always use a fuse within 12 inches of the point you obtain (+)12V. Do not use the 15 A fuse in

the harness for this purpose. This fuse protects the module itself.

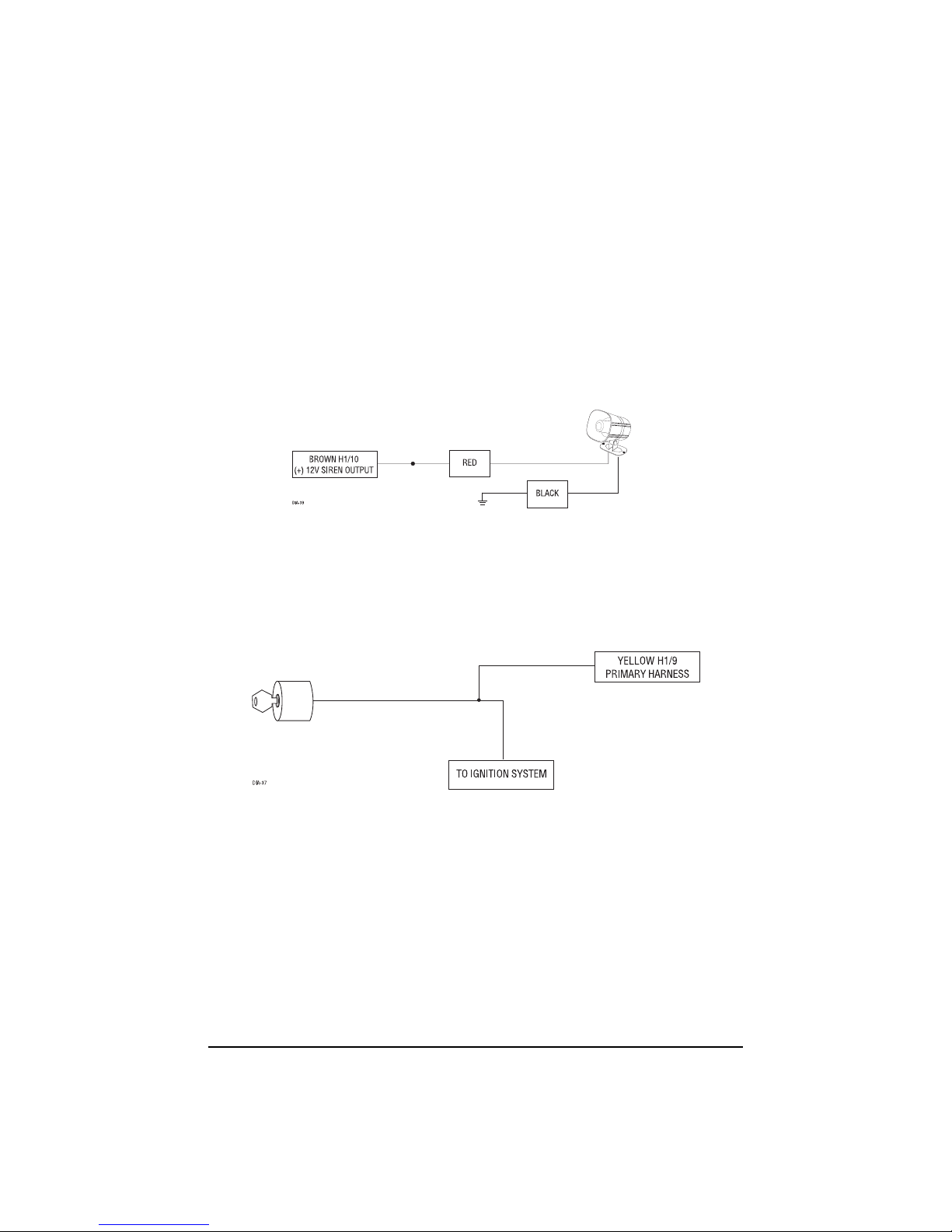

H1/3 BROWN (+) siren output

Connect this to the RED wire of the Revenger®siren. Connect the BLACK wire of the siren to (-)

chassis ground, preferably at the same point you connect the control module’s BLACK ground wire.

H1/4 YELLOW (+) ignition input

Connect this wire to the (+) 12 volts ignition wire. This wire must show (+) 12 volts with the key

in RUN position and during cranking. Take great care to ensure that this wire is not shorted to the

vehicle’s chassis at any point.

H1/5 BLACK (-) chassis ground connection

Connect this wire to a clean, paint-free sheet metal location (driver kick panel) using a factory bolt

that DOES NOT have any vehicle component grounds attached to it. A screw should only be used

when in conjunction with a two-sided lock washer. Under dash brackets and door sheet metal are

not acceptable ground points. It is recommended that all security components be grounded at the

same location.

Directed Electronics, Inc.

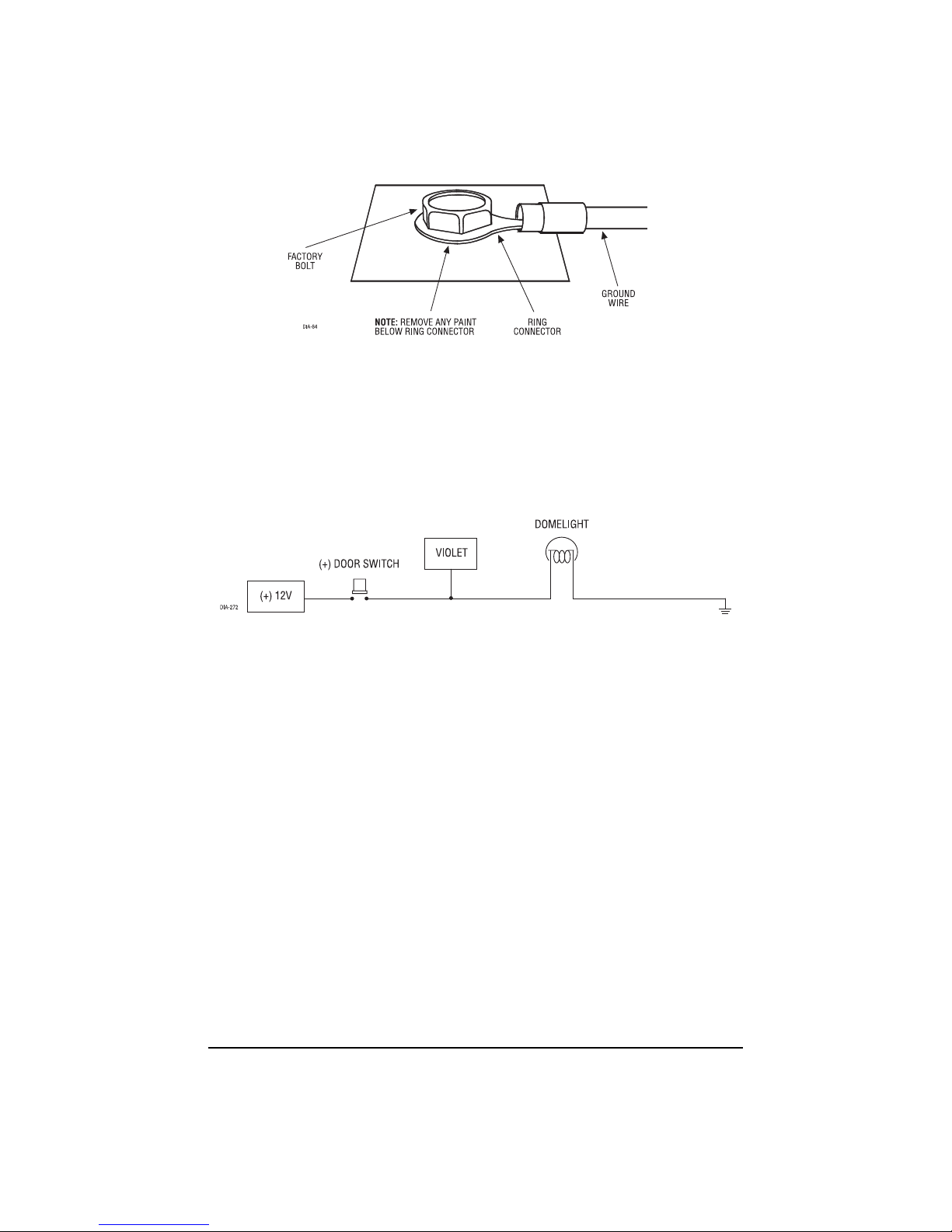

H1/6 VIOLET (+) door trigger input

This type of dome circuit is used in many Ford products. Connect the VIOLET wire to a wire that

shows (+)12V when any door is opened. This wire will report Zone 3.

NNOOTTEE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T Bitwriter

can be used to turn Bypass Notification off.

H1/7 BLUE (-) instant trigger input

This input will respond to a negative input with an instant trigger. It is ideal for hood and trunk

pins and will report on Zone 1. It can also be used with Directed single-stage sensors. The H1/7

BLUE instant trigger wire can also be used to shunt sensors during operation of auxiliary channels

or remote start. (See

Bypassing Sensor Inputs

section of this guide.)

Directed Electronics, Inc.

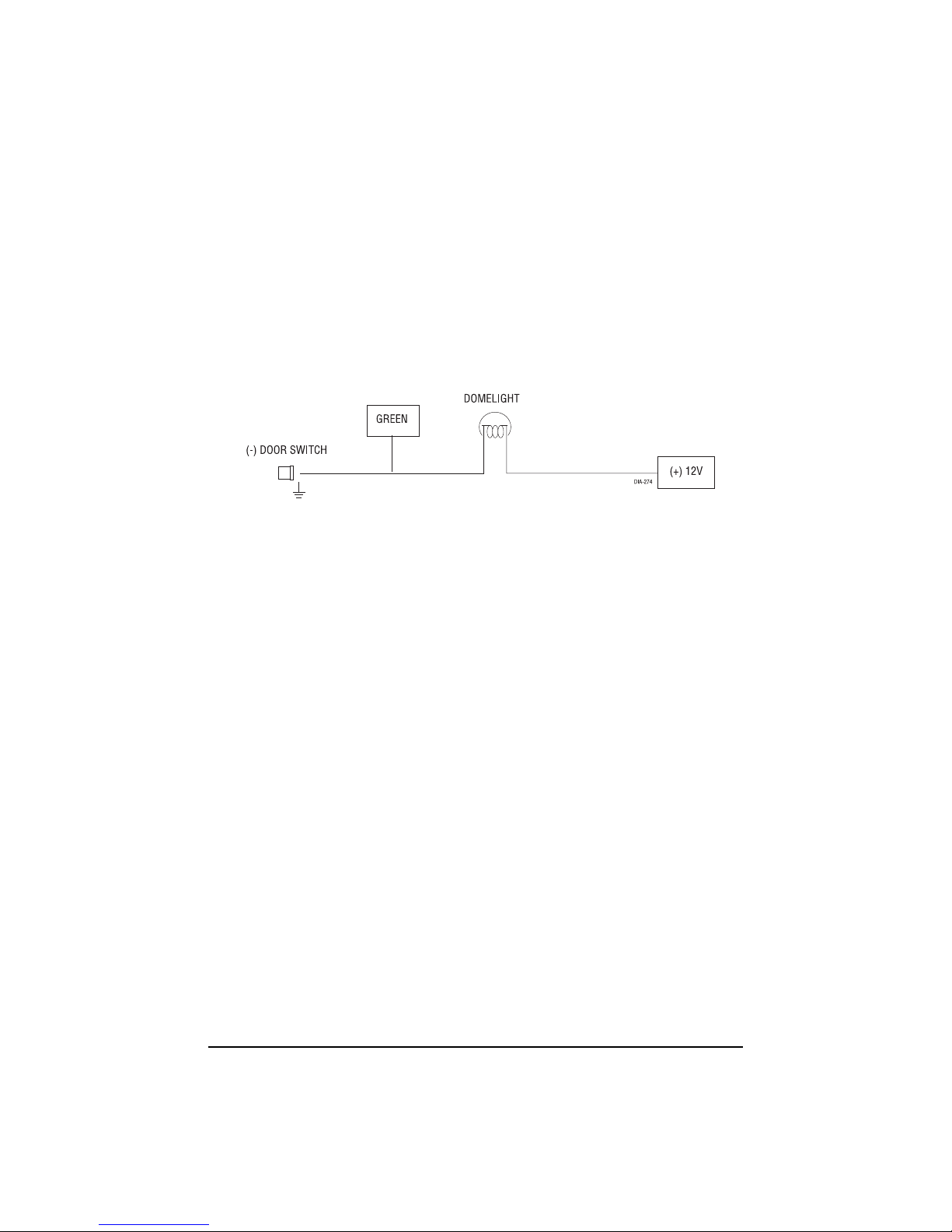

H1/8 GREEN (-) door trigger input

Most vehicles use negative door trigger circuits. Connect the GREEN wire to a wire showing

ground when any door is opened. When connecting to newer model vehicles there is generally a

need to use individual door triggers. See DirectFax document 1076 for wiring instructions. This

wire will report Zone 3.

NNOOTTEE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T Bitwriter

can be used to turn Bypass Notification off.

H1/9 BLACK/WHITE high current output from on-board domelight supervision relay

Connect this wire directly to the domelight circuit in the vehicle. The on-board relay will drive

circuits up to 20 amperes. The polarity of this output is determined by the connection of the input

wire H2/A in the Relay Harness.

NNOOTTEE: If the input wire H2/A is not connected, there will be no output on this wire.

H1/10 WHITE/BLUE 200 mA (-) channel 3 output

This wire provides a (-) 200 mA output whenever the transmitter button(s) controlling Channel 3

is pressed. This output can be programmed to provide the following types of output (see

System

Features Learn Routine

section of this guide):

➤➤A vvaalliiddiittyyoutput will send a signal as long as the transmission is received.

➤➤A llaattcchheeddoutput will send a signal continuously when the Channel 3 button(s) is pressed and

released. The signal will continue until channel three is pressed again.

➤➤A llaattcchheedd//rreesseettwwiitthhiiggnniittiioonnoutput works similar to the latched output, but will also reset

(output will stop) when the ignition is turned on and then off.

➤➤A 3300((6600,,9900))sseeccoonnddttiimmeeddoutput will send a signal for 30 seconds when channel three is

pressed. This output can be shut off during the 30-second period by pressing Channel 3 again.

The BitwriterTM can program from 1 to 90 seconds.

➤➤RReemmootteessttaarrttoutput (refer to System Features Menu description for additional information).

Directed Electronics, Inc.

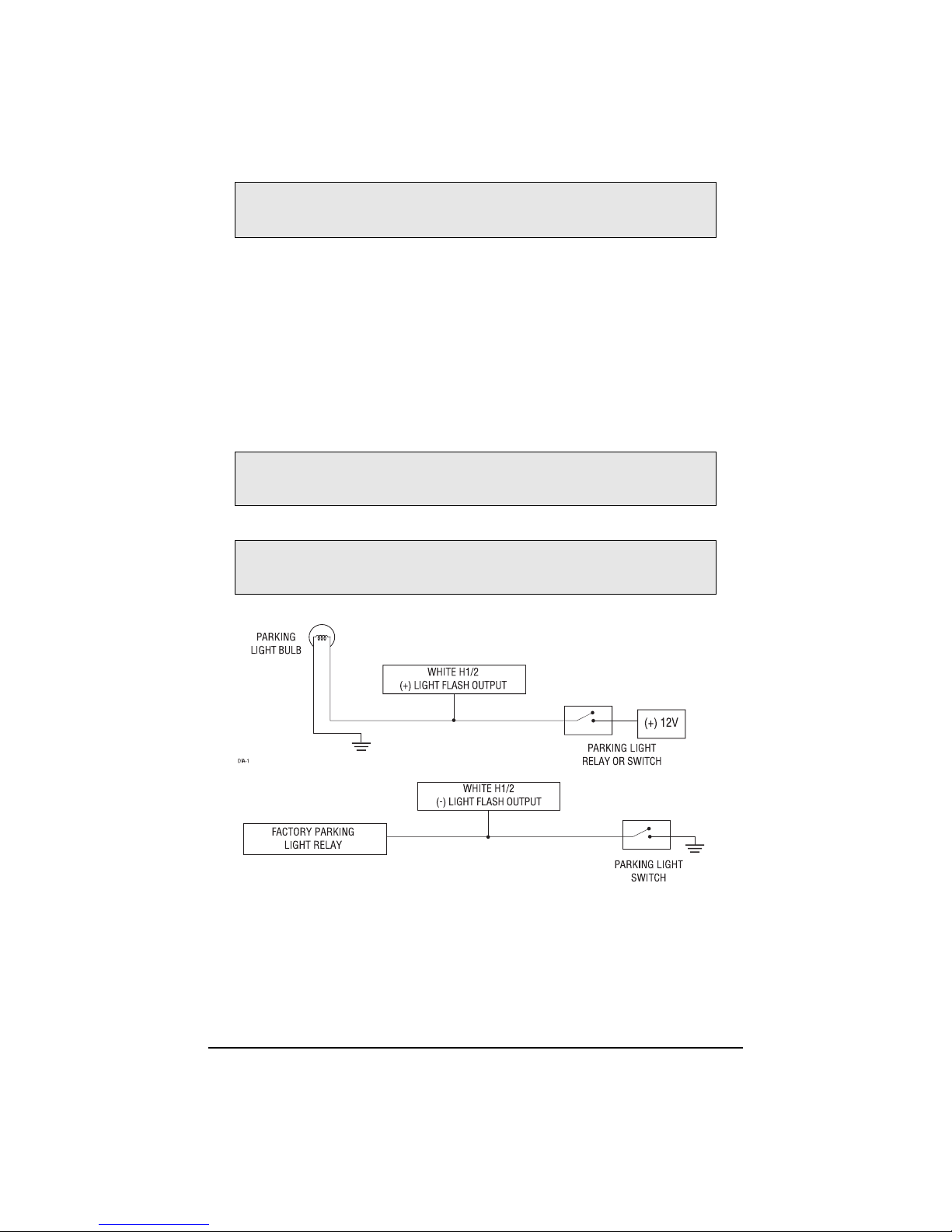

H1/11 WHITE (+/-) 10 A parking light flash output

The H1/11 WHITE wire is factory configured for (+) parking lights. Refer to the

Programming

Jumper

section of this installation guide for changing configuration for (-) parking light.

NNOOTTEE:

For parking light systems that draw 10 amps or more, the jumper must be switched to a (-) light

flash output (see the

Programming Jumpers

section of this guide). P/N 8617 or a standard auto-

motive SPDT relay must be used on the H1/11 light flash output wire.

H1/12 ORANGE (-) ground-when-armed output

This wire supplies a (-) ground as long as the system is armed. This output ceases as soon as the

system is disarmed. It can supply up to 500 mA of current.

NOTE: A dual diode harness assembly is provided (Viper model only) for European

vehicles which have parking light capability for illumination of only the parking lights on

the side of the vehicle to the road when parked.

IMPORTANT! DO NOT connect this wire to a negative vehicle light flash wire before

changing the programming jumper to the negative polarity position or damage to

vehicle light circuit may occur.

IMPORTANT! Never use this wire to drive anything but a relay or a low-current input!

This transistorized output can only supply 200 mA, and connecting directly to a

solenoid, motor, or other high-current device will cause the module to fail.

Directed Electronics, Inc.

Auxiliary Harness Wire Connection Guide

Auxiliary Harness Wiring Diagram

___

Auxiliary Harness Wiring Instructions

H2/1 LIGHT BLUE (-) second unlock output (200mA)

This wire produces a (-) 200mA output for progressive locks in which the driver door unlocks first

and the remaining locks unlock with a second press of the unlock button.

H2/2 GREY (-) hood pin input, zone 6

This wire is connected to hood pinswitch. This will trigger

the security system if the hood is opened while the system is armed and report Zone 6. This input

can be programmed for N.O. or N.C. contact, refer to

Systems Features Menus

H2/3 ORANGE/BLACK (-) retained accessory output

NNOOTTEE: An additional relay (not supplied) is required for most applications.

Connect this wire to the accessory wire in the vehicle that powers the accessories in the vehicle. This

wire will retain power after the ignition key is turned off. This output ceases when a door is

open/closed or the system is armed.

H2/4 GRAY/BLACK (-) channel 6 output

This wire provides a (-) 200mA output whenever the transmitter button(s) controlling Channel 6

is pressed. This output can be programmed to provide the following types of outputs (see also the

Feature Menus section):

LIGHT GREEN/BLACK (-) Factory Disarm Output

LIGHT BROWN (-) Horn Honk Output

VIOLET/BLACK (-) Channel 4 Output

WHITE/BLACK (-) Channel 5 Output

GREY/BLACK (-) Channel 6 Output

ORANGE/BLACK Retained Accessory Output

GREY (-) Hood Pin Input, Zone 6

LIGHT BLUE (-) Second Unlock

H2/1

H2/2

H2/3

H2/4

H2/5

H2/6

H2/7

H2/8

Altri manuali per SmartStart 3000 Series

Questo manuale è adatto per i seguenti modelli

Indice

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente

Clifford

Clifford Nova 3 Manuale utente
