Viper VSS4000 Manuale utente

ADVSS4000 2009-09

Addendum: Installation Guide

! ATTENTION INSTALLER !

The VSS4000 integrates the Viper 5101 Remote Start with the VSM100 Viper SmartStart Module. Read this addendum

and both installation guides thoroughly before beginning. They will help you understand how to combine the two

systems, avoid mistakes, and smoothly complete the installation, veriﬁcation and customer registration processes.

The corrections made in this addendum address the 5101 installation guide (N4102V 2008-06) as it pertains to the

VSN4000 kit.

Installation guide

Page # Description/error Correction

Inside front

cover & 31 Error is found in the Bitwriter® chip ver-

sion requirement: version 2.5 The Bitwriter (p/n 998U) requires chip version 2.6

or newer to program this unit.

7 What is included:

This list has changed to integrate two

systems, see Correction column.

The VSS4000 system includes:

One - 5101V remote start/keyless entry main

module, Owner's & Installation guide, QR Wiring

guide, (and supporting documentation).

One - ﬁve-button /1-way Supercode remote con-

trol (p/n 7153V)

One - Control Center with integrated Valet Over-

ride switch

One - Shutdown toggle switch

One - VSM100 Viper SmartStart module, wire

harness, Quick reference User's & Installation

guide. Module ID stickers.

36 Step 1 reads:

Hold....until you hear it emit a long

beep. The transmit LED comes on solid.

Should read:

1. Hold the

A U X

button on the remote until the

transmit LED lights solid (approx. 10 seconds).

2. Press and hold the

A U X

button until the LED

blinks three times and then lights solid.

56 Remote starting diagnostics correction to

introduction paragraph Should be:

A few select system conditions may prevent the en-

gine from starting. The condition that causes this

non-start will be reported by ﬂashing the vehicle

parking lights. The number of ﬂashes and the list

below identify the condition.

Addendum: Owner's Guide

! ATTENTION OWNER !

The VSS4000 integrates the Viper 5101 Remote Start with the VSM100 Viper SmartStart Module. Read this addendum

and both installation guides thoroughly before beginning. They will help you understand how to combine the two

systems, avoid mistakes, and smoothly complete the installation, veriﬁcation and customer registration processes.

The corrections made in this addendum address the 5101 Owner's guide (G4102V 2008-06) as it pertains to the

VSN4000 kit.

Owner’s guide

Page Description/error Correction

9 What's included:

This list has changed to integrate

two systems, see Correction column.

The VSS4000 system includes:

VSM100 Viper SmartStart module, wire harness, Quick

reference User's & Installation guide. Module ID stickers.

5101V remote start/keyless entry main module, Owner's

guide and this addendum

Control Center with integrated Valet Override switch

One ﬁve button/1way Supercode remote control

Window decals

Warranty registration cards

10 "Battery replacement" procedure is

incorrect. See “Battery Replacement” procedure below.

11 Item 7 reference to battery door is

incorrect. There is no battery door on the 7153V remote control.

13 Unlock section title at top of page is

incorrect.

Aux/Trunk command instruction

"Press one time" is incorrect.

Top section title next to closed lock icon should be "Lock".

Should be "Press and Hold for 1 1/2 seconds".

16 Unlocking the Vehicle begins:

Lock the vehicle normally. Press.....

Should read:

To Unlock the vehicle. Press.....

All References to "beeps" on most

pages of the guide are incorrect. Beep generator has been removed from the 7153V remote

control, references to LED blinks are correct.

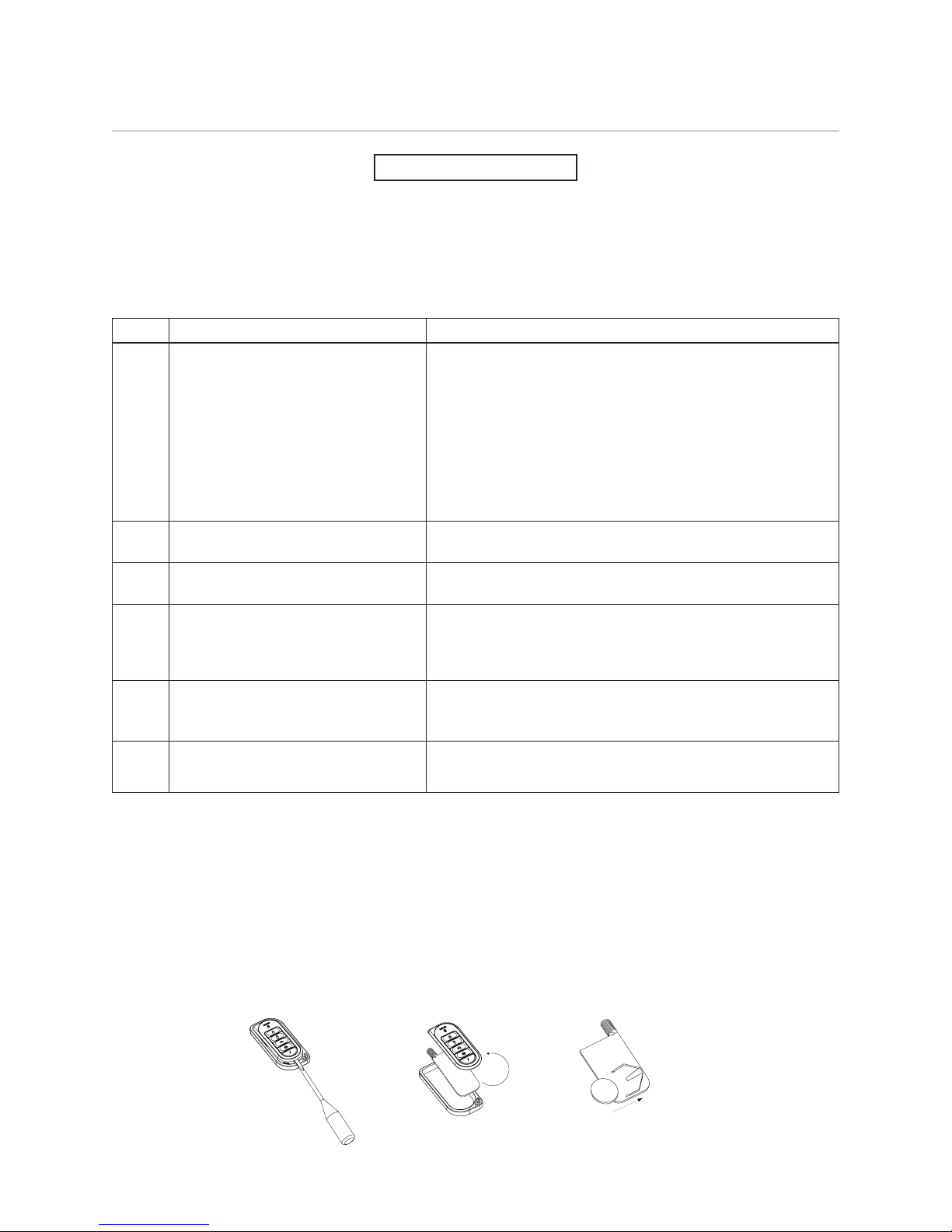

Battery Replacement

Using a small slotted screwdriver or similar tool, insert into unit slot and gradually pry the top away from the1.

bottom until free.

Remove the top along with the circuit board and turn both upside down. Remove battery from battery clip and2.

replace.

Note: Verify polarity while replacing the battery as the battery clip will also accept the battery if incorrectly

inserted upside down.

With the unit top and circuit board still upside down. Turn unit bottom over and onto the other two parts. Snap3.

unit back together.
