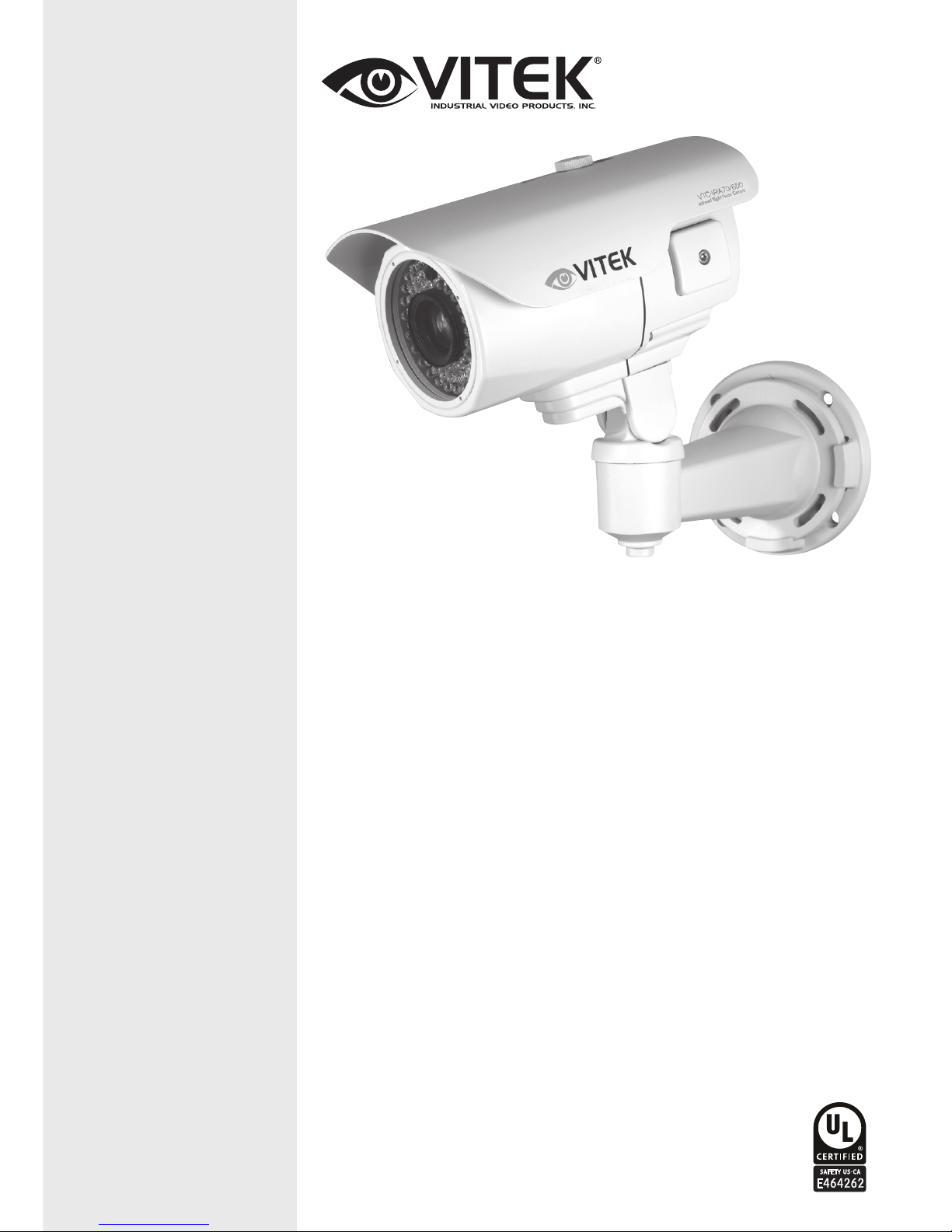

Vitek VTC-IRA70/650 Manuale utente

VITEK

VTC-IRA70/650

750 TV Line Day/Night

IR Bullet Camera

w/300’ Range (960H)

• 1/3” High density Sony® CCD (960H)

• High Resolution of 750 Horizontal Lines

• Sony Effio-A Digital Signal Processor

• Simple Installation with External Focus and Zoom control and one

turn mount positioning lock

• True Day/Night by ICR (Infrared Cut Removal)

• E-WDR by ATR-EX (Adaptive Tone Reproduction)

• 70 Infrared LEDs at 850nm enable viewing in total darkness up to

300 feet

• 0.003 Lux (Sens-up Off) / 0 Lux (IR-ON)

• 6-50mm Varifocal Auto Iris Lens with External Adjustments for

Focus and Zoom

• True Day/Night by ICR - Infrared Cut Removal

• XD-DNR (2D+3D DNR) Advanced Digital Noise Reduction

• Built-in Motion Detection with a 24x16 Grid

• OSD (On Screen Display) menu and Camera ID

• Dual Glass Compartments to Eliminate Glare

• IP68 NEMA Rating

• Heavy Duty Mount with Cable Feed Through

• Secondary Video Output & OSD Control Joystick are

accessible inside a gasket sealed removable side panel

• 24VAC/12VDC Dual Voltage

Safety Precaution

ULTRA CLEAR RESOLUTION CAMERA

CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

ULTRA CLEAR RESOLUTION CAMERA

Safety Precaution

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

ULTRA CLEAR RESOLUTION CAMERA

Contents

Safety Precaution

p.02~03

Contents

p.04

Features

p.05

Composition

p.05

Dimensions

p.06

Part Names

p.07

Installation Instructions

p.08~10

Operating Instructions

p.11~30

Specifications

p.31

ULTRA CLEAR RESOLUTION CAMERA

Features

Key Features

General Description

• With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can accepts the infrared light

This is an ultra-clear resolution camera which realizes over 750TVL resolution

and a crisp color reproduction with SONY 960H CCD and Effio-A Enhanced

image signal processor.

• 1/3” High density Sony CCD (960H)

• 750TVL High-Resolution

• D-WDR by ATR-EX

• TDN with Dual Filter Switcher

• Built-in f=6~50mm F1.4 DC Auto Iris vari-focal lens

• Improved noise reduction 2D+3DNR

• Improved IR-Optimizer

• DIS(Digital Image Stabilizer), LSC (Lens shading compensation)

• Scene preset select, Motion detection, Polygon privacy mask(up to 15),

E-Zoom, Defog, Sens-up, BLC/HLC, Flickerless, Anti-CR, Flip

IR Shade compensation

• External Zoom & Focus adjustment

• IR-LED 70pcs

• Up the Coaxial (UTC) communication

• OSD MENU & Video Sub-out port for easy installation & maintenance

• Circuit protection against faulty connection in power polarity

• Isolated power supply against ground loop problem

• Dual Window, 3-Axis bracket

• IP68 protection

• With Effio-A series Enhanced digital imaging system,

- Delivers the crystal clear images providing 750TVL resolution in conjunction

with SONY 960H High density CCD.

- Effio-A Series are provided ‘D-WDR by ATR-EX’ function

- Color signal processing provides the optimum balance between the luminance

and chroma signals for high color reproducibility even for the detail scene

which contains very high spatial frequency.

- Incorporates 2D+3DNR signal processing.

ULTRA CLEAR RESOLUTION CAMERA

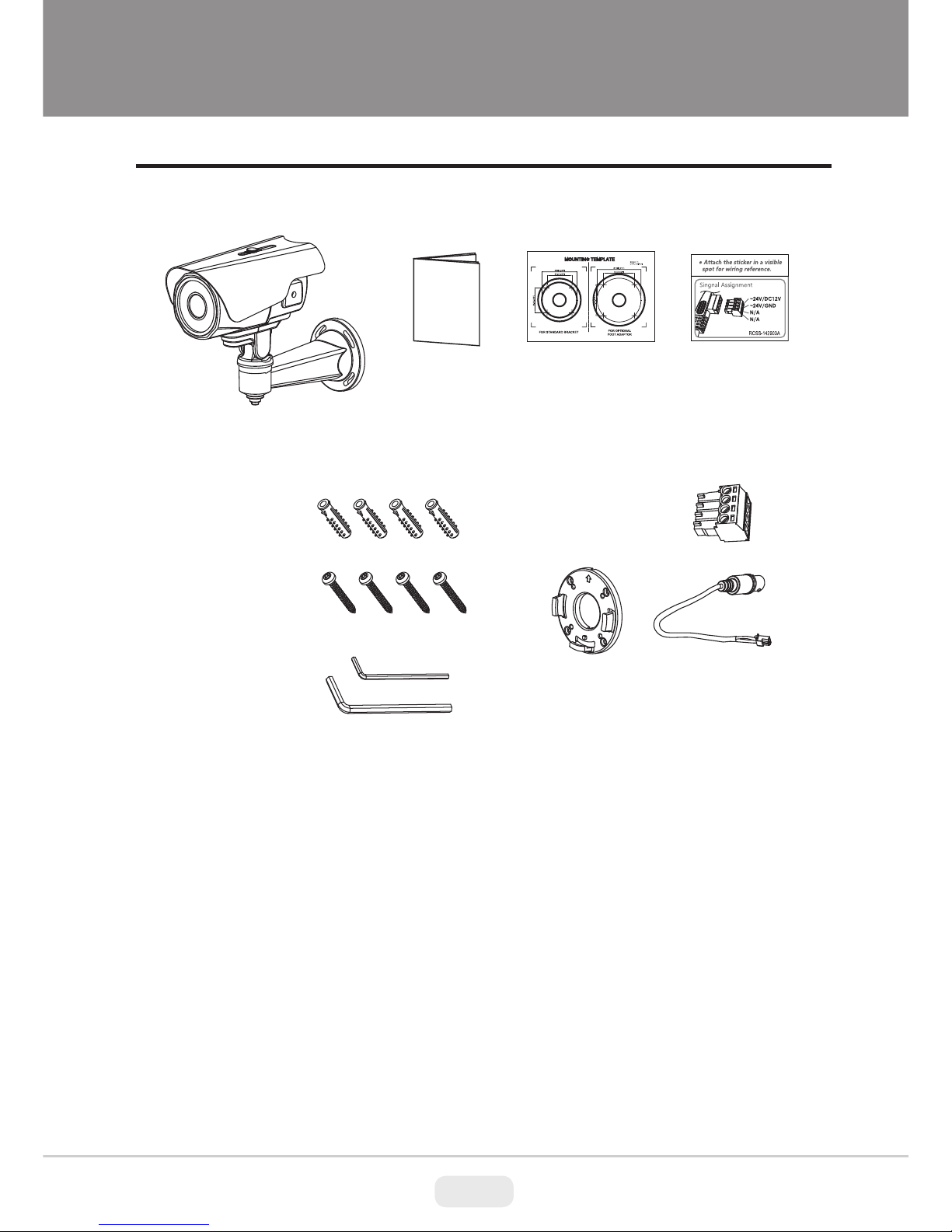

Composition

Operating

Instruction

Camera

Foot

Bracket

Mounting

Template

Torque Wrench:

3mm (1pc)

5mm (1pc)

Mounting Screw:

4 x 30mm (4pcs)

Plastic Anchor:

6 x 30mm (4pcs)

Video Sub-out

Cable (1pc)

Cable Signal

Sticker

Wiring Connector:

(1pc)

ULTRA CLEAR RESOLUTION CAMERA

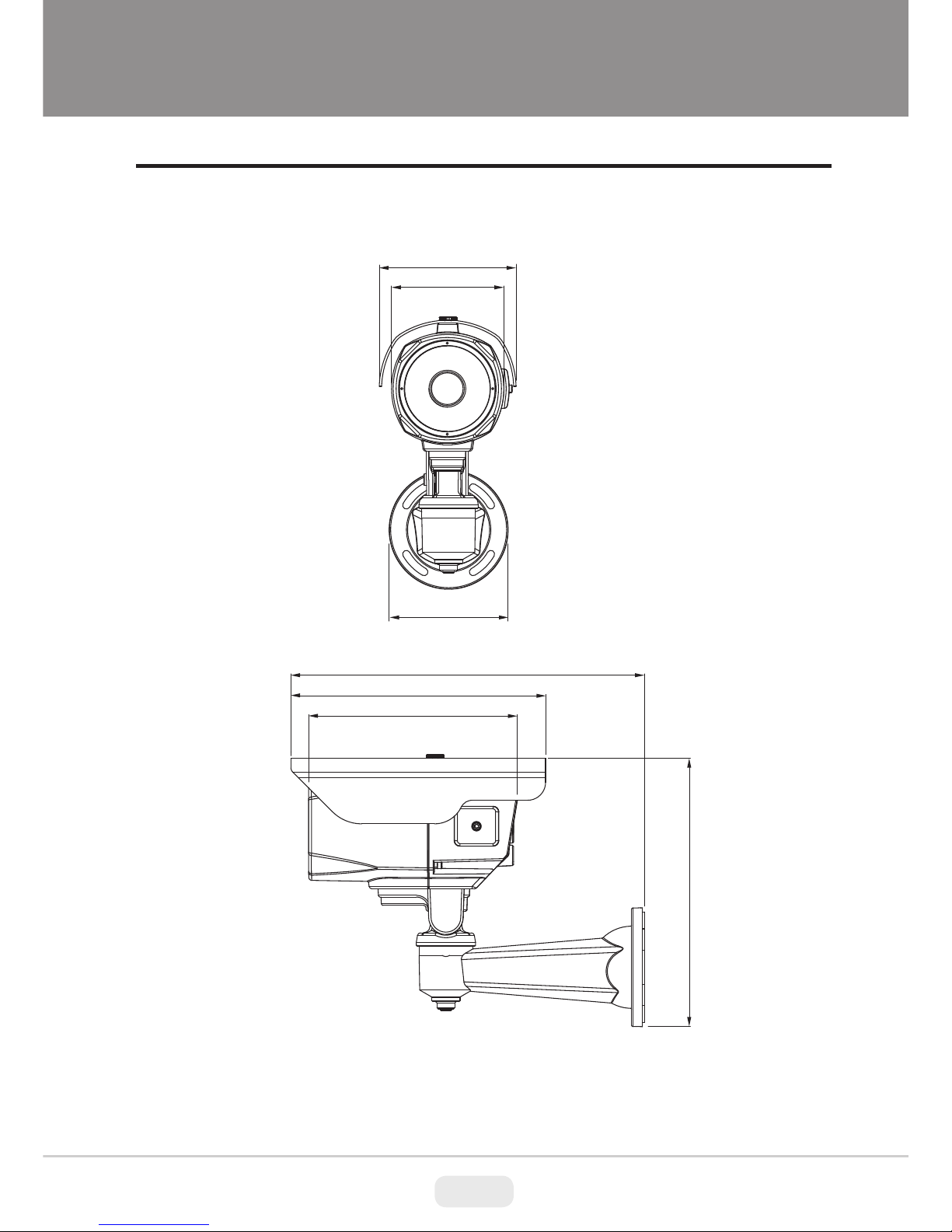

Dimensions

Ø 3.94“ (100mm)

4.53“ (115mm)

3.70“ (94mm)

8.86” (225mm)

6.89” (175mm)

8.43” (214mm)

11.69“ (297mm)

ULTRA CLEAR RESOLUTION CAMERA

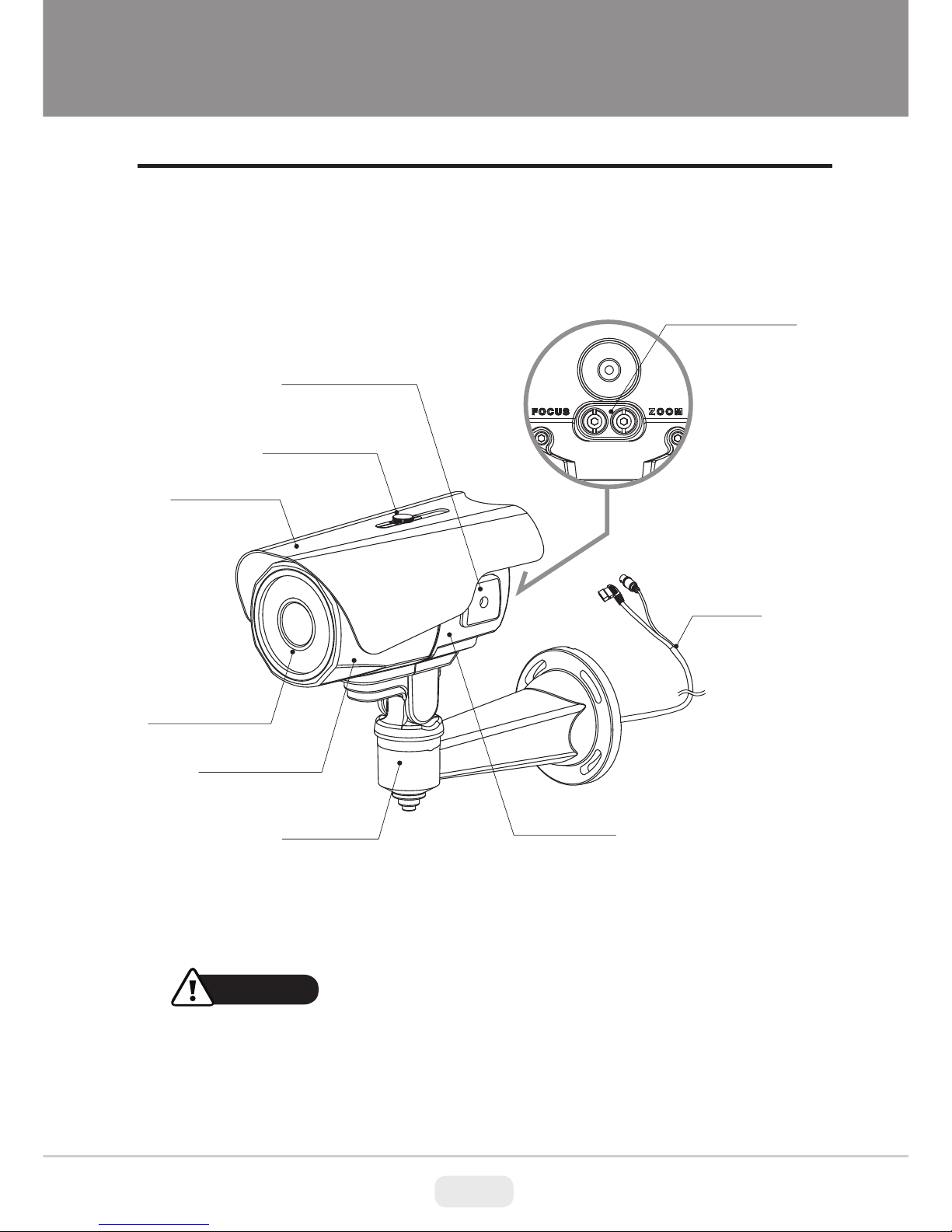

Part Names

CAUTION

• Care should be taken the cable is NOT damaged, kinked or exposed

in hazardous area.

• Do not expose the camera lens directly to a strong light source such as the sun

or spot light.

REAR

VIEW

FOCUS / ZOOM

adjusting Screws

DUAL WINDOW

SUN-SHIELD

FIXING BOLT

POWER

CABLE

FRONT CASE

OSD Setup

CONTROL COVER

BRACKET REAR CASE

ULTRA CLEAR RESOLUTION CAMERA

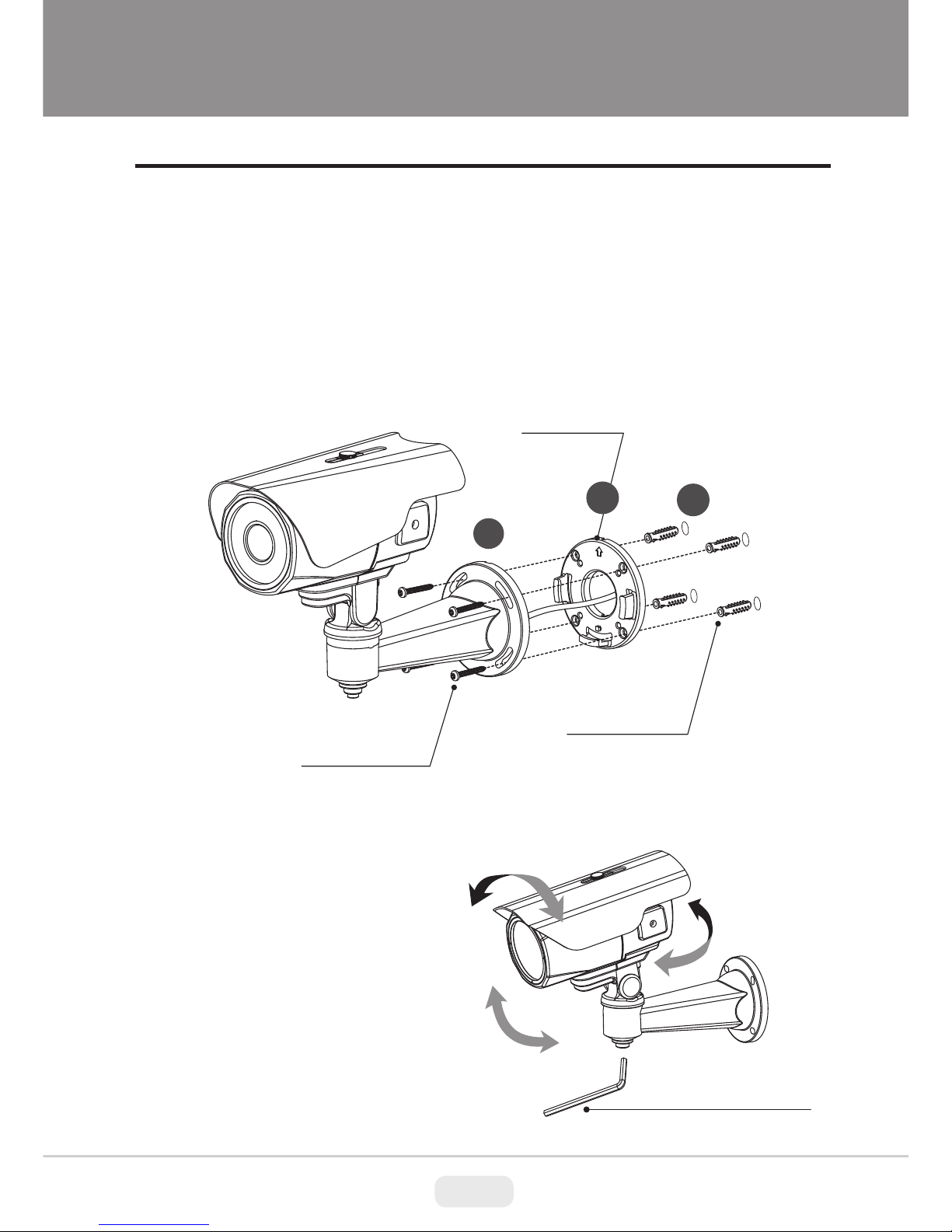

Installation Instructions

1. Place the mounting template at the installation position and drill the wall.

Insert the anchors into the drilled holes

2. Place the foot bracket(option) on pre-drilled position and attach using the mounting

screws. Skip this step when a foot bracket is not installed.

3. Route the Power cable to the connecting place.

Attach the camera bracket through using mounting screws (4x30mm).

4. Set the camera’s viewing angle and adjust zoom/focus of lens by using the

torque wrench.

Torque Wrench (5mm)

Mounting Screw

: 4x30mm

Pan & Tilt adjustments

• Unlock the screw on the camera

bracket through using the torque

wrench(5mm) supplied.

• Set the camera’s viewing angle

then lock the screw on the bracket.

Plastic Anchor

: 6 x 30mm

Foot Bracket

(Option)

Tilt

Inclination

Pan

ULTRA CLEAR RESOLUTION CAMERA

Installation Instructions

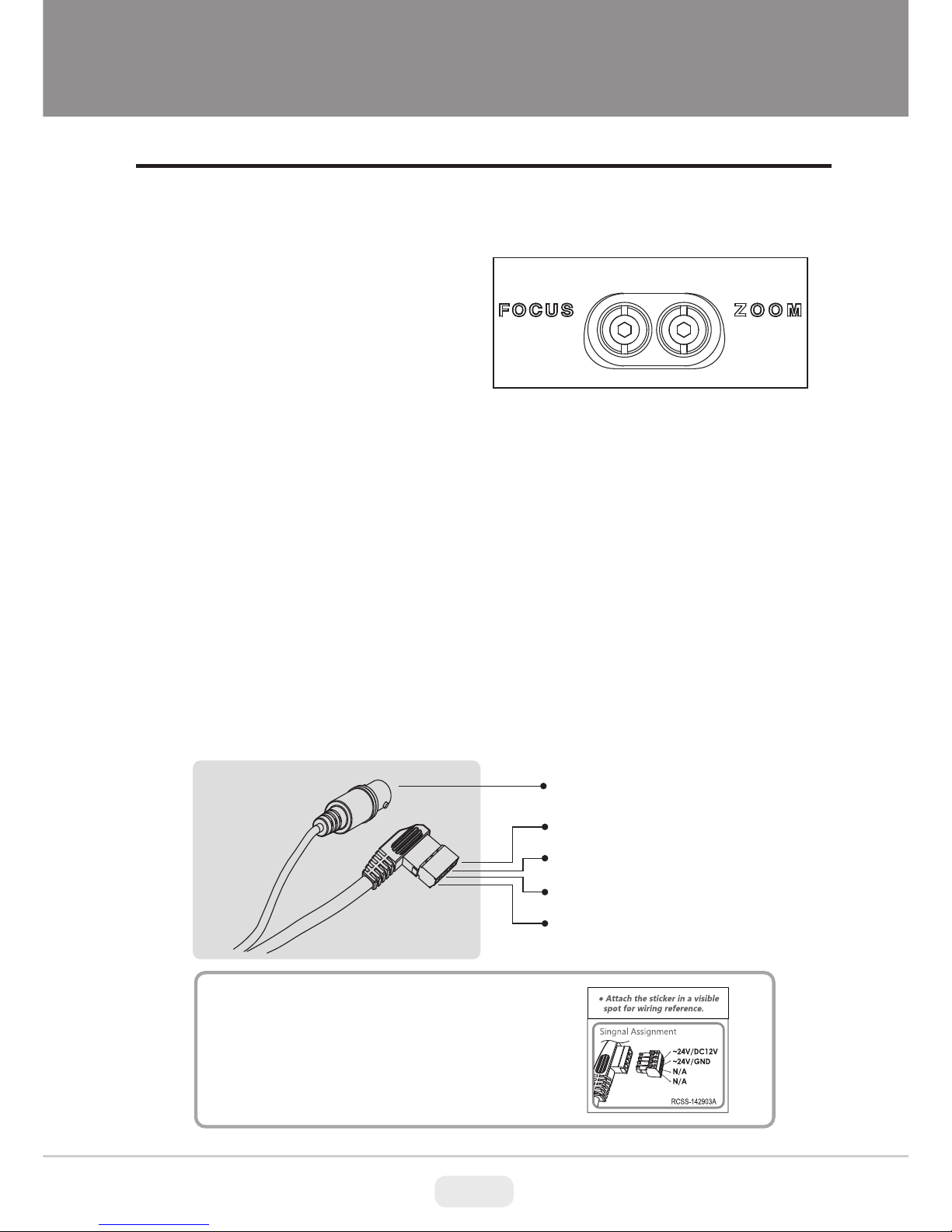

Zoom & Focus adjustments

• Turn the Focus gear to “N”(Near) or

“∞”(Far) until the sharpest focus is

made.

• To widen the viewing angle, turn the

Zoom to “W”(Wide) and to obtain

a closer view, turn it to “T”(Tele)

Use the torque wrench supplied.

Installation and commissioning Instructions

• Make sure the power is removed before the installation.

• Follow the order for applying power.

First, connect the low voltage (AC24V or DC12V), then plug the AC adapter into

AC outlet to avoid an improper reset from power jitter and damage from the

surge voltage when no load.

Power Supply Connections

Camera can work with either 24VAC or 12VDC, dual voltage power.

Primary and secondary grounds are completely isolated to avoid possible

ground-loop problems.

VIDEO (BNC)

AC24V/GND (Black wire)

AC24V/DC12V (Red wire)

N/A

※ Attach the Signal Assignment Sticker

in a visible spot for wiring reference.
