• Color CCD Image Sensor with 420 TV Lines (VT-PIRC2) /

550 TV Lines (VT-PIRC2/H)

• Minimum Illumination of 0.2 Lux / 0.5 Lux (VT-PIRC2/H)

• Pinhole 3.8mm / f2.0 Lens Included

• NC/C/NO Alarm Output

• Working 100’ Motion Detection Using 58 Beams Within 3

layers (35’ x 35’ Coverage Area)

VT-PIRC2

VT-PIRC2/H

Color PIR Cameras

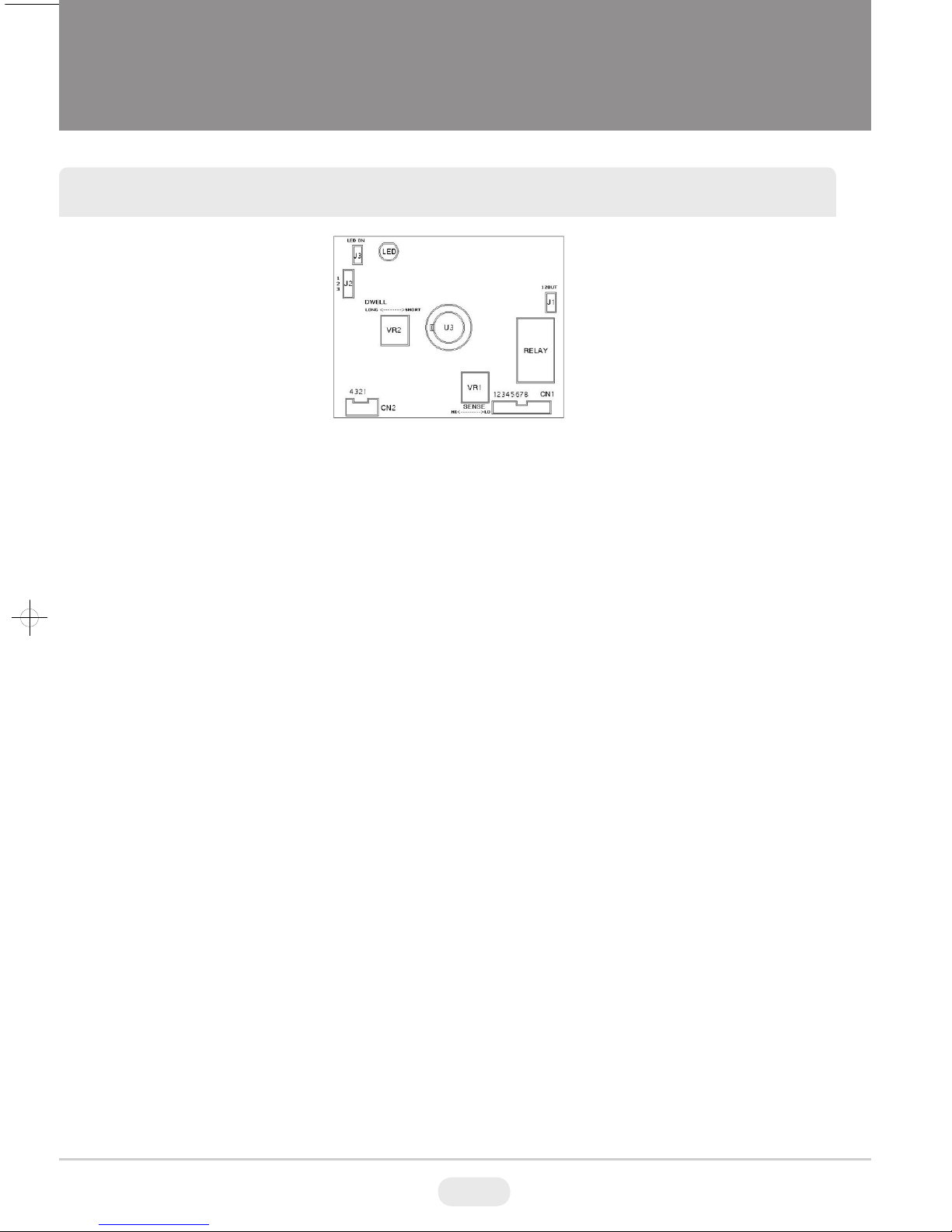

PIR BOARD LAYOUT

1. LED: When an intrusion is detected, the LED will activate.

2. J2: Pulse count setting.

1-2 short (default): Relay will activate when an intrusion is detected once. (For stable

environments or high risk operating environments)

2-3 short: Relay will activate when an intrusion is detected twice within 15 seconds.

(For harsh environments)

3. J1: Relay output select.

Short: For outer control used in area where DC12V is requested (Limited at 200mA).

Normal: N.C. = DC12V out

Activate: N.O. = DC12V out

Caution! Risk of electric shock. Set-up and operation should be

performed by authorized service person only.

Open (default): Normal relay connector (1.5A at DC24V/1.5A at AC120V/1A at

AC240V)

Normal: C & N.C. short / C & N.O. open.

Activate: C & N.C. open / C & N.O. short.

4. VR1: Sensitivity adjustment.

Turn clockwise for low sensitivity, turn counter-clockwise for high.

5. VR2: Relay activation time adjustment (range about 2 ~ 30 seconds).

Turn clockwise for short time, turn counter-clockwise for long.

6. NC/C/NO Wiring:

C: BLACK NO: WHITE NC: RED

7. J3: LED on/off

Open: LED off Short: LED on

CN1 Connector:

1. DC 12V IN

2. GND

3. AUDIO OUT (option)

4. GND

5. VIDEO OUT

6. RELAY C. (common)

7. RELAY N.O. (normal open)

8. RELAY N.C. (normal close)

CN2 Connector:

1. AUDIO IN (Not Available In US)

2. VIDEO IN (from CCD MODULE)

3. GND

4. DC 12V/500mA OUT (for CCD MODULE)

BLACKBLACK

Image Device

Effective Pixels

Resolution

Minimum Illumination

PIR Detection Range

PIR Alarm Output

AGC

S/N Ratio

Video Output

Auto Electronic Shutter

Standard Pinhole Lens

Power Source

Power Consumption

Operation Temperature

Humidity

Dimensions (WxHxD)

100° / 35’ x 35’ Coverage Area

NC/N/NO

>18db

More Than 48dB

Composite: 1.0 Vp-p / 75 Ohm

1/60 to 1/100,000 sec.

3.8mm / F2.0

12VDC (300mA Regulated)

150mA

14°F ~ 140°F (-10°C ~ 60°C)

0-95%

2.75” x 4.72” x 1.69” / 70mm x 120mm x 43mm

SPECIFICATIONS VT-PIRC2 VT-PIRC2/H

PIR SPECIFICATIONS

1/4” Color CCD

510 x 492

420 TV Lines

0.2 Lux

1/3” Color CCD

811 x 508

550 TV Lines

0.5 Lux

**12VDC Regulated power adapter 12V must be used otherwise

the device will be damaged and un-repairable.



PIR DETECTION RANGE

1. Matching ﬁeld of view for both the

PIR and CCTV cameras.

2. The PIR camera is a double duty

surveillance tool that combines the

detection capability of a professional

PIR with the viewing capability of a

security camera.

3. Easy-connect leads.

4. Fully adjustable, heavy-duty swivel-

mount bracket included.

5. The PIR camera is able to detect

human movement in a dark environ-

ment and still output the NC/NO

signal to turn on a light, other alarm

device or recording machine. Normal

cameras see nothing, so they do not

activate any devices in this situation.



BLACK

• Hidden

• Stable sensitivity

• Motion activated alarm output to control panel

• Lamp

• VCR

• Ability to change from a static to a dynamic state

• High quality and highly sensitive sensor

• Exceptional at detecting unexpected movements

• Uses Hi-Tech SMD technique

• Sensitivity and response time can be calibrated according to the

applications

• Guards have no need to watch the monitor day and night - The

PIR does the ‘watching’ on it’s own

PIR FEATURES

VT-H Series

4, 8, and 16 Channel Digital Video

Recorders with H.264 Compression

The Alpha Series VT-H Series Digital Recorders

combine the latest H.264 Compression technology with stability and

simple operation. H.264 Compression is the next generation of MPEG4

allowing up to 50% smaller file sizes for increased storage capability

and/or resolution as well as a more fluid internet transmission speed.

VT-H Series DVRs can be controlled via supplied IR Remote control or

remote client.

• 4, 8, or 16 Video Inputs with 1 BNC & 1 VGA Output

• H.264 Compression

• Supports both Dynamic and Static IP Addresses

• Up to 120 IPS Recording / Live Display

• Remote Viewing over the Internet or LAN

• Supports one internal SATA Hard Drive

• 250GB to 1TB Internal Storage Options

• Quadplex operation enabling simultaneous recording,

playback, networking, and backup

H.264

BLACK

VTM-LCDP Series

• 15”, 17“, and 19” Professional LCD Display Panels

• Designed for continuous 24/7 operation

• VGA, Looping BNC Composite, and S-Video Video

Inputs. DVI & HDMI Inputs on 17“ & 19” Versions

• Resolution up to 1280 X 1024 (17” & 19”)

• Stereo Audio Input/Output

• VESA Standard Mounting

LIMITED LIABILITY WARRANTY

VITEK products carry a three (3) year limited warranty. VITEK warrants to the

purchaser that products manufactured by VITEK are free of any rightful claim

of infringement or the like, and when used in the manner intended, will be free

of defects in materials and workmanship for a period of three (3) years, or

as otherwise stated above, from the date of purchase by the end user. This

warranty is non-transferable and extends only to the original buyer or end user

customer of a Vitek Authorized Reseller.

The product must have been used only for its intended purpose, and not been

subjected to damage by misuse, willful or accidental damage, caused by

excessive voltage or lightning.

The product must not have been tampered with in any way or the guarantee will

be considered null and void.

This guarantee does not affect your statutory rights.

Contact your local VITEK Reseller should servicing become necessary.

VITEK makes no warranty or guarantee whatsoever with respect to products

sold or purchased through unauthorized sales channels. Warranty support is

available only if product is purchased through a VITEK Authorized Reseller.

28492 CONSTELLATION ROAD VALENCIA, CA 91355

WWW.VITEKCCTV.COM
