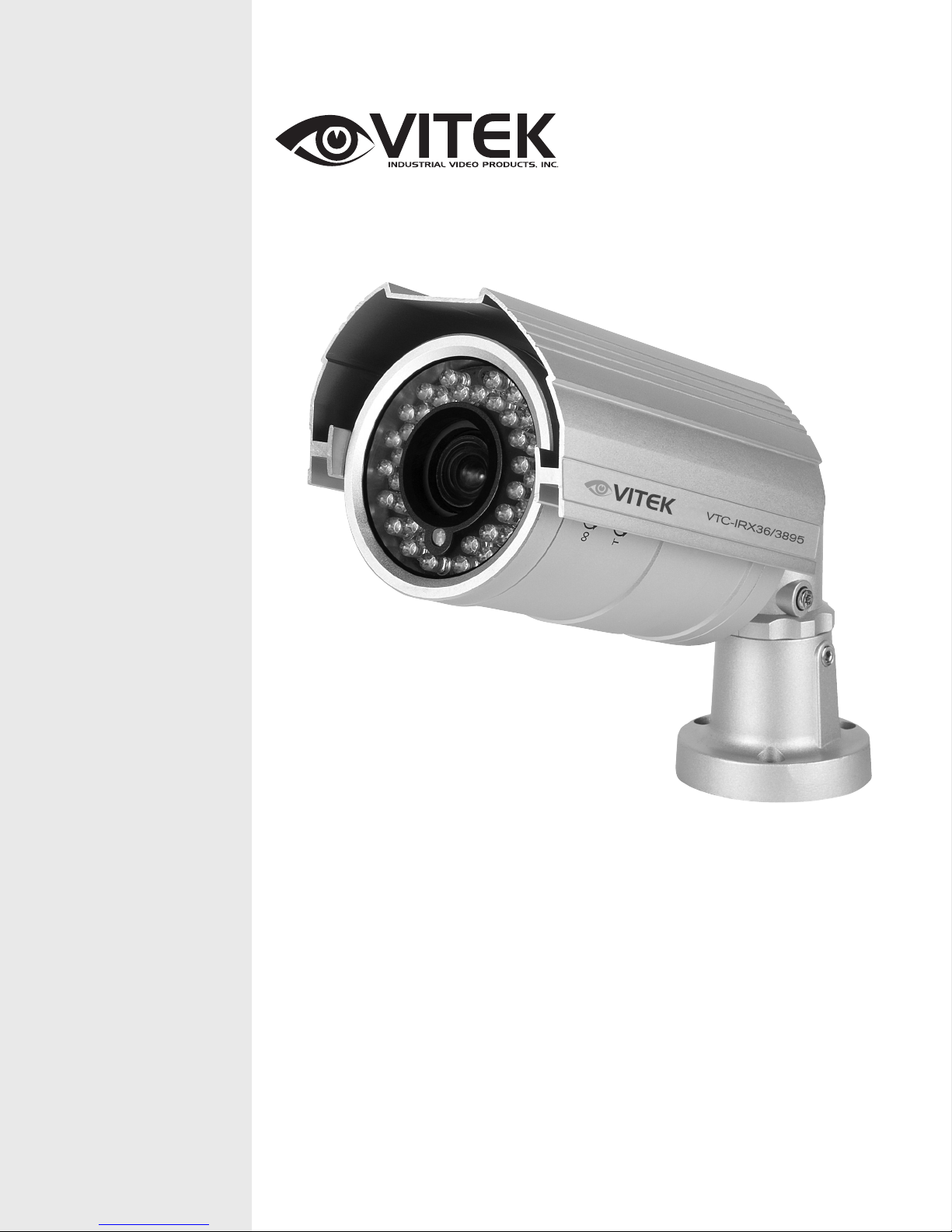

VTC-IRX36/3895

Varifocal IR Bullet Camera

w/550 TV Lines

• 1/3” Super HAD High Resolution True Day/Night Color CCD

• 550 TVL (Color) / 580 TVL (B/W)

• 3.8~9.5mm / F1.2 Externally Adjustable Varifocal Auto Iris Lens

• 36 IR LEDs with 120’ Range

• 0 Lux Operation (IR LEDs On)

• IP66 Weatherproof Rated

• 12VDC/24VAC Dual Voltage Operation

VTC-IRX36/3895

CONTENT VERIFICATION

Prior to the installation of this cameras, please verify that the packaging contains the

following:

1. One IRX36/3895 Camera

2. One Secondary Video Output Cable

3. One Sunshield

4. One Instruction manual

5. One Accessory Pack containing

a. Allen Wrench

b. Brass Screw Driver

c. Sunshield Thumb Set Screw

If any of the contents are missing, please contact the Vitek Customer Help Desk

immediately.

VTC-IRX36/3895

FEATURE HIGHLIGHTS

EMPHASIS ON USER FRIENDLINESS

The VTC-IRX36/3895 features Sony HQ1 technology with high resolution of 550

horizontal TV lines and weather resistant housing with easy external adjustment of

camera features.

•Zoom and focus can be easily adjusted without opening the camera.

•External DC level controller provides easy iris adjustment for brightness control.

•Secondary video output adds convenience to the adjustment of the viewing

angle, direction, brightness, focus and zoom adjustment after installation.

•Multi-directional mounting bracket allows installation of the camera virtually on

any surface and feed-through minimizes potential vandalism while improving the

aesthetics of the installation.

•ICR Vari-focal DC Auto Iris Lens at 3.8~9.5 mm F1.2

VTC-IRX36/3895

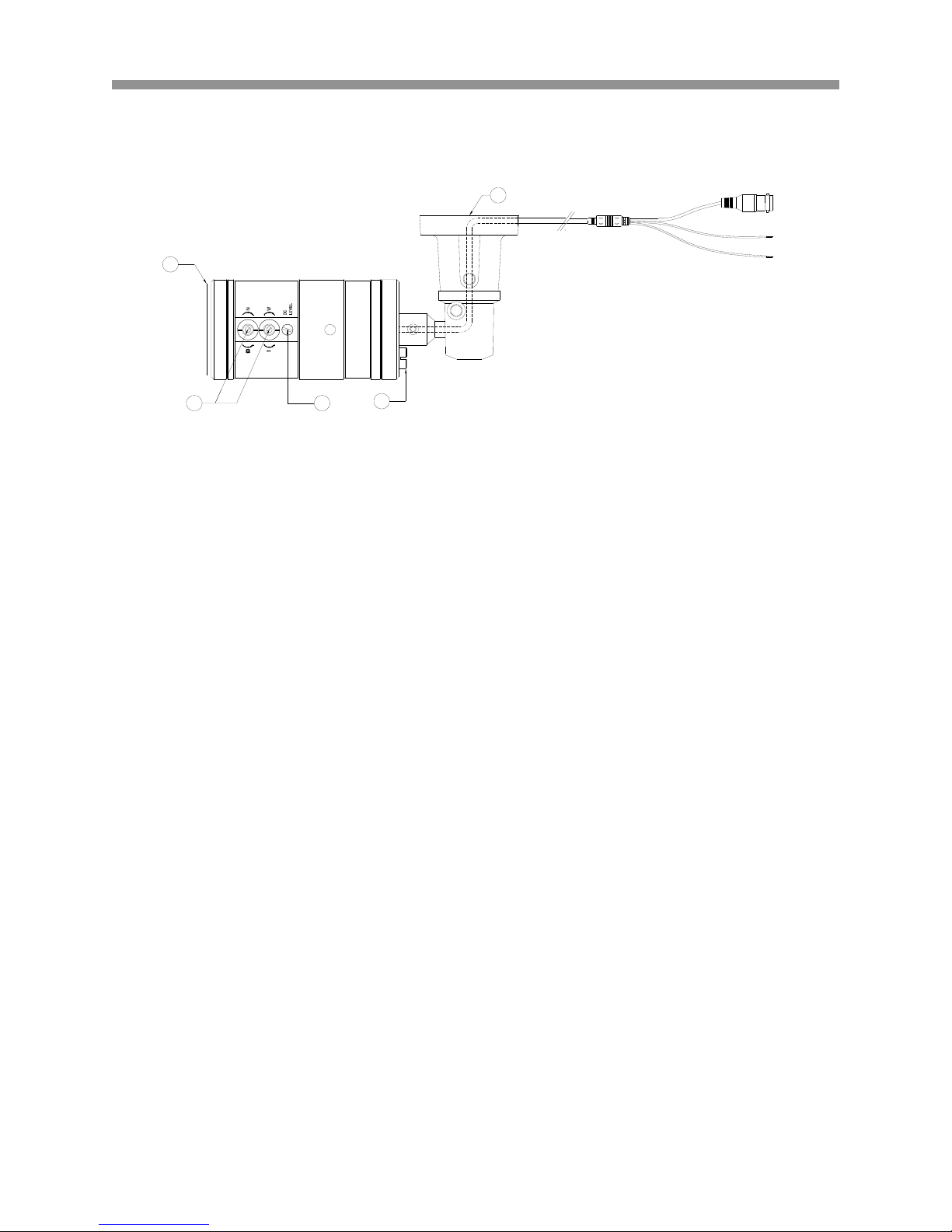

VTC-IRX36/3895 LAYOUT / FUNCTIONS

①Protective Film over Front Glass

- The blue protective film must be removed before usage.

②Focus/Zoom Screws

- Adjust the angle of view by turning the zoom screw to “W” for wider field of view,

and to “T” for narrower field of view.

- Adjust the focus screw to “N” or to “∞” until the sharpest focus is achieved.

③DC Level Volume Cap

- Remove this cap to adjust DC Iris Level.

- Turn the DC lever clockwise for a brighter picture, and counter-clockwise for a

darker picture.

④Service Video Port

- Remove this cap and connect the supplied service monitor cable to connect to a

VTM-LCD351 service monitor for final adjustments.

⑤Feed-Through Mounting Bracket

- Use the supplied screws to mount bracket base to the desired location.

POWER

DEO

[12VDC

MODEL]

POWER

[12VDC/24VAC

MODEL]

DEO

POWER

[12VDC/24VAC

MODEL]

DEO

VTC-IRX36/3895

WIRING CONNECTIONS

The camera should be powered by the following power supplies:

12VDC 1000mAmps or 24VAC 20VA, CSA Certified Class 2 Power Supply .

For optimum video signal, use 95% copper shielded coax cable. Twisted pair or

Category 5e cable may also be used with optional VT-TR1M Passive Video

Transceivers. Maximum cable distance for 95% copper braid coax is approximately 800

feet. For Category 5e or twisted pair, 1500 feet using VT-TR1M transceivers.

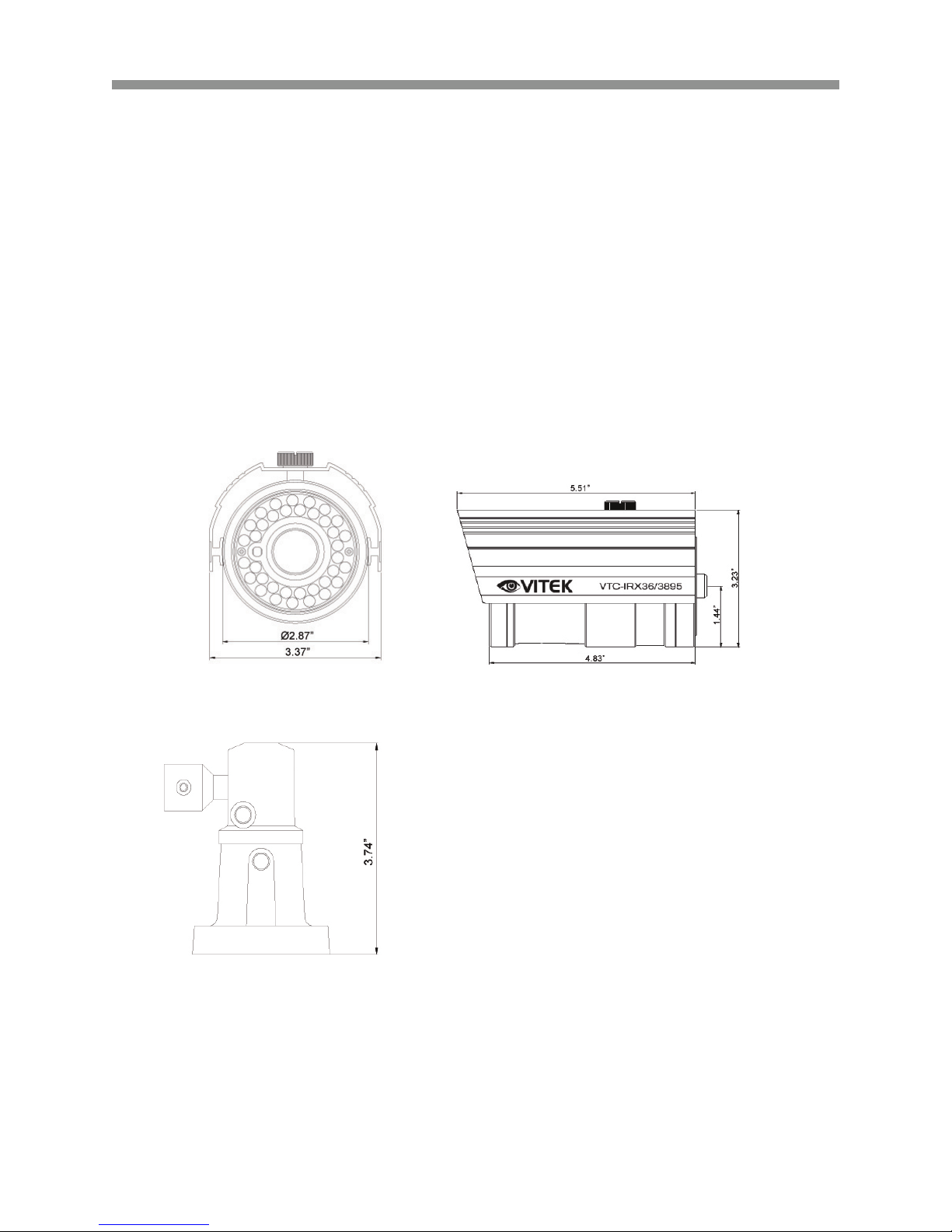

DIMENSIONS

[ FRONT ] [ BODY & SUN-SHIELD ]

[ BRACKETI ]

VTC-IRX36/3895

SPECIFICATIONS

Image Sensor 1/3" (Interline transfer type color CCD (SONY)

Effective Pixels 768H x 494V (380K pixels)

Scanning System 525 Lines 2 : 1 Interlace

Scanning Frequency 15.734KHz (H), 59.94Hz (V)

Resolution 550 TV – Lines , 580 TV – Lines (B/W)

Shutter Speed 1/60

S/N Ratio More than 48dB (AGC Off)

Sync. System Internal

Min. Illumination 0Lux (IR LED ON)

White Balance ATW / AWC selectable

Video Output VBS 1.0 Vp-p (75ohm load)

Lens Vari-Focal DC Auto Iris IR Lens 3.8 ~ 9.5 mm F1.2

Power Supply DC12V±10% / AC 24V±10%

Power Consumption IR LED On / 600mA, IR LED Off / 240mA

Operating Temp. 14° ~ 122° F (-10° ~ + 50°)

Operating Humidity 90% RH max.

No. of I.R. LEDs 36 Pieces Infrared LED

Wave Length 850NM

Angles of I.R. LEDs 30°

Viewing Distance Max 120 Feet

Dimensions 73mm (Ø) ×122mm (L) / 2.874 in. (Ø) x 4.803 in. (L)
