Vitek VTC-IR1600 Manuale utente

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VTC-IR600 / VTC-IR1600 Long Distance Infrared

Bullet Cameras

•1/3" Color dual programmed CCD tuned for optimal

performance in day or night conditions

•480 TV Lines Resolution

•60 Infrared LEDs at 850nm enable viewing in Total Darkness

up to 150 Feet (VTC-IR600) / 160 Infrared LEDs at 850nm

enable viewing in Total Darkness up to 350 Feet (VTC-

IR1600)

•Three individually isolated compartments for: Camera, IR

LEDs, and Power Module.

•Vari-Focal DC Auto Iris IR Lens 4.2~15.5mm F1.4 (VTC-

IR600) / Vari-Focal DC Auto Iris IR Lens 5.0~50mm F1.4

(VTC-IR1600)

•Heavy Duty Weather/Vandal Resistant Aluminum

Construction is 100% water and dust proof

•Heavy Duty Aluminum Feed-Through Wall Mount Included

•External focus and zoom controls for ease of installation and

adjustment

•150mA Power consumption (IR-Off) & 900mA (VTC-IR600 -

IR On), 1800mA (VTC-IR1600 - IR On)

•IR picture quality is dramatically improved by separating the

Camera and IR LED compartments, preventing stray IR light

from entering the lens.

•80,000 Hour LED life expectancy

•Dual Voltage: 12VDC / 24VAC

•Dimensions: 6.875” L x 3.5” OD (VTC-IR600 Camera) / 9” L

x 5” OD (VTC-IR1600 Camera) / 8.0” (Mount)

FEATURES

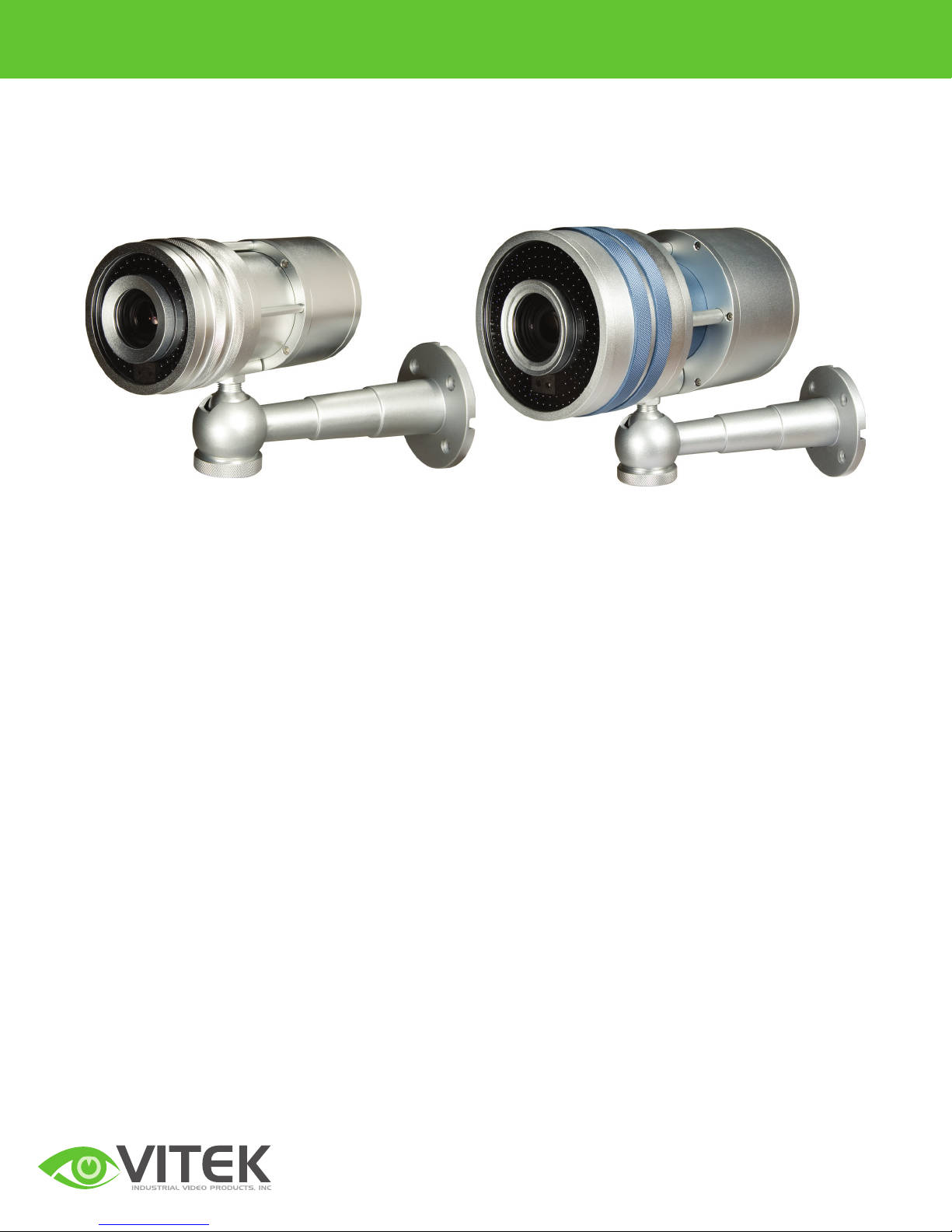

VTC-IR600 VTC-IR1600

The Long Range IR Bullet Cameras by Vitek combine Long Range Night Vision Surveillance with a Heavy Duty

Vandal Resistant Construction. An Uncompromising 480 Line CCD Module and IR Corrected Lens along with

Individual Infrared LED and Camera/Lens Compartments result in Optimum Video Performance in Day or Night. IR

LEDS are set at both 10 degrees and 30 degrees to enable optimum performance in close-up and distant viewing

applications.

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VTC-IR600 / VTC-IR1600 Long Distance Infrared

Bullet Cameras

Image Sensor 1/3" Interline transfer color CCD

Resolution 480 TV Lines

Effective Pixels 768H x 494V (380K pixels)

Scanning System 525 Lines 2 : 1 Interlace

Scanning Frequency 15.734KHz (H), 59.94Hz (V)

Shutter Speed 1/60 ~ 1/100,000 sec.

S/N Ratio More than 46dB (AGC Off)

Sync. System Internal

Min. Iilumination 0.5Lux (F1.3)/0.00Lux(IR LED ON) 0.5Lux (F1.3)/0.00Lux(IR LED ON)

White Balance AWC

Video Output 1.0 Vp-p (75ohm load)

Lens 4.2~15.5mm IR Vari-Focal A/I 5.0-50mm IR Vari-Focal A/I

Operating Temp. 14º ~ 122º F (-10º ~ 50º C)

Operating Humidity 90% RH max.

IR LEDs 60 160

Wave Length 850NM

LED Angle Combination of 10º and 30º

Viewing Distance 150 Feet 350 Feet

Power Supply Dual Voltage: 12VDC / 24VAC

Power Consumption 900mA (IR ON) / 150mA (IR Off) 1800mA (IR ON) / 150mA (IR Off)

Dimensions 6.875" L x 3.5" OD (Camera) / 8.0" (Mount) 9" L x 5" OD (Camera) / 8.0" (Mount)

Detailed Specifications VTC-IR600/4215 VTC-IR1600/550
