Vitek VTC-IRX36/3895 Manuale utente

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

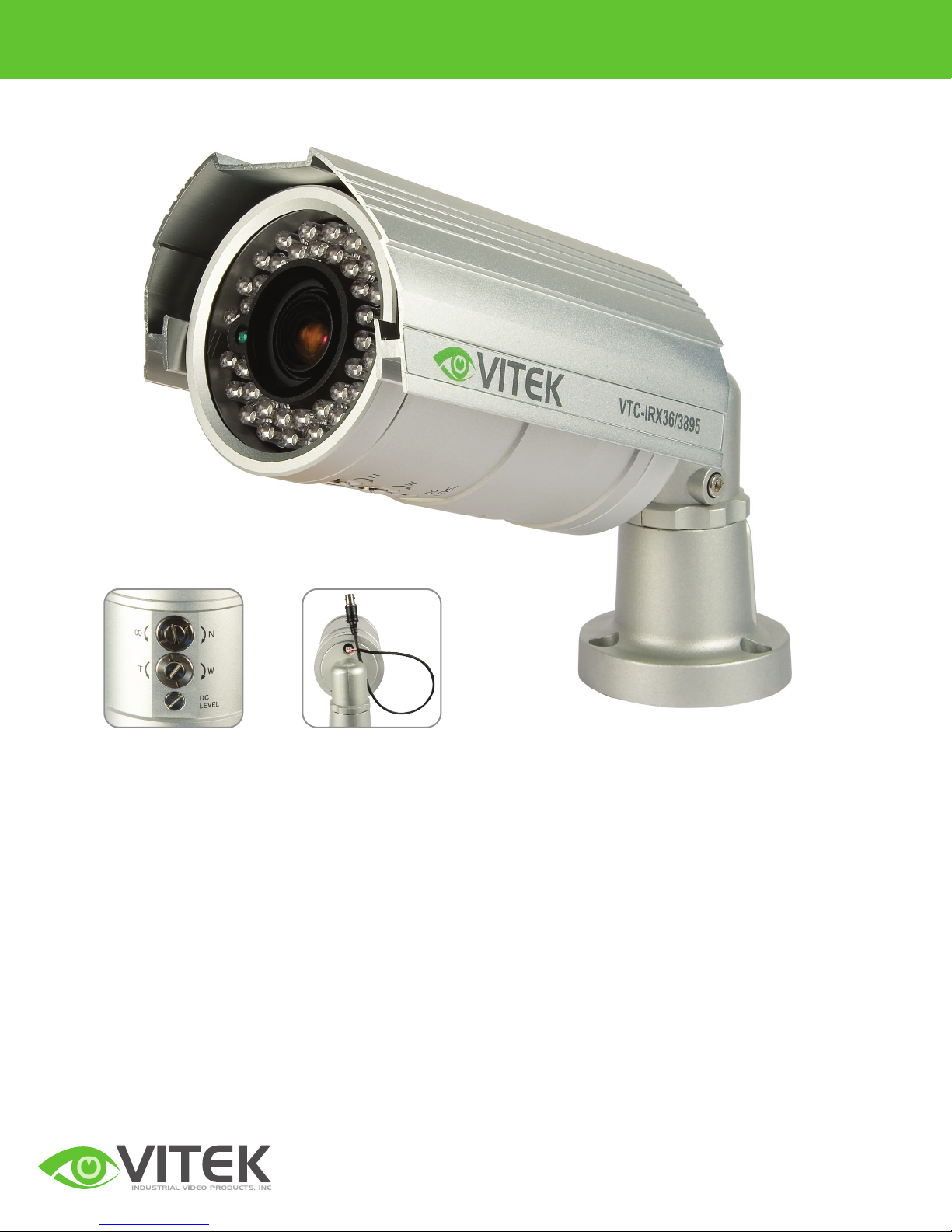

VTC-IRX36/3895 Long Range Day/Night IR Bullet

Camera w/550TVL & 120’ Range

The VTC-IRX36/3895 employs a 1/3" Super HAD High

Resolution Color CCD image device that provides

extremely long life and high reliability. 36 Infrared LED’s

and a 3.8~9.5mm varifocal lens offer a 120’ range and

provide clear images, even in total darkness. Externally

adjustable Iris, focus and zoom as well as a secondary

video output and built-in heavy duty wall mount make it a

breeze for installers. This IP66 rated weatherproof camera

comes complete with a sun shield and mounting hardware

ready to install in almost any environment.

•1/3” Super HAD High Resolution Color CCD

•550 TVL (Color) / 580 TVL (B/W)

•3.8~9.5mm / F1.2 Varifocal Auto Iris Lens

•36 IR LEDs with 120’ Range

•0 Lux Operation (IR LEDs On)

•Secondary Video Output for Easy Adjustment

after Installation

•IP66 Weatherproof Rated

•12VDC/24VAC Dual Voltage Operation

FEATURES

External Lens

Adjustment Screws.

Secondary Video

Output.

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VTC-IRX36/3895 Long Range Day/Night IR Bullet

Camera w/550TVL & 120’ Range

Detailed Specifications

Image Sensor

Effective Pixels

Scanning System

Scanning Frequency

Resolution

Shutter Speed

S/N Ratio

Sync. System

Min. Illumination

White Balance

Video Output

Lens

Power Input

Power Consumption

Operating Temp.

Operational Humidity

Dimensions

1/3" Interline transfer type color CCD

768H x 494V (380K pixels)

525 Lines 2:1 Interlace

15.734KHz (H), 59.94Hz (V)

550 TV Lines (Color) / 580 TV Lines (B/W)

1/60 sec.

More than 48dB (AGC Off)

Internal

0Lux (IR LED On)

ATW / AWC selectable

1.0Vp-p composite, 75 Ohms

3.8~9.5mm Vari-Focal, DC Auto Iris F1.2 Day/ Night (Externally Adjustable)

12VDC / 24VAC (Dual Voltage)

Normal: 240mA / Max.: 600mA (IR LED On)

14F ~ 122F (-10C ~ +50C)

Max. 90% RH

Diameter x Length: 2.87" x 4.8" (73mm x 122mm)
