Vitek VTC-TTAB42R2F Manuale utente

VITEK

FEATURES

• 1/3” 2.1 MegaPixel CMOS Sensor

• HD-TVI & AHD/CVBS Video Output

• 3.6mm Fixed Lens (VTC-TTAB42R2F) / 2.8~12mm

Varifocal Lens (VTC-TTAB36R2V)

• 42 Infrared LED’s with 150’ IR Range (VTC-TTAB42R2F)

/ 36 Infrared LED’s with 120’ IR Range (VTC-TTAB36R2V)

• Digital Wide Dynamic Range (D-WDR)

• True Mechanical Day/Night function by ICR

• 3D-DNR Noise Reduction

• IP66 Weather Resistance

• Supports Up The COAX Control

• Over 1500’ HD Video Transmission (Depending on cable

characteristics and integrity)

• Optional Junction Box Mount Available (VT-TJB01)

• 12VDC Operation

VTC-TTAB42R2F

VTC-TTAB36R2V

2.1 Megapixel Outdoor HD-TVI/

AHD/CVBS IR Bullet Cameras

2 3

Safety Precaution

CAUTION: TO REDUCE THE RISK OF ELECTICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

To prevent electrical shock and risk of fire hazards, do not expose this unit

to rain or moisture and only use specified power source..

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Main power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power interruptions, it is

recommended that the device be powered from an uninterruptible power supply

(UPS).

The symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electrical shock.

Components and Accessories

Overview

This camera series supports both fixed and varifocal lenses. Please note

that the zoom and focus features mentioned below are only available on

the varifocal lens version.

Lens

Sun Shield

Mount Lock

Mount Base

Lens Cover

Zoom*

Focus*

HD-TVI Output

AHD/CVBS Output

AHD/CVBS Switch

Power Cable

Screws

Drill Template

Camera

User Manual

3 4

911

710

*VTC-TTAB36R2V Only

4 5

Video Connection

Monitor

Video

AHD/CVBS Switch:

Switch to CVBS Mode: Press & Hold the Switch for 5 seconds

Switch to AHD Mode: Press & Release the Switch quickly

Connect the HD-TVI Video or AHD/CVBS video connector to a BNC

patch cable, then to DVR.

Power 12VDC

Power Connection

Connect the power connector to a 12 VDC power adaptor.

Installation

Before you begin, please make sure that the wall or ceiling is strong

enough to withstand 3 times the weight of the camera. The mounting

steps are as follows:

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template

2. Route the cables and connect the power & video cables, then secure

the mounting base to the ceiling or wall with screws.

Ceiling Mounted Wall Mounted

6 7

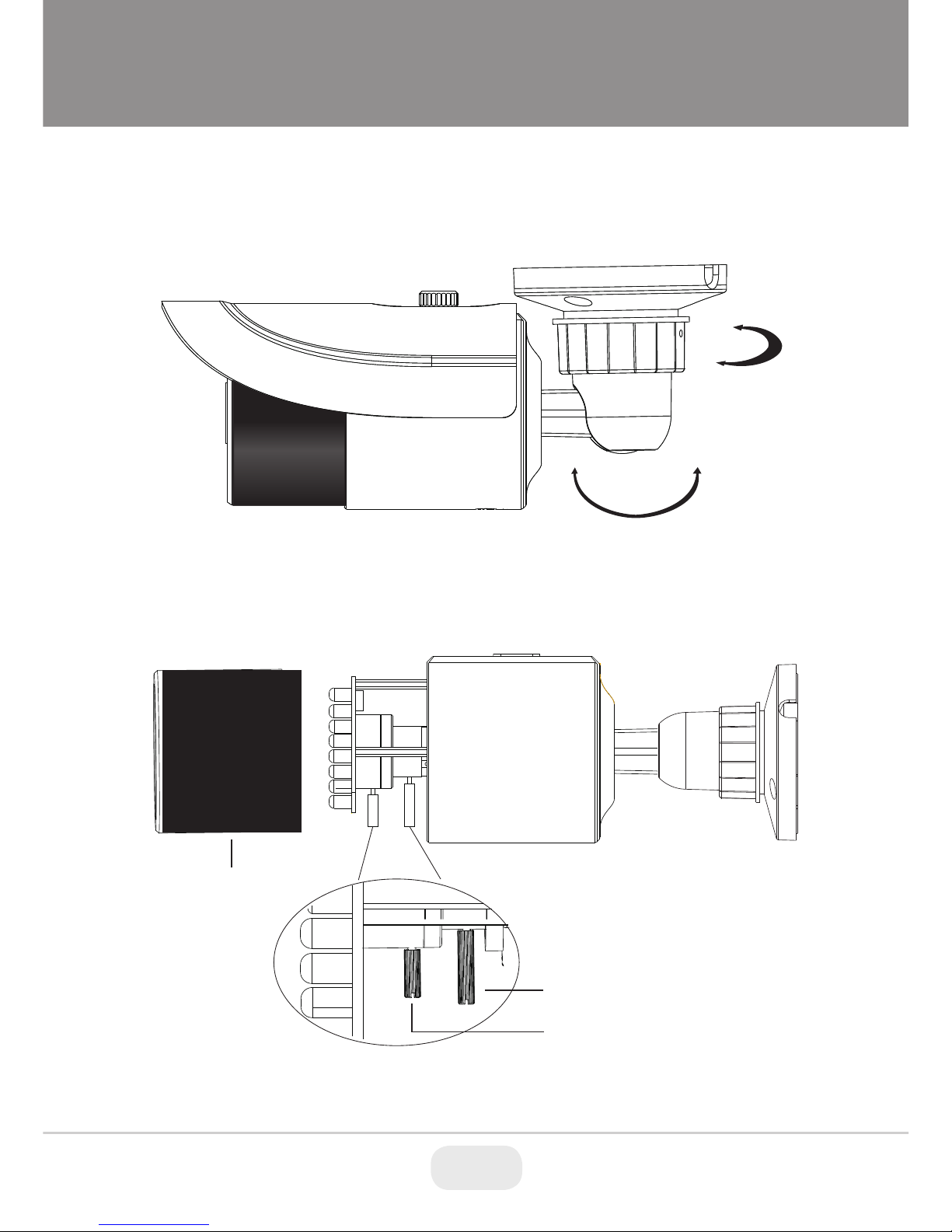

Installation

3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then

tighten the mount lock to secure the viewing angle adjustments.

4. To adjust the lens, start by removing the Lens Cover, then adjust

the Focus and Zoom levers to achieve a clear image. Replace

the Lens Cover. (if your camera is Fixed lens, please skip this

step)

5. Carefully remove the protective film from the lens to complete the

installation.

90° Tilt

360° Pan

Zoom

Focus

Lens Cover

Camera OSD Menu

The following menu toolbar will pop up by right-clicking the mouse

when using VITEK Transcendent Series HD-TVI DVRs.

The Transcendent HD-TVI/AHD camera series must be connected to a

DVR which supports HD-TVI/AHD video signal input and COC protocol

to access the OSD setup menu. Different DVRs manufacturers may

have different modes of menu operation.

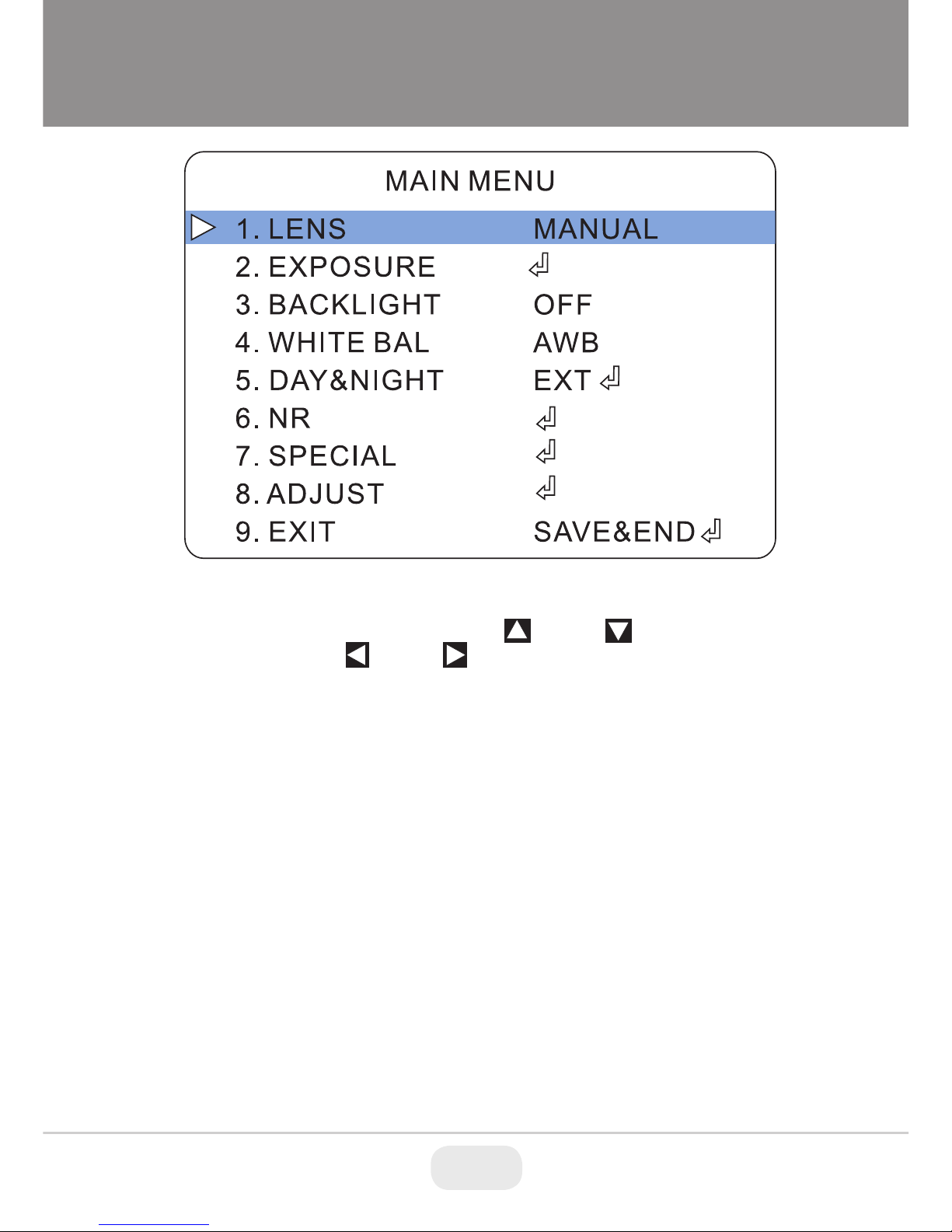

You will see the following interface by clicking the button.

Click “Iris +” to go to the main menu. You can also select preset NO.

95, then click the button（call preset NO.95）to go to the follow-

ing main menu.

8 9

You can select the menu by clicking (U) or (D) key on the

direction area. Click (L) or (R) key to select the menu on the

left. The menu with arrow icon which means it has sub-menu. You

can select the menu and click “Iris +” or call preset NO.95 to enter

the sub-menu. To return to the previous menu or exit the main

menu, please select “RET” or “Save & END” by clicking U or D key

and then click “Iris +” or call preset NO.95.

Detailed Specifications VTC-TTAB42R2F VTC-TTAB36R2V

Image Sensor

Resolution

Effective Pixels

Signal System

Video Output

Lens

Day/Night

S/N Ratio

Auto Gain Control

Min Illumination

IR LEDs

IR Distance

Color-B/W Auto Switch

Electronic Shutter

White Balance

WB Range

BLC

WDR

Transmission Distance

Up the COAX Control

Noise Reduction

Weather Resistance

Power Supply

Working Environment

Weight

Dimensions

1/3” 2.1 MegaPixel CMOS Sensor

1080p (2.1 MegaPixel)

1920(H) x 1080(V)

PAL/NTSC

1x HD-TVI (BNC) & 1 AHD/CVBS (BNC)

True Day/Night by ICR

>52dB (AGC OFF)

OFF ~44.8dB

0 Lux (LED ON)

Yes

1/50s~ 1/67500s

AWB

2300~9600K

Yes

Digtial WDR

Up to 1500’ (Depending on cable characteristics & integrity)

YES

Yes

IP66

12VDC

-4~122 / 10%~90% Humidity

3.43 x 8.62” (87mm x 219mm) Dia x L

3.6mm Fixed

150’

20.81 oz. / 1.30 lbs. / 590g

2.8~12mm (Vari-Focal)

120’

21.16 oz. / 1.32 lbs. / 600g

10 11
