Vitek VTD-C410 Manuale utente

BLACK

VITEK

VTD-C410

High Resolution Color

Indoor Dome Camera

The VTD-C410 high resolution color dome camera is a

small, attractive camera ideal for use in commercial or

residential applications. It measures less than 5” in

diameter and comes in dual voltage 24 Volt AC/12 Volt

DC power input for easy integration with standard

cameras and power systems.

WIRING CONNECTIONS

The VTD-C410 Dome Camera should be powered by 12 Volts DC or 24 Volts AC. You should

make sure that the power supply you are using is CSA Certified Class 2 Power Supply delivering a

minimum of 2.5 Watts.

For optimum video signal, use 95% copper shielded coax cable. Twisted pair or CAT-5E cable may

also be used with optional VT-TR1M Passive Video Transceivers. Maximum cable distance for 95%

copper braid coax is approximately. 800’; For Cat-5E or twisted pair, 2000’ using VT-TR1M

transceivers.

BBLLAACCKK

CAMERA SETUP

DIP SWITCH SETTINGS

Your VTD-C410 Dome Camera has been set at average default settings from the factory so the

performance should be excellent right from the start. However, certain challenging environments

may require additional set-up procedures to enhance the image.

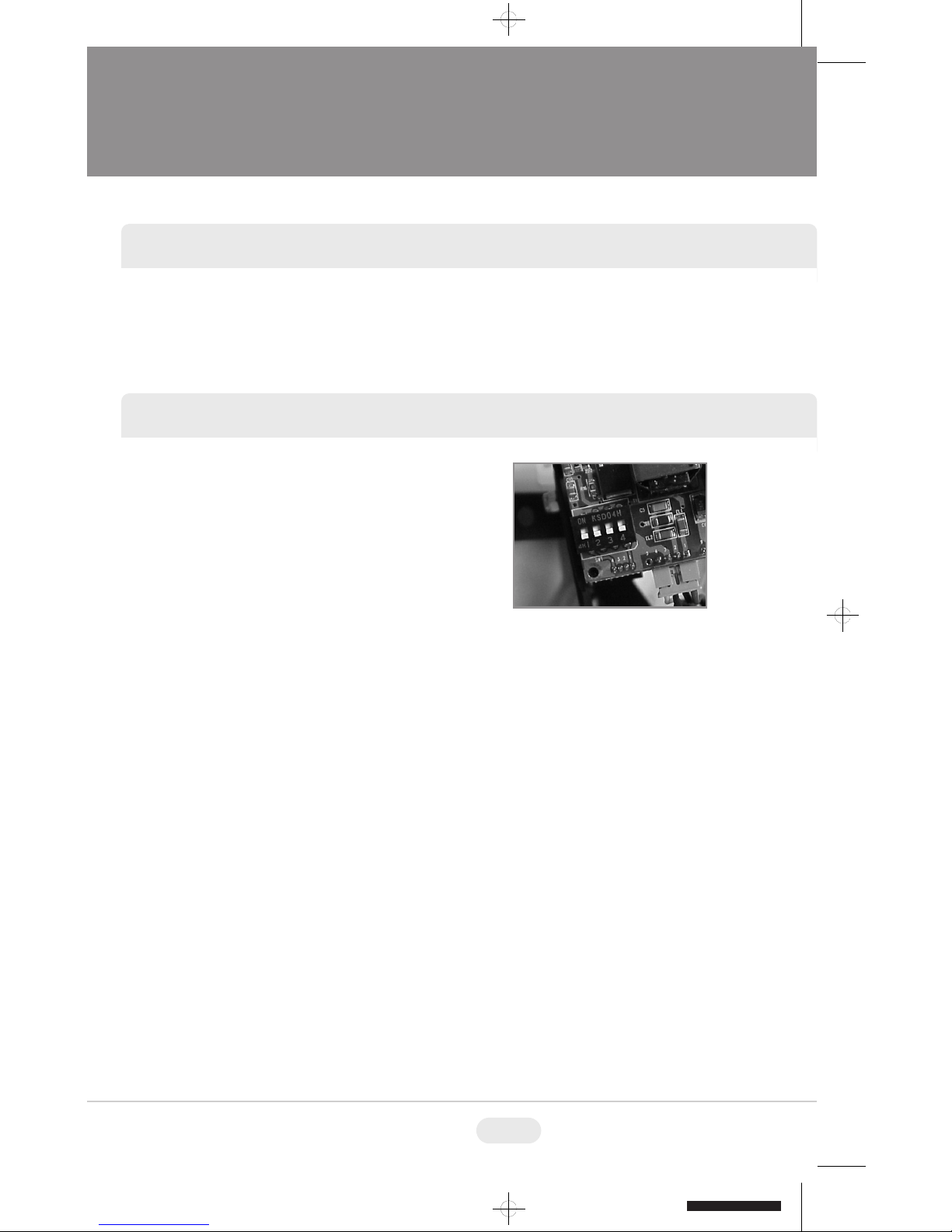

There are four dip switches on the rear board

of the camera. They should all be set to off

from the factory. The following adjustments

may be made:

Dip Switch Adjustments

Electronic Shutter Control

Leave this switch in the “Off” position if your camera has an auto

iris lens.

Switch to the “On” position when using a fixed lens version to

enhance the camera’s ability to react to changing light.

Back Light Control

Leave this switch in the “Off” position if your camera is being

installed outdoors or if the installation is indoors in a controlled

lighting environment.

Switch to “On” position when installing the camera indoors looking

toward windows or doors or if outdoors looking into semi-direct

sunlight. Never install camera looking into direct sunlight.

Flickerless On/Off

Flickerless shutter speed for minimizing image flicker under

fluorescent lighting.

Auto White Balance

Switch “On” if the image appears discolored or floats between

colors. This will enable the camera to find “White”.

Dip Switch 1 =

Dip Switch 2 =

Dip Switch 3 =

Dip Switch 4 =

FOCUS ADJUSTMENT

The focus may be adjusted by simply screwing or

unscrewing the lens. Be sure to loosen the set

screw before attempting to adjust the focus or

damage may occur.

Be careful not to over tighten the lens or

you may damage the pick-up sensor.

Focus Adjustment

BBLLAACCKK

ROUTINE MAINTENANCE

Use mild liquid cleaners to remove dirt and grime from the dome surface.

Do not use harsh or abrasive cleaners which can scratch the polycarbonate dome and reduce

visibility for the camera.

If the camera view is obstructed by scratches, remove the front plate (bezel) and rotate the bubble

to a portion that is not scratched.

If the dome becomes damaged or scratched beyond use, contact your distributor to order a

replacement.

NOTES

BBLLAACCKK

DOME SPECIFICATIONS

Image Device

Effective Pixels

Resolution

Minimum Illumination

S/N Ratio

Electronic Shutter

White Balance

Standard Lens

Video Output

Power Source

Dimensions

Weight

1/3” Color CCD Image Sensor

768 x 494

480 TV Lines

0.7 Lux at f1.2 (AGC On)

More Than 48dB (AGC Off)

1/60 ~ 1/100,000 Sec.

Auto White Balance (AWB)

3.6mm Included (2.9 / 6.0 / 8.0 / 16mm Optional)

Composite: 1.0 Vp-p / 75 Ohm

12VDC / 24VAC

4.73” x 2.96” / 120mm x 75mm (W x H)

0.66 lbs. / 10.58 oz. / 300g

28492 CONSTELLATION ROAD VALENCIA, CA 91355

WWW.VITEKCCTV.COM | 888-VITEK-70

LIMITED LIABILITY WARRANTY

Your new Camera is guaranteed to be free from defects in materials

and workmanship for a period of two years from the date of

purchase.

The product must have been used only for its intended purpose, and

not been subjected to damage by misuse, willful or accidental

damage, caused by excessive voltage or lightning.

The product must not have been tampered with in any way then the

guarantee will be considered null and void.

This guarantee does not affect your statutory rights.

Contact VITEK or your local distributor if servicing should become

necessary.
