VITEK
Mighty Dome
Color Dome Camera Series
•480 and 550 TV Line versions
•True Day/Night function available
•Flush or Surface Mount
•UTP interface, IP Integration, and Heater / Blower Options
Available
•Dual Voltage 12VDC & 24VAC
•Infinity Ball Mount for Any Viewing Angle
•Indoor and Vandal Proof IP 68 Rated Models Available
•Lens options include: 2.9-10mm & 9-22mm
•Available in off white or black color
1
BOX CONTENTS
MOUNTING ACCESSORIES
1) Dome Camera
2) Mounting Accessories
3) Instruction Manual & Mounting Template
Torx Wrench - (Vandal & IR Versions Only)
Type #: T20
Length: 63mm / Diameter: 4mm
Qty: 1
Phillips head Screws - (Vandal & IR Versions Only)
For attaching the dome cover to the flush housing.
Type #: Phillips head M4x10
Length: 10mm / Diameter: 4mm
Qty: 4
Self Tapping Screws
For attaching the surface mount housing or the the flush
mount base to a solid surface.
Type #: Phillips St4x30
Length: 30mm / Diameter: 4mm
Qty:4
Self Tapping Screws - (Indoor Version Only)
For attaching the dome cover to the flush housing.
Type #: Phillips St4x12
Length: 12mm / Diameter: 4mm
Qty: 4
Dowels
If necessary, use the to help secure the self tapping screws.
Length: 30mm / Diameter: 7mm
Qty: 4
BBLLAACCKK
2
AVAILABLE MODELS / ACCESSORIES
Indoor Mighty Dome Configurations:
VTD-MH2910 / MH922: Indoor Color Dome Camera w/2.9-10mm or 9-22mm
Varifocal Lens & 480TVL
VTD-MX2910 / MX922: Indoor Color Dome Camera w/2.9-10mm or 9-22mm
Varifocal Lens & 550TVL
IR Mighty Dome Configurations:
VTD-MVH2910/L35 / MVH922/L35: Vandal Proof Color Dome Camera
w/2.9-10mm or 9-22mm Varifocal Lens, 480TVL & 35 IR LED's
VTD-MVX2910/L35 / MVX922/L35: Vandal Proof Color Dome Camera
w/2.9-10mm or 9-22mm Varifocal Lens, 550TVL & 35 IR LED's
Vandal-Proof Mighty Dome Configurations:
VTD-MVH2910 / MVH922: Vandal Proof Color Dome Camera w/2.9-10mm
or 9-22mm Varifocal Lens & 480TVL
VTD-MVH2910DN / MVH922DN: True Day/Night Vandal Proof Color Dome
Camera w/2.9-10mm or 9-22mm Varifocal Lens & 480TVL
VTD-MVX2910 / MVX922: Vandal Proof Color Dome Camera w/2.9-10mm
or 9-22mm Varifocal Lens & 550TVL
VTD-MVX2910DN / MVN: True Day/Night Vandal Proof Color Dome Camera
w/2.9-10mm or 9-22mm Varifocal Lens & 550TVL
Optional Mounts & Accessories:
VT-MD-2VOC: Secondary Video Output Cable for Mighty Domes
Heater/Blower Option: Heater/Blower Option for Mighty Domes
UTP Option: UTP Option for Mighty Domes
IP Module: IP Option for Mighty Domes
VT-MD/WMT: Mighty Dome Wall Mount
VT-MD/CMT: Mighty Dome Pedestal Ceiling Mount
3
MIGHTY DOME LAYOUT
1) Lens
2) Power Input Connector(12VDC /
24VAC)
3) Video Output Connector - BNC
4) Camera Holder and 2nd Video
output
5) Ball with the Camera Assembly
6) Safety Wire
7) Bubble
8) Dome Cover Ring
9) Flush Mount Base
10) Surface Mount Plate
11) Assembly Screws - Torx M4x9
(Vandalproof)
12) Assembly Screws - Phillips ST4x12
(Indoor) / Phillips M4x10
(Vandalproof / IR)
13) Mounting Screws - Phillips ST4x30
BBLLAACCKK
4
INSTALLATION
1) Dome Cover
1.1 Vandal Proof Domes - Use the provided Torx wrench to unscrew the vandal
proof screws and remove the dome cover.
1.2 Indoor Domes - Turn the dome cover to the left to remove the dome cover.
2) Flush Mount Installation:
Using four St4x30 screws, attach the flush mount base to a sturdy surface.
3) Surface Mount Installation:
Drill pilot holes at the mounting location using the provided mounting template.
Using four St4x30 screws, mount the surface mount housing to a sturdy
surface. Using four ST4x12 (Indoor) screws or M4x10 (Vandal-proof) screws,
attach the flush mount base to the surface mount housing.
5
JUNCTION BOX INSTALLATION
Mighty Domes can easily be flush or surface mounted to an electrical junction box
(J-Box) using the pre-drilled mounting holes on either the surface mount housing
or the the flush mount base.
BBLLAACCKK
6

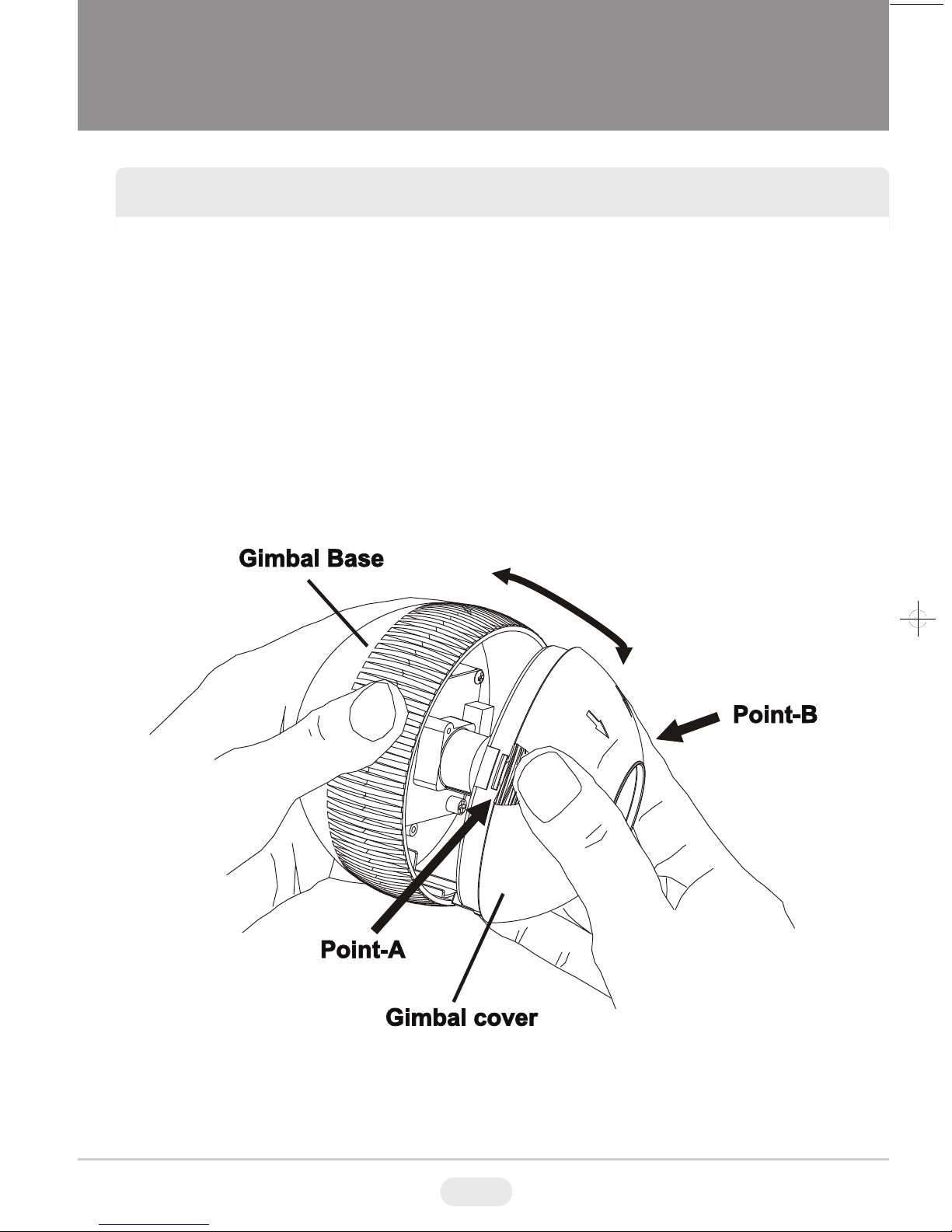

OPEN GIMBAL COVER
To adjust the zoom and the focus, the gimbal needs to be removed temporarily
from its base.
1) Remove the ball gimbal from its socket, and hold the base firmly with one hand.
2) Gently squeeze Point A and B and pull away from the base until the gimbal is
removed from the base.
3) Replace the Gimbal cover by aligning the cover to the base and pressing down
until it snaps back onto the base.
7

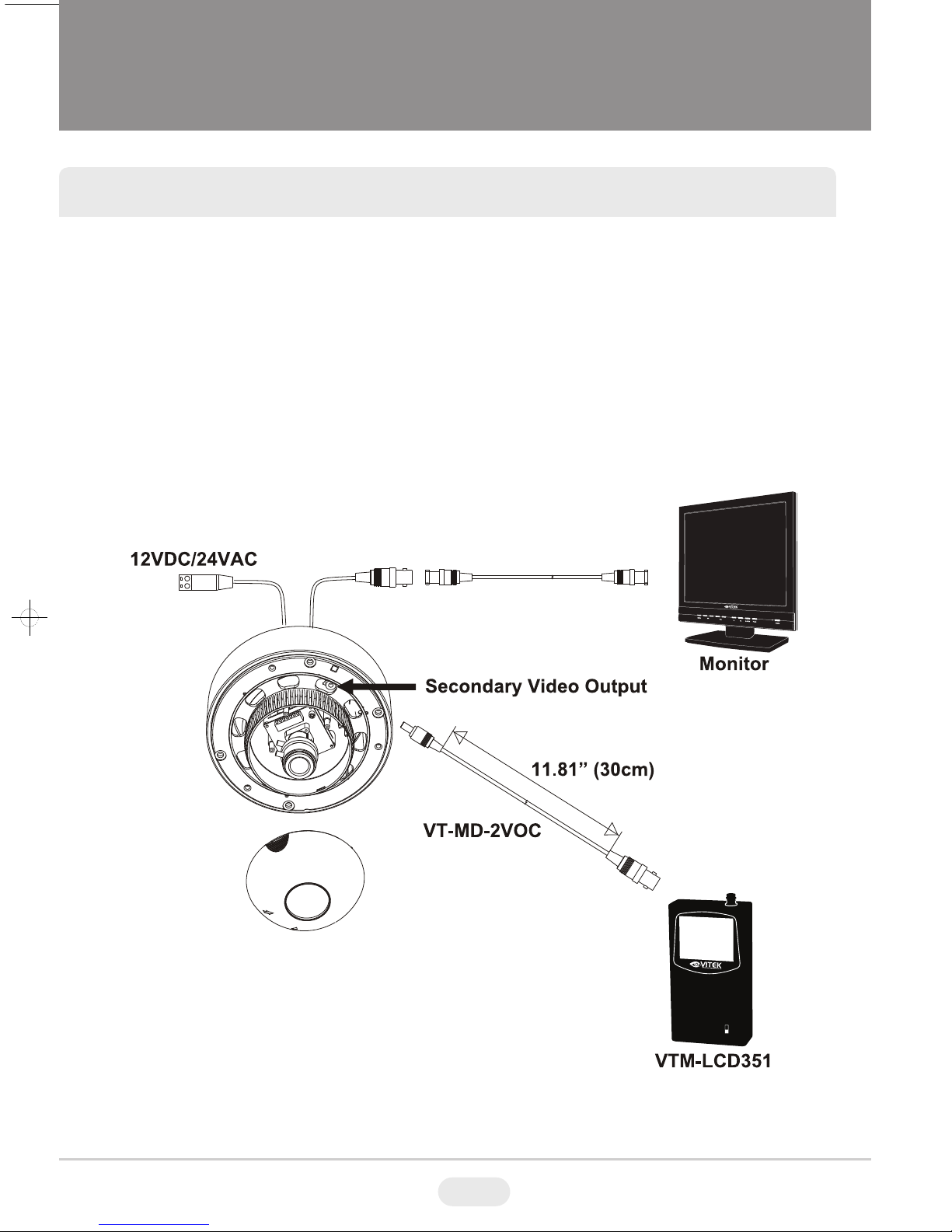

CONNECTIONS
• Power connection: 12VDC and 24VAC dual input.
• All Mighty Dome cameras come standard with a secondary video output. Please
contact your distributor or the VITEK Sales Department for availability of the
optional secondary video cable (VT-MD-2VOC).
BBLLAACCKK
8

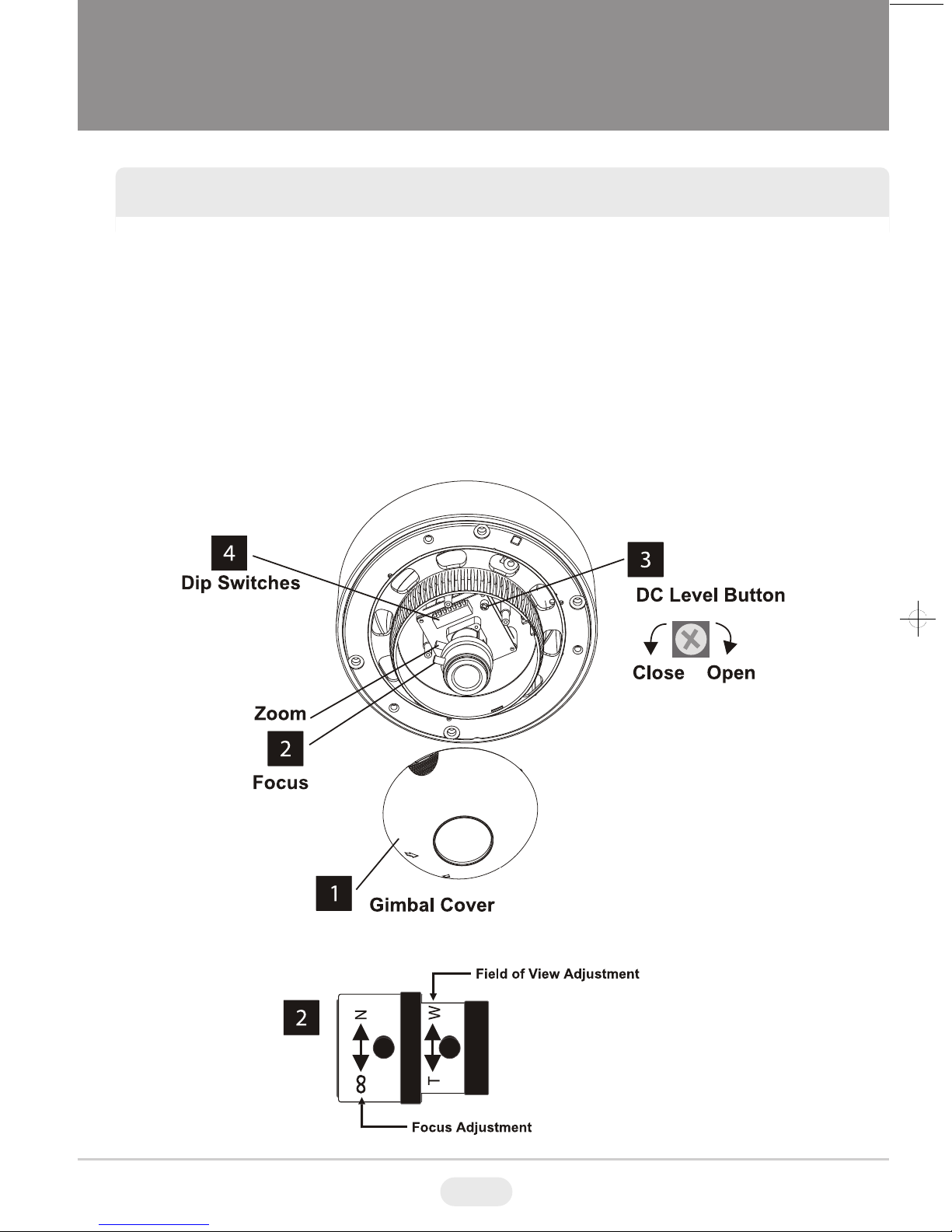

LENS ADJUSTMENT
1) Remove the Gimbal cover from the Gimbal base.
2) Loosen Zoom & Focus screws and make necessary adjustments as shown.
Field of view: Telephoto(T) to Wide(W)
Focus: Near(N) to infinity( )
3) DC Level: Adjust left or right if the picture is too dark.
4) Dip Switches. See Page 9
5) Reattach the gimbal cover to the gimbal base.
8
9
DIP SWITCH ADJUSTMENTS
Day/Night & IR Mighty Domes:
Factory Default:
Factory Default:
Function OFF ON
N/A
ELC/ALC
Back Light Control (BLC)
Auto Gain Control (AGC)
Flickerless
Sharpness
Day/Night
IR Mode (IR Model Only)
ALC
Off
Normal
Off
Normal
Day
Off
ELC
On
Turbo
On
Sharp
Auto
On
1
2
3
4
5
6
7
8
Function OFF ON
N/A
ELC/ALC
Back Light Control (BLC)
Auto Gain Control (AGC)
ALC
Off
Normal
ELC
On
Turbo
1
2
3
4
Indoor & Vandal-Proof Mighty Domes (Non-Day/Night):
