Vitek Transcendent VTD-TND8RMA3 Manuale utente
VITEK
VITEK
PLUS
+
VTD-TND8RMA3
Transcendent Series 8 MegaPixel
[4K] Indoor/Outdoor WDR IP
Motorized Vandal Dome Camera
FEATURES:
• 1/1.8” 8.0 Megapixel [4K] CMOS Image Sensor
• Up to 30fps live view @ 8 MegaPixel (3840x2160)
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165’ IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Gen. III Advanced Analytics: Abnormal Video, Face Detection, Regional
Intrusion Detection, Regional Entrance / Exiting Detection, Line
Crossing, Target Counting Detection
• Smart H.265/H.265+/H.265/Smart H.264/H.264+/H.264/MJPEG
• 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic*
• 1 Ch. Alarm Input + 1 Ch. Alarm Output
• Remote Viewing via CMS, Internet Explorer, iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (256GB)
• IP67 Weather Resistance + IK10
• Optional Junction Boxes (VT-TJB02A, VT-TJB021), Wall Mounts
(VT-TWM03, VT-TWMT-A1), Pendant Mounts (VT-PDMT-A1 [use w/
VT-TJB02A], VT-TPDM-3 [use w/ VT-TJB021]) and In-Ceiling Semi
Flush Mount (VT-TFMT-L)
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Grey (VTD-TND8RMA3B)
*Please research local, state and federal laws
regarding the implementation of audio surveillance.
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
QUICK START GUIDE
2 3
Components and Accessories
Cable
Connections
Overview
First connect the Waterproof Cap to an Ethernet patch cable, then
connect the cameras ethernet adaptor. If not powering the camera
with PoE, also connect the power Cable to an approved 12VDC
Power supply.
Camera Quick start guide
Plastic plug ×4
Drill template
Rubber plug
4 tapping screws PA 4×2
1
3
4
5
6
2
ALARM
4 3 2 1
10
7
8
9
11
1 Ethernet Connector
2Audio Input (MIC)
3Audio Output (HP)
4CVBS Video Output
5 Alarm Input/Output
6DC12VPowerConnector
7 Zoom-
8 Zoom+
9 Micro SD Card Slot
10 Reset
11 DC IN & CVBS
Security cap
1- -A L M - C O M
2- -A L M - O P E N
3--A L M -I N A
4--A L M -G N D
DC 12V
ALAR M
4 3 2 1
Allen Key
CVBS&DC
IN cables
3

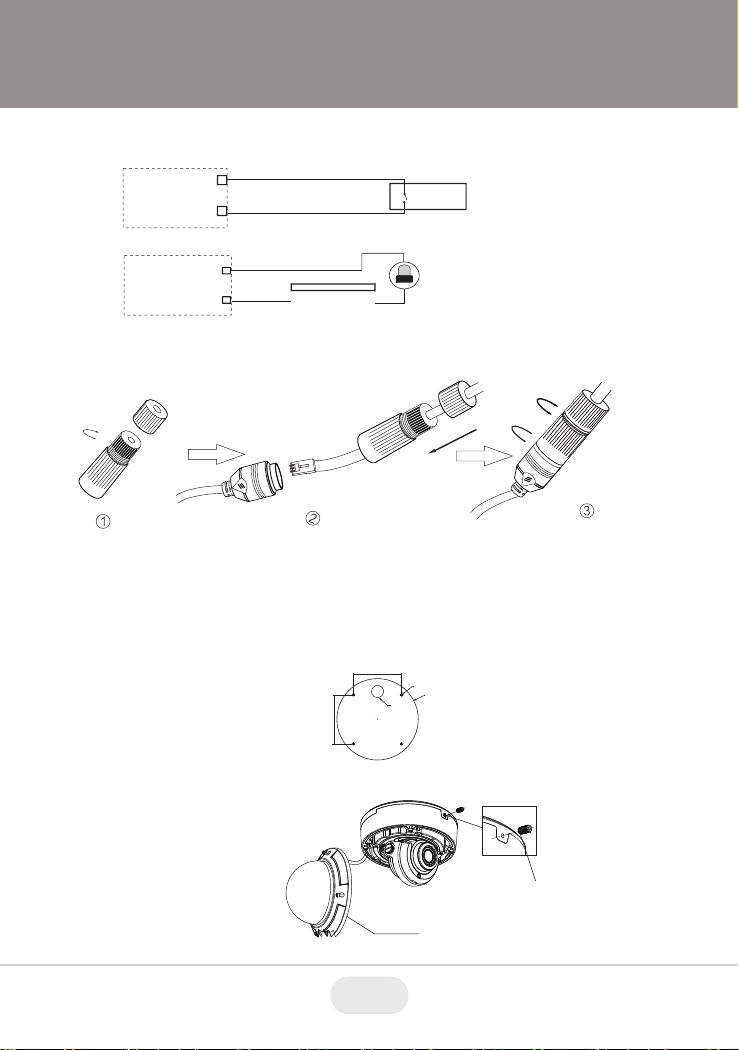

Installation
Weather Resistant Network Coupler
1. Loosen the nut from the Weather Resistant Network Coupler,
2. Run ethernet cable through coupler, then attach a RJ-45 connector.
3. Tighten the nut and coupler for a weather resistant seal.
Before beginning installation, make sure that the wall or ceiling is
strong enough to withstand 3 times the weight of the camera. The
mounting steps are as follows:
2. Loosen the screws to open
the lower dome and then
loosen the lock screw to
remove the mounting base.
1. Attach the drill template to
the place where you want to
install the camera, then drill
the screw holes and 1 cable
hole according to the drill
template.
∅.24”
∅5.83”
∅.87”
3.47”
3.5”
Lock Screw
Lower Dome
A lar m
P ower S our ce
IPC
A L A R M -C O M
A L A R M -O P E N
C onnecti ng A l ar m I nput/O utput
A lar m I nput
A lar m O utput
+
+
--
Sensor
IPC
A L A R M -I N
A L A R M -G N D
3
4
1
2
4 5
6. Install the dome bubble on the camera with the included screws,
then carefully remove the protective film to complete the installa-
tion.
5. Before adjusting the three-axis camera mount, preview the
camera on a monitor, then adjust as necessary achieve the
optimum viewing angle.
3. Route the cables and
connect the power & video
cables, use the rubber plug
to fill the gap of the mounting
base. Then secure the
mounting base to the ceiling
or wall with screws.
Sponge
Mounting Base
4. Fix the camera to the mounting base with the lock screw.
Hold it and rotate
Rotation 0°~345°
Tilt 0°~77°
Pan 0°~345°
5
LAN Configuration
The camera can be accessed on the local network either using the
IP-Tool or directly in a web browser.
Accessing the Camera Using the IP-Tool
1. Make sure the camera and PC are connected to the LAN.
2. Locate the IP-Tool installer at www.
vitekcctv.com/Downloads/Soft-
ware/Transcendent-IPTool_v2.0.2.zip
, then install on the PC. Open
the installed application.
3. Modify the IP address. The default IP address is 192.168.226.201.
Click the information of the camera listed in the above table to show
the network information on the right side. Modify the IP address and
gateway of the camera and make sure its network address is in the
same local network segment as the computer’s. Please modify the
IP address of your device according to the practical situation.
For example, the IP address of your computer
is 192.168.13.4. So the IP address of the
camera shall be changed to 192.168.13.X.
After modification, please input the password
of the administrator and click “Modify” button
to modify the setting.
** Default admin password: “123456".
MENU
IP Camera
Network Cable Network Cable
Switch
Router Computer
6 7
4. Double-click the IP address and then the system will pop up the web
browser to connect IP-CAM . IE browser will download the Active X
control. After downloading, a login window will pop up as shown
below:
Input the user name and password to log in.
Default user name: admin / Default password: 123456.
Directly Access Through a Web Browser
The default network settings are as shown below:
IP address: 192.168.226.201 HTTP: 80
Subnet Mask: 255.255.255.0 Data Port: 9008
Gateway: 192.168.226.1
You may use the above default settings when you log in the camera for
the first time.
1. Manually set the IP address of the PC. The network segment should
be the same as the default settings of IP-CAM. Open the network
and share center. Click “Local Area Connection” to pop up the
following window.
Select “Properties” and then select Internet protocol according to the
actual situation (for example: IPV4). Next, click “Properties” button to
set the network of the PC.
7
2. Open the IE Browser and input the default address of IP-CAM and
confirm. The IE browser will download Active X control.
3. After downloading Active X control, the login dialog box will pop up.
4. Input the default username and password and then enter to view.
WAN Configuration
Access the camera by the router or virtual server for example.
1. Make sure the camera is connected to the LAN; Then log into the
camera via LAN and go to System Congfig→Network Config→Port
menu to set up the port number.
2. Enter System Config→Network Config→IP Address menu to modify
the IP address.
4. Open the web browser and input its WAN IP and HTTP port to
access the IP-CAM.
3. Go to the router’s management interface through IE browser to
forward the IP address and port of IP-CAM in the “Virtual Server”.
5. For additional setup, features and functions, please scan
the QR code on the front page of this quick guide and
download the complete manual.
8 9
Image Sensor
Image Size
Resolution
Min. Illumination
Lens
Day / Night
IR LEDs / IR Distance
Video Compression
Audio Compression
Main-Stream
Bit Rate / Type
Wide Dynamic Range (WDR)
Digital Noise Reduction (DNR)
Quality
Image Setting
Gen. III Advanced Analytics
Smart Alarm
Region of Interest (ROI)
Network
Audio
Alarm
Local Storage
Remote Viewing
Supported Browsers
Connection Protocol
Resistance
Power Input
Power Consumption (12VDC) / (PoE)
Working Environment
Weight / Dimensions Dia ×H
1/1.8” 8.0 Megapixel [4K] CMOS Image Sensor
8 MegaPixel (3840 × 2160)
8MP(3840 × 2160 ), 6MP(3072 × 2048 ), 5MP(2592 × 1944), 4MP(2592 × 1520 ),
3MP(2304 × 1296), 1080P(1920 × 1080 ), 720P(1280 × 720), D1, CIF, 480 × 240
0.01 lux @F1.5, AGC ON; 0 lux with IR, 0.008 lux @ F1.2, AGC ON; 0 lux with IR
Motorized 2.8-12mm
True Day/Night by ICR
3 Matrix / 165’
Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
G.711A / G.711U
1~30fps: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF, 480x240
64Kbps ~ 12Mbps
120dB Super WDR
XD-DNR (2D-DNR & 3D-DNR)
VBR (Five Levels of Adjustment) / CBR (Adjustable)
Saturation, Brightness, Contrast, WDR, Noise reduction
Face Detection, Target Counting, Intrusion, Region Entrance/Exit, Line Crossing, Scene Change, Video Blur
Motion Alarm / Sensor Alarm
Each ROI to be Configured Separately
RJ45
1 In (One-way Audio) + 1 Ch. Audio Out + Built-in Mic*
1 Ch. Alarm Input + 1 Ch. Alarm Output
MicroSD Card Slot (Up to 256GB)
CMS / Web Browser / Mobile (iOS/Android)
Microsoft Internet Explorer
ONVIF
IP67 Weather Resistance + IK10
12VDC / PoE
350mA (LEDs Off) / 600mA (LEDs On) / < 9.5W
-22° ~140° / < 95% Humidity
40.21 0z, 2.51 lbs., 1140g / 5.91” × 4.49” (150 mm × 114 mm)
VTC-TND8RMA3 Detailed Specifications
*Please research local, state and federal laws regarding the implementation of audio
surveillance.
9
VT-TPLMT
Transcendent
Universal Pole
Mount - Ivory
VT-TCNMT
Transcendent
Universal
Corner Mount -
Ivory
OPTIONAL ACCESSORIES
AND RELATED PRODUCTS
FOR TRANSCENDENT IP
CAMERAS
VT-TJB02A
Optional Junction
Box for use with
Transcendent
Motorized Domes
VT-TWM03
Optional Wall
Mount for use
Transcendent
Motorized Domes
and Turrets
VT-TPDMT-A1
Universal 10”
Pendant Mount
- requires
VT-TJB02A
VT-TFMT-L
Optional Semi
Flush Mount
for use with
Transcendent
Motorized
Domes
VT-TJB021
Optional Junction
Box for use with
Transcendent
Motorized Turrets
and Domes
VT-TWMT-A1
Optional Wall
Mount for use
with Transcendent
Motorized Domes
and Turrets
VT-TPDM-3
Pendant Mount
- requires
VT-TJB021
10 11
OPTIONAL ACCESSORIES
AND RELATED PRODUCTS FOR
TRANSCENDENT IP CAMERAS
INTRODUCING OUR NEWINTRODUCING OUR NEW
VT-TNR3216PF
VT-TNR818PF
VT-TNR1646PF
• 8MP (4K) HDMI Output
• H.265 / H.264 Compression
• Full Analytic Support Including
Face Detection
• 360 Degree / Fish Eye De-Warping
• Available in 8, 16, and 32 Channels
• Up to 80TB Depending on Model
• PoE Support on ALL Models
ADVANCED LEARNING NVRs
A Standalone
Solution with FULL
Analytic Support
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Vitek Telecamera di sicurezza
Vitek
Vitek VT-TPTZ25HRAN-8PNL Manuale utente
Vitek
Vitek VTC-THB8R2 Manuale utente
Vitek
Vitek VT-PTZ10 Manuale utente
Vitek
Vitek VTC-IRLED24H Manuale utente
Vitek
Vitek VTC-C544 Manuale utente
Vitek
Vitek VTD-C510 Manuale utente
Vitek
Vitek VTC-HOCRAZ39 Manuale utente
Vitek
Vitek Transcendent VT-TPTZ-B10X5N Manuale utente
Vitek
Vitek VTD-HOCR6E2812-V Manuale utente
Vitek
Vitek Mighty VTD-MVP2810/L35 Manuale utente
Vitek
Vitek VTC-IRH30E2810 Manuale utente
Vitek
Vitek VTD-B72 Manuale utente
Vitek
Vitek VTC-IRV30/2810 Manuale utente
Vitek
Vitek TRANSCENDENT VTC-TNB8FADW-2 Manuale utente
Vitek
Vitek VTC-LED667HRCB Manuale utente
Vitek
Vitek Transcendent 4 Series Manuale utente
Vitek
Vitek VTC-LED667CB Manuale utente
Vitek
Vitek VTD-A4F Manuale utente
Vitek
Vitek VT-PTZ36W Manuale
Vitek
Vitek VTC-IRLED24A Manuale utente
