Vitek VTC-C960DS Manuale utente

VITEK

VTC-C960DS

VTC-C960WS

750 TVL 960H True Day/Night CCD

Cameras w/Effio-A/V Processing

• VTC-C960DS: 750 TVL 960H True Day/Night CCD Camera

w/Effio-A Processing

• VTC-C960WS: 750 TVL 960H WDR Day/Night CCD

Camera w/Effio-V Processing

• 1/3” High density Sony CCD (960H)

• High Resolution of 750 Horizontal Lines

• Small scale design to fit in 5” dome enclosures such as the

Pelco DF5 Housing

• E-WDR by ATR-EX (Adaptive Tone Reproduction) (VTC-

C960DS)

• True WDR (Wide Dynamic Range) (VTC-C960WS)

• Sensitivity of 0.0005 Lux

• XD-DNR (2D+3D DNR) Advanced Digital Noise Reduction

• True Day/Night by ICR - Infrared Cut Removal

• Built-in Motion Detection with a 24x16 Grid

• Privacy Mask function with up to 15 programmable mask

areas

• 12VDC / 24VAC Dual Voltage Operation

• Lenses Sold Separately

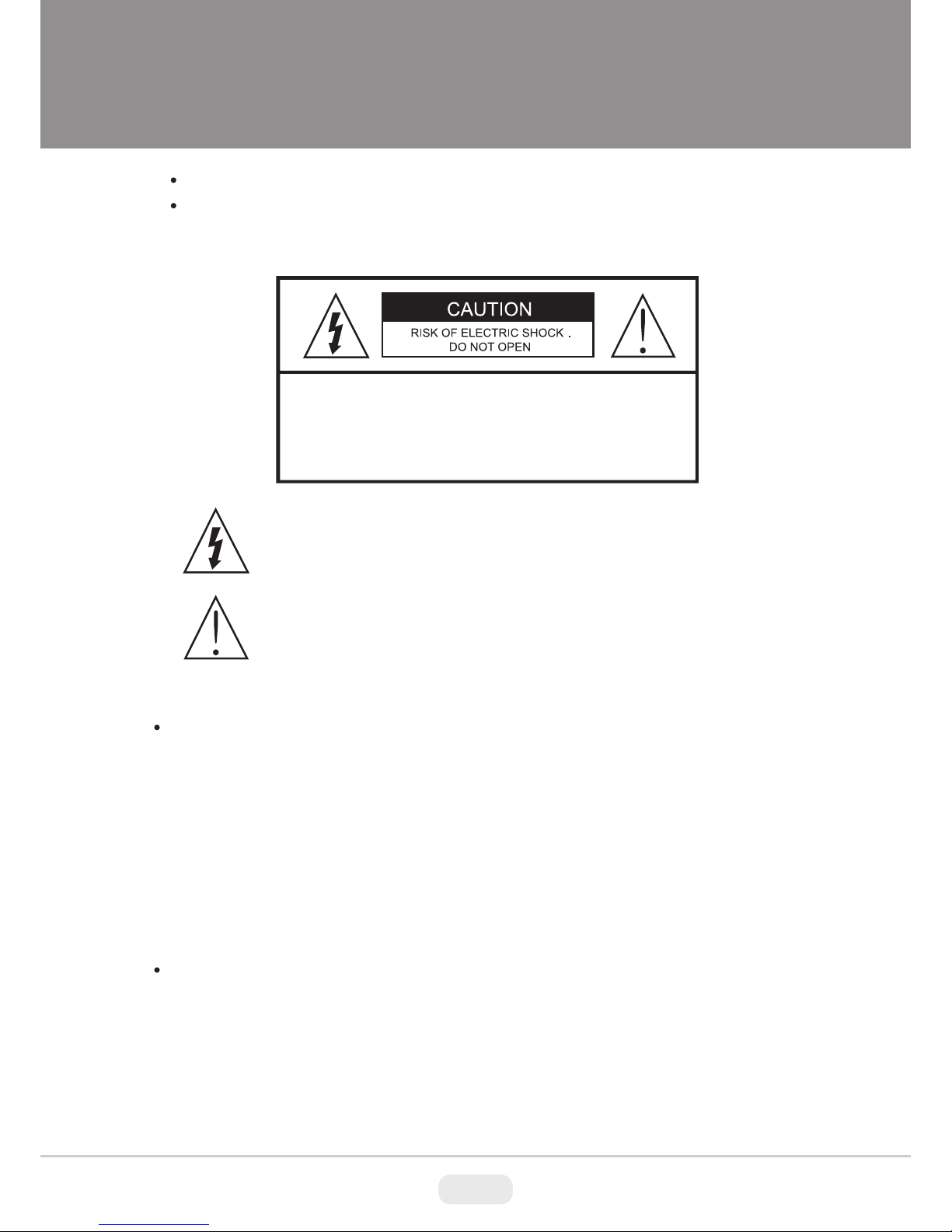

CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual appearance of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

Never open the device such as boards.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

Safety Precaution

p.03~04

Contents

p.05

Features

p.06

Composition

p.07

Dimensions

p.07

Part Names

p.08

Installation Instructions

p.09~10

Operating Instructions

p.11~28

Specifications

p.29~30

Key Features

General Description

• With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can accepts the infrared light

• With Effio-V/A series Enhanced digital imaging system,

- Delivers the crystal clear images providing 750TVL resolution in conjunction

with SONY 960H High density CCD.

- VTC-C960WS is provided ‘TRUE WDR’ function

- VTC-C960DS is provided ‘D-WDR by ATR-EX’ function

- Color signal processing provides the optimum balance between the luminance

and chroma signals for high color reproducibility even for the detail scene which

contains very high spatial frequency.

- Incorporates 2D+3DNR signal processing.

This is an ultra-clear resolution camera which realizes over 750TVL resolution and

a crisp color reproduction with SONY 960H CCD and Effio-V(Effio-A) Enhanced

image signal processor.

• VTC-C960DS: 750 TVL 960H True Day/Night CCD Camera w/Effio-A Processing

• VTC-C960WS: 750 TVL 960H WDR Day/Night CCD Camera w/Effio-V Processing

• 1/3” High density Sony CCD (960H)

• High Resolution of 750 Horizontal Lines

• Small scale design to fit in 5” dome enclosures such as the Pelco DF5 Housing

• E-WDR by ATR-EX (Adaptive Tone Reproduction) (VTC-C960DS)

• True WDR (Wide Dynamic Range) (VTC-C960WS)

• Sensitivity of 0.0005 Lux

• XD-DNR (2D+3D DNR) Advanced Digital Noise Reduction

• True Day/Night by ICR - Infrared Cut Removal

• Built-in Motion Detection with a 24x16 Grid

• Privacy Mask function with up to 15 programmable mask areas

• 12VDC / 24VAC Dual Voltage Operation

• Lenses Sold Separately

Dimensions

L- Wrench:

1.5mm (1pc)

Dust Protection

Cap (1pc)

(unit : mm)

Operating

Instruction

Camera

1.73”

2.09”

1.89”

Ø1.81”

2.38”

2.89”

L-Wrench

Dust

Protection Cap

No.

DC Iris

Damp(-)

Damp(+)

Drive(+)

GND

Flange Lock screw

Front Case

Rear Case

Back focus

adjusting Flange

Mount Holes

(Top / Bottom)

REAR VIEW

Lens Connector

for Auto Iris lenses

PIN 1PIN 3

PIN 2PIN 4

①Video out connector(BNC)

②Power input terminal

③OSD Control Joy stick

④DC Auto Iris Lens connector

①

②

③

④

1. Remove the dust protection cap from the lens mount.

2. Screw the lens onto the camera firmly.

3. Plug the lens plug into the lens connector on the rear of camera case.

4. Mount the camera to the wall or ceilling with a corresponding mounting bracket

through the camera mount holes (1/4” thread insert) on its top or bottom.

CAUTION

Installation and commissioning Instructions

• Make sure the power is removed before the installation.

• Follow the order for applying power.

First connect the low voltage (DC12V or AC24V), then plug the AC adapter to AC

outlets to avoid an improper reset from power jitter and a damage from the surge

voltage when no load.

• Care should be taken the cable is NOT to be damaged, kinked or exposed in the

hazardous area.

• Do not expose the camera directly to a strong light source such as the sun or spot

light.

Setting the back focus adjustment

The proper back focus adjustment is essential for the motorized zoom lens to get the

all time sharp focus when zooming in and out by the remote control.

For easier and better adjustment, this camera provides FOCUS ADJUST menu which

prevents from the mistake of the focus adjustment.

With enabling FOCUS ADJUST menu, follow the procedure to get the best back focus

adjustment.

1. Set the lens for the zoom position to WIDE and the focus position to INFINITE(∞).

2. Shoot the object departing from about 10Meters.

3. Adjust ’Back focus adjusting Flange’ until the optimum focus is achieved.

4. Set the lens for zoom position to TELE and adjust the lens focus for best focus.

5. Set the lens for zoom position to WIDE again, check if the focus adjustment was

the best. If not, re-adjust ‘Back focus Flange’ slightly.

6. After the setting, tighten the ‘Flange lock screw’ with L-wrench supplied.

Start up

When the camera is powered properly, it starts up with initializing the internal

parameters.

Using OSD Controller

Setup menu can be accessed and controlled by OSD control joy stick on the rear

of the camera unit.

Five commands are available with the joy stick.

The design of rear panel could be different according to the camera models.

Description of the joystick operation

1) SET Key (●) : Access to the menu or enter the setting.

To enter the main menu, press the Set Key down.

2) UP/DOWN Key (▲/▼) : Choose the desired sub-menu and to move the

cursor up or down.

3) LEFT/RIGHT Key (◄/►) : Set up the value of the selected menu. Used to

adjust the desired menu selection and to move the cursor left or right.

• / : Selects previous page or next page.

• EXIT : Enters ‘EXIT’ menu.

• RETURN : Returns to the previous menu.

OSD menu Startup

OSD menu Table

Press the ‘OSD menu SET key’ down to access the setup menu mode.

SETUP MENU

ADVANCED MENU

CONFIGURATION

SCENE SELECT FULL AUTO/ INDOOR/ OUTDOOR/ BACKLIGHT/ ITS/ CUSTOM

SHUTTER/AGC 100

42DB

OFF

1/50(1/60)

42DB

1/50(1/60)

42DB

127

200

INDOOR

AE LEVEL

AUTO

AGC MAX

SENS UP

MANUAL

FIX

ATW

OFF

HLC

WHITE BAL

HLC / BLC

SHUTTER

AGC MAX

SHUTTER

SPEED

DELAY CNT

ATW FRAME

ENVIRONMENT

CLIP LEVEL

SETUP MENU

1 / 2

SCENE SELECT

PICT ADJUST

EZOOM

DIS

PRIVACY MASK

MOTION DET

SYS SETTING

OFF

EXIT

FULL AUTO

SETUP MENU

2 / 2

LANGUAGE

VERSION

MAINTENANCE

EXIT

ENGLISH

1.0
