Vivat D-70 Manuale utente

Vivat Turn Table D-70 / D-100

User manual



Content
Introduction ..............................................................................................................................................................3
1. Sphere of application........................................................................................................................................3
2. Requiring skills ..................................................................................................................................................3
3. Features ............................................................................................................................................................3
3.1. Photo mode settings.................................................................................................................................3
3.2. Video mode settings .................................................................................................................................4
3.3. Manual mode settings ..............................................................................................................................4
4. Vivat Turn Table features..................................................................................................................................4
Package contents ......................................................................................................................................................4
Specifications of Vivat Turn Table D-70/D-100.........................................................................................................4
Preparation for work.................................................................................................................................................5
Operation of the Vivat Turn Table ............................................................................................................................5
1. The controls ......................................................................................................................................................5
2. Working with a remote control ........................................................................................................................6
3. The preparation of the camera.........................................................................................................................6
4. Vivat Turn Table modes ....................................................................................................................................7
5. Menu operations...............................................................................................................................................7
5.1. Photo mode...............................................................................................................................................7
5.2. Video mode...............................................................................................................................................9
5.3. Manual mode..........................................................................................................................................10
5.4. Device settings (SETTINGS) .....................................................................................................................11
Appendix .........................................................................................................................................................................12




1. Introduction

Nowadays, when online shopping is gaining in popularity, clients make 90% of decisions

about purchasing of a good basing only on the image of the product. The decision to "buy" or

"not" directly depends on how well the object is presented on the website. The best option

of visualization of the product is "Photo 360°" - the opportunity to examine it from all sides.

This is achieved by serial photographing of the object that rotates. The usage of this technology

will increase the number of orders, and therefore the profits of the online store. To create a

"Photo 360°" we have developed rotary table Vivat Turn Table.

1.1.Sphere of application

Vivat Turn Table is designed for:

-automatic creation of “Photo 360°” - photo series of the object from different angles

(catalogs for online stores, electronic catalogs of products, antiques auctions etc.);

-making video of rotating objects (stock video commercials of products, reviews on

YouTube etc.).

1.2.Requiring skills

The table is designed to be easily used both by non-professional users, who do not have

any specific photography skills, and by professional photographers.

The built-in LCD screen and buttons eliminate the need for a PC or other control devices.

1.3.Features

Vivat Turn Table has three modes of operation:

-photo mode;

-video mode;

-manual mode.

1.3.1. Photo mode settings

-platform movement direction;

-number of frames per full platform rotation;

-user angles of object photos;

-pause before and after shutter release, manual shooting, continuous shooting;

-smooth start and stop of the movement;

-platform rotation speed.

1.3.2. Video mode settings

-platform movement direction;

-number of cycles;

-smooth start and stop of the movement;

-platform rotation speed.

1.3.3. Manual mode settings

-platform rotation speed.

1.4. Vivat Turn Table features

-fully automatic operation - table itself manages the camera requiring no other control

and timing devices;

-the use of industrial stepper motor enables highly accurate shooting of objects

weighing up to 150/200 kg. (D-70/D-100 model);

-remote control allows you to operate the Vivat Turn Table at a distance of up to 5

meters from Vivat Controller. This saves time and improves the working process;

-video mode and photo mode programs can be started in "one click". Also, remote

control allows to make a test photo.

2. Package contents

-Vivat Turn Table;

-Vivat Controller;

-AC adapter 12V;

-camera control cable and shutter release adapter;

-IR remote control;

-Vivat Photo 360 full version software link.

3. Specifications of Vivat Turn Table D-70/D-100

Maximum object’s weight ___________ 150/200 kg

Platform diameter __________________70/100 cm

Voltage support ____________________ ±12V

Unit weight _______________________ 12/25 kg

Dimensions _______________________ 70 cm х70 cm х11 cm / 100 cm х100 cm х11 cm

4. Preparation for work

Set the device on a hard flat surface. Adjust some table legs if necessary.

On the side of the Vivat Controller there are connectors for camera –“Camera”, power –“DC

12V”, and motor “Motor”.

Connect the power cord connector “DC 12V”, sync cable from camera to connector “Camera”

and motor cable to “Motor” connector. The connecting of the camera to Vivat Turn Table must

be performed when the power is off. The plug of the sync and motor cable should be fixed into

the housing unit.

5. Operation of the Vivat Turn Table

5.1. The controls

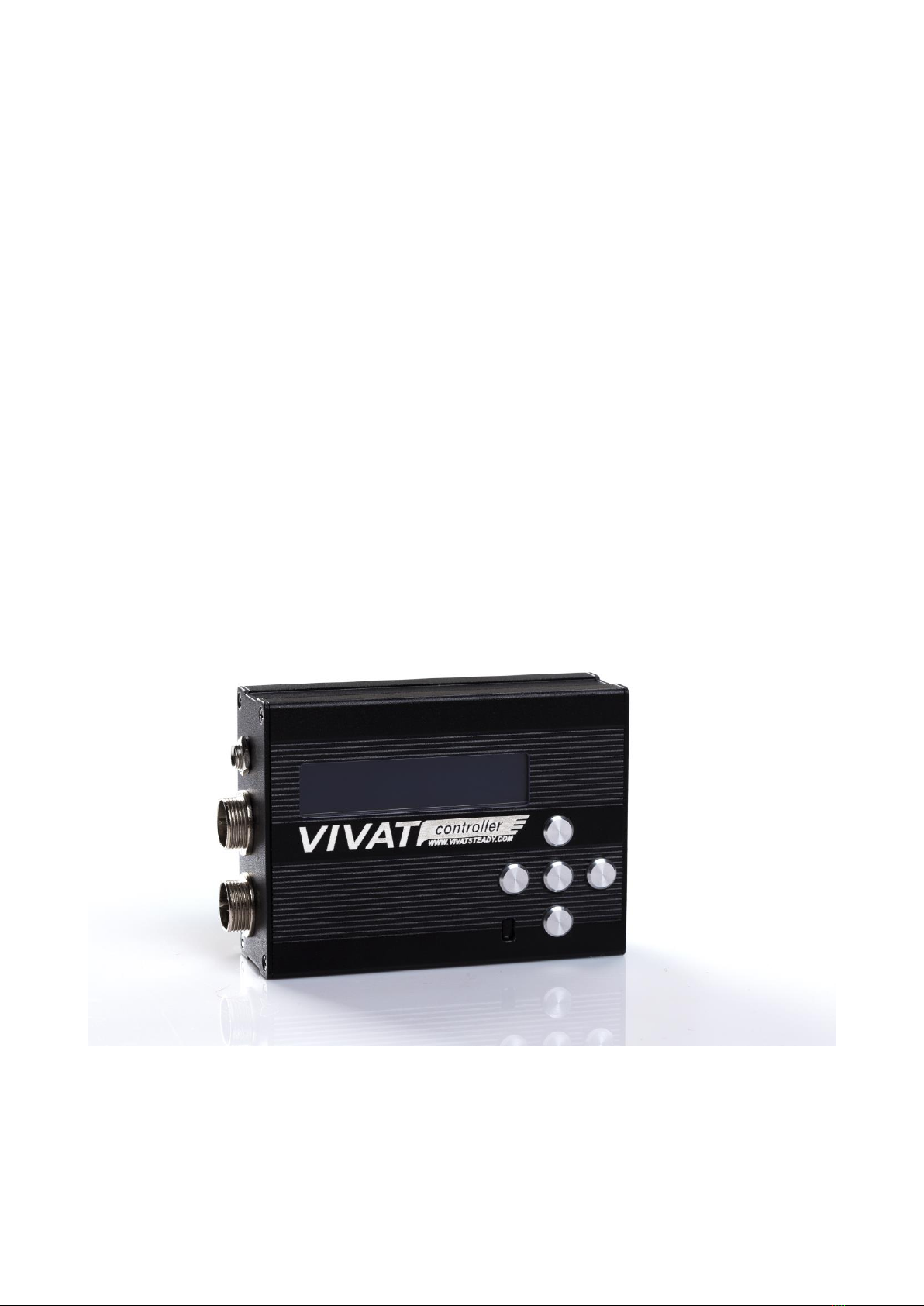

On the front panel of the Vivat Controller there are: LCD screen, control buttons and IR

remote receiver.

The LCD screen displays information about the operating mode, settings and status of the

program.

"Left" and "right" buttons are used for the menu navigation, "up" and "down" change the

settings, "center”button uses to confirm.

Pic. 1

5.2. Working with a remote control

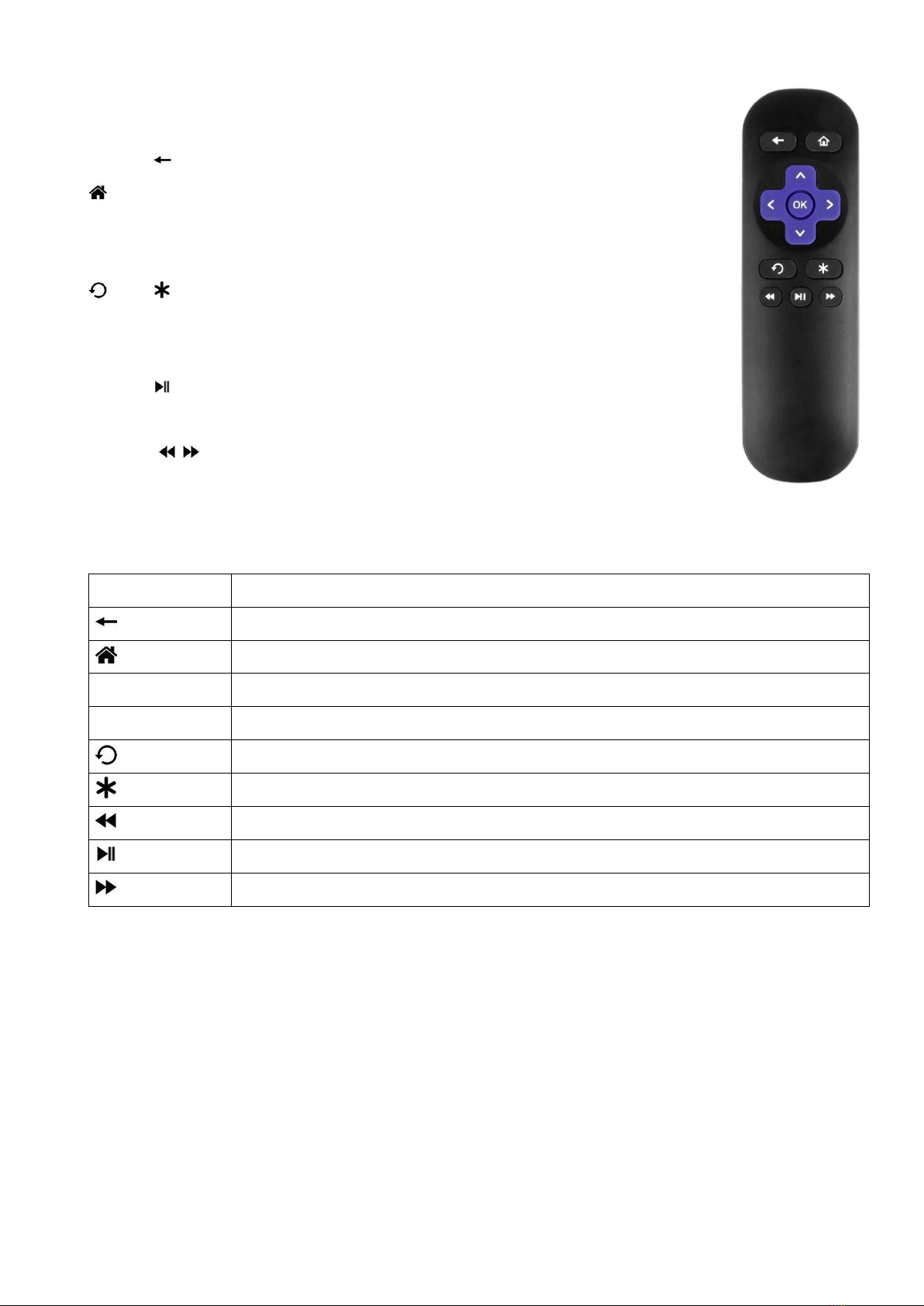

Vivat Turn Table comes with an infrared remote control (IR) (pic. 2). It

runs on two AAA type batteries.

Button of IR remote initiate a test shoot.

- return to root menu.

Violet IR buttons duplicate buttons on the Vivat Controller (“left”,

“right”, “up”, “down”, “ok”).

and - launch video and photo mode with pre-set parameters. You

can configure the program settings once and then launch it with one

button from IR.

Button starts manual mode.

In manual mode "left" and "right" violet buttons move the platform, and

buttons turn it 22.5 ° counterclockwise or clockwise.

IR remote buttons described in Table 1.

IR button

Function

Camera shutter release

Exit to root menu

Arrows

Menu navigation / value change / change direction of movement

Select / stop the program

Launch video mode with pre-set parameters

Launch photo mode with pre-set parameters

Move platform at 22.5 ° counterclockwise in manual mode

Start manual mode / return to “zero point” in manual mode

Move platform at 22.5 ° clockwise in manual mode

Table 1. IR remote buttons

5.3. The preparation of the camera

Before starting the work with Vivat Turn Table it is important to adjust the camera:

-disable the autofocus on the lens or the camera body (depending on a model);

-select the manual mode and adjusts the exposure according to the shooting conditions;

-when shooting "Photo 360°” disable camera "auto turn-off" and " image review"

functions, also sometimes remote control option should be turned on (when shooting

video, it is not necessary).

In different cameras, same settings can have different names.

Pic. 2

5.4. Vivat Turn Table modes

There are two main modes of Vivat Turn Table –“PHOTO MODE”and “VIDEO

MODE”. Also device has an additional manual control mode –“MANUAL MODE”.

In “PHOTO MODE”platform rotates at a certain angle with a certain speed, then it signals

camera to release the shutter. This process occurs as many times as many frames have been

set until the object makes a full rotation (360°).

“VIDEO MODE”is mainly used for shooting objects in continuous motion. This is the

perfect mode for shooting objects for stock videos and items presentation.

“MANUAL MODE”is additional. It is used to put the object in the correct position in the

frame.

5.5. Menu operations

After turning on the inscription “press o for menu”appears on the LCD screen. This means

that the device is ready to use.

Press the center button on the Vivat Controller (or the “ok” button on the remote control)

and go to menu selection mode.

The menu navigation is performed by the buttons "left" and "right". To confirm - use the

center button. To change settings modes use the buttons "up" and "down". In order to

confirm setting changes (save value) - press the center button.

Appendix 1. (Ap. 1) shows the complete menu structure.

5.5.1. Photo mode

The photo mode (Photo 360 °) is the first in the list proposed to user. It is commonly

used with this equipment.

The first option of the photo mode is “direction”- the direction of the platform motion:

clockwise “-> CW”or counterclockwise “<- CCW”.

The number of frames per full rotation (from 1 to 360) is set by parameter “frames”.

Smooth movement of "Photo 360°” depends directly on this value.

VIVAT TURN TABLE

press o for menu

PHOTO MODE >

make 360° photos

Last value of “frames” property is “user frames”. When this value is chosen, device

make photos according previously saved user frames. They can be set in “SETTINGS”

menu.

You can specify the pause in seconds between the stop of the platform and camera

shutter release (“pause before”). This is necessary while shooting flexible objects for

damping vibration transmitted from the platform to the object.

It is also possible to set the pause after the shutter ("pause after"). This pause is required

for shooting at slow shutter speeds.

Option “acceleration”activates motion platform with acceleration and deceleration.

This prevents the displacement of the object through its own inertia.

One of the main options is “speed”- the rotation speed of the platform. Choose from 5

options - from slowest to fastest.

“Manual shoot” will turn on/off manual control option. Device will wait until user

presses buttons “left” or “right”. This option can be useful for animations creation.

“Cont. shoot” (continuous shoot) – will turn on/off continuous shoot in photo mode.

Parameters “pause before”, “pause after” and “manual shoot” are ignored in this case

and platform rotates without pauses and makes photos. Very important is to choose

optimal rotation speed and frame quantity to avoid skipped frames.

“Start”launches the program. The progress will be shown on the LCD- screen:

“Back to main”returns to the main menu.

running...

frame: 7/60

- program can be interrupted

by pressing on the center button

5.5.2. Video mode

Next after "Photo mode" is "Video mode"

This mode has 4 options.

The first option “direction”, as in the photo mode, sets the direction of the platform

movement.

You can also specify the number of full turns –“cycles”(1 to 255).

“Acceleration”is for a smooth start and stop of the platform.

The option “Speed”allows you to change speed from 1% to 100%. You can change the

speed during program progress by pressing “up” and “down” buttons.

“Start”launches the program. The progress will be shown on the LCD- screen:

“Back to main”returns to the main menu.

< VIDEO MODE >

make 360° videos

running...

cycle: 2/3

- program can be interrupted

by pressing on the center button

PHOTO MODE >

make 360° photos

direction >

< pause before >

< pause after >

< acceleration >

< speed >

< manual shoot >

< start >

< back to main

< cont. shoot >

- pause after shutter release

- motion with smooth start and

stop

- platform rotation speed

- pause before shutter release

- platform motion direction

- manual shoot option

- launch the program

- return to main menu

- continuous shooting

5.5.3. Manual mode

The manual mode allows the user to control the turntable himself by pressing the "left"

and "right" buttons.

It is possible to select the appropriate speed of the platform with option “speed”.

“Start”launches the manual mode.

Buttons "left" and "right" rotates the platform clockwise and counterclockwise. The

central button is for exit from manual mode.

“Back to main”returns to the main menu.

Manual mode can be launched from IR remote using button. It is useful for

positioning object before shooting.

Exit from the manual mode is carried by central button on the remote control or on the

table body.

< VIDEO MODE >

make 360° videos

direction >

< cycles >

< acceleration >

< speed >

< start >

< back to main

- motion with smooth start and stop

- platform rotation speed

- launch the program

- return to main menu

- number of full turns

- platform motion direction

< MANUAL MODE

manual control

< speed >

< start >

- manual mode start

- platform rotation speed

< back to main

- return to main menu

press <> to move

or o to exit

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Vivat Giradischi

Vivat

Vivat D-26 Manuale utente

Manuali Giradischi popolari di altre marche

Gemini

Gemini CDT-05 MKII Manuale utente

Rotel

Rotel RP-820 Manuale utente

Shuman

Shuman MC-250BT Manuale utente

Stanton

Stanton STR8-150 Manuale utente

Audio Technica

Audio Technica AT-LPW40WN Manuale utente

Crosley

Crosley McQueen CR7011-GY Manuale utente

Reloop

Reloop SMP-1 Manuale utente

auna

auna TT-Classic Plus Manuale utente

COMO AUDIO

COMO AUDIO Turntable Analog Manuale utente

Dual

Dual 1009 F Manuale utente

REED

REED Muse3C Manuale utente

AXIOMTEK

AXIOMTEK OPS883-H Series Manuale utente

Pioneer

Pioneer PL-71 Manuale utente

Vestax

Vestax PDX-a1 Manuale utente

Denon

Denon DP-400 Manuale utente

Dual

Dual 504 Manuale utente

Audio-Techica

Audio-Techica AT-LP60XBT Manuale utente

Goldring

Goldring G99 Manuale utente
