Vivo CART-V06A Manuale utente

1

Sit and Stand Workstation

Instruction Manual

Email: [email protected]

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

-Model: CART V06A

Scan the QR code with your mobile device or follow the link to

helpful videos and specifications related to this product.

Tools Required:

phillips screwdriver

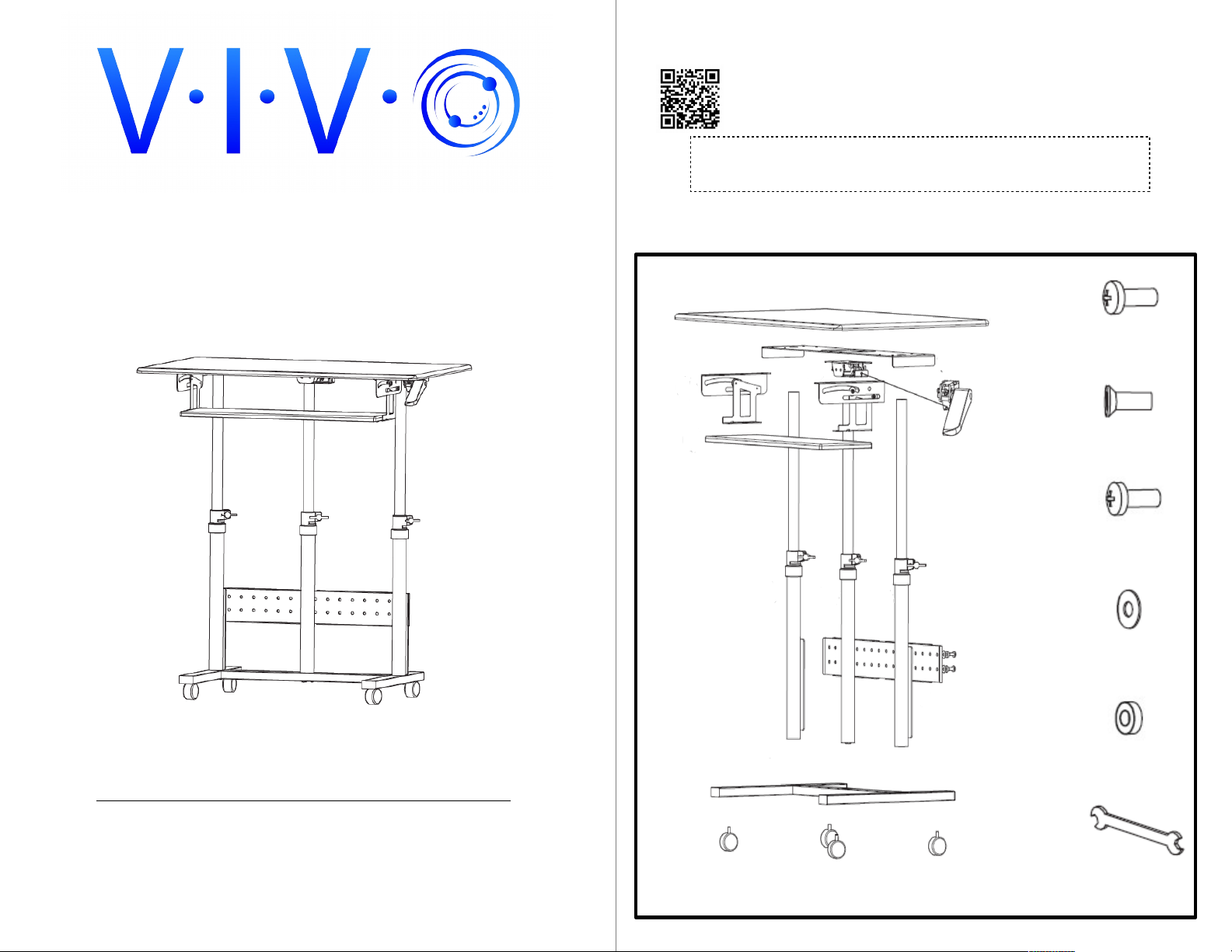

Package Contents

A M x12 (x37)

B M x16 (x6)

C M8x12 (x4)

D 20x8x1 (x4)

E 17x8.2x (x4)

F Wrench (x1)

- -https://vivo us com/products/cart v06a

1

2

4

3

6

2

Assembly Steps

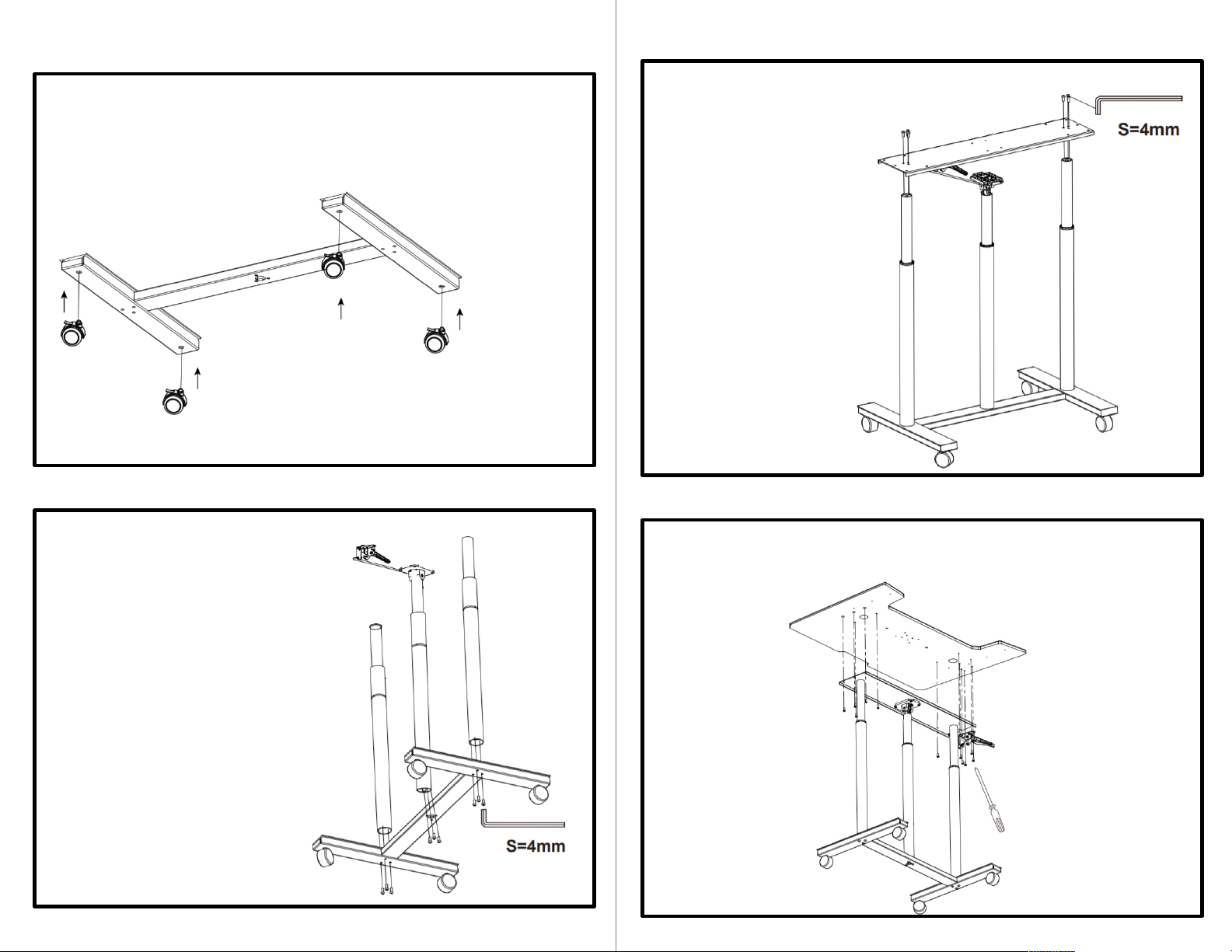

Step 1

Screw casters (7) into underside of base. Tighten with

wrench (E).

7

H

Step 2

2

Assemble poles to base using x9

M6x12 screws (C), making sure the

pole with the release lever is installed

in the center.

Step 3

Install support plate (3) to poles using x6 M6x12 screws

(C). Tighten with 4mm Allen wrench (D).

Step 4

Assemble desktop (1) using x10 M x12 screws (A). Secure release lever

handle to desktop with x3 M x12 screws (A).

3

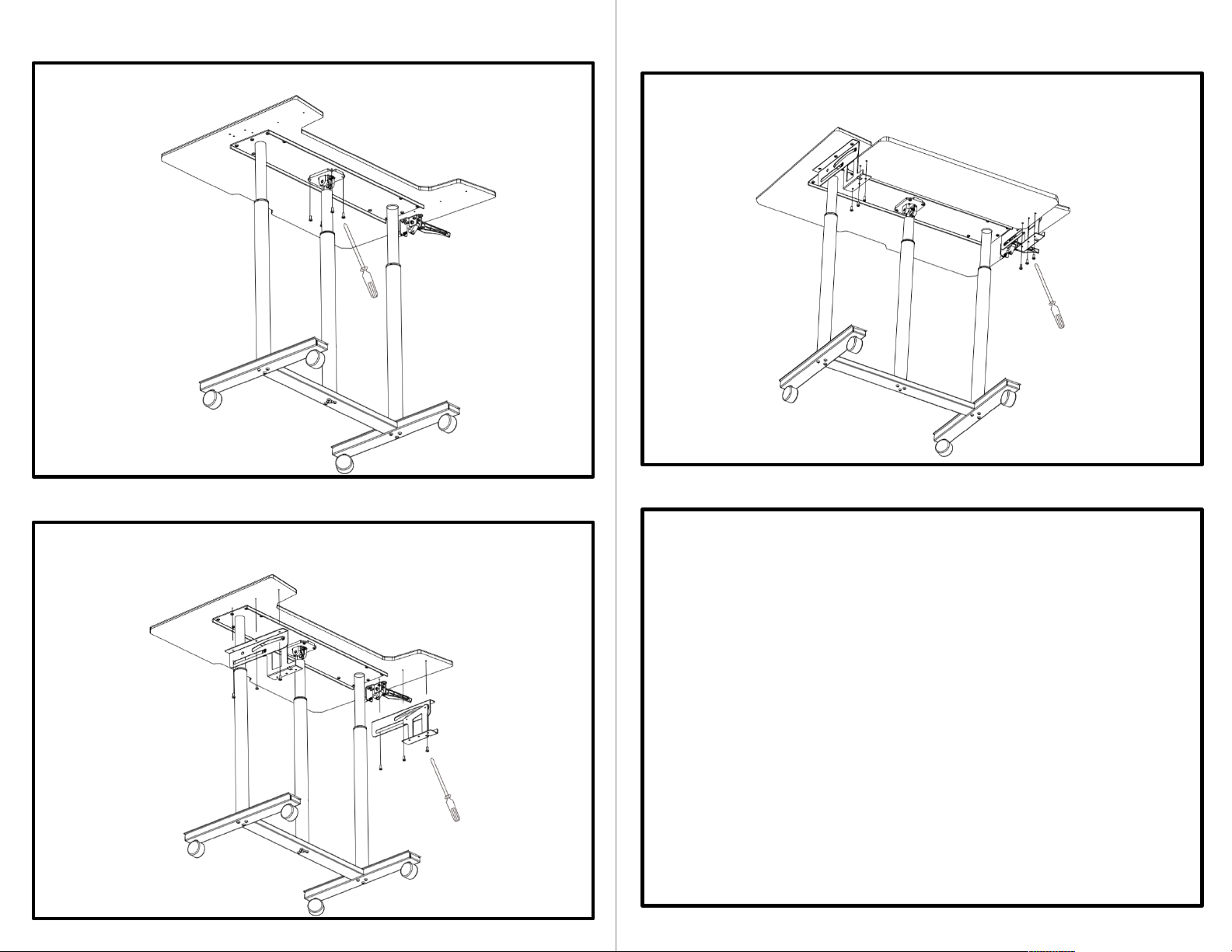

Install keyboard shelf brackets (2) to desktop using x6 M x12 screws (A).

Curved slots must be facing towards the front.

Step 5

Secure center pole to desktop with x4 M x20 screws (B).

Step 6

Step 7

Mount keyboard shelf (4) to brackets with x6 M x12

screws (F).

Step 8

Ensure the handle is correctly pulling on the release cable. If the release

cable tension is too high (height will not lock) or too low (desk will not raise or

lower), turn the nuts at the end of the black tube near the handle to adjust

the tension.

Press the handle on each

side up and down

4

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no

missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any

purpose that is not explicitly specified in this manual. We

cannot be liable for damage or injury caused by incorrect

assembly or inappropriate use.

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please contact

us. We are happy to replace parts to ensure you have a fully

functioning product.

Safety Warning

Contact us at:

Last updated: 4/23/2018

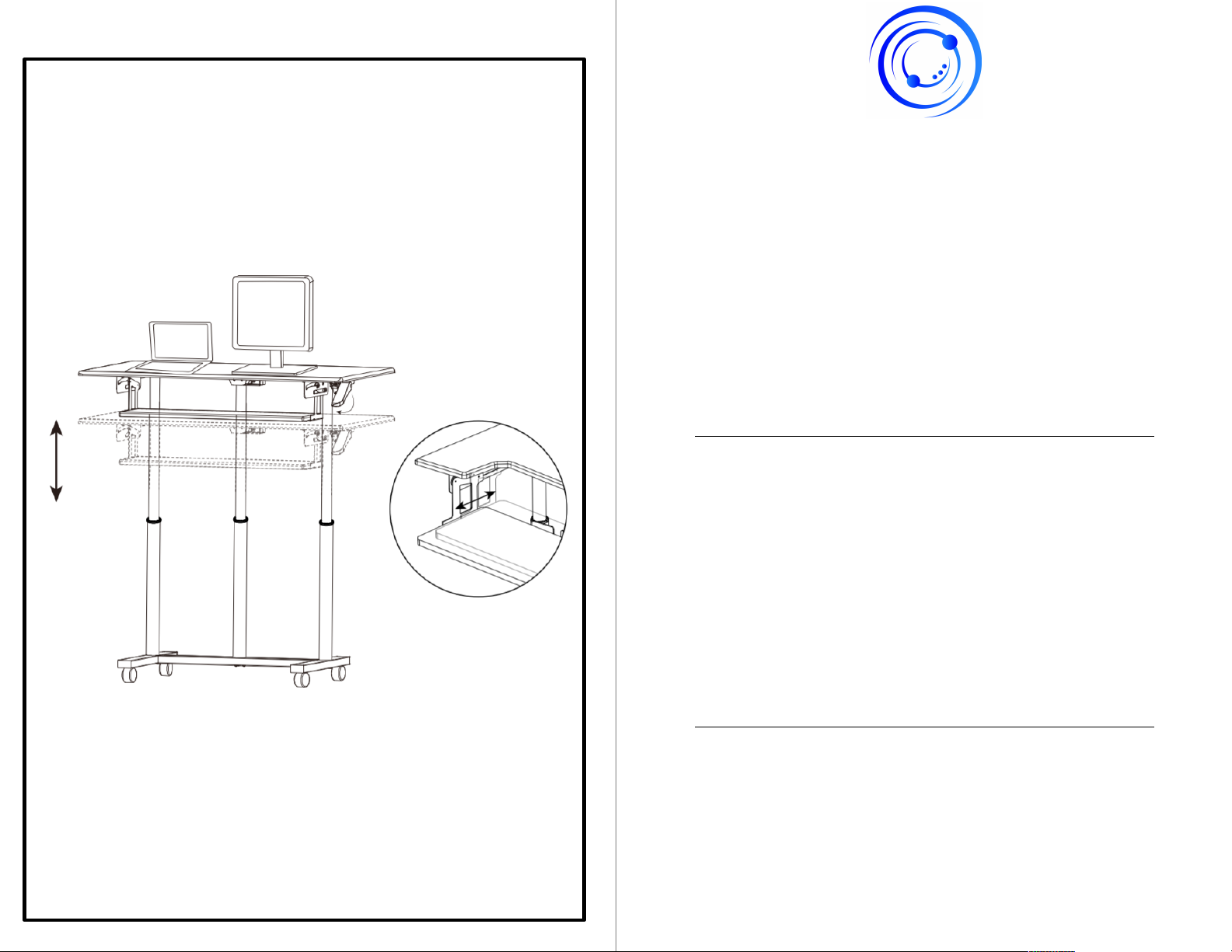

Step 9

To adjust height, lift release lever handle.

Keyboard tray can

slide in and out.
