Vivo MOUNT-DLSSE2 Manuale utente

VESA Adapter for Compatible Dell Monitors

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-dlsse2

SKU: MOUNT-DLSSE2

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2

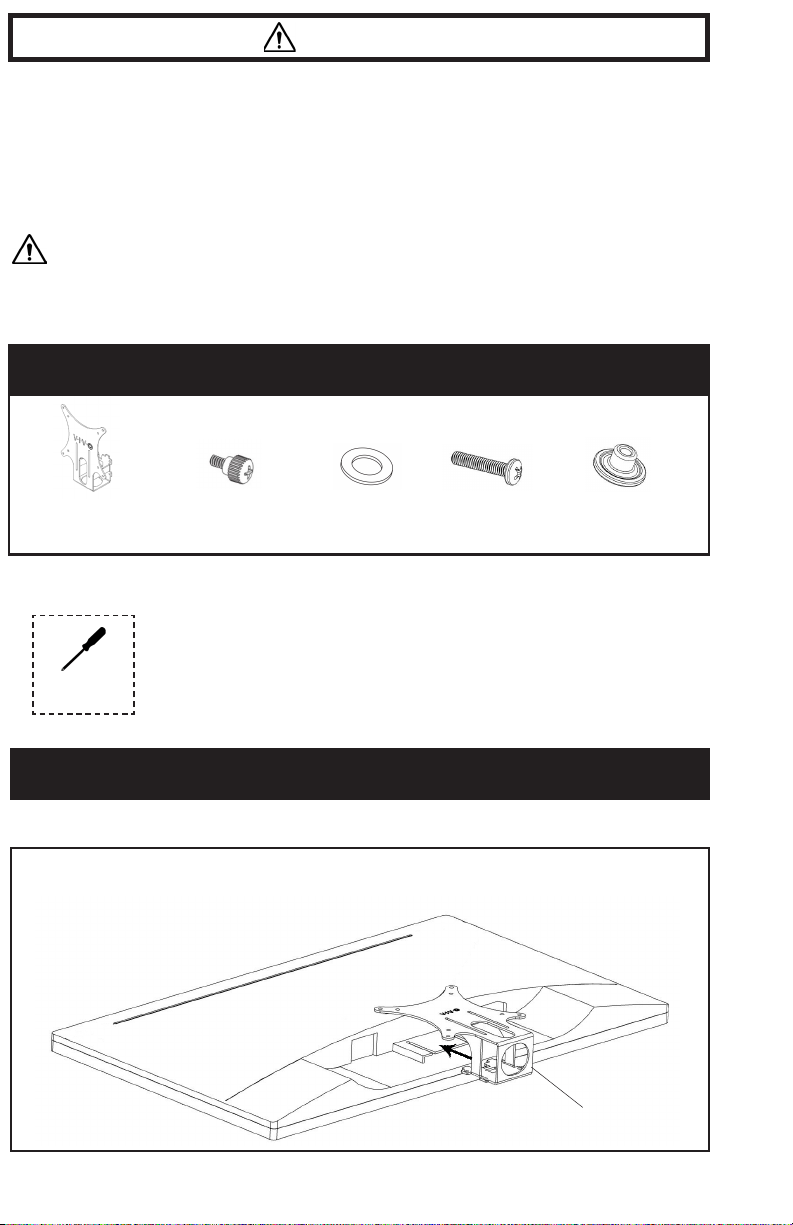

ASSEMBLY STEPS

STEP 1

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

Phillips

Screwdriver

A (x1)

VESA Adapter

B(x4)

M4x12 Thumbscrew

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

With the original base removed, install the VESA Adapter (A) to the monitor. You will hear a “click”

when the adapter is locked in place.

C(x4)

Washer

A

D(x2 )

M4x20 Screw

E(x2)

M5 So Cap

3

STEP 2

Mount the VESA Adapter (A) with monitor to your VESA mount using M4x12mm Thumbscrews (B)

and Washers (C). Do not overtighten; the Thumbscrews (B) only need to be finger-tight.

STEP 3

B

C

A

Insert M4x20 Screws (D) partially into the unused upper holes, then place the M5 So Caps (E) on the

ends of the screws. Tighten the M4x20 Screws (D) with M5 So Caps (E) against the back of the moni-

tor with a Phillips screwdriver until snug.

D

E

LAST UPDATED: 05/13/2021

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
