Vivo PP-RD-102B Manuale utente
Dark Gray 102" x 70" Cloth Room Divider
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/pp-rd-102b
SKU: PP-RD-102B
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual and do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or
inappropriate use.

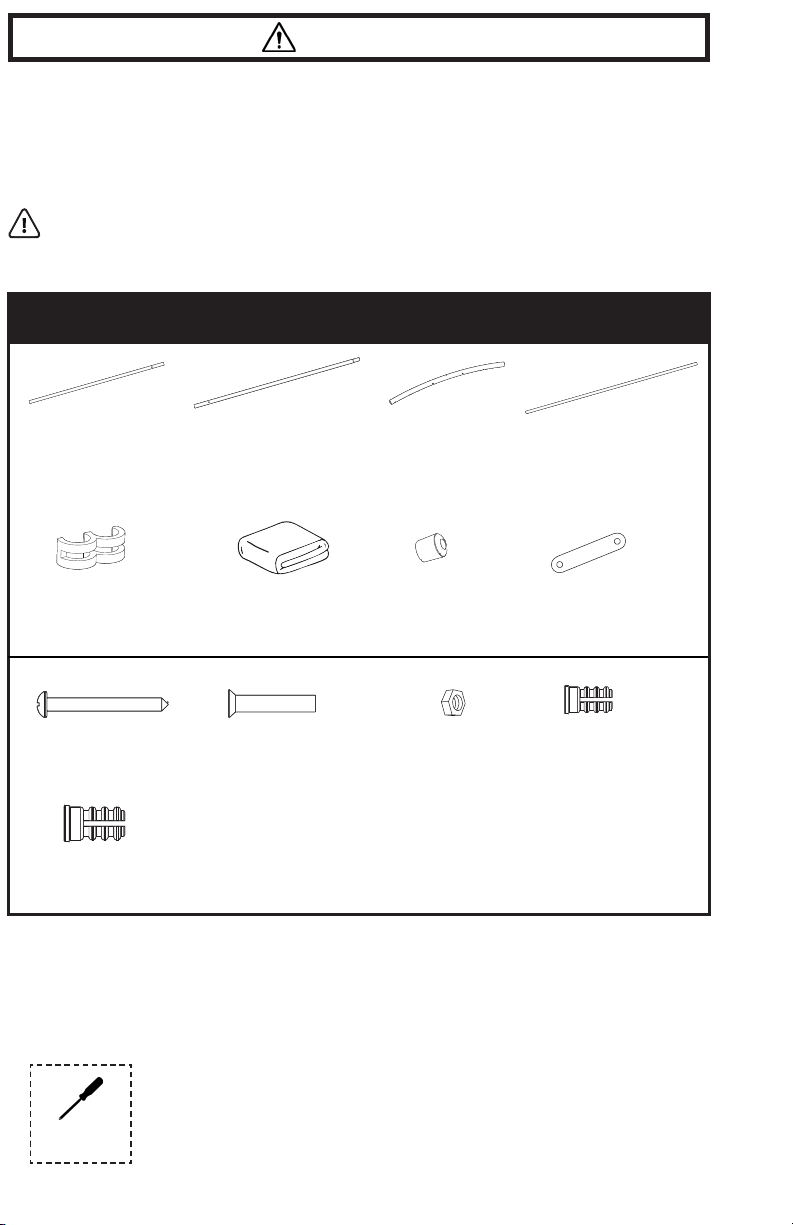

PACKAGE CONTENTS
WARNING!
A (x6)
Upper Vertical
Support
TOOLS NEEDED
Phillips
Screwdriver
B (x6)
Lower Vertical
Support
D (x6)
Crossbar
S-A (x16)
ST4x40mm Screw
S-C (x8)
M5 Nut
C (x4)
Foot
S-B (x8)
M5x25mm Screw
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
H (x8)
Brace
S-E (x4)
Large Insert
S-D (x12)
Small Insert
G (x16)
End Cap
F (x3)
Divider
E (x6)
Connector Clip
3
ASSEMBLY STEPS

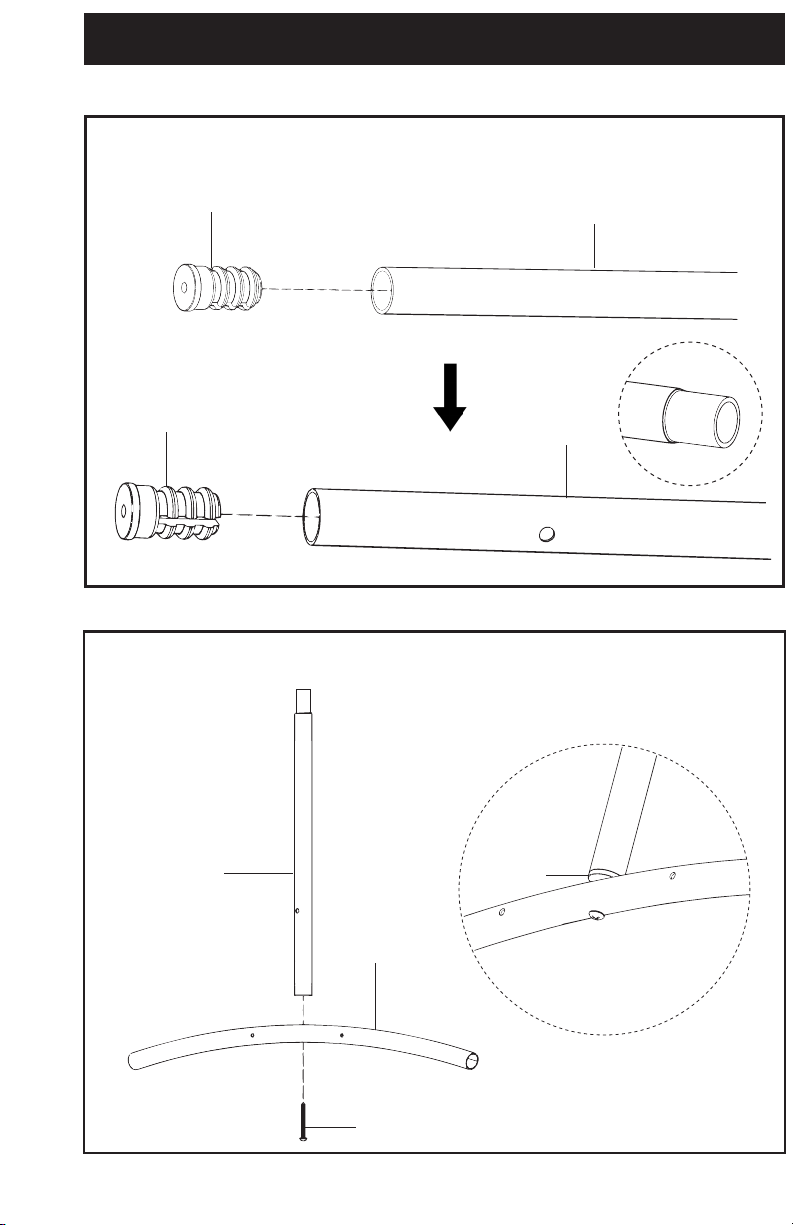

STEP 1
Press Small Inserts (S-D) into both ends of Crossbars (D). Press Large Inserts (S-E) into the bottoms of
x4 Lower Vertical Supports (B).
S-D
S-E
D
B
STEP 2
Assemble Feet (C) to Lower Vertical Supports (B) with the installed Large Inserts (S-E) using ST4x40mm
Screws (S-A) and a Phillips screwdriver.
B
C
S-A
Top of B
S-E
4

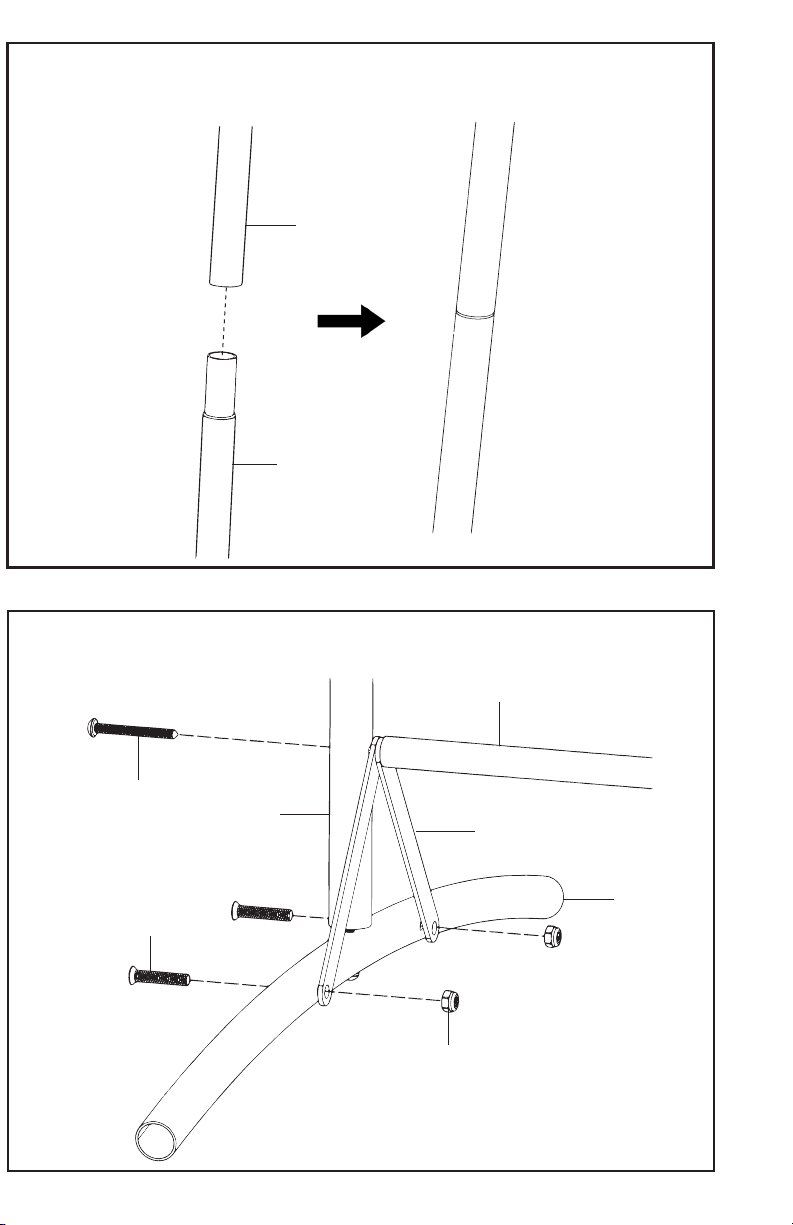

STEP 4
Assemble Braces (H) to Feet (C) using M5x25mm Screws (S-B) and M5 Nuts (S-C). Secure x2 Crossbar (D)
to x2 Lower Vertical Supports (B) using ST4x40mm Screw (S-A).
STEP 3
Slide Upper Vertical Supports (A) onto Lower Vertical Supports (B).
B
A
H
C
S-B
S-C
D
B
S-A
5

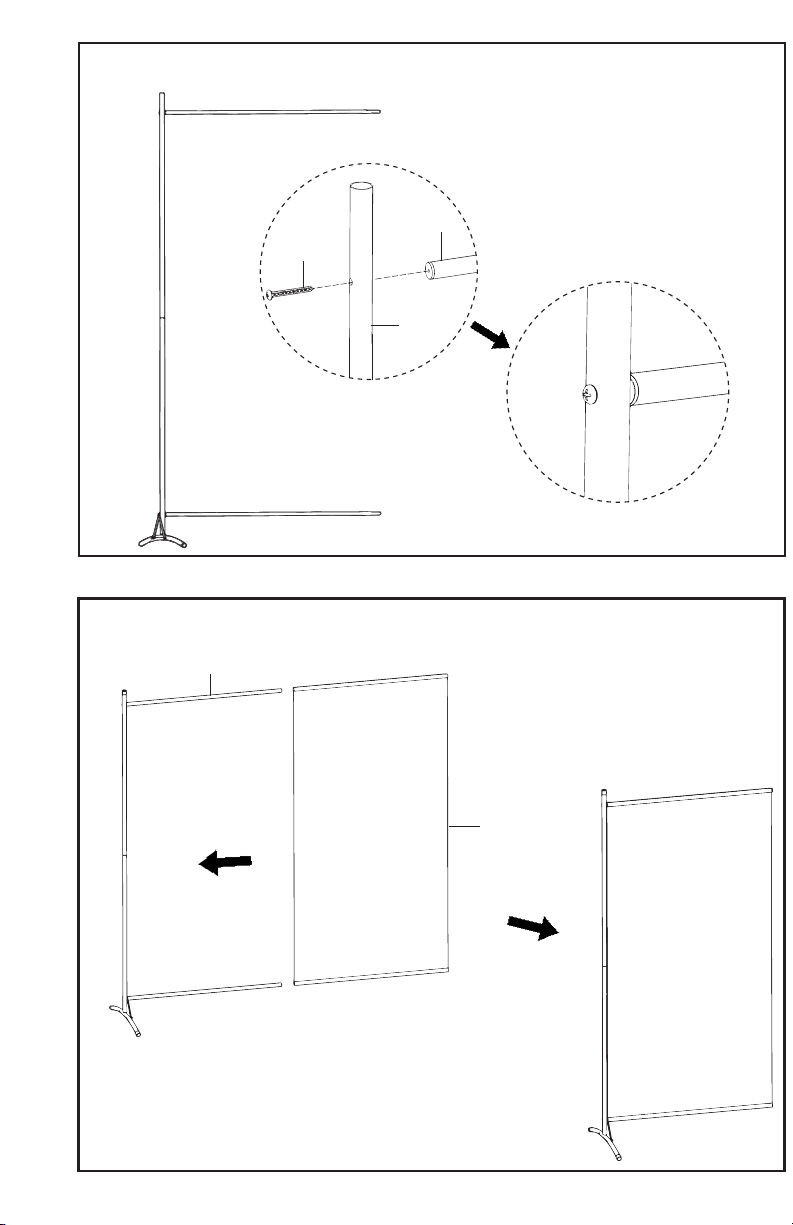

STEP 5
Assemble x2 Crossbars (D) to x2 Vertical Supports (A) using ST4x40mm Screw (S-A) and a Phillips
screwdriver.
D
A
S-A
STEP 6
F
Slide x2 Dividers (F) onto the Crossbars (D).
D
6
3

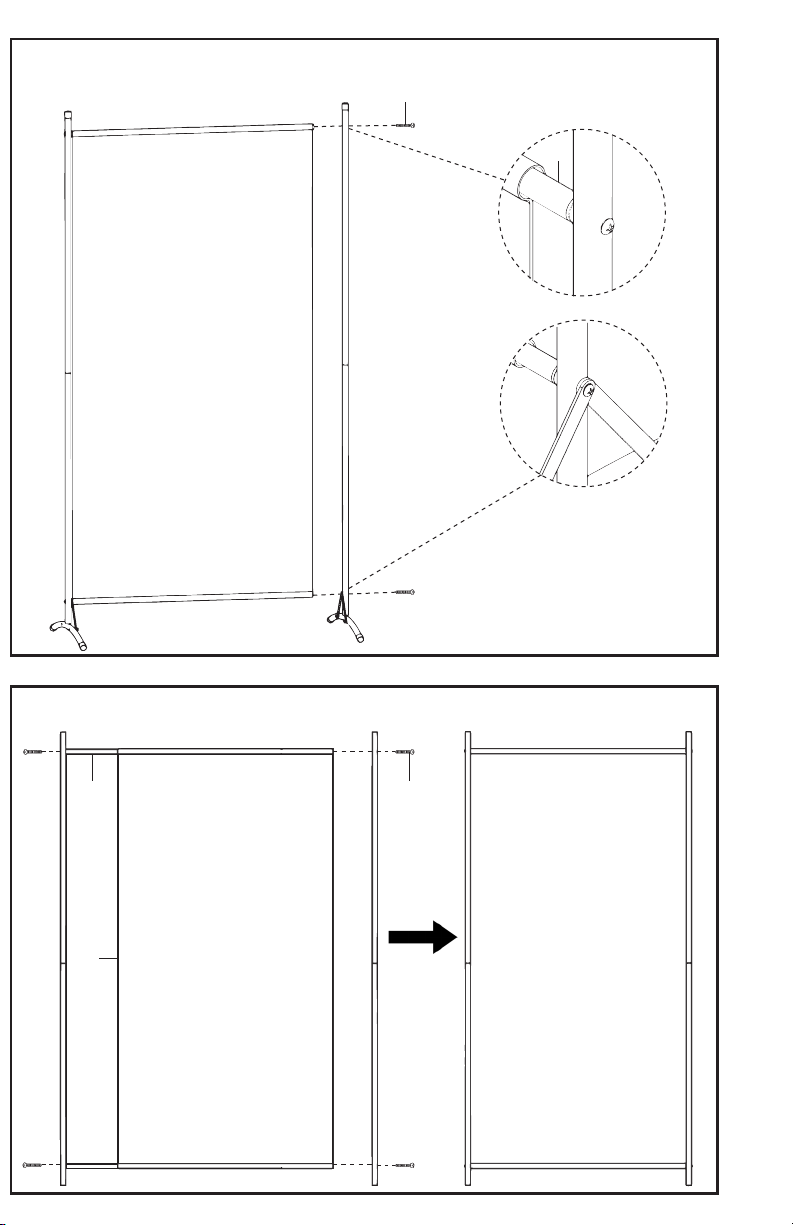

STEP 8
Secure the other upright assemblies to Crossbars (D) using ST4x40mm Screws (S-A) and a Phillips
screwdriver.
STEP 7
S-A
D
Assemble remaining Crossbars (D) and upright assemblies with Divider (F) using ST4x40mm Screws
(S-A) and a Phillips screwdriver.
D
F
S-A
7
3

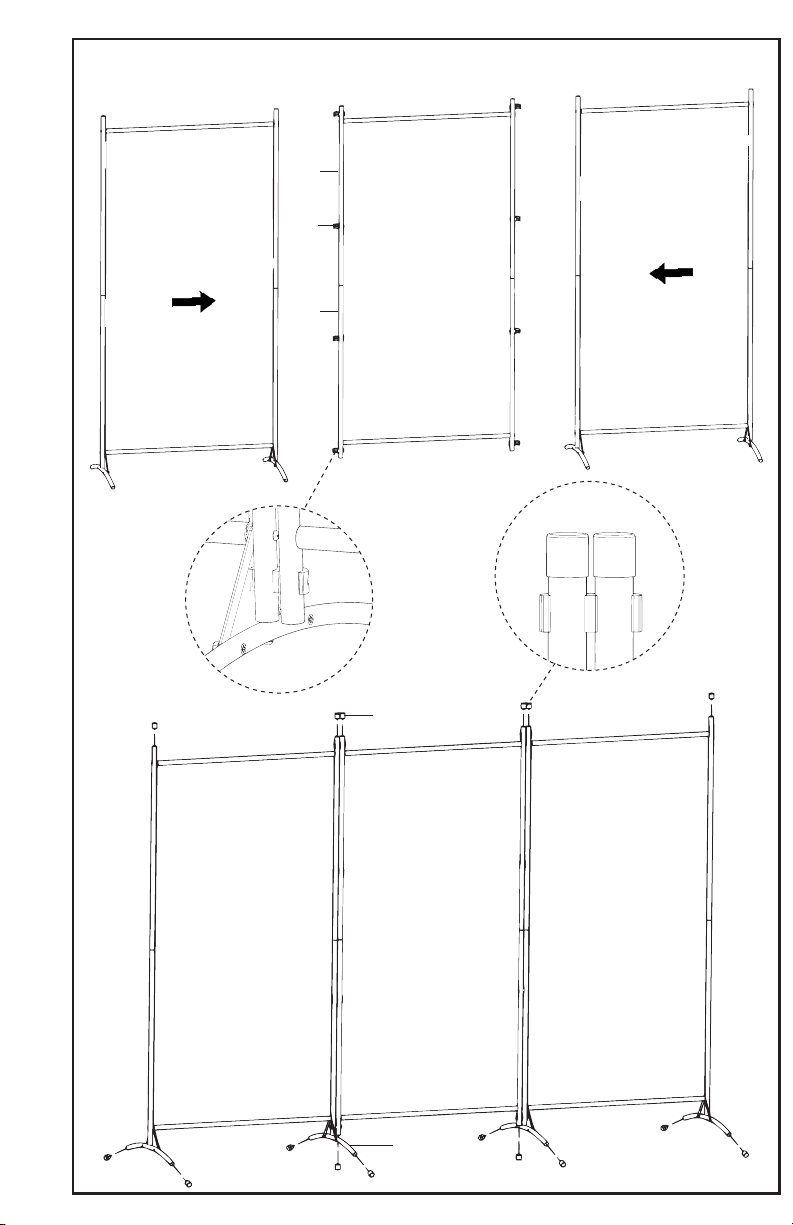

Secure Connector Clips (E) to Upper Vertical Supports (A) and Lower Vertical Supports (B), then
assemble the panels together. Assemble End Caps (G) to Upper Vertical Supports (A), x2 Lower Veritcal
Supports (B)and Feet (C).
STEP 9
E
A
B
G
C
LAST UPDATED: 11/01/2022
REV1.1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
