Vivo STAND-TDML3 Manuale utente
Black Treadmill Desktop Riser
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-tdml3
SKU: STAND-TDML3
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
If you do not understand these directions, or if you have any doubts about the safety of the installation,
please call a qualified technician. Check carefully to make sure there are no missing or defective parts.
Improper installation may cause damage or serious injury. Do not use this product for any purpose that is
not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage
or injury caused by improper mounting, incorrect assembly, or inappropriate use.
11lbs
(5kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
ASSEMBLY STEPS
STEP 1
WARNING!
PACKAGE CONTENTS
A (x1)
Desk
B x4)
Rubber Pad
C(x2)
Strap Bracket
D(x2)
Strap
S-A (x8)
M5x14 Screw
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
TOOLS NEEDED
Phillips
Screwdriver
Measure the treadmill handlebar distance, then mount the Strap Brackets (C) to the corresponding
middle row holes in the tray using M5x14 Screws (S-A). Mount rubber pads (B) to the outer row screw
holes using M5x14 Screws (S-A). Tighten all screws with a Phillips screwdriver. Do not over tighten these
screws.
NOTE: If the treadmill has control buttons on the handlebars, ensure the pads will not be resting on the
buttons.
S-A
B
C
Bottom
3

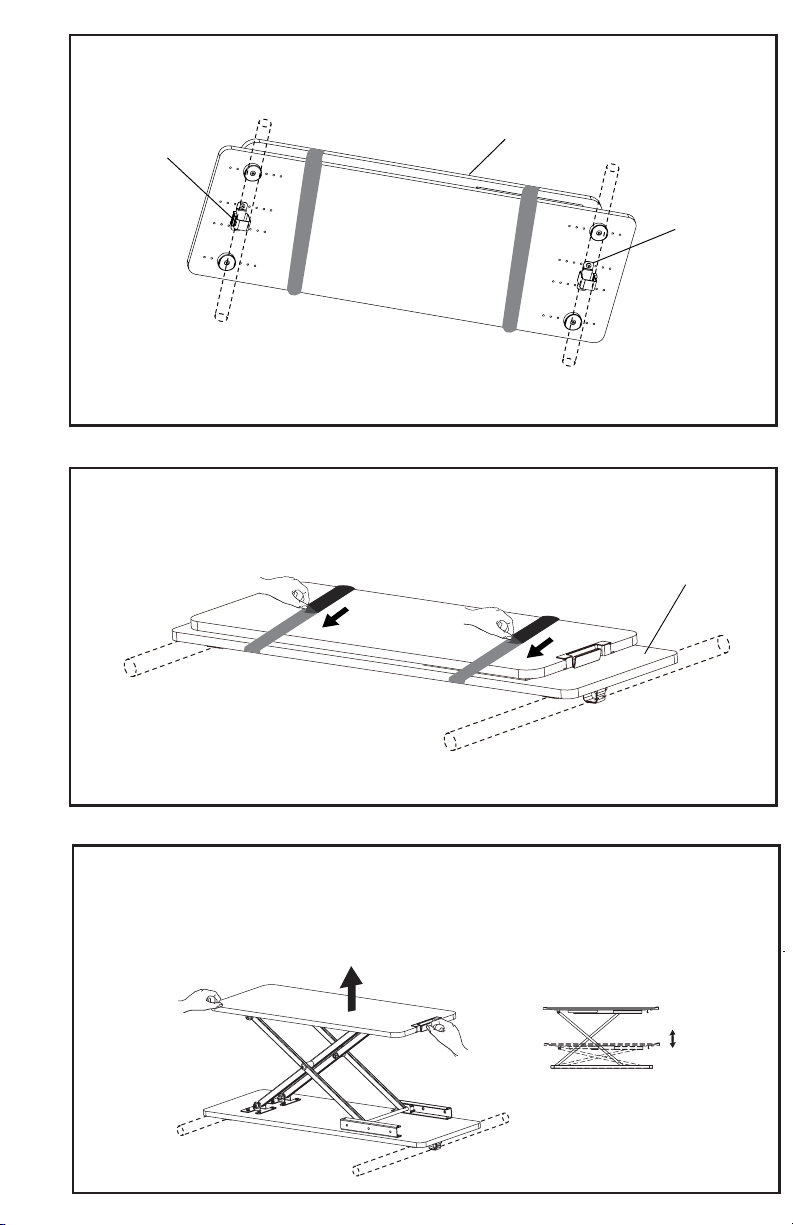

Remove the packaging tie from the Desk (A).
STEP 2
STEP 4
To raise the desk,li up on the desktop or push in the handle and li the desktop. Release the handle to
lock in place.
To lower the desk, push in the handle and slightly li the desktop, then lower to desired height and
release the handle.
STEP 3
Insert the Straps (D) through the Strap Brackets (C), then secure the assembled Desk (A) to the treadmill
handlebars.
A
D
C
A
LAST UPDATED: 08/16/2021
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
