Vivo STAND-V002C Manuale utente

Single Monitor and Laptop Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v002c

SKU: STAND-V002C

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

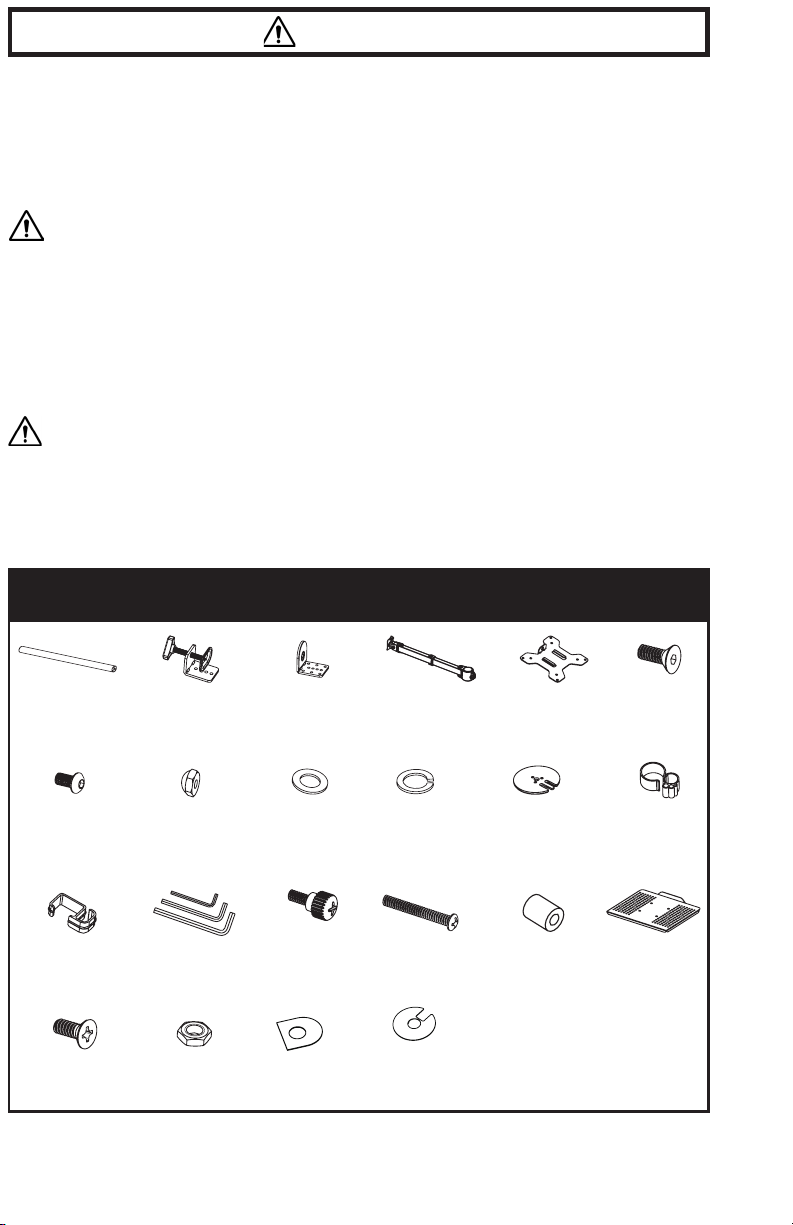

PACKAGE CONTENTS

A (x1)

Pole

B(x1)

Clamp

C(x1)

Clamp Brace

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

D(x2)

Swivel Arm

E(x2)

VESA Plate

F (x3)

M5x14

G (x2)

M8x12

H (x2)

Security Nut

I (x1)

M10 Washer

M (x1)

Allen Key Set

J (x1)

Spring Washer

K (x1)

Grommet Base

Plate

L1 (x1)

Cable Clip

Q (x1)

Laptop Tray

N (x8)

M4x12

O (x8)

M4x30

P (x8)

M4 Spacer

R (x4)

M4x10 Bolt

S (x4)

M4 Nut

T1 (x1)

So Pad

T2 (x1)

So Pad

L2 (x4)

Cable Clip

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

TOOLS NEEDED

22lbs

(9.98kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver Drill

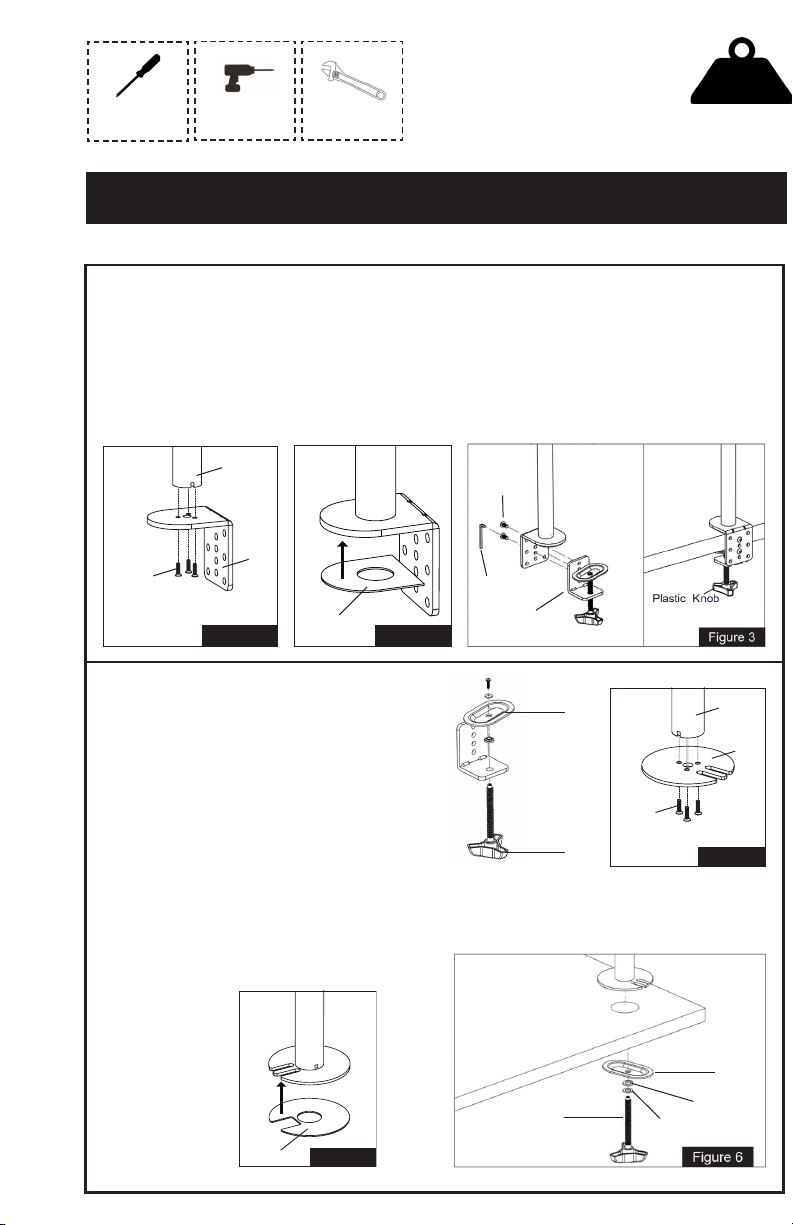

STEP 1

Option A: Desk Clamp Install

1. Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). See Figure 1.

2. Attach so pad (T1) to the clamp brace (C) , see Figure 2.

3. Install the clamp (B) to the pole assembly according to the thickness of the desktop. The

thickness can be changed to 3 positions. Connect using x2 M8x12 bolts (G) and tighten using the

Allen key (M). Tighten the clamp to the desktop using the plastic knob. See Figure 3.

Figure 4

t2 Figure 5

Figure 4

t2 Figure 5

Figure 1 Figure 2

Option B: Grommet Install

1. If desk does not have an existing grommet

hole, drill a 3/8” (10mm) diameter hole at the

desired position through the mounting surface.

2. Completely disassemble clamp (B) into

individual parts. Set knob (B1) and clamp

plate (B2) aside for later use. The L bracket,

bolt, washer and bushing will not be used.

3. Install grommet base plate (K) to the pole (A)

using x3 M5x14 bolts (F). See Figure 4.

4. Attach so pad (T2) to the grommet base plate

(K), see Figure 5.

5. Position pole (A) on the mounting surface

and secure using the clamp plate (B2), spring

washer (J), M10 washer (I) and knob (B1). See

Figure 6.

Wrench

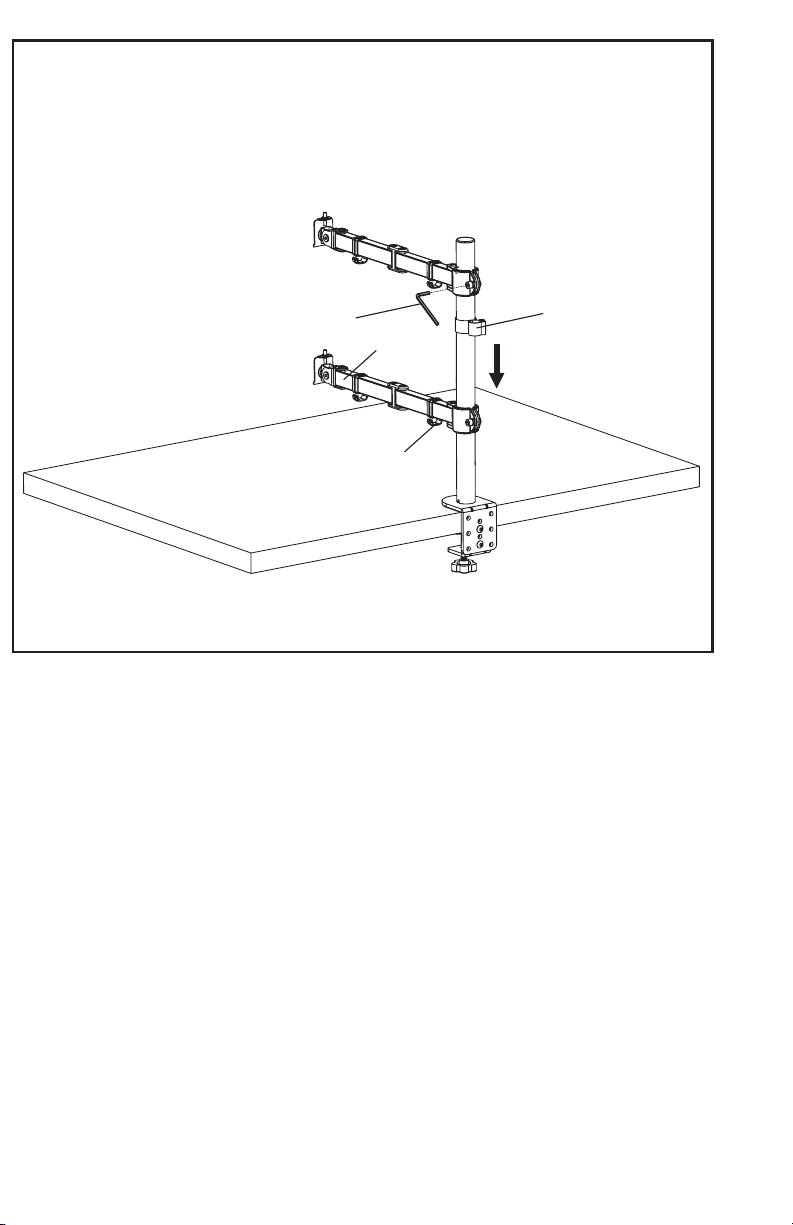

STEP 2

Install Swivel Arms (D) to the Pole (A). Fasten the bolt with supplied Allen Key (M). Attach the Wire Clip

(L1) to the Pole (A) and (L2) to the Swivel Arms (D).

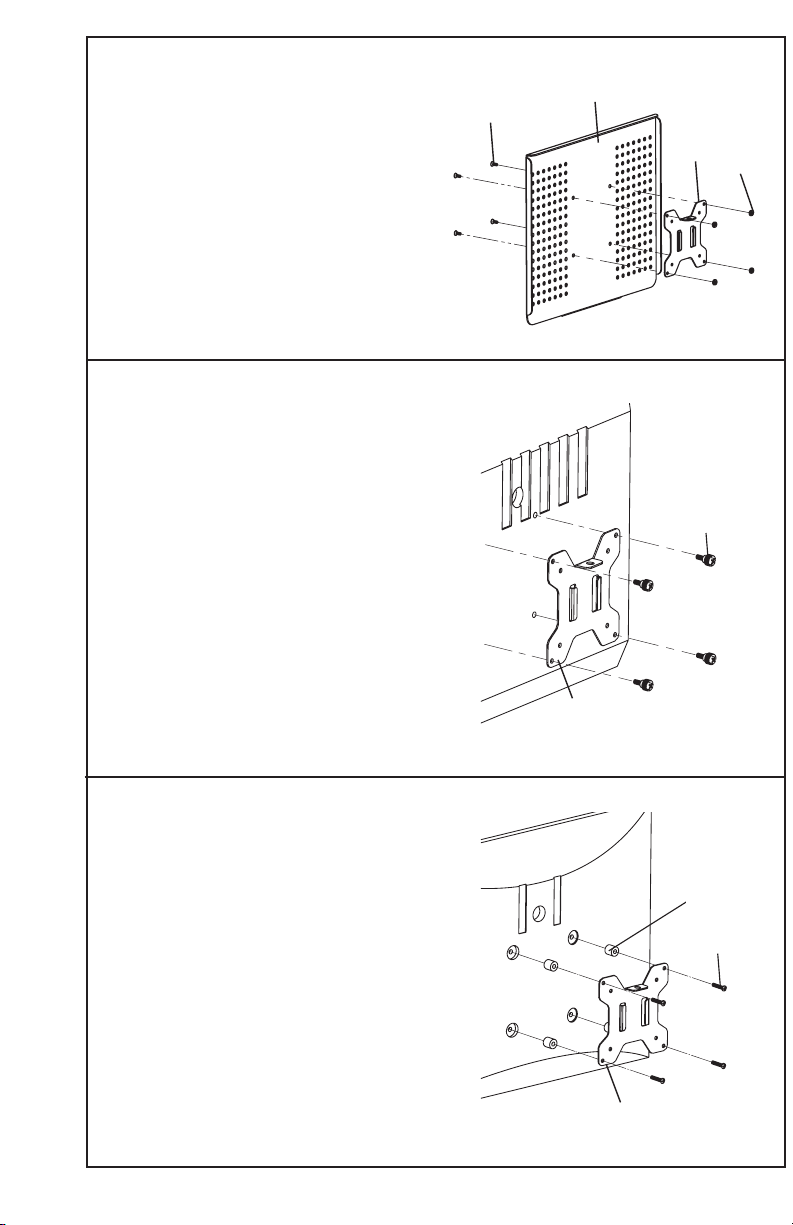

STEP 3

FOR LAPTOP

Attach VESA plate (E) to laptop tray (Q) using

bolts (R) and M4 nuts (S).

FOR FLAT BACK MONITOR

Attach VESA plate (E) to the monitor using

thumb bolts (N).

NOTE: Hand tighten screws to avoid over

tightening.

FOR CURVED BACK MONITOR

Attach VESA plate (E) to the monitor using bolts

(O) and spacers (P).

NOTE: Gently tighten with a screwdriver.

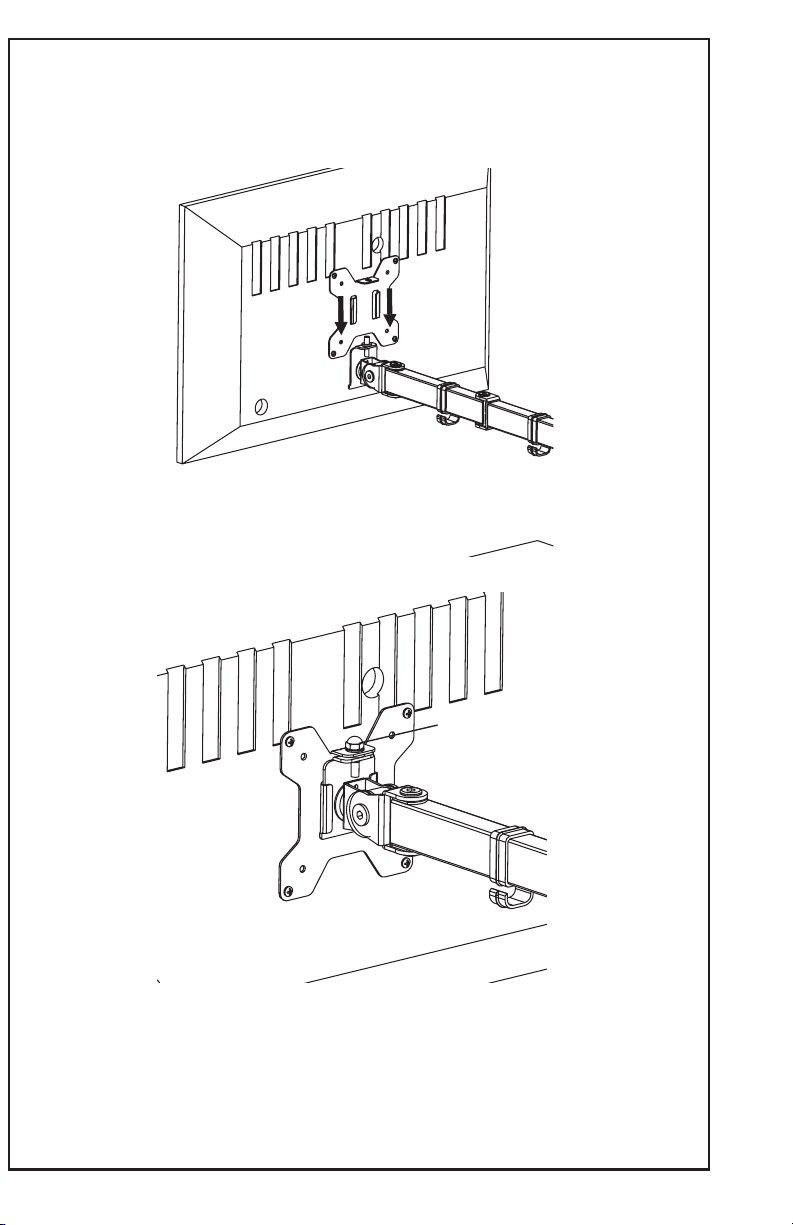

STEP 4

Slide the monitor onto the head of Swivel Arm (D) as shown in the diagram. Install the security Nut

(H). Make sure the security nut is installed before you rotate the monitor.

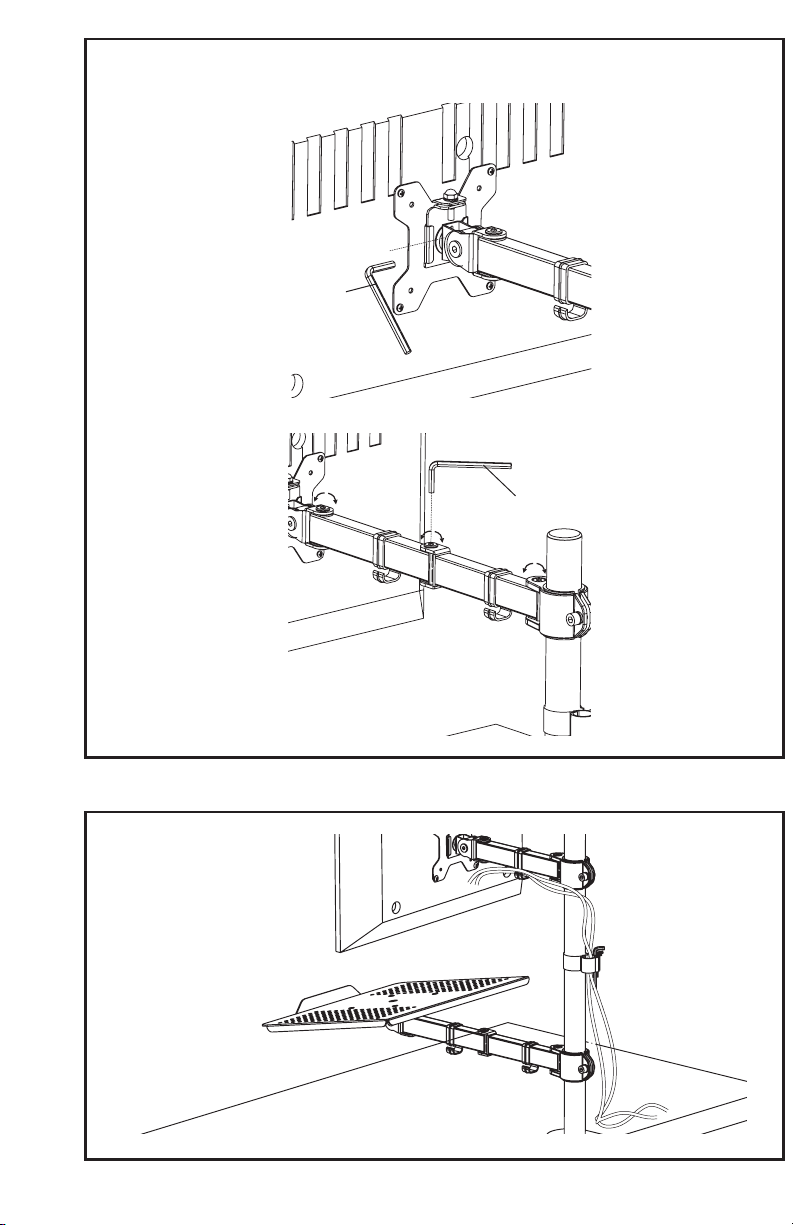

STEP 5

Adjust as Desired

Tighten the bolt with the supplied Allen Key (M) to fix the tilt angle. Use the supplied Allen Key (M) to

make the necessary adjustments

LAST UPDATED: 09/17/2020

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
