Vivo STAND-V032 Manuale utente

Dual Monitor Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v032

SKU: STAND-V032,W

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

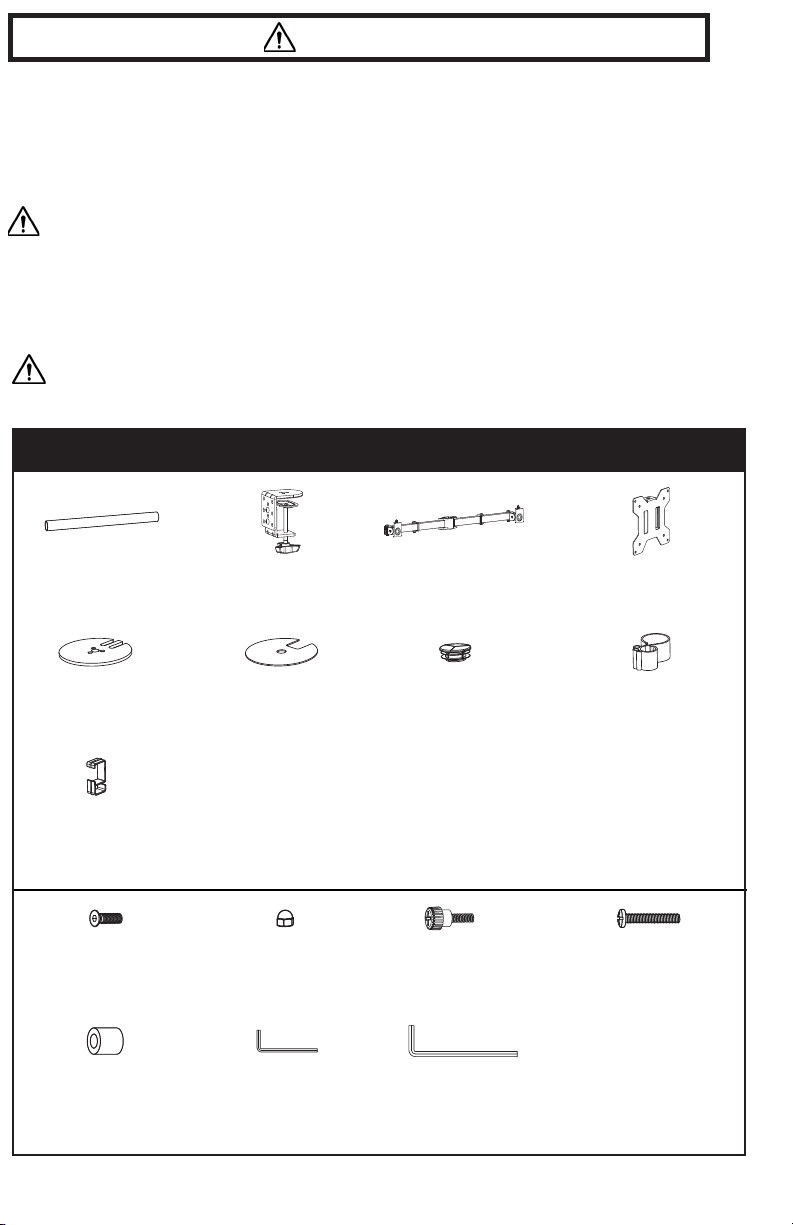

PACKAGE CONTENTS

A (x1)

Pole

B(x1)

Clamp

C(x1)

Swivel Arm

D (x2)

VESA Plate

S-A (x3)

M6x16mm Screw

S-B (x2)

M6 Security

Nut

M-A (x8)

M4x12mm

Thumbscrew

E (x1)

Grommet

Base Plate

F (x1)

So Pad

G (x1)

Pole Cap

H (x1)

Pole Cable

Clip

I (x4)

Arm Cable

Clip

M-B (x8)

M4x30mm Screw

M-C (x8)

M6 Spacer

T-A (x1)

3mm Allen

Wrench

T-B (x1)

5mm Allen

Wrench

ASSEMBLY STEPS

TOOLS NEEDED

22 lbs

Per Arm

(10kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver

STEP 1

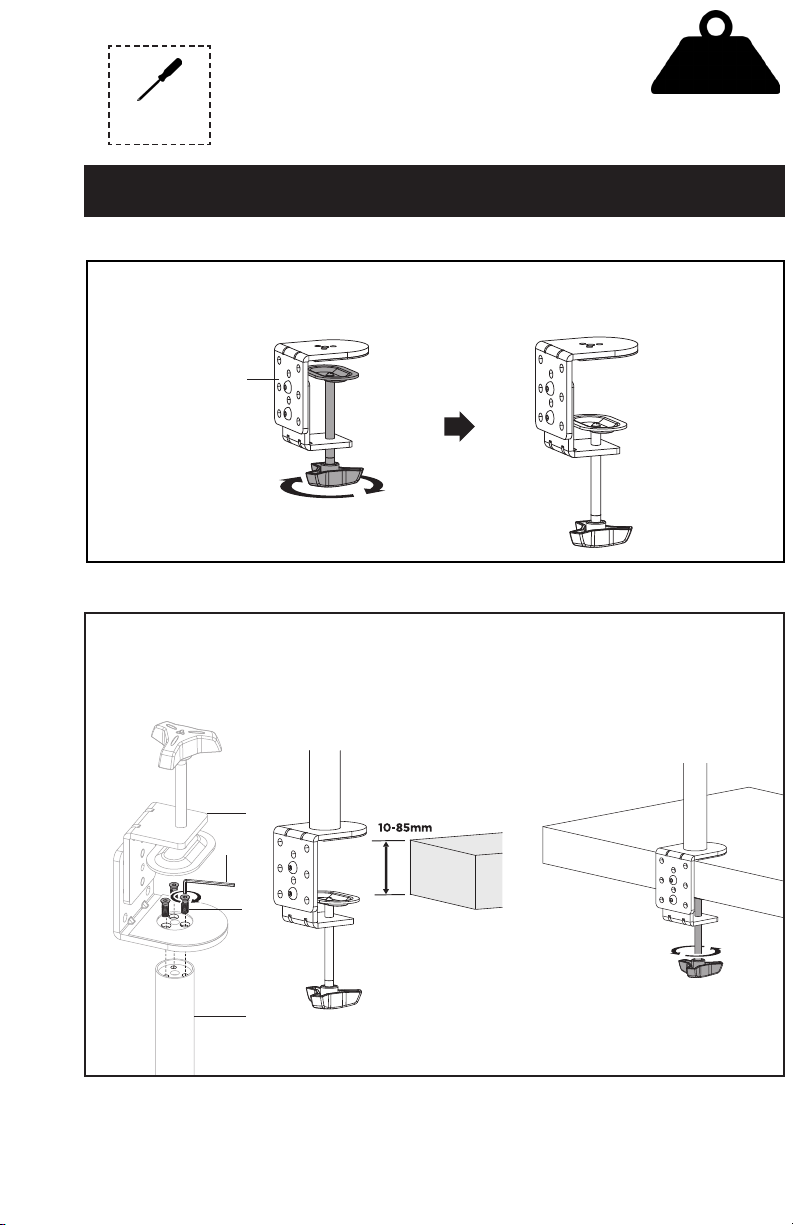

STEP 2A: DESK CLAMP

Loosen knob on Clamp (B).

Mount Clamp (B) to Pole (A) using M6x16mm Screws (S-A) 3mm Allen Wrench (T-A).

Secure assembly to desktop by tightening knob on Clamp (B).

S-A

T-A

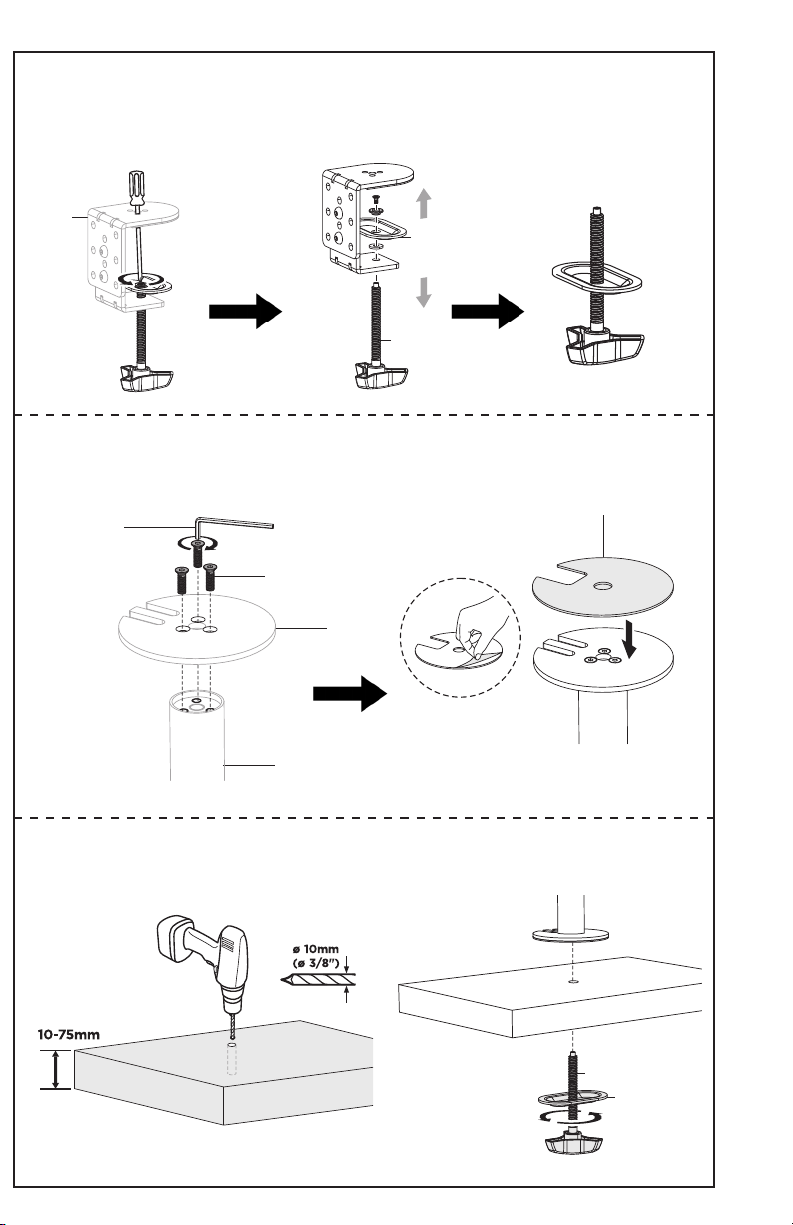

STEP 2B: GROMMET MOUNT

Grommet Installation

Using a Phillips screwdriver, remove the screw from Clamp (B) and separate Clamp Bolt

(B1) and Clamp Plate (B2) from the clamp assembly. Thread Clamp Plate (B2) onto

Clamp Bolt (B1).

S-A

T-A

Install Grommet Base (F) to Pole (A) using M6x16mm Screws (S-D) and 3mm Allen Wrench

(T-A). Remove adhesive backing from So Pad (G) and stick it to the bottom of Grommet

Base (F).

If not using an existing through-hole for mounting, use a 3/8” (10mm) drill bit to create

a mounting hole in the desired location. Thread Clamp Bolt (B1) with Clamp Plate (B2)

through the mounting hole and into Pole (A).

STEP 3

STEP 4

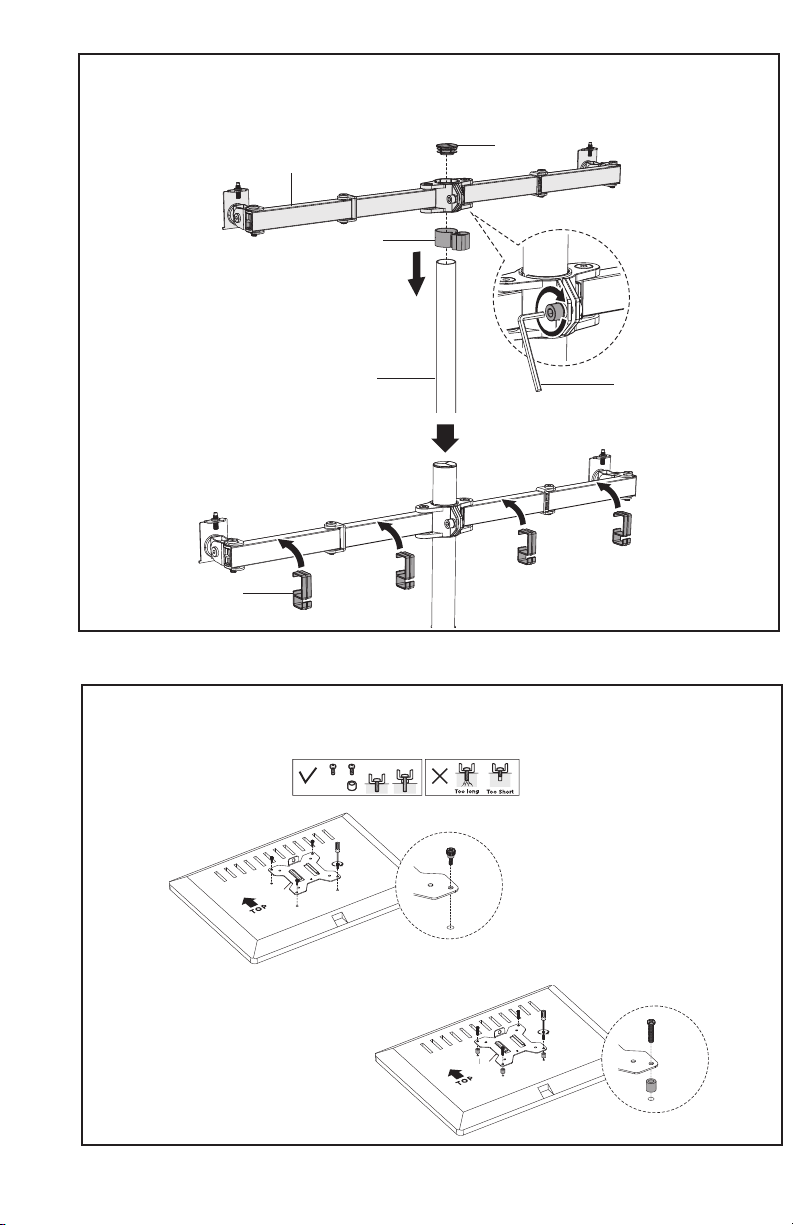

Slide Pole Cable Clip (H) and Swivel Arm (C) onto Pole (A). Secure Swivel Arm (C) in place

using 5mm Allen Wrench (T-B). Attach Pole Cap (G) to Pole (A). Attach Arm Cable Clips (I)

to Swivel Arm (C).

AT-B

Secure VESA Plates (D) to monitors using M4x12mm Thumbscrews (M-A) or M4x30mm

Screws (M-B). M6 Spacers (M-C) may be required.

M-A

M-B

M-C

STEP 5

STEP 6

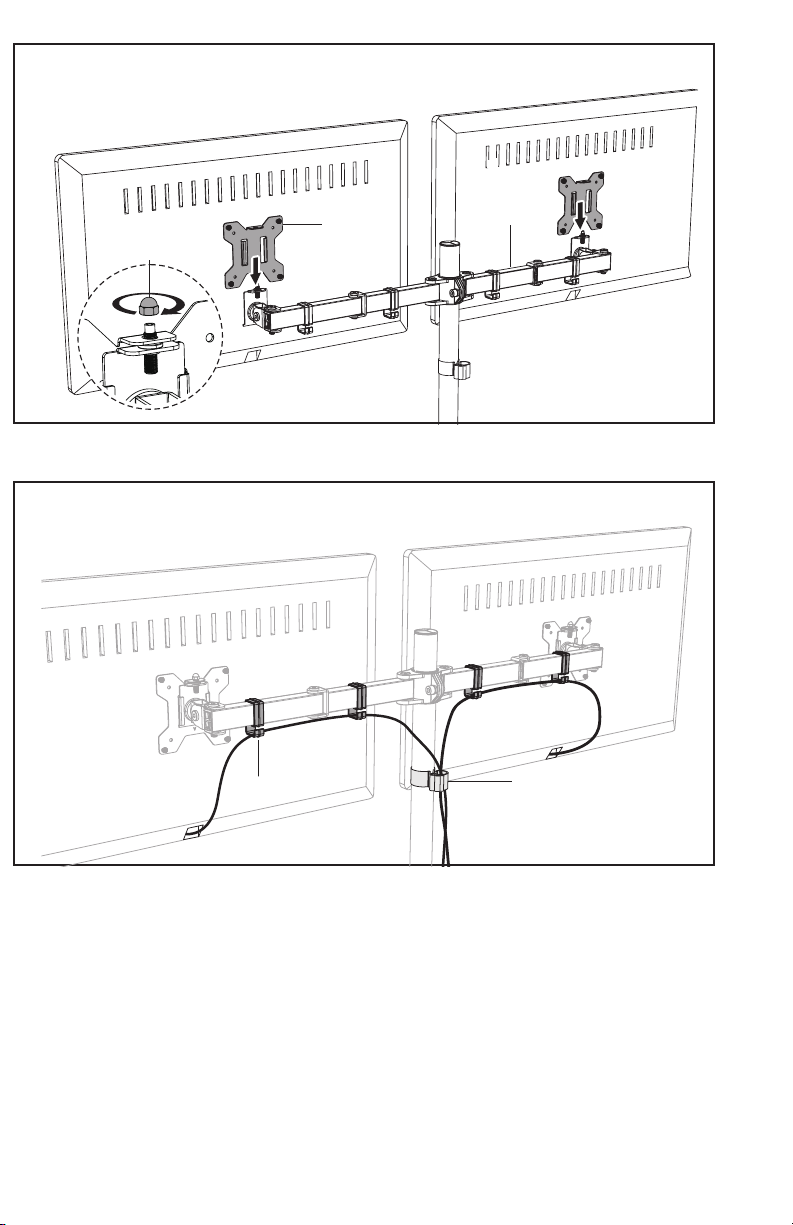

Slide monitors with VESA Plates (D) onto Swivel Arm (C). Secure VESA Plates (D) in place

using M6 Security Nuts (S-B).

S-B

Manage cables using Arm Cable Clips (I) and Pole Cable Clip (H).

STEP 6

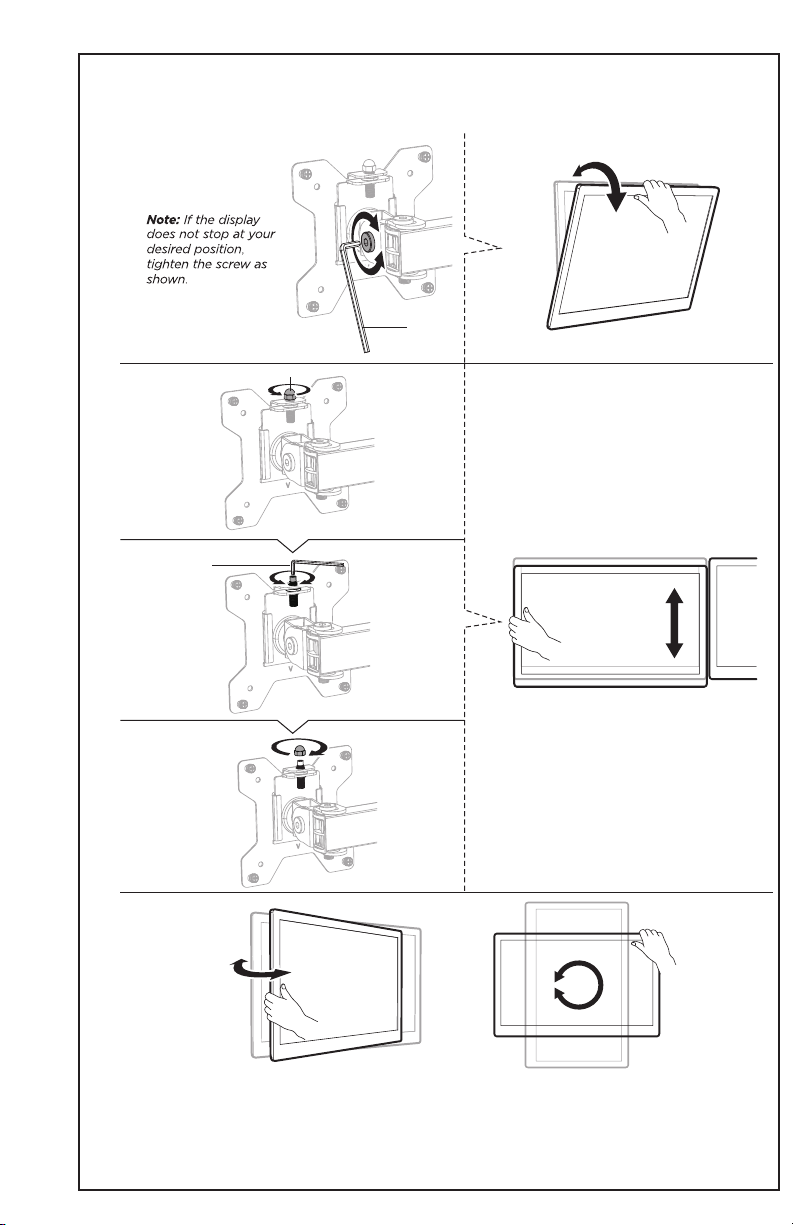

Adjust the monitor tilt using 5mm Allen Wrench (T-B). To level monitors, remove M6

Security Nuts (S-B) and tighten or loosen adjustment screws using 3mm Allen Wrench

(T-A). Once level, fasten M6 Security Nuts (S-B) back into place.

T-B

S-B

T-A

LAST UPDATED: 04/28/2023

REV1.1

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
