Vivo STAND-V100D Manuale utente
Pneumatic Arm Single Ultrawide Monitor
Desk Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v100d
SKU: STAND-V100D
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

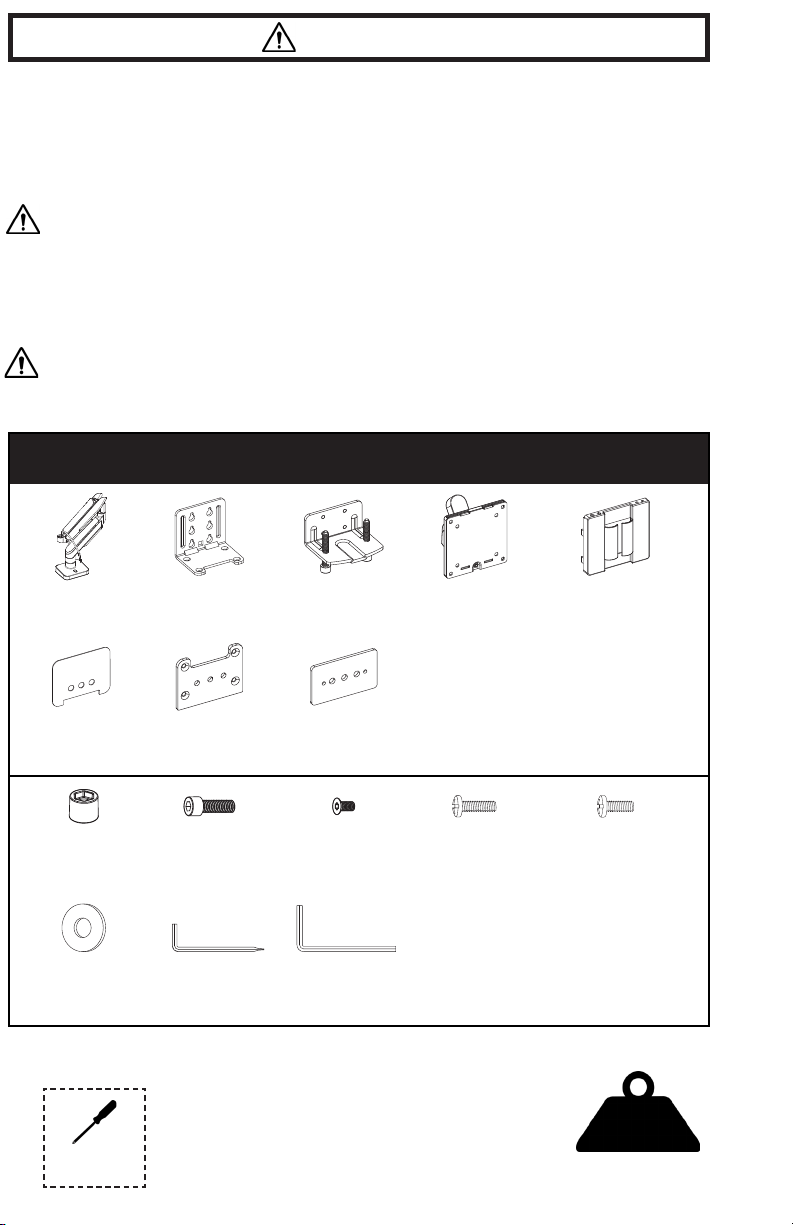

PACKAGE CONTENTS
WARNING!
A (x1)
Arm
F (x1)
Pad
S-A (x1)
Spacer
T-A (x1)
4mm Allen
Wrench
M-C (x4)
M5 Washer
T-B (x1)
6mm Allen
Wrench
S-B (x1)
M8x25mm
Screw
S-C (x4)
M6x12mm
Screw
M-A (x4)
M4x12mm
Screw
M-B (x4)
M5x12mm
Screw
G (x1)
Grommet
Plate
H (x1)
Support
Plate
B (x1)
Upper Clamp
C (x1)
Lower Clamp
D (x1)
VESA Plate
E (x1)
Clamp Cable Clip
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product for
any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We cannot
be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate
use.
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
TOOLS NEEDED
Phillips
Screwdriver
4.4-44 lbs
(2-20 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
3

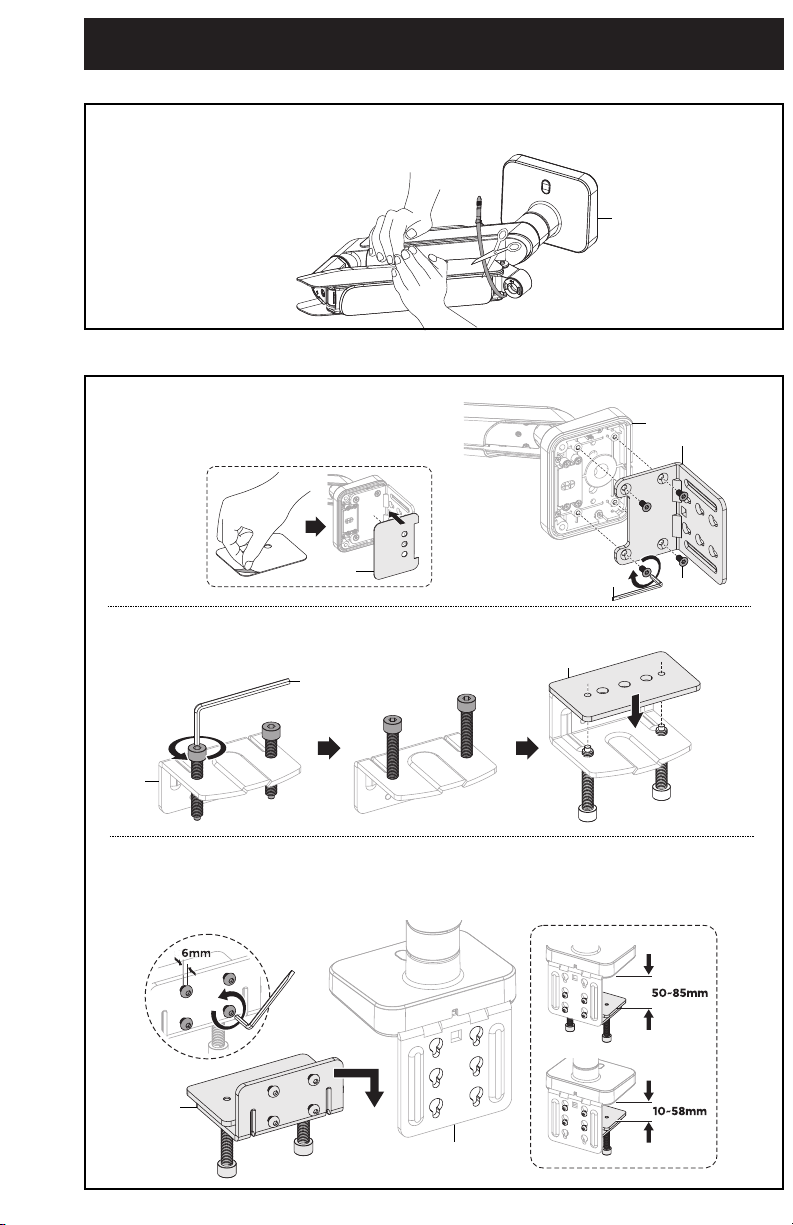

ASSEMBLY STEPS
STEP 1
STEP 2: Option A - Desk Clamp
Cut the shipping tie from Arm (A) while firmly holding the two halves close together. Slowly release
the pressure and allow it to gradually open up to reach full extension.
Assemble Upper Clamp (B) to the underside of Arm
(A) using M6x12mm Screws (S-C) and 4mm Allen
Wrench (T-A). Place Pad (F) to bottom of Upper
Clamp (B).
Loosen bolts on Lower Clamp (C) using 6mm Allen Wrench (T-B). Turn Clamp over and place
Support Plate (H) over bolt ends.
A
Slightly loosen back side screws on Lower Clamp (C), allowing 6mm to be exposed. Slide Lower
Clamp (C) into the appropriate keyholes of Upper Clamp (B) based on desktop thickness. Use
lower holes for desktops 50-85mm (2” to 3 3/8”) thick, and upper holes for desktops 10-58mm (3/8”
to 2 1/4”).
F
B
A
S-C
T-A
C
T-B
H
C
B
4

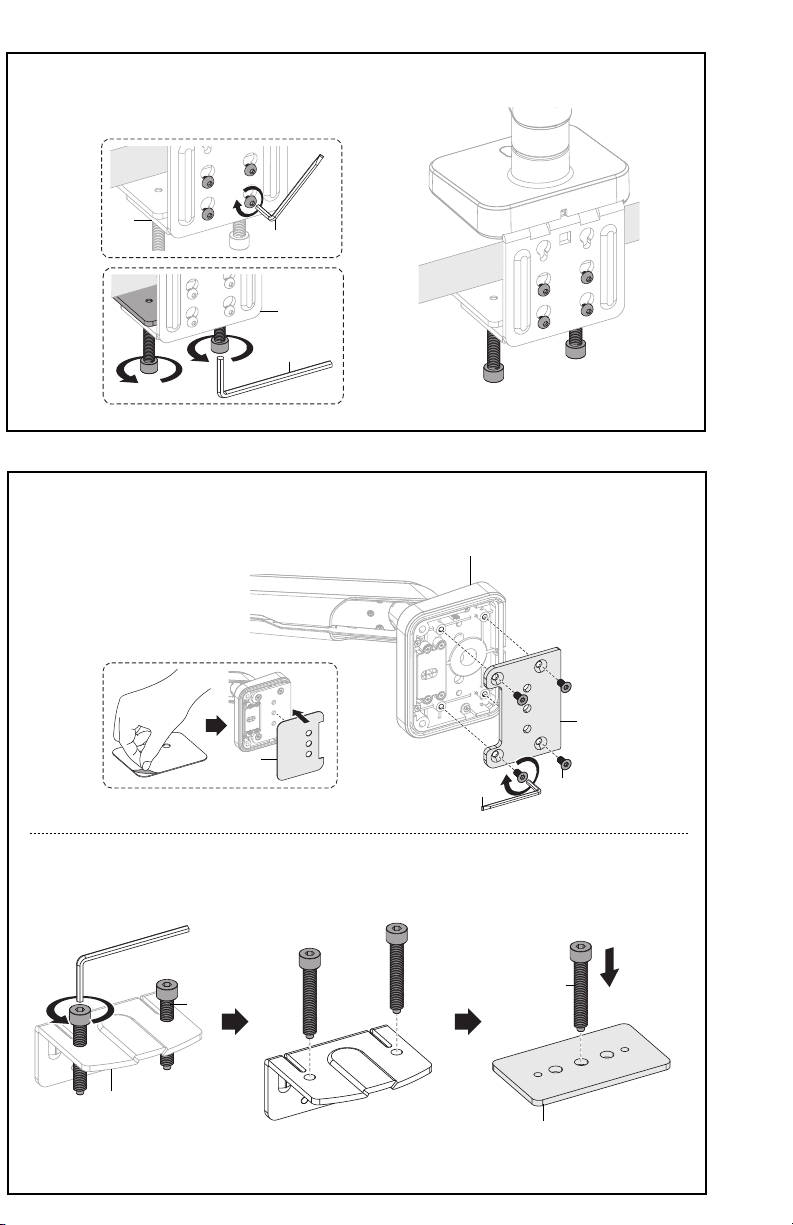

STEP 2: Option A - Desk Clamp - Continued
STEP 2: Option B - Grommet
Assemble Grommet Plate (G) to under side of Arm (A) using M6x12mm Screws (S-C) and 4mm Allen
Wrench (T-A). Apply Pad (F) to Grommet Plate (G).
Remove Bolts (C1) from Lower Clamp (C) using 6mm Allen Wrench (T-B). Insert one Bolt (C1) into
middle hole of Support Plate (H).
Secure screws on Lower Clamp (C) using 4mm Allen Wrench (T-A). Tighten lower bolts on Lower
Clamp (C) to secure to desktop using 6 mm Allen Wrench (T-B).
T-A
T-B
C
C
T-A S-C
G
F
C
C1
H
C1
Proceed to Step 3 at the bottom of Page 5
A
5
STEP 2: Option B - Grommet - Continued
If you are using an existing grommet hole, ensure that it is at least 10mm (3/8”) in diameter and no
more than 60mm (2 3/8”). Desktop should be between 10mm-48mm (3/8” to 1 7/8”) . For desktops
without an existing gromment hole, use a 3/8” (10mm) drill bit to drill through desktop.
EXISTING
GROMMET HOLE
DRILLING A
GROMMET HOLE
Place mount asembly over gromment hole and secure to
desktop using Support Plate (H), Bolt (C1), and 6mm Allen
Wrench (T-B).
STEP 3
Connect VESA Plate (D) to Arm (A) using Spacer (S-A), M8x25mm Screw (S-B), and 6mm Allen Wrench
(T-B). Ensure that hexagon side of space is facing upward towards VESA Plate (D). Remove Thumbscrew
(D1) from back of VESA Plate (D). Separate Front VESA Plate (D2) from Back VESA Plate (D3). Set aside.
C1
T-B
H
D
A
D2
D3
S-A
S-B
T-B
D1
6
STEP 5
STEP 6
STEP 4

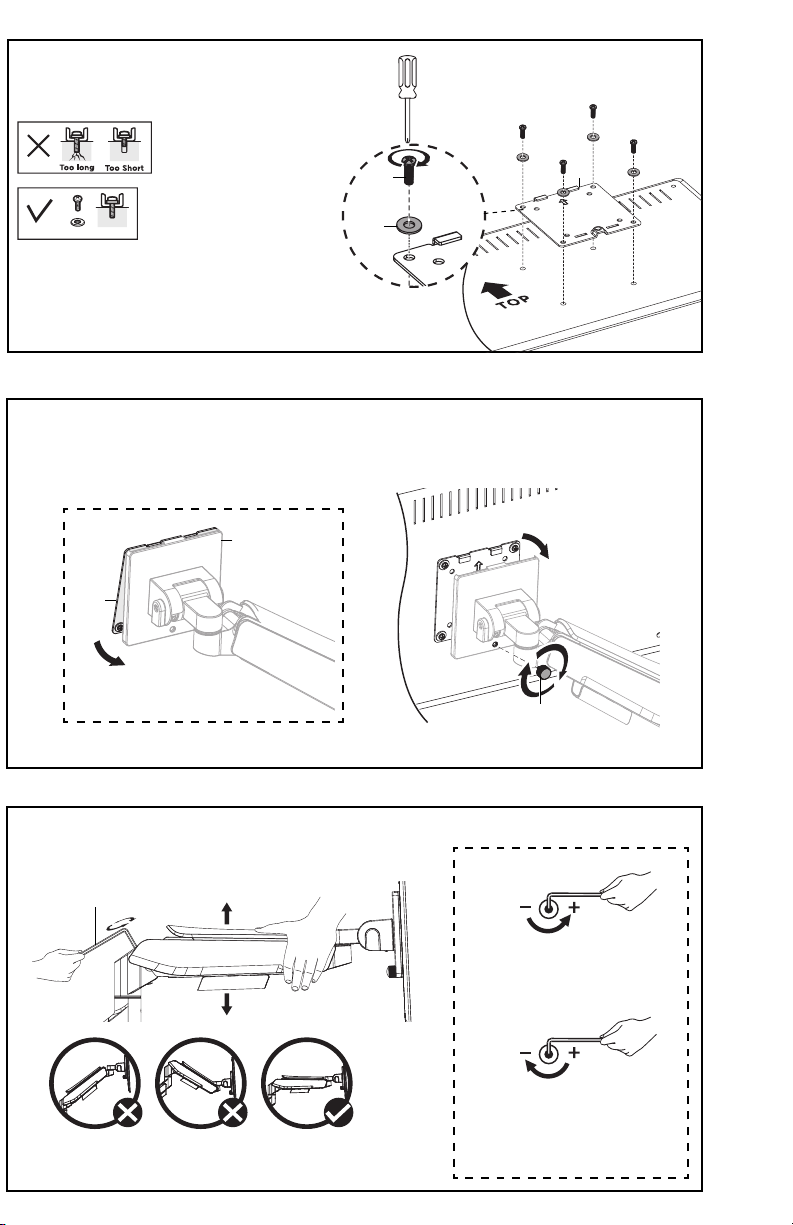

To mount the monitor, begin by lining up the tabs on Front VESA Plate (D2) with the slots on Back VESA
Plate (D3). Insert tabs into slots and re-install Thumbscrew (D1) into Back VESA Plate (D3) to secure.
While holding the arm in the horizontal position, adjust the gas spring tension using 6mm Allen
Wrench (T-B).
Connect Front VESA Plate (D2) to back of
Monitor using appropriate Screws (M-A, M-B),
M5 Washers (M-C), and a Phillips Screwdriver.
M-A
M-B
M-C
D2
D2
D3
D1
ARM DROPS - If the arm drops,
turn the adjustment screw counter
clockwise until it holds the monitor
in a horizontal position.
How to adjust if...
ARM RISES - If the arm raises up,
turn the adjustment screw lockwise
until it holds the monitor in a
horizontal position.
CAUTION - To avoid damage to the monitor and mount, always
keep the arm in a horizontal position while making adjustments.
T-B
7

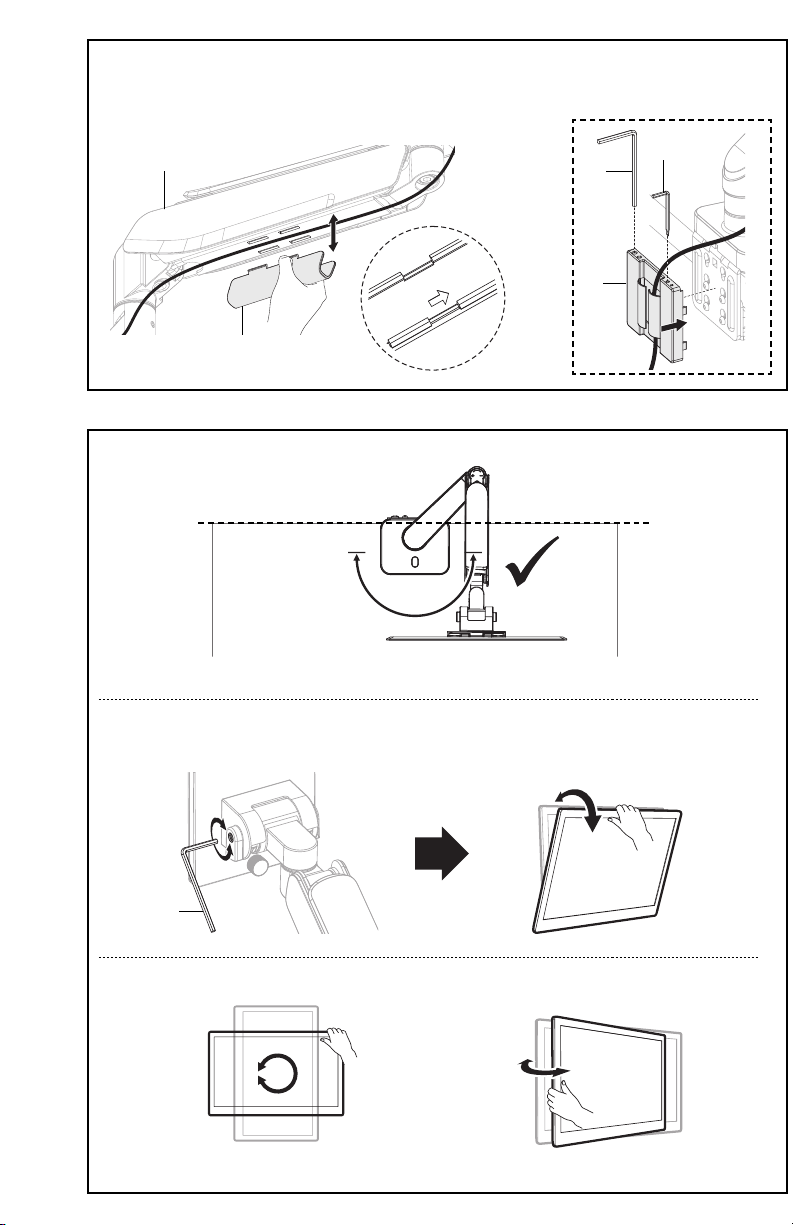

STEP 7
STEP 8
Remove Cable Cover (A1) from Arm (A) by sliding it forward. Route cables and replace Cover (A1).
Place Clamp Cable Clip (E) onto backside of assembly for additional cable management. 4mm and
6mm Allen Wrenches (T-A, T-B) can be stored in slots for future adjustments.
To keep mount stable, do not extend arm fully behind desktop edge.
Adjust the tilt using the 6mm Allen Wrench (T-B).
X
Adjust the monitor position as desired.
A1
A
E
T-A
T-B
T-B
LAST UPDATED: 11/15/2022
REV1
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
