PACKAGE CONTENTS
TOOLS NEEDED
110lbs
50kg
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
Phillips
Screwdriver
B (x2)
Bracket
C(x12)
M5x80
D(x12)
Anchor
E (x8)
M4x16
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
Drill
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting hardware for brick and concrete walls. If unsure, please contact us at
vivo-us.com, email at help@vivo-us.com, or call us at 309-278-5303.
Level
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3
YEARS. ADULT SUPERVISION IS REQUIRED.

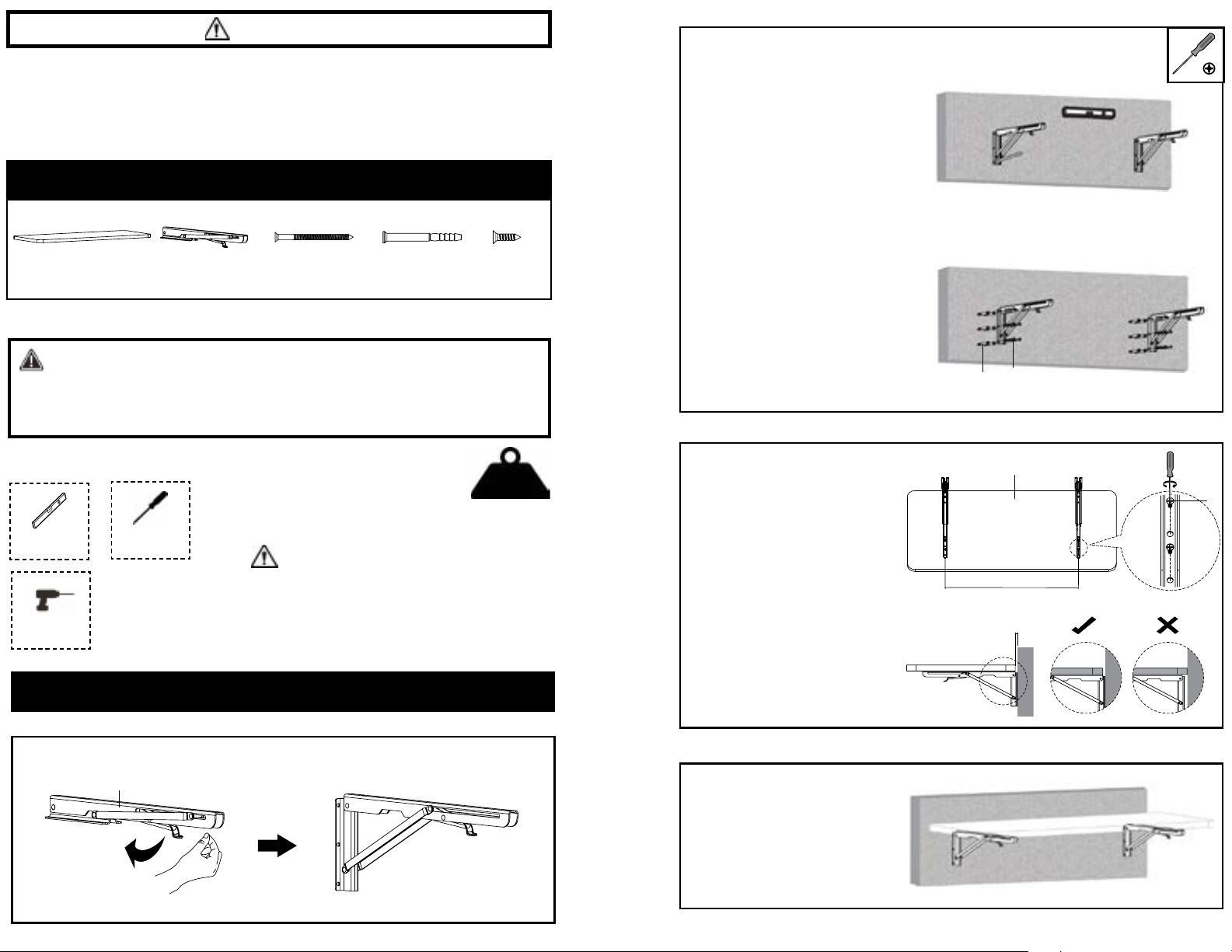

ASSEMBLY STEPS
STEP 1
Unfold the brackets (B) to the open position.
A (x1)
Shelf
STEP 2
Place the shelf (A) on the mounted
brackets, making sure the back of the
shelf is spaced at least 3/8” (10mm)
from the wall. Secure the brackets
to the shelf using M4x16 screws (E)
(If needed, pilot holes may be drilled
using a 3/32” drill bit).
STEP 3
STEP 4
Squeeze the levers to fold the shelf
against the wall when not in use. To
raise the shelf, simply pull up until the
latches engage.
min400~max800mm
≥10mm
OPTION A: Wood Stud Wall
Place brackets against the wall, aligning
only 3 vertical holes on each bracket
with center of stud (other 3 holes will
be unused), and mark drilling locations.
Use of a level and stud finder is
recommended. Drill 3” deep holes using
a 1/8” drill bit, and secure brackets to
wall using M5x80 screws (C).
OPTION B: Brick/Concrete Wall
Place brackets against the wall and mark
drilling locations. Use of a level is recom-
mended. Drill 3” deep holes using a 5/16”
drill bit and press anchors (D) into holes.
Secure brackets to wall using M5x80 screws
(C).
NOTE: The anchors are meant only for use
with brick or concrete walls and should not
be used with wood or drywall.
B
A
E
DC
