Vivo MOUNT-VW100T Manuale utente

TV Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-vw100t

SKU: MOUNT-VW100T

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

TOOLS NEEDED

165lbs

(75kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualified technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

Drill

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS.

ADULT SUPERVISION IS REQUIRED.

PACKAGE CONTENTS

A (x1)

Mount

B (x2)

VESA Bracket

C (x2)

Knob

M-A (x4)

M6x14mm

Screw

M-B (x4)

M8x16mm

Screw

M-C (x4)

M6x30mm

Screw

M-D (x4)

M8x35mm

Screw

M-E (x4)

M8 Washer

M-F (x4)

Small Spacer

M-G (x4)

Large Spacer

W-A (x6)

Mounting

Screw

W-B (x6)

Concrete

Anchor

W-C (x6)

Washer

T-A (x1)

Bubble Level

ASSEMBLY STEPS

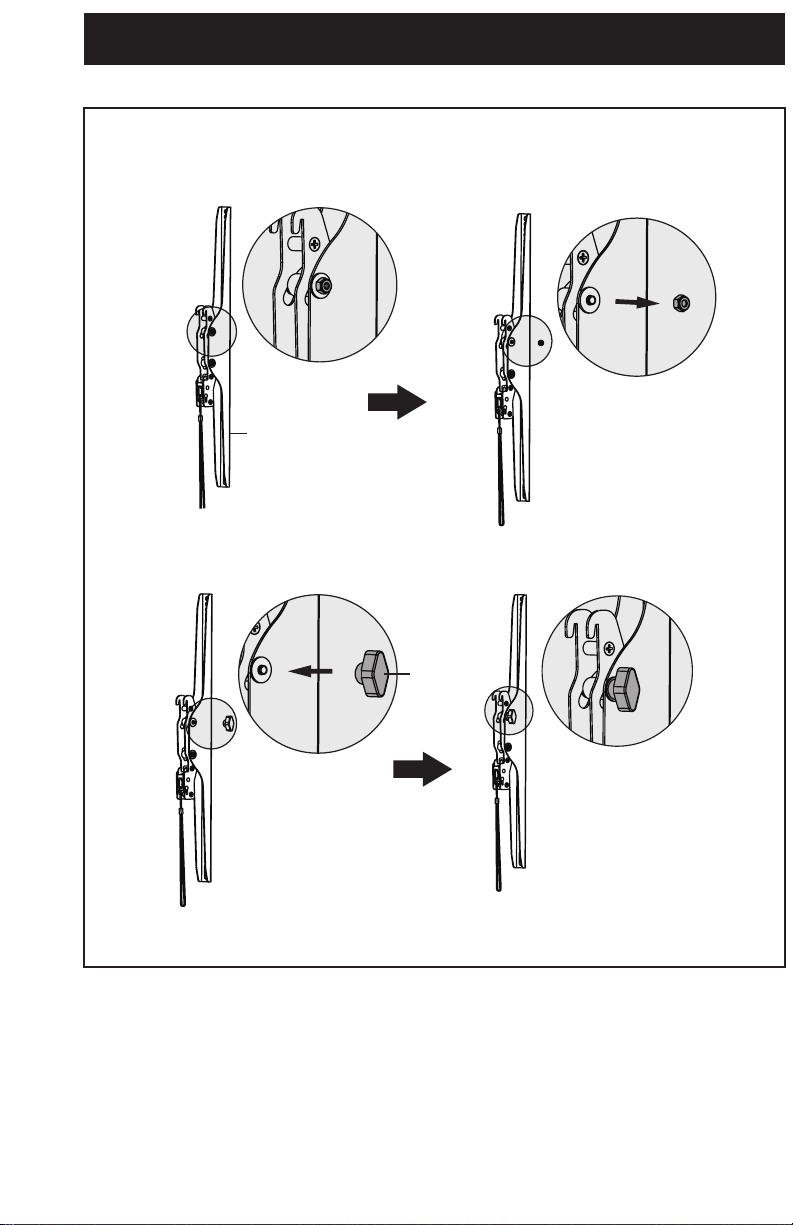

STEP 1

Remove nuts from VESA Brackets (B) and replace with Knobs (C).

STEP 2

OPTION A: Wood Wall

Holding the Mount (A) up to wall at desired height, use a pencil to mark mounting holes on wall where

studs are located. Using a 5/32” bit, drill approximately 2.2” into wall. Use Mounting Screws (W-A) and

Washers (W-C) to secure Mount (A) to the wall.

Use of Bubble Level (T-A)

is recommended.

T-A

W-C

W-A

STEP 2 (Continued)

OPTION B: Concrete/Brick Wall

Holding the Mount (A) up to wall at desired height, use a pencil to mark mounting holes on wall where

studs are located Using a 3/8” bit, drill approximately 2.4” into wall. Insert Anchors (W-B) into holes

and secure Mount (A) to wall using Mounting Screws (W-A) and Washers (W-C).

T-A

Use of Bubble Level (T-A)

is recommended.

W-A

W-C

W-B

STEP 3

STEP 4

Attach TV to Mount (A) as shown below, making sure bottom of VESA Brackets (B) attached securely.

Mount VESA Brackets (B) to back of TV using appropriate Screws (M-A thru M-D), M8 Washers (M-E),

and a Phillips screwdriver. Spacers (M-F, M-G) are provided if needed. Makes sure straps are towards

the bottom of TV.

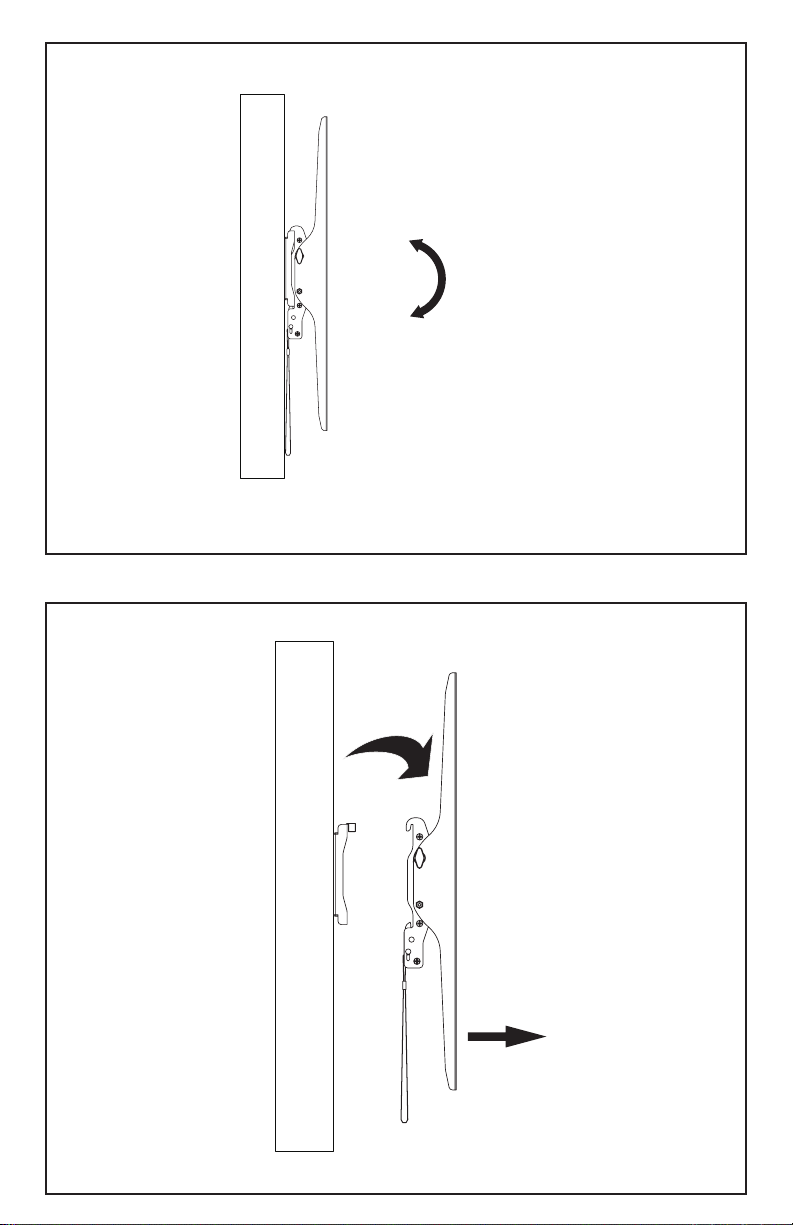

Adjustments

To remove, pull both straps down and li TV o of Mount (A).

TV angle can be adjusted as desired.

+5 °

-10°

LAST UPDATED: 02/10/2023

REV2
