Vivo STAND-TV03E Manuale utente

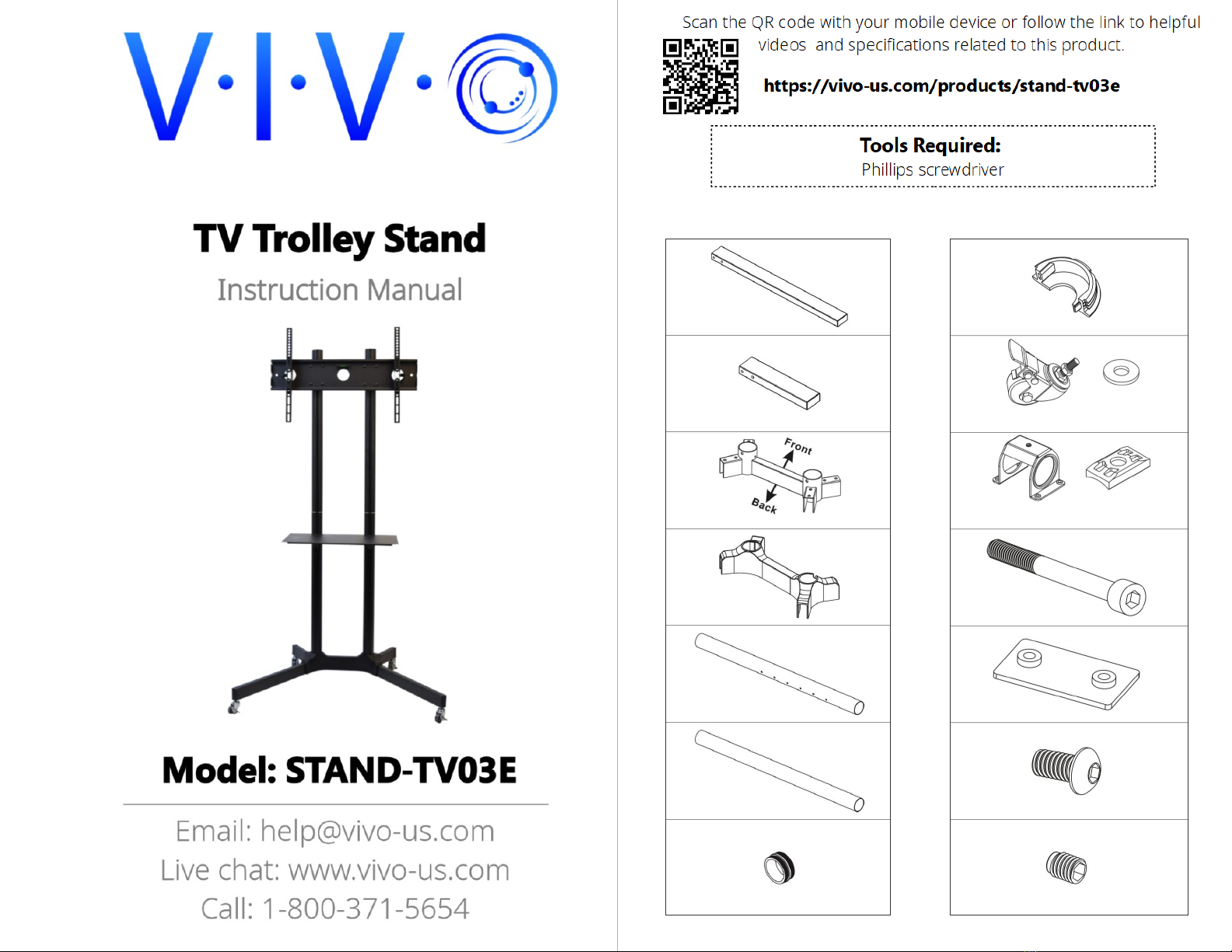

Package Contents
- 1 Long
square tube
- 2 Short
square tube
- 3 Tube
connector
- 4 Tube connector
cover
- 5 Pole with shelf
- add on holes
- 6 Pole
without holes
- Pole
connector
QT: 2
QT: 2
QT: 1
QT: 1
QT: 2
QT: 2
QT: 2
- 8 Pole cover
- 9 Wheel & washer
- 10 Square
plate connector & rubber pad
- 11 M6x60
allen head bolt
- 12 M6
socket plate
- 13 M6x10
allen head bolt
- 14 M5x6
grub screw
QT: 4
QT: 4
QT: 2
QT: 8
QT: 4
QT: 14
QT: 2
1
- 15 Tool kit
- 16 Shelf
- 1 Shelf support
- 18 M4x6 countersink bolt
- 19 Square plate
- 20 TV arm set
- 21 M4x12 bolt M4x30 bolt
QT: 1
QT: 1
QT: 2
QT: 4
QT: 1
QT: 1
QT: 4
- 22 M6x20 bolt M6x35 bolt
- 24 M4 washer
- 25 M6 washer
- 26 M8 washer
- 28 M6/M8 spacer (5mm)
QT: 4
QT: 4
QT: 4
QT: 12
QT: 4
QT: 4
QT: 8

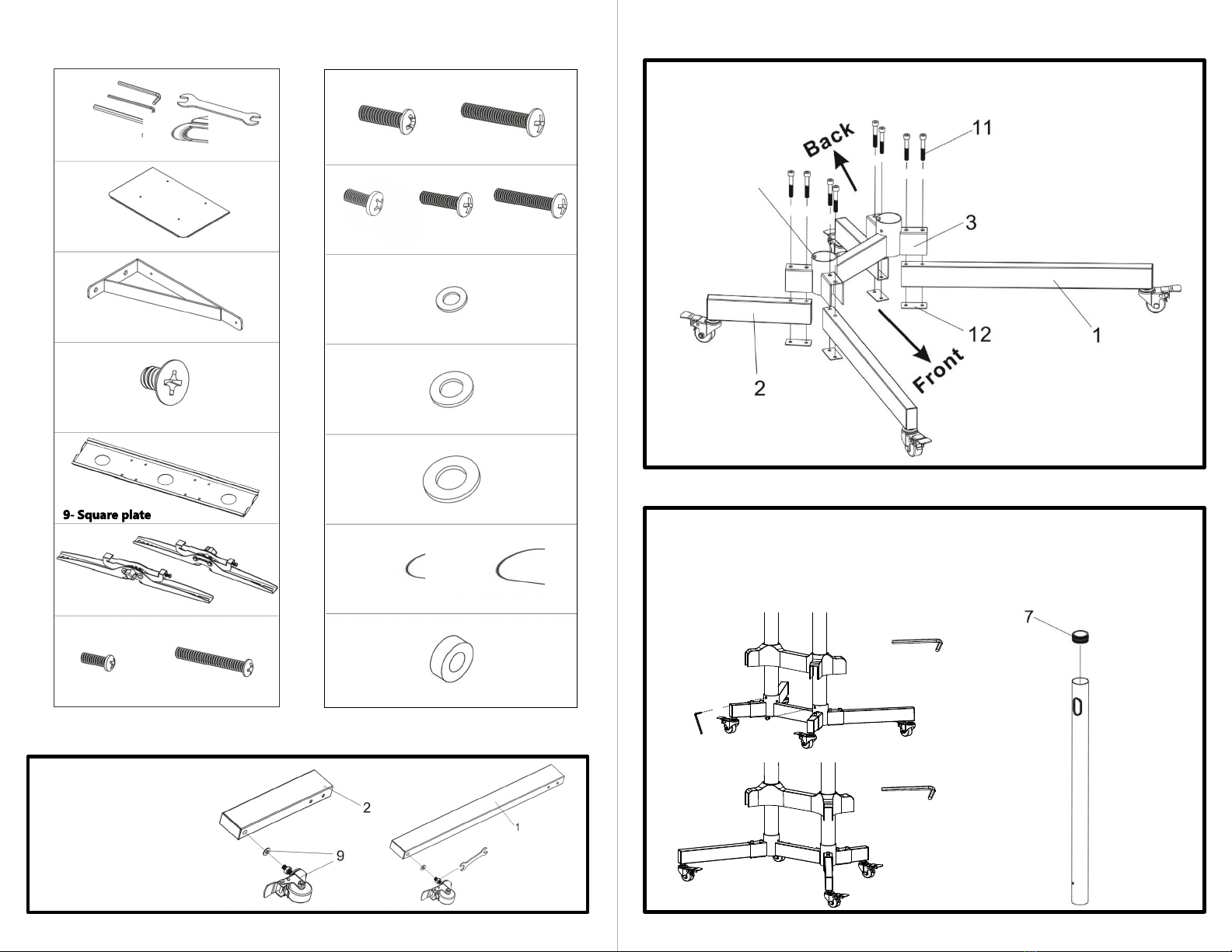

Package Contents (Continued)
Step 1:
Attach wheels and
washers (9) to the
long and short
square tubing (1,2)
using the provided
wrench (15).
Assembly Steps
2
- 2 M4 spacer M6/M8 spacer (20mm)
- 23 M8x20 bolt M8x35 bolt M8x45 bolt
Step 2:
Attach the square tubing (1,2) to the tube connector (3) using M x 0 Allen
head bolt (11) and the M socket plate (12).
Step 3:
Attach the base poles (5) to the tube connector (3) using M x10 bolts (13) in
the back and M5x grub screws (14) in the sides. Thread on the pole
connectors (7) to the tops of each base pole (5). Use caution when threading
pole connectors. Threads are very fine and may have sharp edges.
13
13
20
22
Step 6:
Step :
a: Clip bubble level from tool kit (15)
onto the square plate (19). Adjust the
level of the square plate (19) by
loosening the grub screw in the back of
the square plate connector (10) using
tool kit (15). Tighten grub screws again
once you’ve reached desired height and
level.
b: Secure TV arm set (20) to the
back of your television using bolts
21-23 and washers 24-2 ,
depending on the size of the
mounting holes on the television.
For curved or recessed TVs, a
spacer may be required (27,28).
Attach the TV arm set (20) to the
square plate (19). Tighten the safety
bolts on the bottom of the TV arm
set (20) to secure the television to
the stand.
27, 28 21-23
24-26
19
10

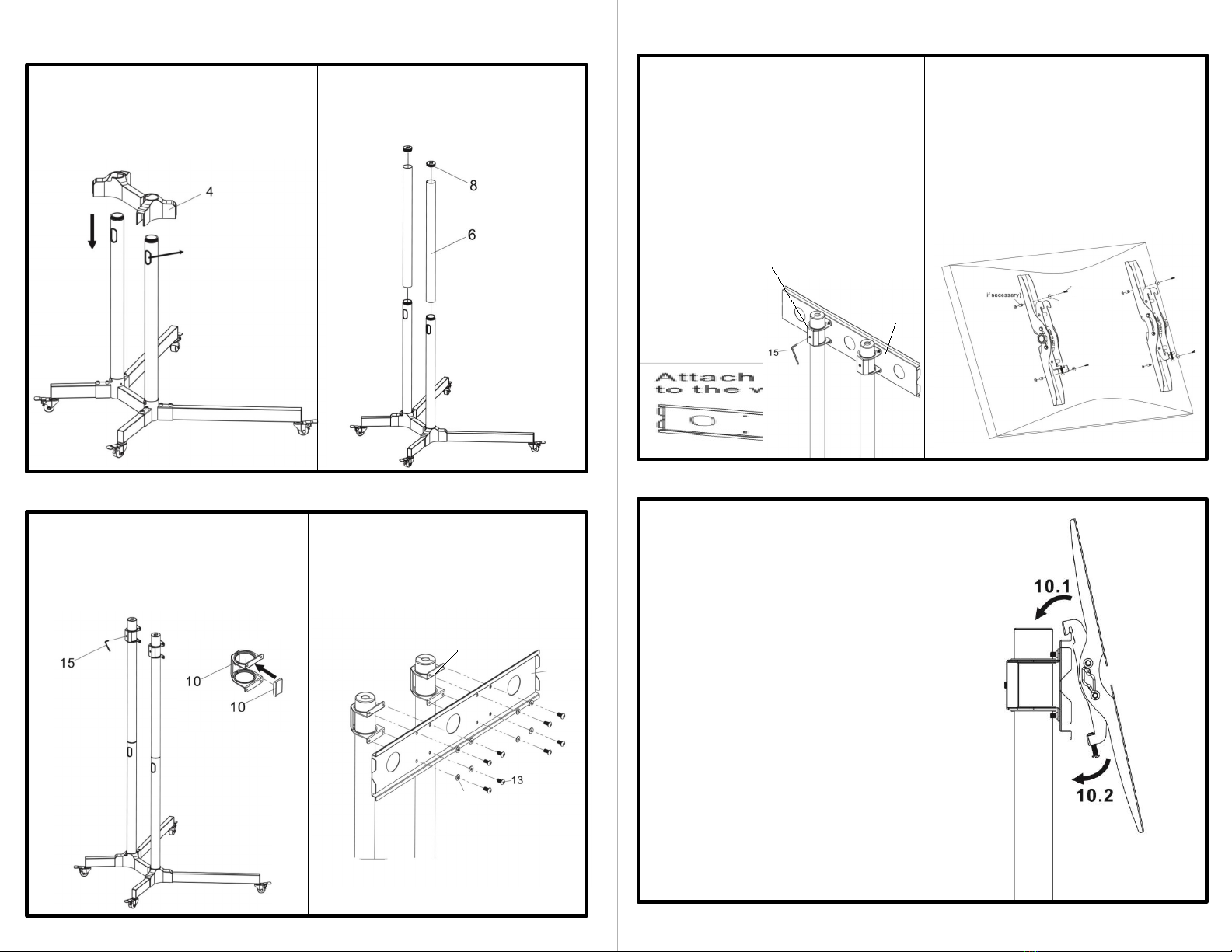

Step 4:
4a: Slide the tube connector cover
(4) over the base poles (5) and fit
over the tube connector (3).
Step 5:
5a: Slide the square plate connectors
and rubber pads (10) over the top of
the poles ( ) and tighten the grub
screw using tool kit (15).
4b: Thread the top poles ( ) to the
pole connectors (7) and insert the
pole covers (8) into the top.
5b: Attach the square plate (19) to
the square plate connectors (10)
with 8 x10 Allen head bolts (13)
and 8 M washers (25) using tool kit
(15).
19
25
10
3
4
If you do not understand these directions, or if you have
any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are
no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for
any purpose that is not explicitly specified in this manual.
We cannot be liable for damage or injury caused by
incorrect assembly or inappropriate use.
Email: help@vivo-us.com
Live chat: www.vivo-us.com
Call: 1-800-371-5 54
For more VIVO products, check out our
website at
www.vivo-us.com.
If any parts are received damaged or defective, please
contact us. We are happy to replace parts to ensure you
have a fully functional product.
Safety Warning
Contact us at
Last updated: 5/15/2018

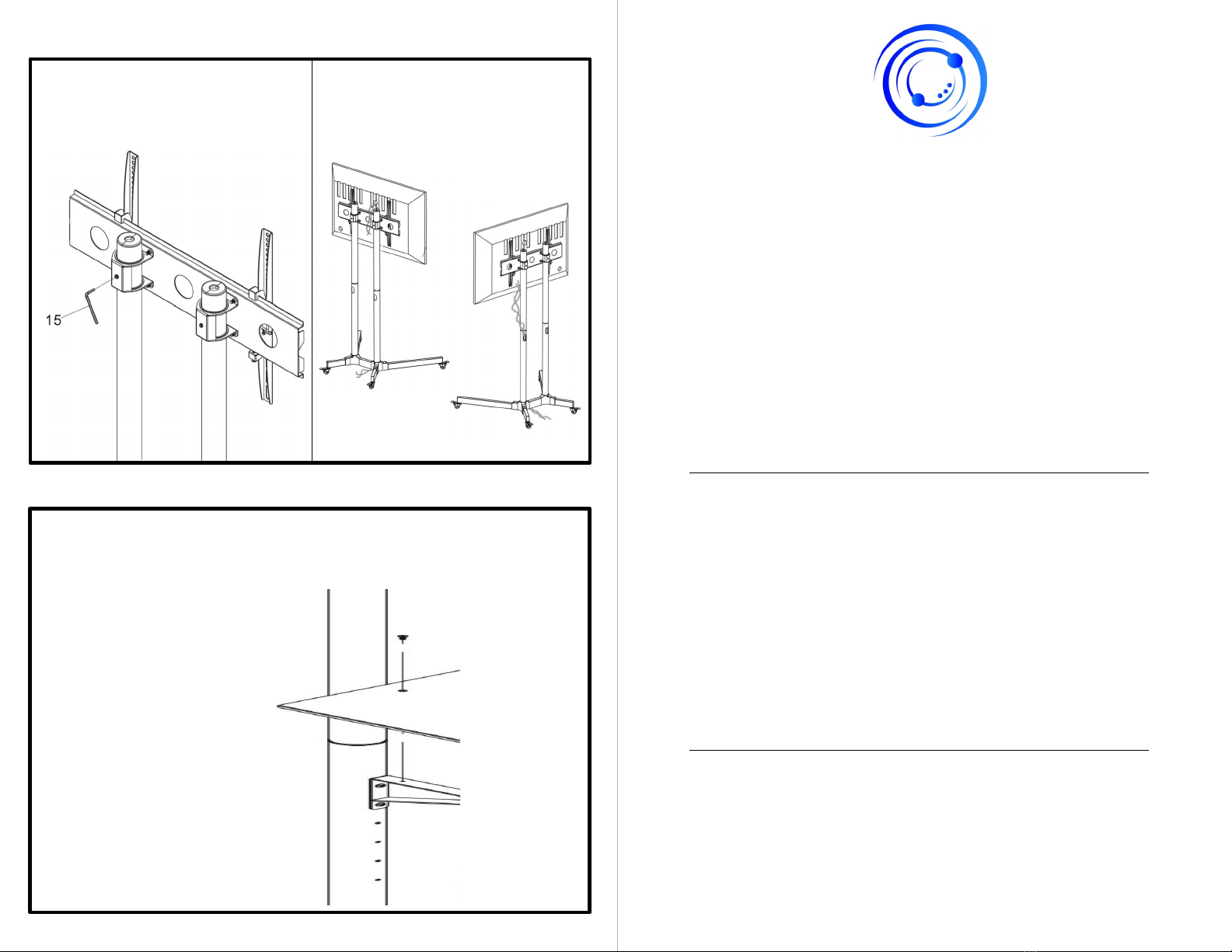

Step 8:
Step 9:
8a: If additional leveling and height
adjustment is required after
television is attached, repeat step .
8b: For wire management, cables
can be run through the tops of the
pole covers (8) and down through
the poles.
To attach the shelf (1 ), first attach the shelf supports (17) to the bottom
poles (5) using 4 M x10 Allen head bolts (13). Once secured, attach the shelf
(1 ) to the supports (17) using 4 M4x countersink bolts (18).
Option A
Option B
