Vivo MOUNT-NS80A Manuale utente
TV Wall Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-ns80a
SKU: MOUNT-NS80A
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

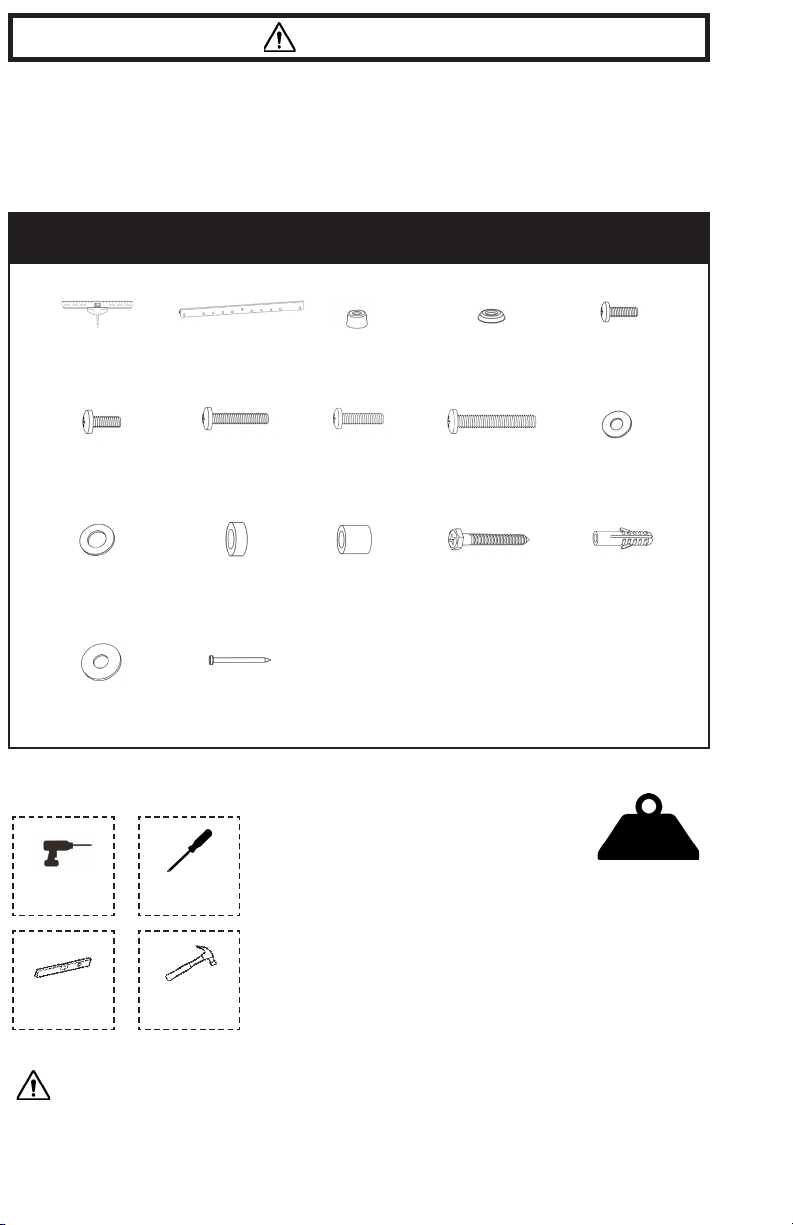

PACKAGE CONTENTS
TOOLS NEEDED
110lbs
(49.90kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
Phillips
Screwdriver
A (x1)
Wall Plate
B(x1)
VESA Plate
C(x2)
Thick Bumper
M-F (x4)
D5 Washer
M-G x4)
D8 Washer
M-H (x8)
Small
Spacer
W-A (x4)
Screw
M-E (x4)
M8x50
M-A (x4)
M5x14
M-B (x4)
M6x14
M-C (x4)
M6x30
M-D (x4)
M8x30
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
W-C (x4)
Washer
W-B (x4)
Anchor
Drill
D(x2)
Thin Bumper
M-I (x8)
Big
Spacer
W-D (x20)
Nail
Hammer
Level
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
3
ASSEMBLY STEPS

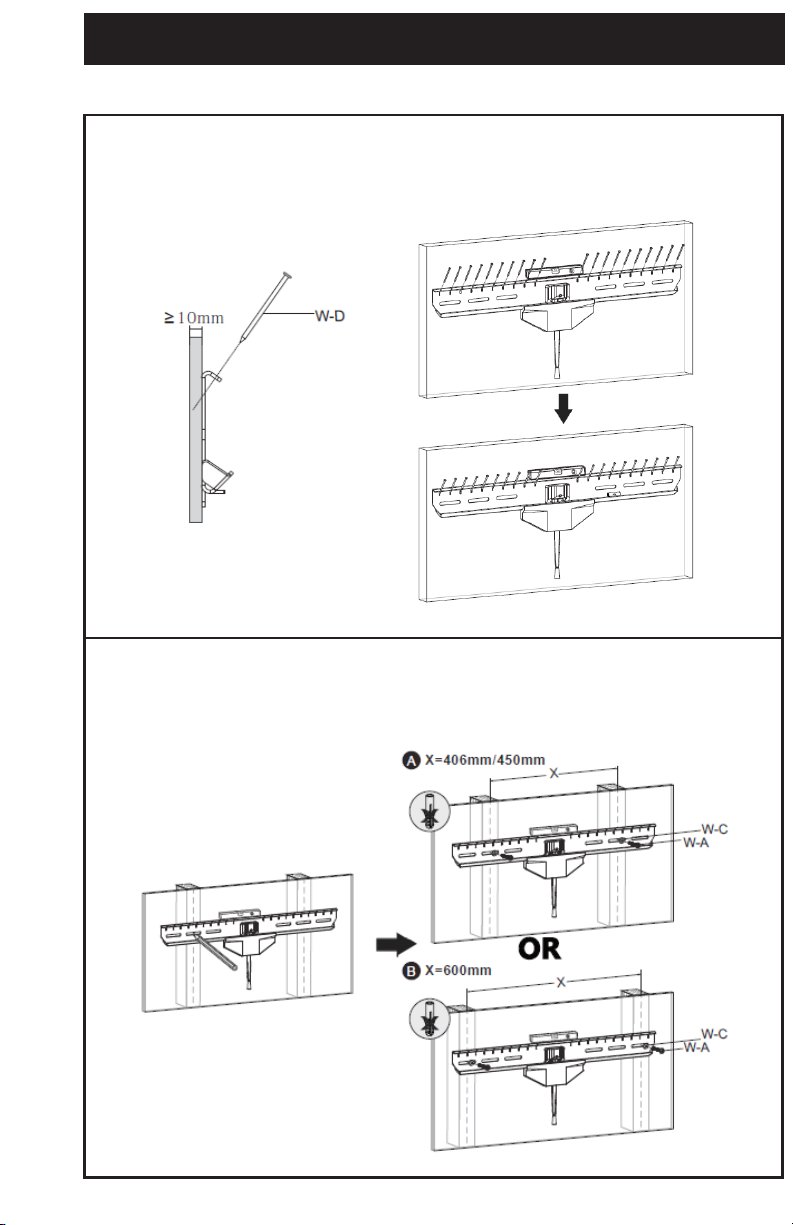

STEP 1
OPTION A: Drywall Installation
Position wall plate (A) at desired location on wall. While making sure plate stays level, install x20 nails
(W-D) at 45 degree angle through top of plate and drywall using a hammer. Please note, drywall must
be greater than 0.4” (10mm) thick.
OPTION B: Wood Stud Installation
Position wall plate (A) at desired location on wall and mark drilling locations with a pencil. Use of a
stud finder is recommended. Drill 2.2” (55mm) deep holes using 3/16” (4.5mm) drill bit, and mount
plate to wall using screws (W-A) and washers (W-C).
4
STEP 1 (Continued)

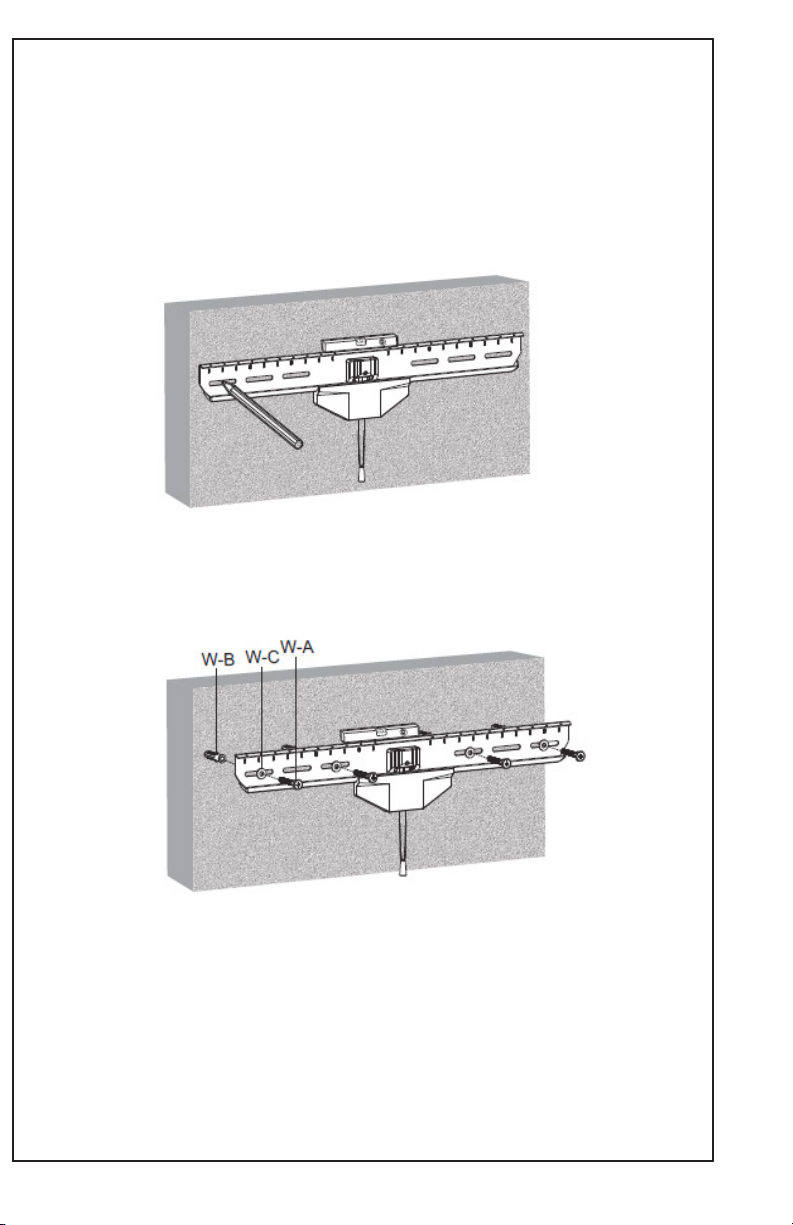

OPTION C: Concrete/Brick Installation
Position wall plate (A) at desired location on wall and mark drilling locations with a pencil. Drill 2.4”
(60mm) deep holes using a 3/8” (10mm) drill bit and press concrete anchors (W-B) into holes. Mount
plate to wall using screws (W-A) and washers (W-C).
5
STEP 2
OPTION A: Flat Back Screens
Install VESA plate (B) to upper VESA mounting holes on TV using one of the screw/spacer combinations
shown below. Make sure the arrow on the VESA plate is facing towards the top of the TV. Install thick
bumpers (C) to lower VESA mounting holes on TV using the same screw/spacer combination as the
VESA plate.
6
STEP 2 (Continued)
OPTION B: Curved Back Screens
Install VESA plate (B) to upper VESA mounting holes on TV using one of the screw/spacer combinations
shown below. Make sure the arrow on the VESA plate is facing towards the top of the TV. Install thin
bumpers (D) to lower VESA mounting holes on TV using the same screw/spacer combination as the
VESA plate.
7
STEP 3
Hang TV with VESA plate over the raised lip on the TV plate.
STEP 4
Pull down on cord to lock or release TV from wall plate.
LAST UPDATED: 03/05/2020
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
