Installation Guide

CM48 Series

Vari-Angle IR Illuminator

Rev. 1.2

QIG Part no.: 625037102G

Revision History:

* Rev. 1.0: Initial Release * Rev. 1.1: Updated illumination range and beam angles. Added the

rear panel plug opener. * Rev. 1.2: Added safety instructions and warning messages.

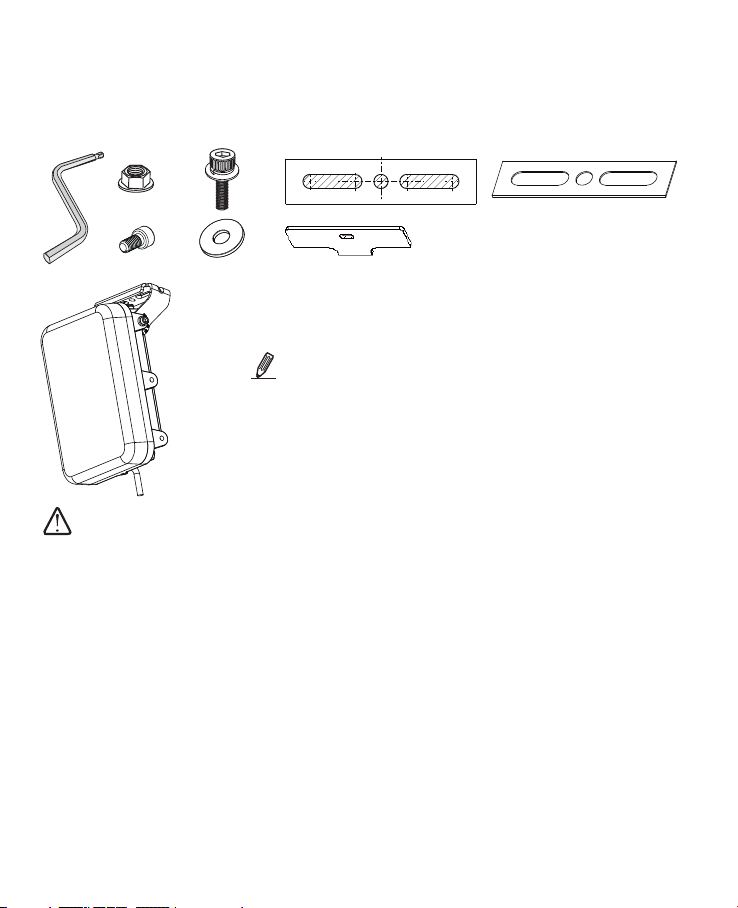

Package Contents

• The wall-mount (CMA-B04), corner-mount (AM-412), pole-

mount adaptor (AM-311/312), and other brackets are separately

purchased.

• The screws and anchors for securing the illuminator to wall are

user-supplied. Apply M6 anchors or screws.

NOTE:

• Please avoid eye exposure or apply appropriate protection, such as wearing a pair of Infrared

protection glasses, when working with the product. Always use camera live view to oberve IR

lighting effects.

WARNING:

The 1/4" screws and washers are used to secure the illuminator

to an external camera housing.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance

closer than 2.5 m is not expected.

• Theexternalexiblecableorcordofthisluminairecannotbereplaced;ifthecordisdamaged,

the luminaire shall be destroyed.

• Thelightsourceofthisluminaireisnotreplaceable;whenthelightsourcereachesitsendoflife

the whole luminaire shall be replaced.

• Please make sure Reinforce/Double insulation shall be maintained between LV supply and control

circuits after installation.

• ThisoodlightshallbeusedwithaIEC/EN61347-2-13approvedLEDdriverwithSELVoutput

equaltoratedvoltageoftheluminaire,andoutputpowerofLEDdriversshallbeatleastequalto

rated power of the luminaire.

• Terminalblockisnotincluded.Installationmayrequireadvicefromaqualiedpersonnel.

• Do not install the product with unstable brackets, or installed on fragile mount surfces.

• This product shall be used in compliance with local laws and regulation.

• Please avoid using chemical oraerosolcleaninguidstocleantheproduct. Use a clean cloth

slightly moistened with water.

• This product contains no parts repairable by the users. Contact CaMate for services.

• Power off the Illuminator as soon as smoke or unusual odors are detected.

• Do not place the Illuminator on unsteady surfaces.

• Replacing or failing to properly install the waterproof components, e.g., cables or cable glands,

will void our IP67 warranty.

• Refer to your datasheet for the operating temperature.

• Do not touch the Illuminator during a lightning storm.

IMPORTANT:

Class III luminaires

Do not stare at the operating light source.

This marking indicates that this product should not be disposed with other household

wastesthroughouttheEU.Topreventpossible harm totheenvironmentorhumanhealth

from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse

of material resources. To return your used device, please use the return and collection

systems or contact the retailer where the product was purchased. They can take this

product for environmental safe recycling.

RISK GROUP 3

WARNING IR emitted from this product,

Do not look at operating lamp.

IRilluminatorsRISKGRORP3/WARNINGIR emitted from this product. /Avoideyeexposure.Use

appropriate shielding or eye protection. Do not look at operating lamp.

CM48W5:RISKGRORP2/CAUTIONPossibly hazardous optical radiation emitted from this product /

Do not stare at operating lamp. May be harmful to the eyes.

160mm(6.3")

220mm(8.7")

73mm(2.9")

103.8mm(4.1")

134.6mm(5.3")

61.5mm(2.4")

164.6mm(6.5")

59.5mm(2.3")

43mm(1.7")

59mm(2.3")

32mm(1.3")

Mechanical Drawings

134

M6x1

29.3

8.2

Standard Small U bracket

Hardware Overview

Reserved mounting holes for

external camera housing

U bracket

Waterproofcover

for angle selector

Optionalmountingpointsfor

U bracket

Light sensor

Combo cable

Dehumidier

membrane

Reserved

Mounting holes

Unit Weight:2.1KG.

Max. Project Area: 34684.7mm2.

160mm(6.3")

220mm(8.7")

Installation

U Bracket Positions & Orientation

Use the included allen wrench to attach and adjust the U bracket to your needs at the installation site.

It is highly recommended that the illuminator should be installed at a position higher than 3 meters from

the ground.

IMPORTANT:

35-Kg-cm

Beam angle

selector

Angle wider

Angle narrower

Longer distance

Shorter distance

Youmustrstsurveytheinstallationsiteanddeterminetheilluminationdistance.

Useacoinoratbladescrewdrivertoopenthewaterproofcoveratthebackoftheilluminator.

Use the 4mm side of the allen wrench to turn the beam angle to an estimated illumination distance, e.g.,

200meters.Seethetablesonthenextpageforhowtodoit.

You may forget your current beam angle

conguration. In this case, turn many full circles

clockwise until the rotation resistance is felt (returns

to the widest angle, reaches its mechanical stops),

and then turn the selector counter-clockwise

accordingtotheanglelistedonthetables.Eachfull

circle corresponds to a preset beam angle.

Tips:

CM48I8-1040

Rotate

direction

Full circle Beam angle Single mount Double mount Triple mount

Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)

0 40° 100 72.8 141.4 102.9 173.2 126.1

1 36° 107 69.5 151.3 98.3 185.3 120.4

2 30° 127 68.1 179.6 96.3 220.0 117.9

3 27° 137 65.8 193.7 93.0 237.3 113.9

4 24° 150 63.8 212.1 90.2 259.8 110.4

5 16° 206 57.9 291.3 81.9 356.8 100.3

6 15° 215 56.6 304.1 80.1 372.4 98.1

7 10° 250 43.7 353.6 61.9 433.0 75.8

Counter-clockwide

Narrower

Clockwide

Wider

CM48I8-2040

Rotate

direction

Full circle Beam angle Single mount Double mount Triple mount

Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)

0 40° 120 87.4 169.7 123.5 207.8 151.3

1 36° 125 81.2 176.8 114.9 216.5 140.7

2 29° 150 77.6 212.1 109.7 259.8 134.4

3 27° 158 75.9 223.4 107.3 273.7 131.4

4 20° 200 70.5 282.8 99.7 346.4 122.2

Counter-clockwide

Narrower

Clockwide

Wider

The factory default for the beam angle selector is always at the Widest angle.Whenyouturnthe

selector many rounds to its widest or the narrowest position, a rotation resistance can be felt. That

means the mechanical stop is reached, and you should not use more force.

RefertothetablesbelowforthecongurableIRlightbeam angles and the number of full circles

neededtochangetothepreferredbeamangles.Eachfullcirclecorrespondstoapresetbeamangle.

For example, if you need to change CM48I8-1040's beam angle to 30° (127m), turn the beam angle

selector Counter-clockwise 2 full circles. If you are at the narrowest angle (10°) and prefer to turn to

24°,turn3fullcirclesclockwise.Whendone,installthewaterproofcover.

Width

Distance

Angle

X2 30°36°

40°

CM48I8-4080

Rotate

direction

Full circle Beam angle Single mount Double mount Triple mount

Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)

0 80° 60 100.7 84.9 142.4 103.9 174.4

1 77° 62 98.6 87.7 139.5 107.4 170.8

2 74° 64 96.5 90.5 136.4 110.9 167.1

3 66° 67 87.0 94.8 123.1 116.0 150.7

4 63° 69 84.6 97.6 119.6 119.5 146.5

5 60° 71 82.0 100.4 115.9 123.0 142.0

6 55° 75 78.1 106.1 110.4 129.9 135.2

7 52° 79 77.1 111.7 109.0 136.8 133.5

8 50° 82 76.5 116.0 108.2 142.0 132.5

9 45° 86 71.2 121.6 100.8 149.0 123.4

10 40° 90 65.5 127.3 92.7 155.9 113.5

CM48I8-90120

Rotate

direction

Full circle Beam angle Single mount Double mount Triple mount

Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)

0 120° 45 155.9 63.6 220.5 77.9 270.0

1 105° 50 130.3 70.7 184.3 86.6 225.7

2 90° 55 110.0 77.8 155.6 95.3 190.5

Counter-clockwide

Narrower

Clockwide

Wider

Counter-clockwide

Narrower

Clockwide

Wider

CM48I8-180

Rotate

direction

Full circle Beam angle Single mount Double mount Triple mount

Distance(m) Distance(m) Distance(m)

Fixed angle N/A 180° 40 56.6 69.3

CM48I9-1040

Rotate

direction

Full circle Beam angle Single mount Double mount Triple mount

Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)

0 40° 60 43.7 84.9 61.8 103.9 75.6

1 36° 64.2 41.7 90.8 59.0 111.2 72.3

2 30° 76.2 40.8 107.8 57.8 132.0 70.7

3 27° 82.2 39.5 116.2 55.8 142.4 68.4

4 24° 90 38.3 127.3 54.1 155.9 66.3

5 16° 123.6 34.7 174.8 49.1 214.1 60.2

6 15° 129 34.0 182.4 48.0 223.4 58.8

7 10° 150 26.2 212.1 37.1 259.8 45.5

Counter-clockwide

Narrower

Clockwide

Wider

CM48I9-2040

Rotate

direction

Full circle Beam angle Single mount Double mount Triple mount

Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)

0 40° 72 52.4 101.8 74.1 124.7 90.8

1 36° 75 48.7 106.1 68.9 129.9 84.4

2 29° 90 46.6 127.3 65.8 155.9 80.6

3 27° 94.8 45.5 134.1 64.4 164.2 78.8

4 20° 120 42.3 169.7 59.8 207.8 73.3

Counter-clockwide

Narrower

Clockwide

Wider

CM48I9-4080

Rotate

direction

Full circle Beam angle Single mount Double mount Triple mount

Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)

0 80° 36 60.4 50.9 85.4 62.4 104.6

1 77° 37.2 59.2 52.6 83.7 64.4 102.5

2 74° 38.4 57.9 54.3 81.8 66.5 100.2

3 66° 40.2 52.2 56.9 73.8 69.6 90.4

4 63° 41.4 50.7 58.5 71.8 71.7 87.9

5 60° 42.6 49.2 60.2 69.6 73.8 85.2

6 55° 45 46.9 63.6 66.3 77.9 81.1

7 52° 47.4 46.2 67.0 65.4 82.1 80.1

8 50° 49.2 45.9 69.6 64.9 85.2 79.5

9 45° 51.6 42.7 73.0 60.5 89.4 74.0

10 40° 54 39.3 76.4 55.6 93.5 68.1

CM48I9-90120

Rotate

direction

Full circle Beam angle Single mount Double mount Triple mount

Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)

0 120° 27 93.5 38.2 132.3 46.8 162.0

1 105° 30 78.2 42.4 110.6 52.0 135.4

2 90° 33 66.0 46.7 93.3 57.2 114.3

Counter-clockwide

Narrower

Clockwide

Wider

Counter-clockwide

Narrower

Clockwide

Wider

CM48I9-180

Rotate

direction

Full circle Beam angle Single mount Double mount Triple mount

Distance(m) Distance(m) Distance(m)

Fixed angle N/A 180° 24 34 42
