Vivotek IP7251 Manuale utente
P/N:625006300G Ver.1.0
Copyright 2008 VIVOTEK INC. All rights reserved.
c
Cover [IP7251]-Outline.ai 2008/6/27 上午 11:54:50
EN - 1
English
Contact your distributor when such
cases happen.

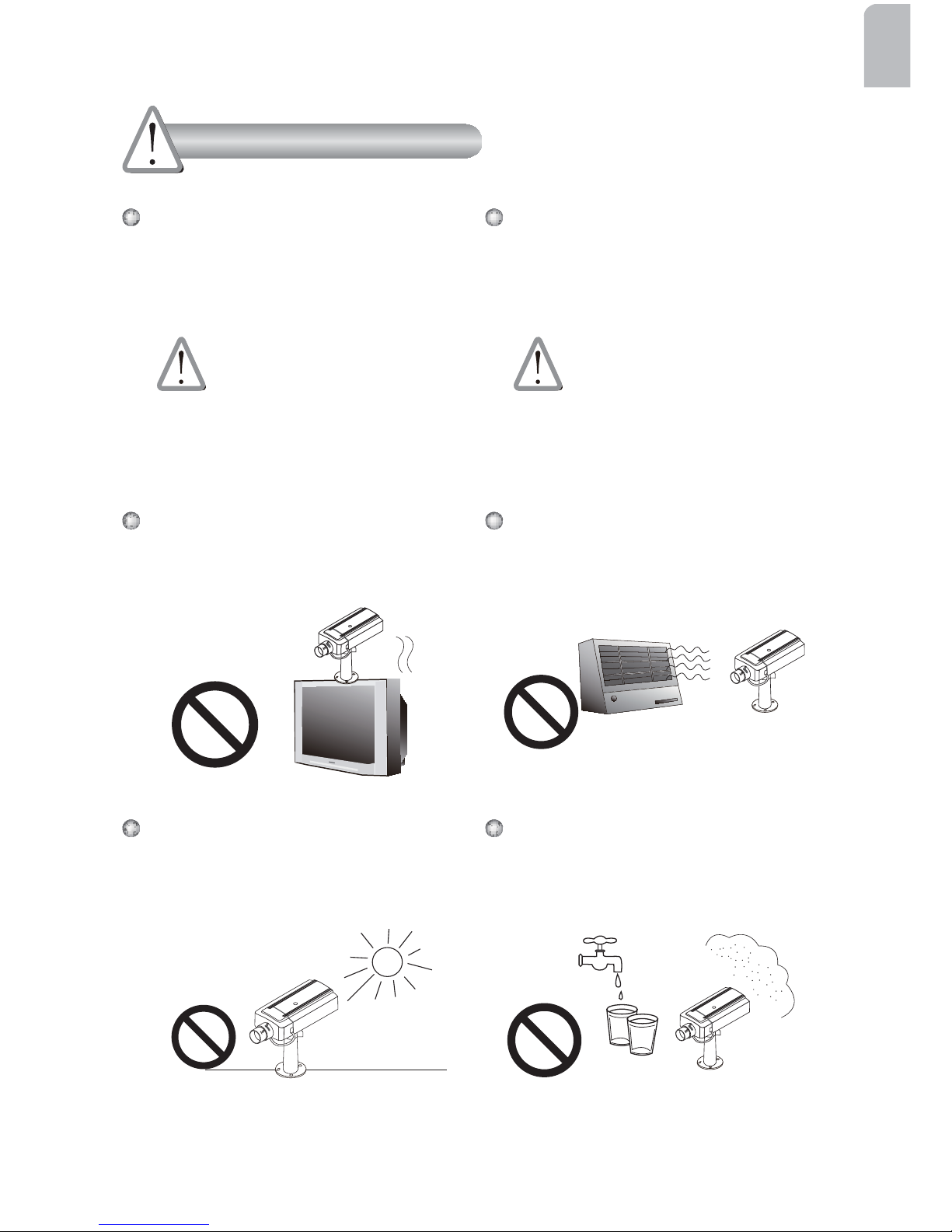

Keep the Network Camera away
from water. If the Network Camera
is wet, power off immediately.
Refer to your user's manual for the
operating temperature.
Power off the Network Camera
as soon as it is found smoking or
smelt unusual.
Do not place the Network Camera
around the heat sources, such as
television or oven.
Keep the Network Camera away
from direct sunlight.
Do not place the Network Camera
in high humid environments.
Contact your distributor when such
cases happen.
Warning Before Install
EN - 2
Do not place the Network Camera
on unsteady surfaces.
Do not touch the Network Camera
when it's lightening.
Do not disassemble the Network
Camera.
Do not drop the Network Camera.
Do not insert any object into the
Network Camera, such as needles.
EN - 3
English
Camera stand CS-mount lens
IP7251
Warranty card
Power adapter
Quick installation guide Software CD
1Package Contents
L-type hex key wrench /
C-mount ring (for C-mount lens)
EN - 4
Power cord socket
Ethernet 10/100
RJ45 socket
Indented reset button
General I/O
terminal block
Audio out
MIC in
External/Internal
MIC switch
Front panel
Back panel
Lens
Focus controller
Zoom controller
2Physical Description
Built-in MIC
Light sensor
Status LED
EN - 5
English
2
For further setup, please refer to the lens' instruction manual inside the
lens package.
1. Mount the lens by turning it clockwise onto the camera mount until it stops. If
necessary, turn the lens counterclockwise slowly until it gets the best attitude.
2. Connect the lens cable plug to the camera connector.
3Mounting the Lens to the Camera
1
2
General Connection (without PoE)
1. Connect the camera to a switch via Ethernet cable.
2. Connect the supplied power cable from the camera to a power outlet.
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
1
2
4Network Deployment
Ethernet switch
EN - 6
Power over Ethernet (PoE)
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the camera and a non-
PoE switch.
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
non-PoE switch
PoE power injector
(optional)
When using a PoE-enabled switch
The camera is PoE-compliant, allowing transmission of power and data via single
Ethernet cable. See the following illustration to connect the camera to a PoE-
enabled switch via Ethernet cable.
PoE switchP
o
E
s
wit
ch
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
EN - 7
English
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
RoHS
Network Camera
Model No: IP7251
Pat. 6,930,709 Made in Taiwan
Mac: 0002D106DB41
0002D106DB41
Installation
Wizard 2
IW
2
5Assigning IP Address
1. Install the "Installation Wizard 2" under the Software Utility directory from software
CD.
2. The program will conduct analyses on your network environment. After your
network is analyzed, please click on the "Next" button to continue the program.
3. The program will search the VIVOTEK Video Receivers, Video Servers or Network
Cameras on the same LAN.
4. After searching, the main installer window will pop up. Click on the MAC that
matches the one labeled on the bottom of your device to connect the Internet
Explorer to the Network Camera.
EN - 8
For further setup, please refer to user's manual on the software CD.
Network Camera
Ready to Use
6
1. Access to the Network Camera from the Internet.
2. Retrieve live video through web browsers or recording software.
3. Unscrew the zoom controller to adjust the
zoom factor. Upon completion, tighten the
zoom controller.
4. Unscrew the focus controller to adjust the
focus range. Upon completion, tighten the
focus controller. W
∞
N
T
3
4
EN - 9
English
Fine-tune the Camera Focus
7
1. Detach the CS-mount lens from the camera body.
2. Turn the camera body bottom up.
3. Use the supplied L-type hex key wrench to loosen the lens mounting screw; the
CS-mount ring becomes rotatable.
4. Use a coin to turn the CS-mount ring; fine-tune the distance between the
sensor and the lens.
5. When finished, tighten the lens mounting screw to fix the CS-mount ring.
6. Attach the CS-mount lens back to the camera body.
Lens mounting screw
CS-mount ring
1
2
3
4
