Vizio E320ME Manuale utente
E320ME – QUICK START GUIDE
32” LCD HDTV

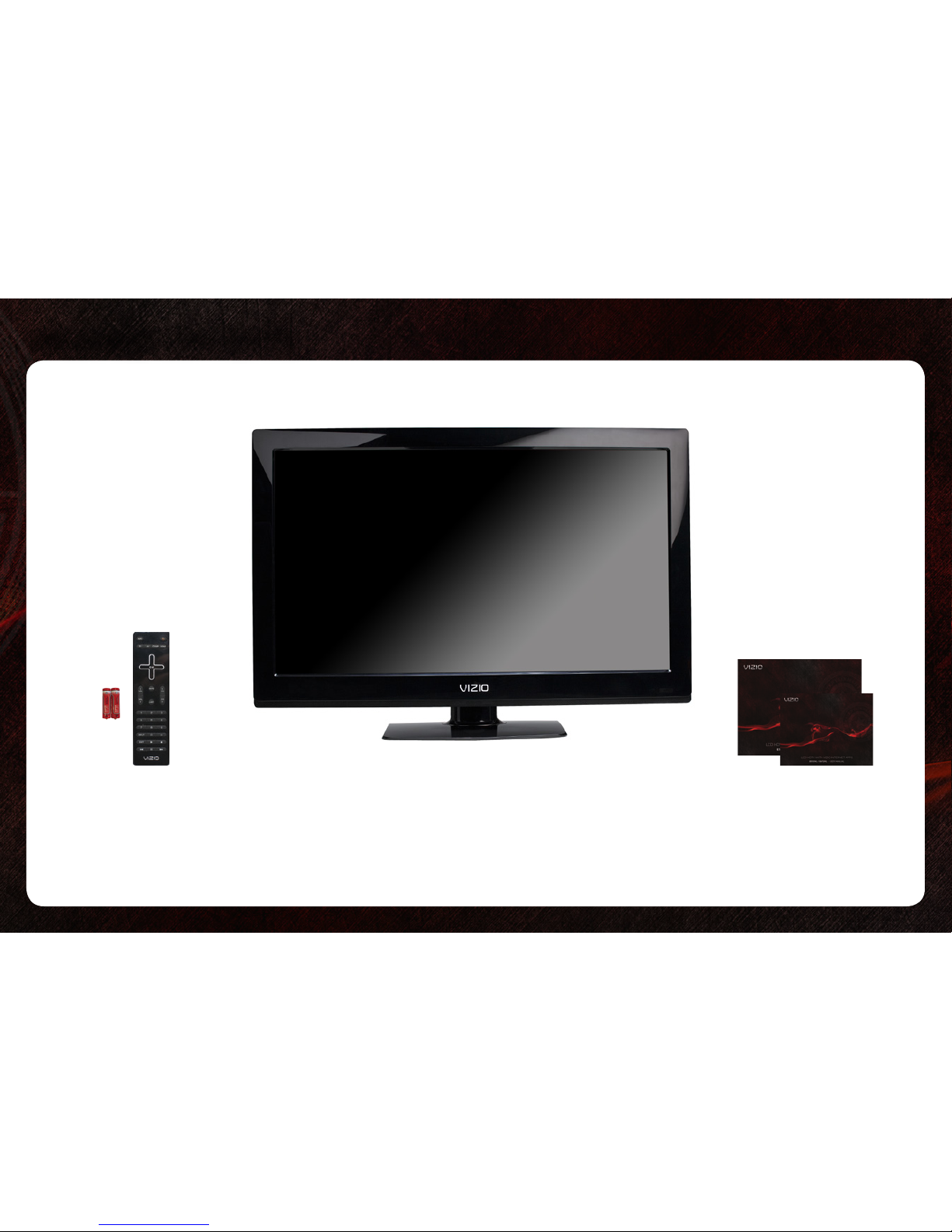

PACKAGE CONTENTS
VIZIO LCD HDTV with Base User Manual and
Quick Start Guide
Remote Control with
Batteries
USING THE REMOTE
Power/Standby: Turn the TV on or off.
Input (Specific): Change the input device. Press the button that
corresponds to the input device you wish to
view.
Info: Display the Info Window.
Arrow: Navigate the on-screen menu and episode
guide.
OK: Display the on-screen menu or select highlight-
ed menu option.
Mute: Turn the sound off or on. When mute is acti-
vated, the TV’s audio is turned off.
Volume Up/Down: Increase or decrease the loudness of the TV’s
audio.
Channel Up/Down: Change the channel. With each press of the
button, the channel will increase or decrease
by one.
Last: Return to the channel last viewed.
Number Pad: Use the number pad to manually enter a chan-
nel.
Input: Change the input device.
Dash (-): Use with number pad to manually enter a digital
sub-channel. (For example, 18-4 or 18-5.)
A/V Controls: Control external device (CEC-enabled devices
only).
Exit: Close the on-screen menu.
Power/Standby
Arrow
Channel
Up/Down
Number Pad
Input
Last
Volume
Up/Down
OK
Input
Info
Dash (-)
Mute
A/V Controls
Exit
INSTALLING THE BASE
1
Place the TV screen-down on a clean, flat surface. To prevent
scratches or damage to the screen, place the TV on a soft
surface, such as carpet, rug, or blanket.
2

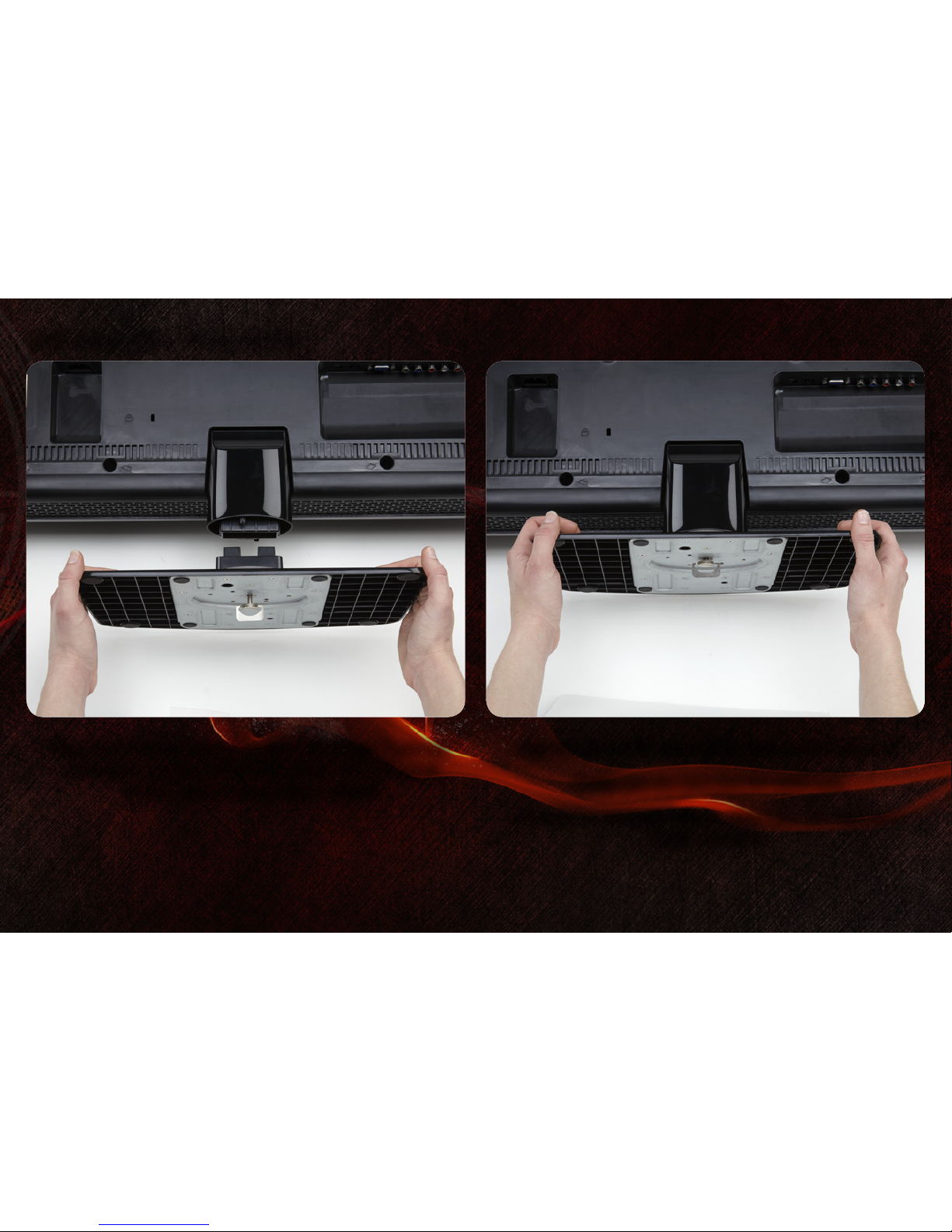

Align the tabs on the base with the slots on the stand neck.
Gently push the base onto the stand neck.
If the base is not joining with the stand neck, you may have it
facing backwards.
3

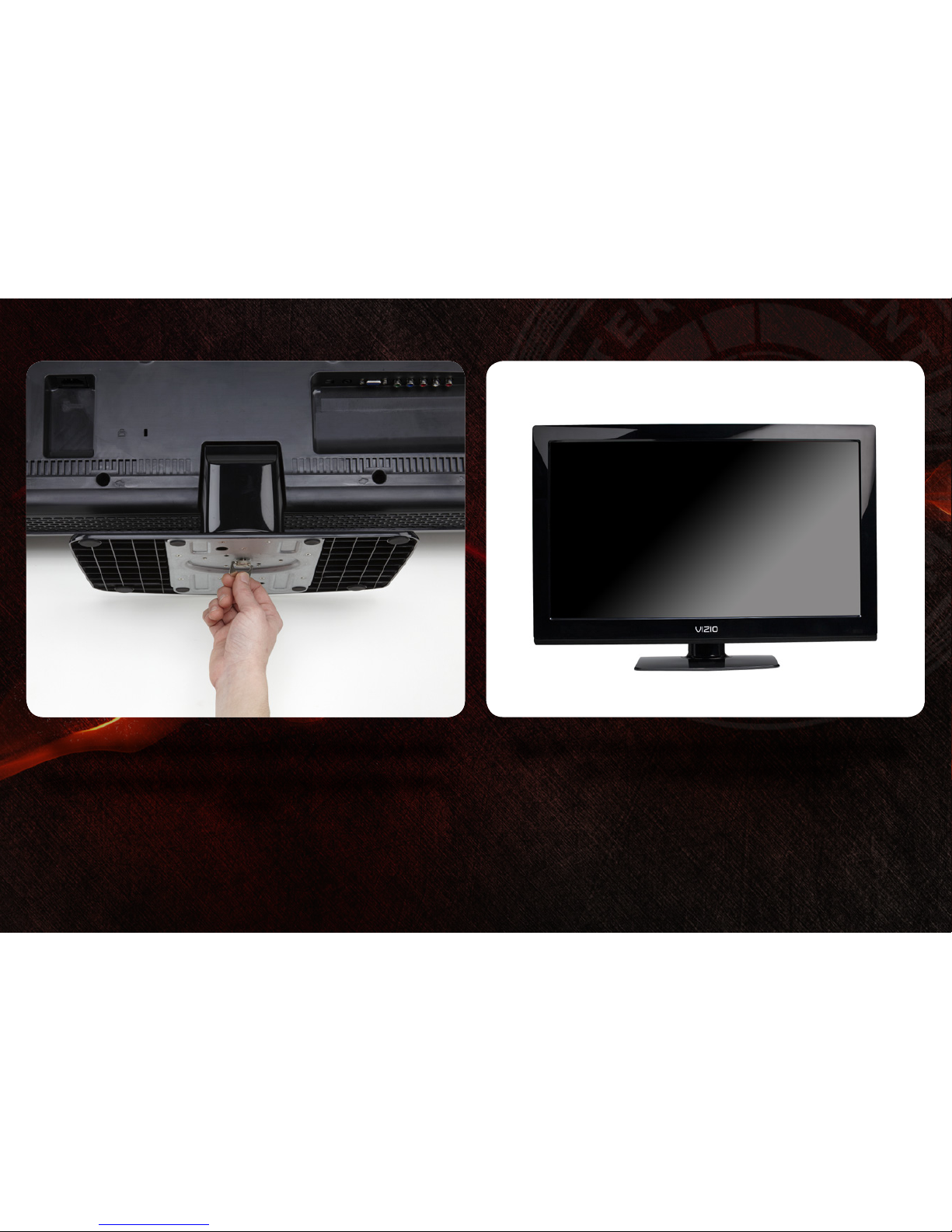

Turn the attached thumbscrew until it is completely tightened.
Fold down the thumbscrew tab so it is flat against the bottom of
the base.
4
Move the TV with attached stand into an upright position and
place on a flat, level, and stable surface.
FIRST-TIME SETUP
2

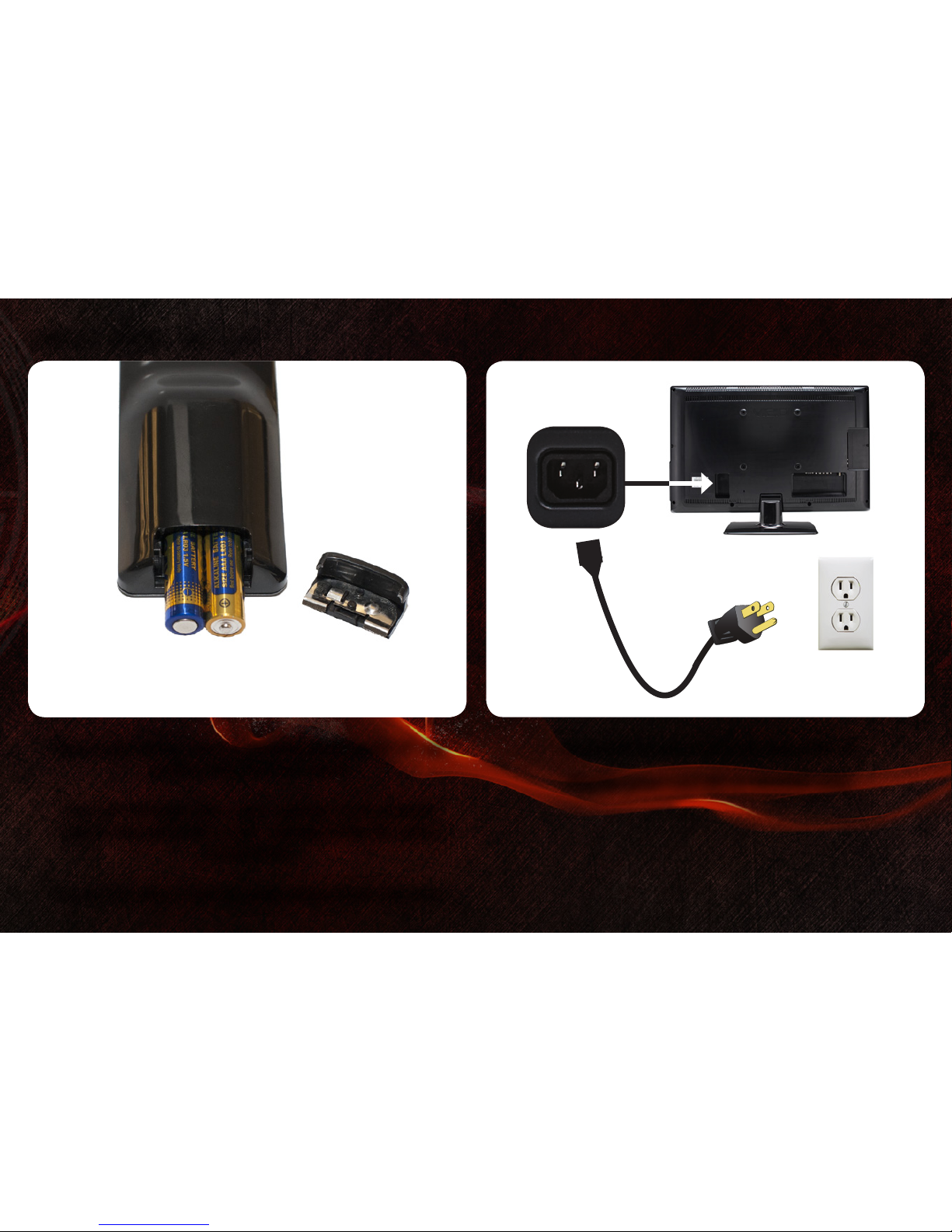

Connect the power cord to the back of the TV.
Plug the power cord into an electrical outlet.
1
Remove the battery cover by pressing gently on the “V” and
pushing away from the remote.
Insert the batteries. The +and -symbols on the batteries
must correspond to the +and -symbols inside the battery
compartment.
Replace the battery cover by gently sliding it back into place.

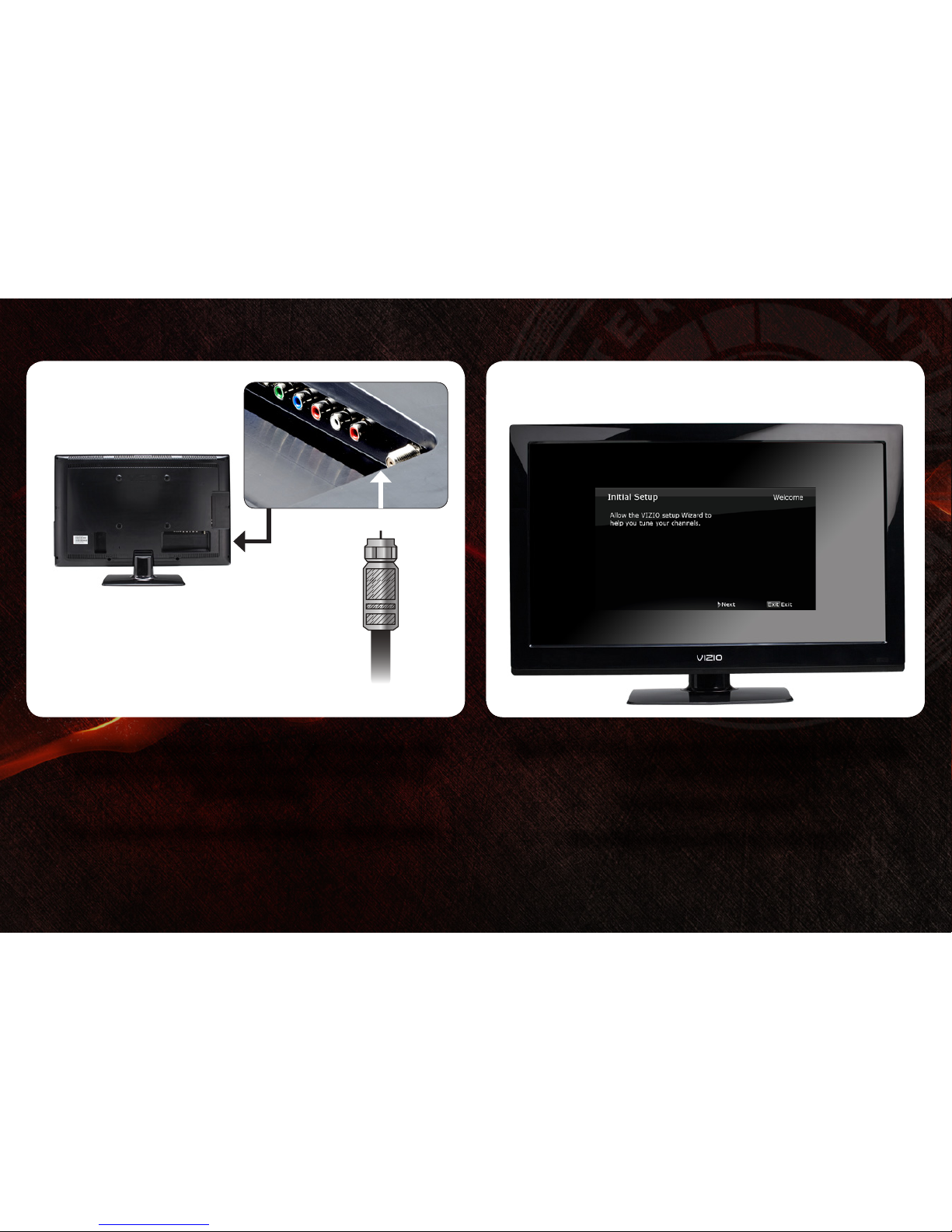

If you have an external antenna or a cable connection that
extends from a wall outlet, connect it to the TV with an
RF/Coaxial cable.
If the cable does not fit, use the included L-shaped adapter.
4
Turn the TV on by pressing the Power/Standby button on the
remote or on the side of the TV.
The Setup App is displayed.
Press Right Arrow to go to the next screen.
3
4

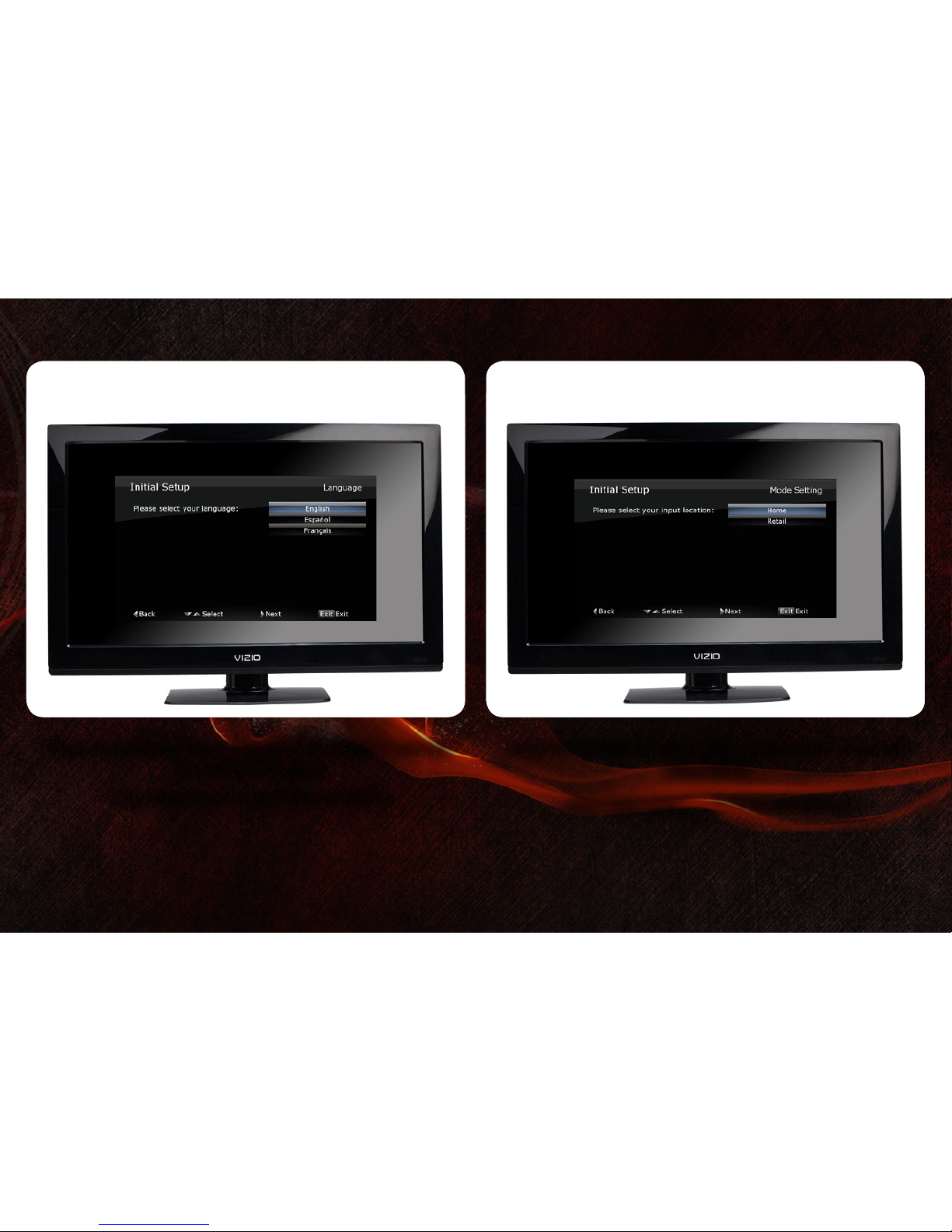

Press the Up/Down Arrow buttons on the remote to highlight
your preferred language.
Press Right Arrow to go to the next screen.
5
Press the Up/Down Arrow buttons on the remote to highlight
Home Mode.
Press Right Arrow to go to the next screen.
6

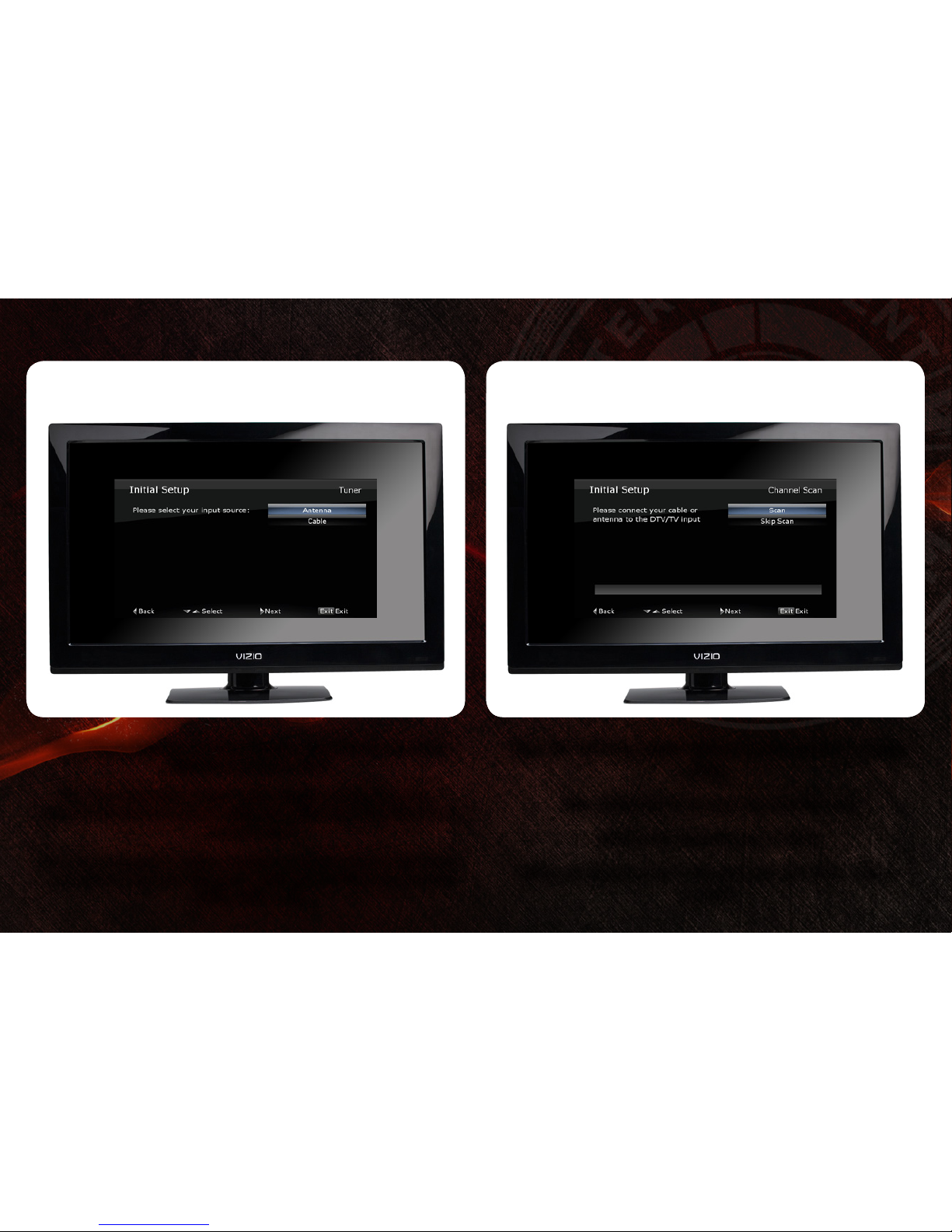

If the TV is connected to an external antenna, select Antenna, then press
Right Arrow and go to step 7.
If the TV is connected to a cable service without a set-top box (cable is
connected directly from the wall outlet) select Cable, then press Right Arrow
and go to step 7.
If the TV is connected to a cable or satellite set-top box, press the EXIT button
on the remote, then select the input to which your set-top box is connected
(HDMI, COMP, or AV).
7
Press the Up/Down Arrow buttons on the remote to highlight
Scan.
Press Right Arrow to begin the channel scan.
Wait for the channel scan to finish.
When the channel scan is complete, the first-time setup is
complete.
CONNECTING YOUR DEVICES
1
Ensure your device has one of the above ports.
Turn your device and the TV off.
Connect your devices using the connection chart on the next
page. This chart shows the most common connections. If you
would like to see additional connection options, see
Connecting
Your Devices
in the user manual.
HDMI
Component
Composite AV
VIZIO RECOMMENDS
To get the best high-resolution picture and sound on your new
VIZIO TV, connect your devices with an HDMI cable.
VIZIO High Speed HDMI Cables are manufactured to produce
the best picture on VIZIO TVs and feature:
•1080p and for full HD video and future Ultra-HD video
•Great flexibility for thin wall mounts
•Stays securely connected at sharp angles
•Limited lifetime warranty
Visit www.VIZIO.com to purchase online.
