Vizio E322MV Manuale utente

E322MV – QUICK START GUIDE

32” CLASS EDGE LIT RAZOR LED™LCD HDTV

PACKAGE CONTENTS

VIZIO LCD HDTV with Base

User Manual and

Quick Start Guide

Remote Control with

Batteries

USING THE REMOTE

Power/Standby: Turn the TV on or off.

Input: Change the input device.

A/V Controls: Control external device (CEC-enabled devices only).

Info: Display the Info Window.

CC: Open the Closed Captioning menu.

Menu: Display the on-screen menu.

Exit: Close the on-screen menu.

Arrow: Navigate the on-screen menu and episode guide.

OK: Select highlighted menu option.

Guide: Display the episode guide (digital channels only).

Back: Go to the previous on-screen menu options.

V Button: Launch the USB photo viewer.

Channel Up/Down: Change the channel. With each press of the button,

the channel will increase or decrease by one.

Volume Up/Down: Increase or decrease the loudness of the TV’s audio.

Mute: Turn the sound off or on. When mute is activated, the

TV’s audio is turned off.

Last: Return to the channel last viewed.

Number Pad: Use the number pad to manually enter a channel.

Dash (-): Use with number pad to manually enter a digital

sub-channel. (For example, 18-4 or 18-5.)

Wide: Switch between display modes.

Power/Standby

A/V Controls

Info

Arrow

Channel

Up/Down

Last

Number Pad

Wide

Mute

Volume

Up/Down

Exit

Input

GuideBack

Dash (-)

V Button

INSTALLING THE BASE

Place the TV screen-down on a clean, ﬂat surface. To prevent

scratches or damage to the screen, place the TV on a soft

surface, such as carpet, rug, or blanket.

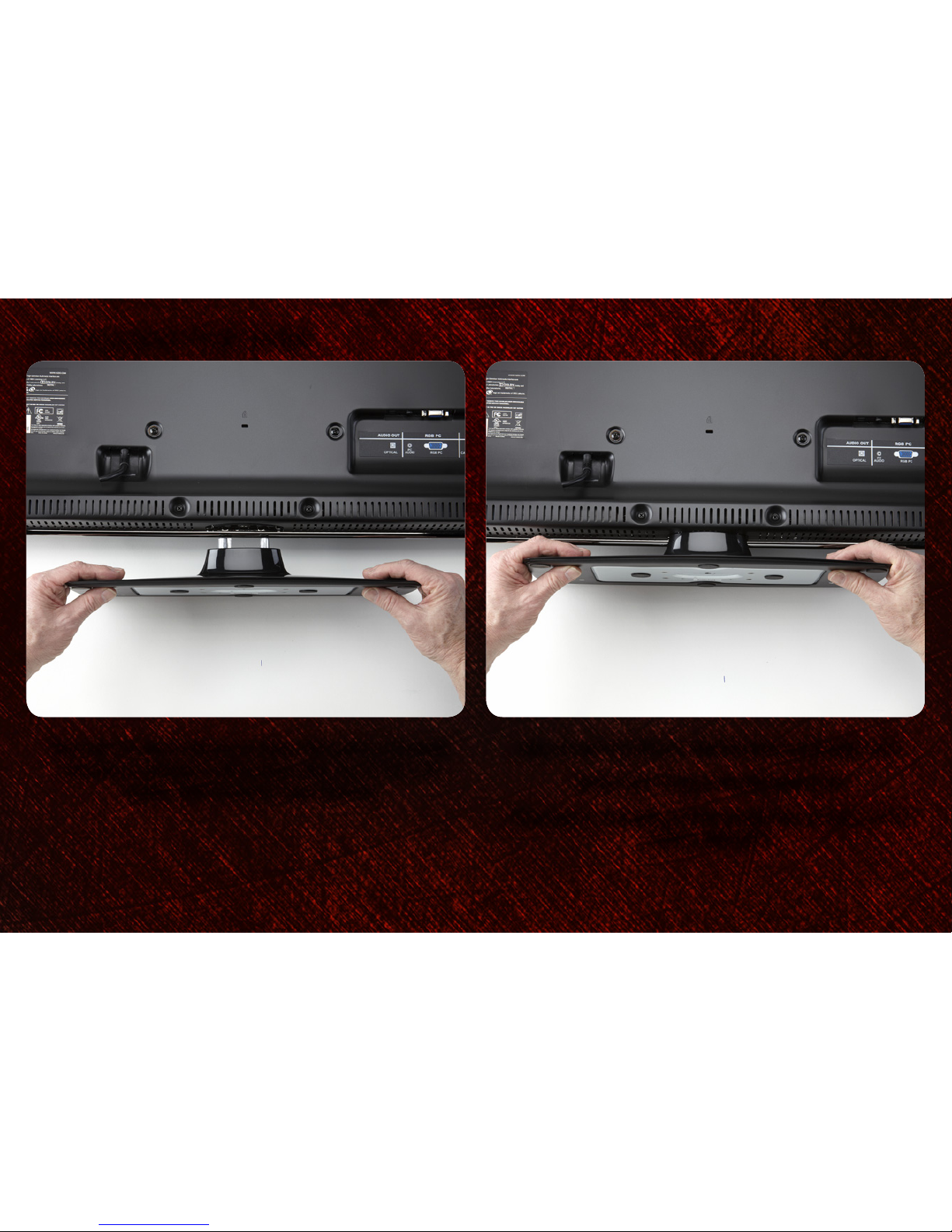

Align the tabs on the base with the slots on the stand neck.

Gently push the base onto the stand neck.

If the base is not joining with the stand neck, you may have it

facing backwards.

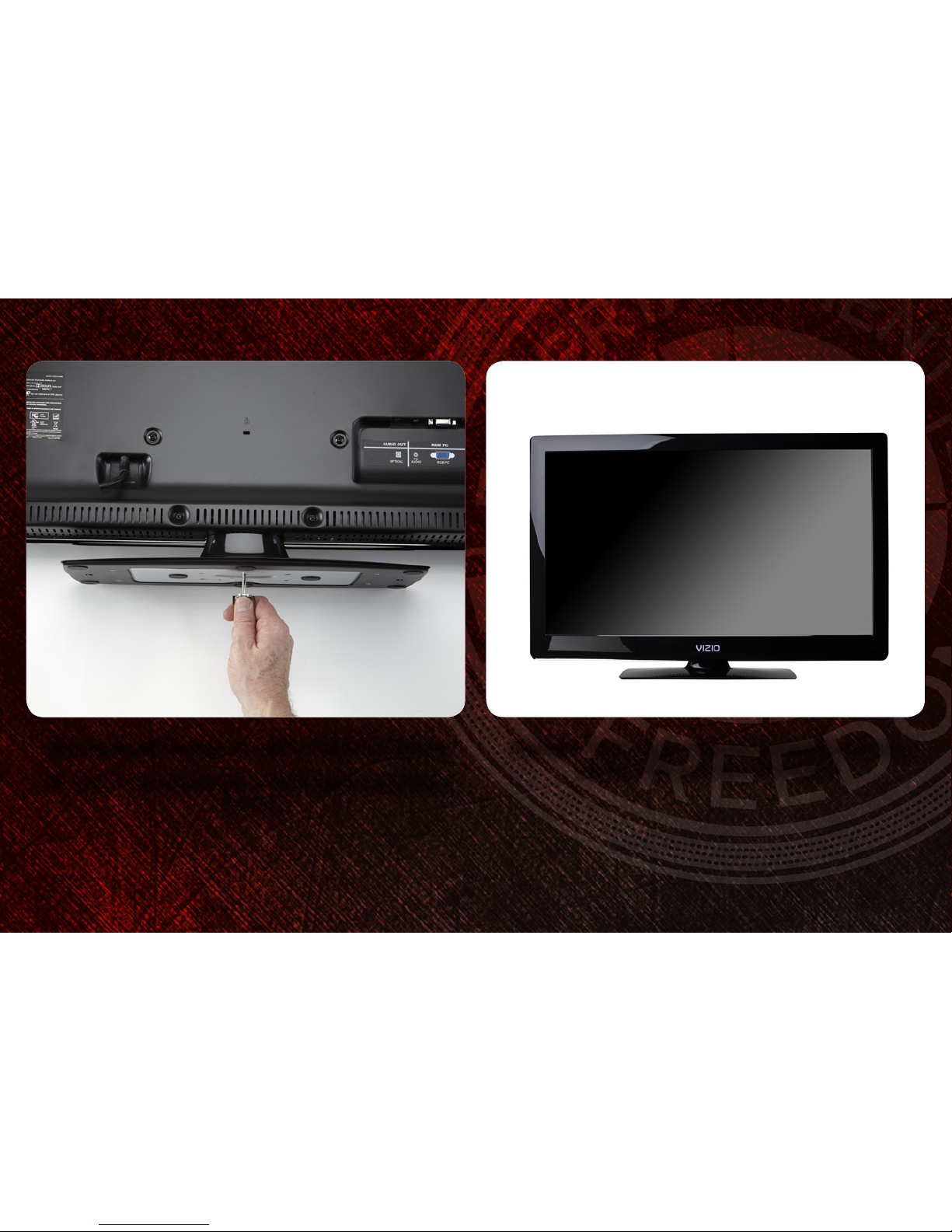

Turn the attached thumbscrew until it is completely tightened.

Fold down the thumbscrew tab so it is ﬂat against the bottom of

the base.

Move the TV with attached stand into an upright position and

place on a ﬂat, level, and stable surface.

FIRST-TIME SETUP

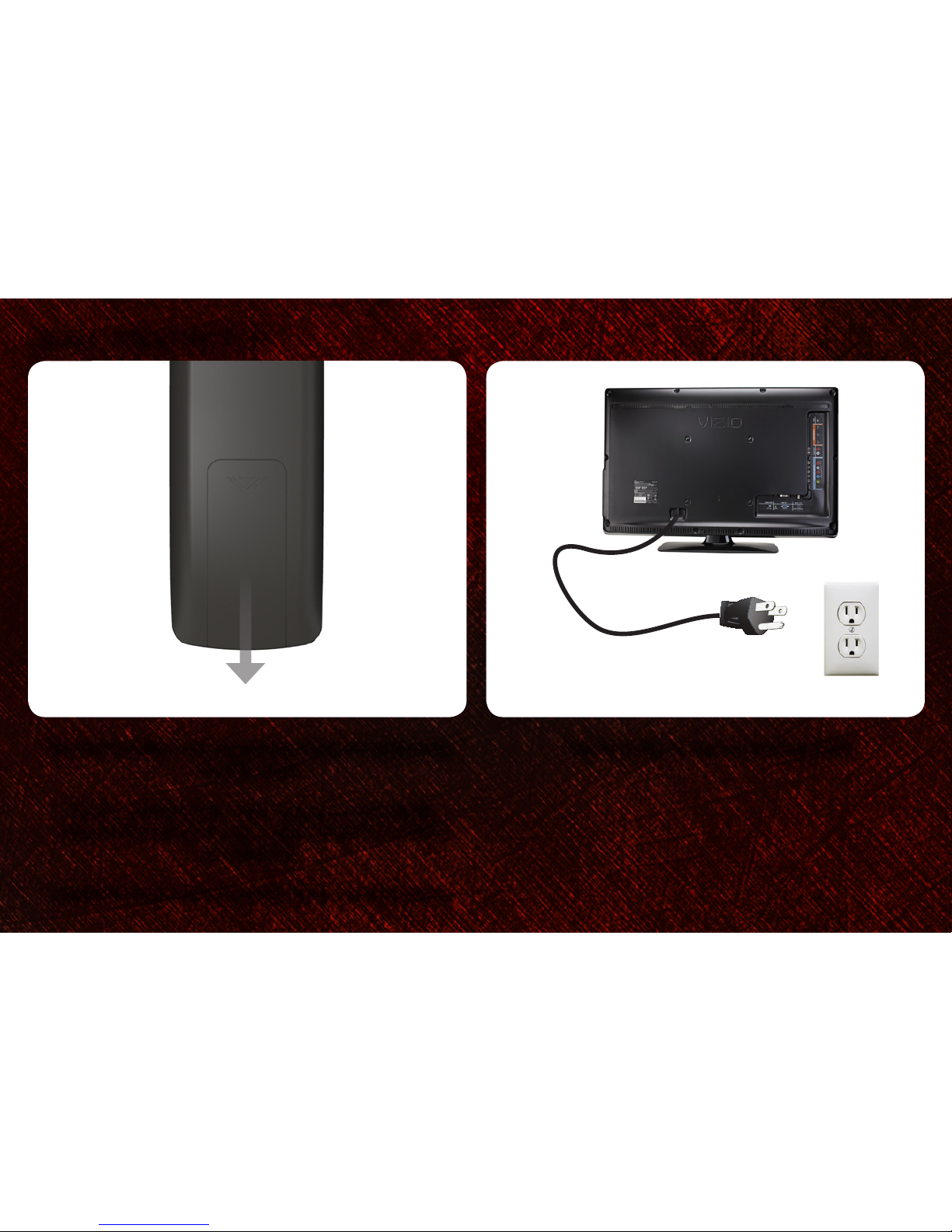

Plug the power cord into an electrical outlet.

Remove the battery cover by pressing gently and sliding away

from the remote.

Insert the batteries. The +and -symbols on the batteries

must correspond to the +and -symbols inside the battery

compartment.

Replace the battery cover by gently sliding it back into place.

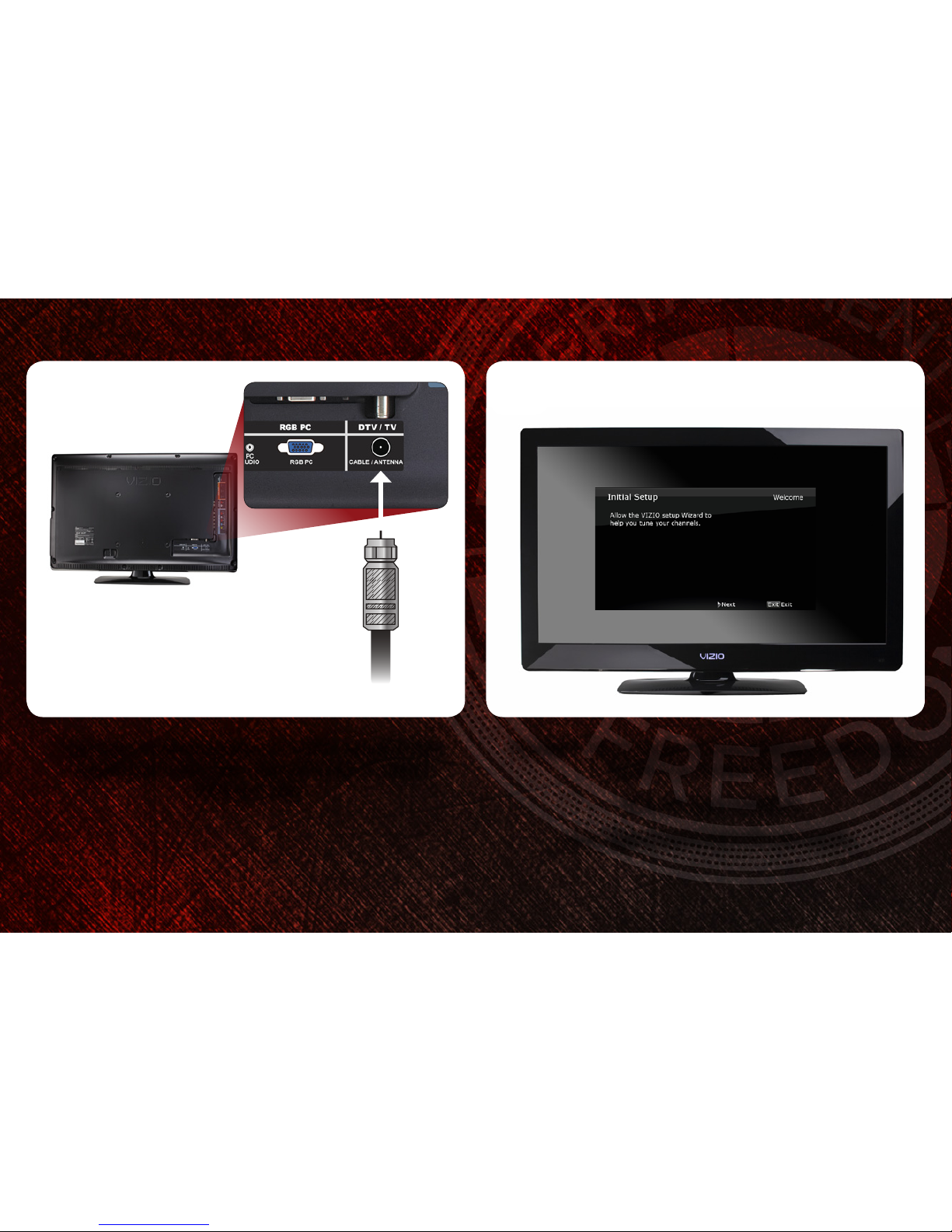

If you have an external antenna or a cable connection that

extends from a wall outlet, connect it to the TV with an

RF/Coaxial cable.

Turn the TV on by pressing the Power/Standby button on the

remote or on the side of the TV.

The Setup App is displayed.

Press Right Arrow to go to the next screen.

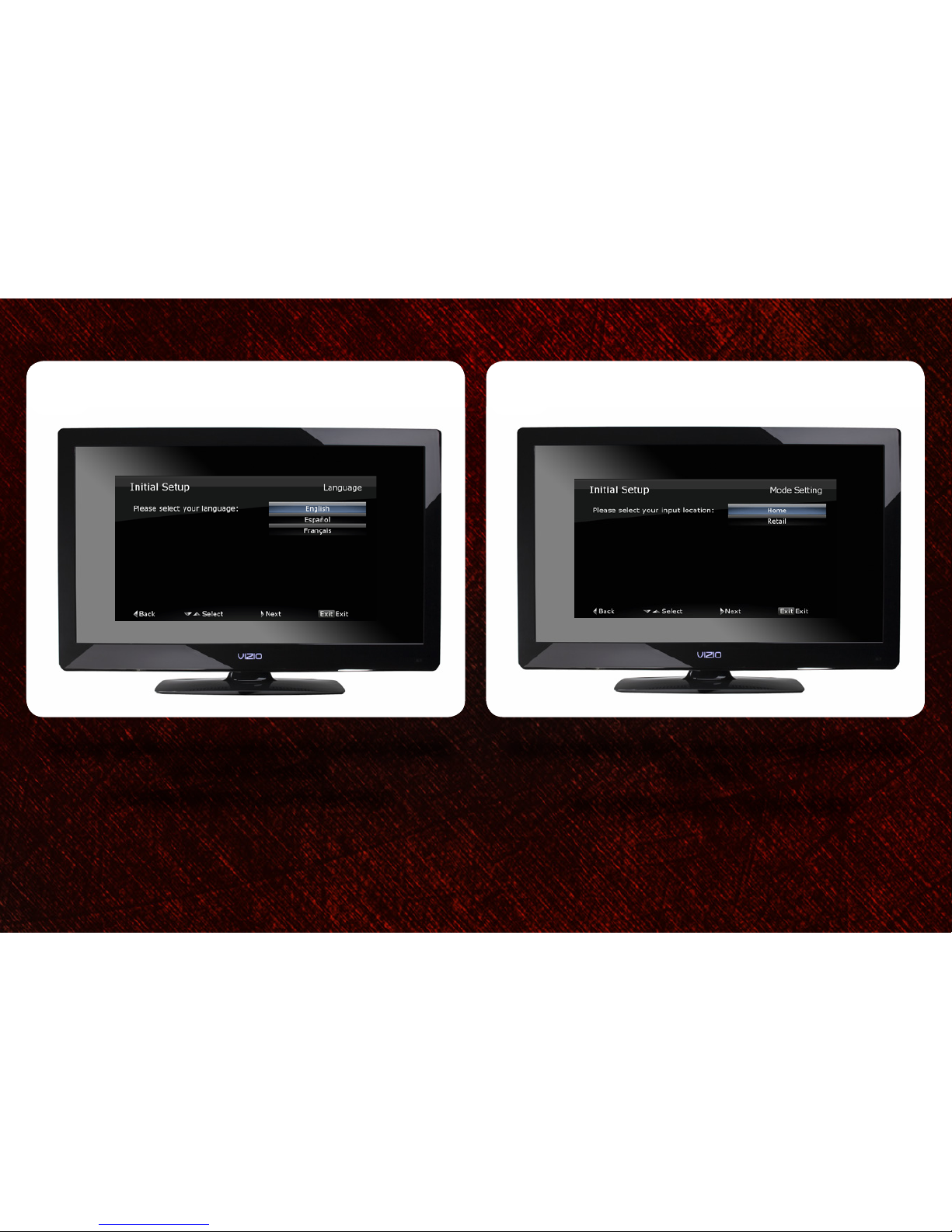

Press the Up/Down Arrow buttons on the remote to highlight

your preferred language.

Press Right Arrow to go to the next screen.

Press the Up/Down Arrow buttons on the remote to highlight

Home Mode.

Press Right Arrow to go to the next screen.

If the TV is connected to an external antenna, select Antenna, then press

Right Arrow and go to step 8.

If the TV is connected to a cable service without a set-top box (cable is

connected directly from the wall outlet) select Cable, then press Right Arrow

and go to step 8.

If the TV is connected to a cable or satellite set-top box, press the EXIT button

on the remote, then select the input to which your set-top box is connected

(HDMI, COMP, or AV).

Press the Up/Down Arrow buttons on the remote to highlight

Scan.

Press Right Arrow to begin the channel scan.

Wait for the channel scan to ﬁnish.

When the channel scan is complete, the ﬁrst-time setup is

complete.

CONNECTING YOUR DEVICES

Ensure your device has one of the above ports.

Turn your device and the TV off.

Connect your devices using the connection chart on the next

page. This chart shows the most common connections. If you

would like to see additional connection options, see

Connecting

Your Devices

in the user manual.

HDMI

Component

Composite AV

VIZIO RECOMMENDS

To get the best high-resolution picture and sound on your new

VIZIO TV, connect your devices with an HDMI cable.

VIZIO High Speed HDMI Cables are manufactured to produce

the best picture on VIZIO TVs and feature:

•1080p and for full HD video and future Ultra-HD video

•Great ﬂexibility for thin wall mounts

•Stays securely connected at sharp angles

•Limited lifetime warranty

Visit www.VIZIO.com to purchase online.
